CLUTCH GROUP - TC2-G211001

Kioti TRACTOR | CK Series | CK3520

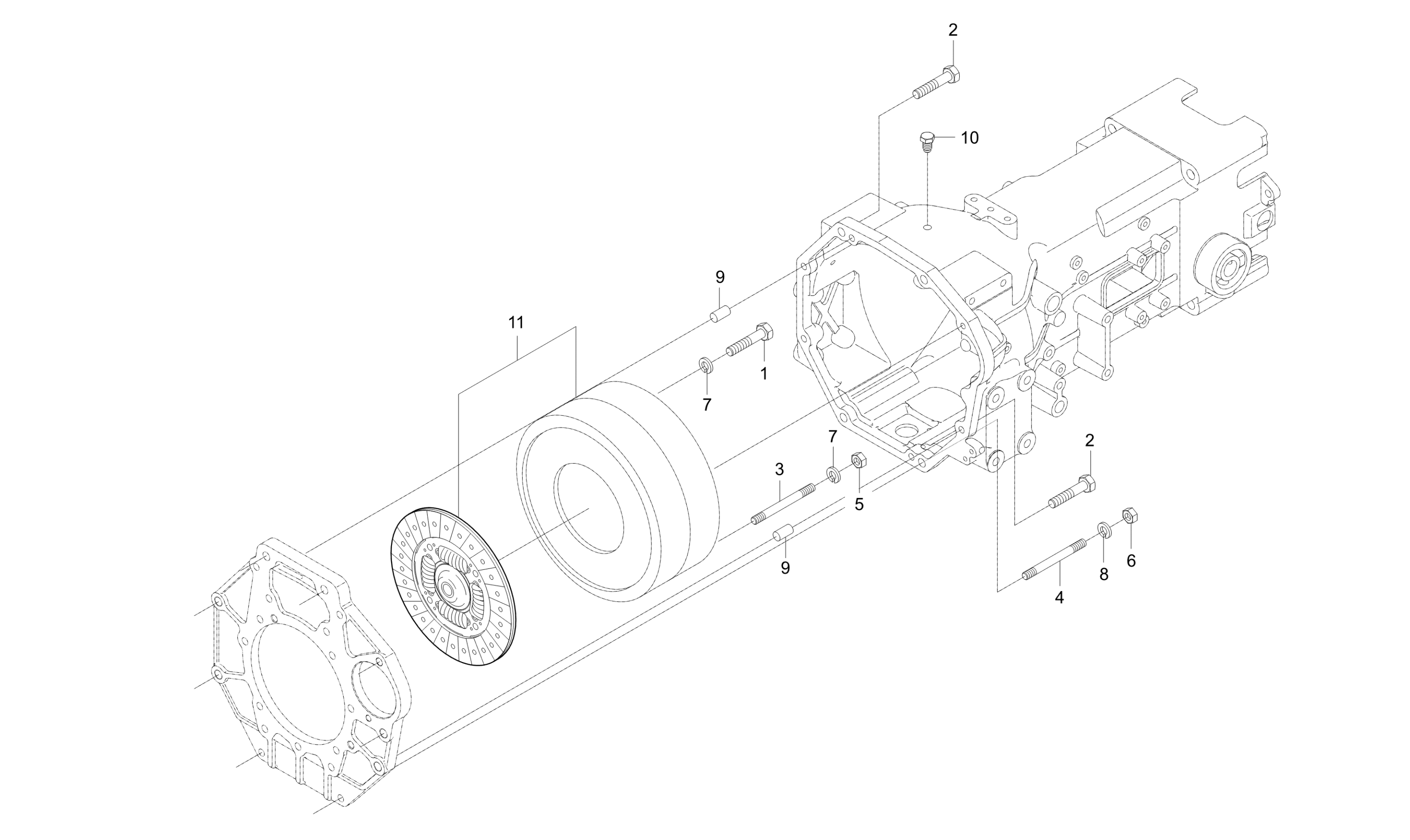

Diagram for CLUTCH GROUP - TC2-G211001
  • 1

    Bolt With Washer, M8 P1.25 x 80mm

    • Part No. 01123-50880
    • M8XP1.25
    • 4 shown on diagram
    $3.99
  • 2 BOLT M12P1.25×40 v

    BOLT M12P1.25×40 v

    • Part No. 01177-51240
    • M12XP1.25 (9T/SP
    • 6 shown on diagram
    $2.99
  • 3

    STUD

    • Part No. 01513-50880
    • 2 shown on diagram
    $4.99
  • 4

    STUD

    • Part No. 01574-51235
    • M12*1.25*30
    • 2 shown on diagram
    $6.49
  • 5
    • Part No. 02156-50080
    • M8XP1.25
    • 2 shown on diagram
  • 6 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 2 shown on diagram
    $1.49
  • 7 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 2 shown on diagram
    $.61
  • 8
    • Part No. 04512-50120
    • M12
    • 2 shown on diagram
  • 9

    PIN, STRAIGHT

    • Part No. 05012-01020
    • DIA10XL20
    • 2 shown on diagram
    $1.79
  • 10

    PLUG v

    • Part No. T2305-43883
    • 1 shown on diagram
    $7.49
  • 11
    • Part No. T5815-14353
    • 225DW380
    • 1 shown on diagram
