PTO SHAFT GROUP - TC2-G2C4005

Kioti TRACTOR | CK Series | CK3520

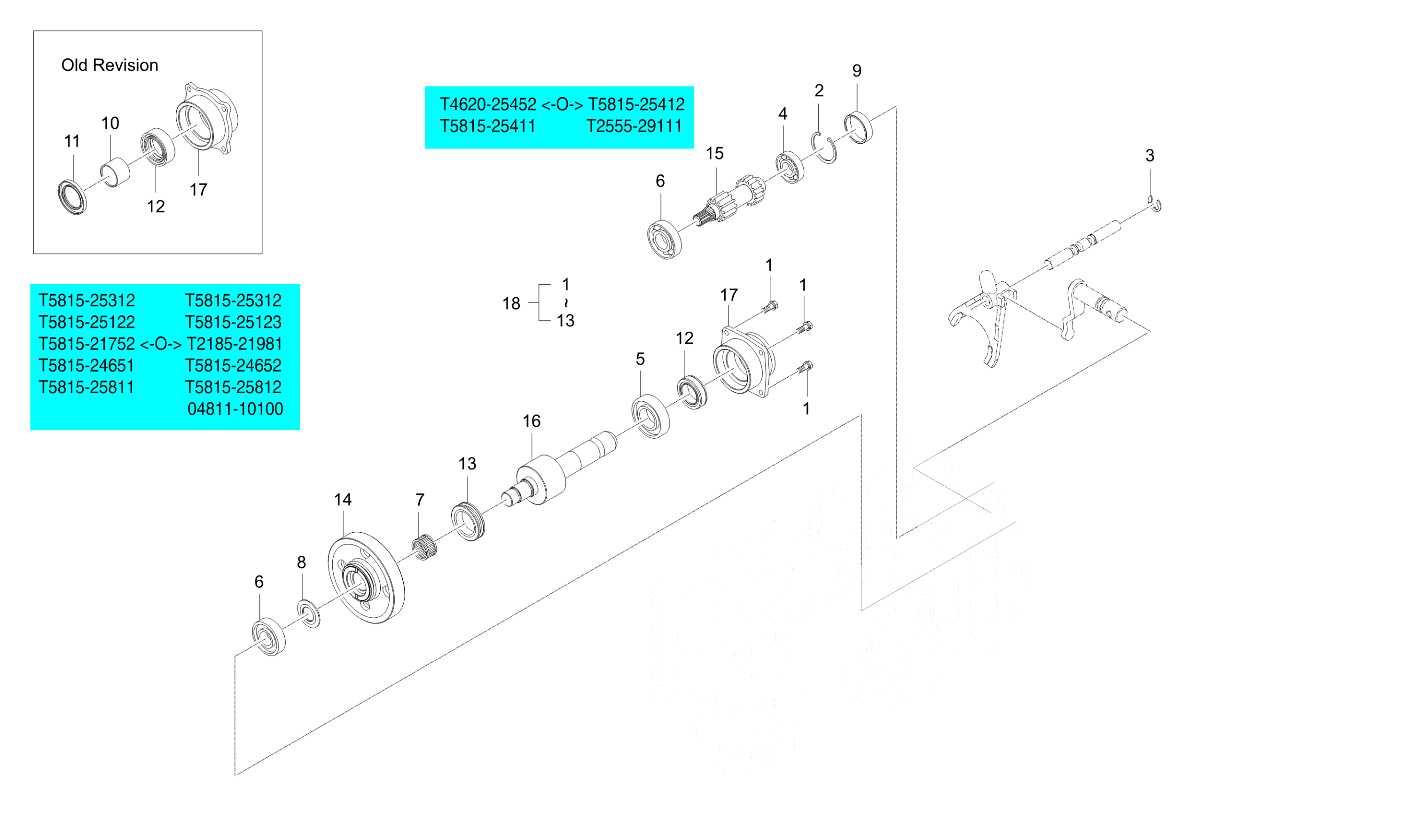

Diagram for PTO SHAFT GROUP - TC2-G2C4005
  • 1 Bolt With Washer, M8 P1.25 x 22mm

    Bolt With Washer, M8 P1.25 x 22mm

    • Part No. 01123-50822
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 2 CIR-CLIP

    CIR-CLIP

    • Part No. 04611-00520
    • DIA52
    • 1 shown on diagram
    $2.49

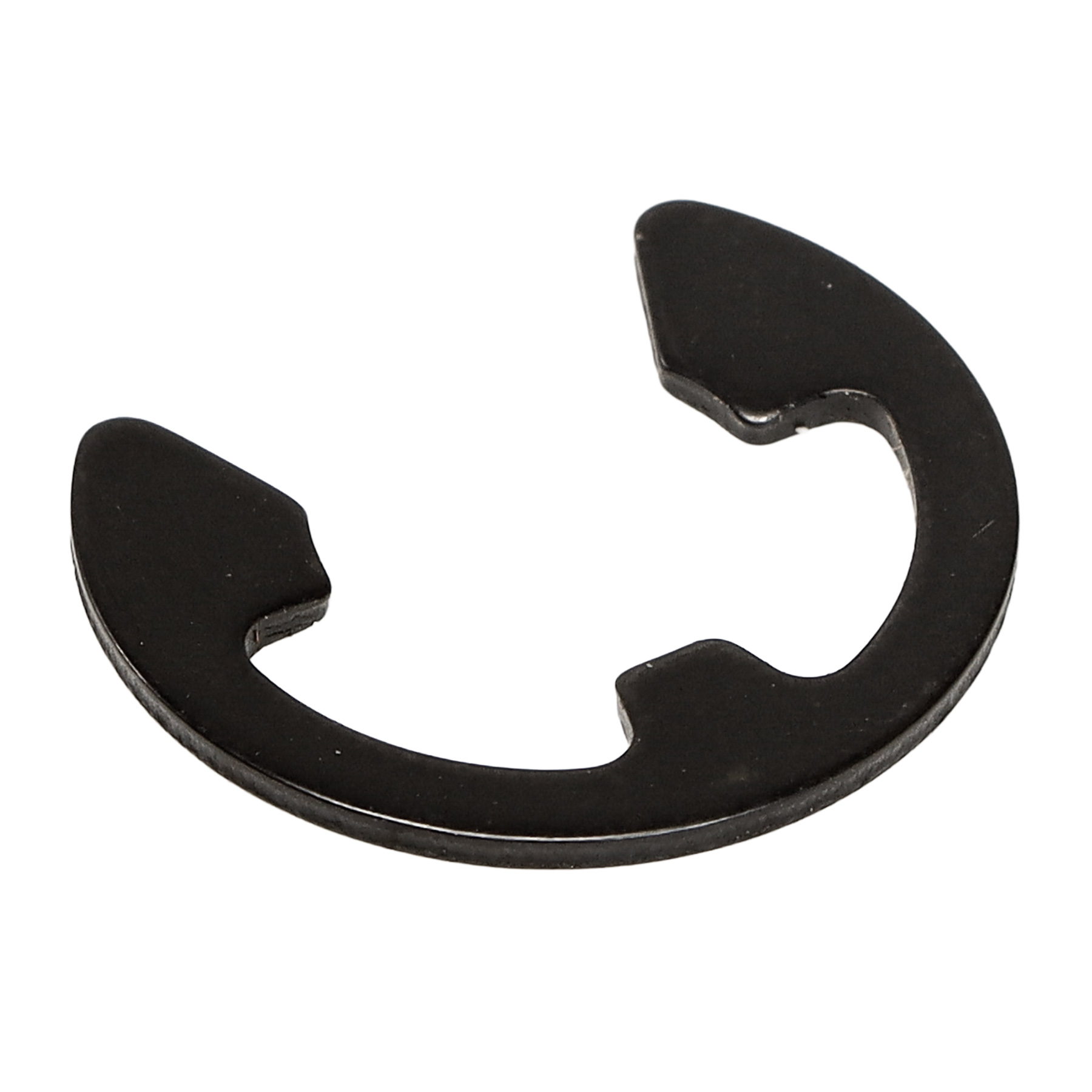

  • 3 RING SNAP

    RING SNAP

    • Part No. 04613-50100
    • 1 shown on diagram
    $0.49
  • 4 Bearing 25x52x15

    Bearing 25x52x15

    • Part No. 08101-06205
    • DIA25
    • 1 shown on diagram
    $17.99
  • 5 Bearing 6207 35x72x17

    Bearing 6207 35x72x17

    • Part No. 08101-06207
    • DIA35
    • 1 shown on diagram
    $28.99
  • 6

    BEARING,BALL

    • Part No. 08101-06305
    • DIA25
    • 2 shown on diagram
    $24.99
  • 7

    BEARING, NEEDLE

    • Part No. 08822-83326
    • Inner diameter 28
    • 1 shown on diagram
    $34.99
  • 8

    COLLAR, THRUST v

    • Part No. T2305-21762
    • T3.2
    • 1 shown on diagram
    $18.99

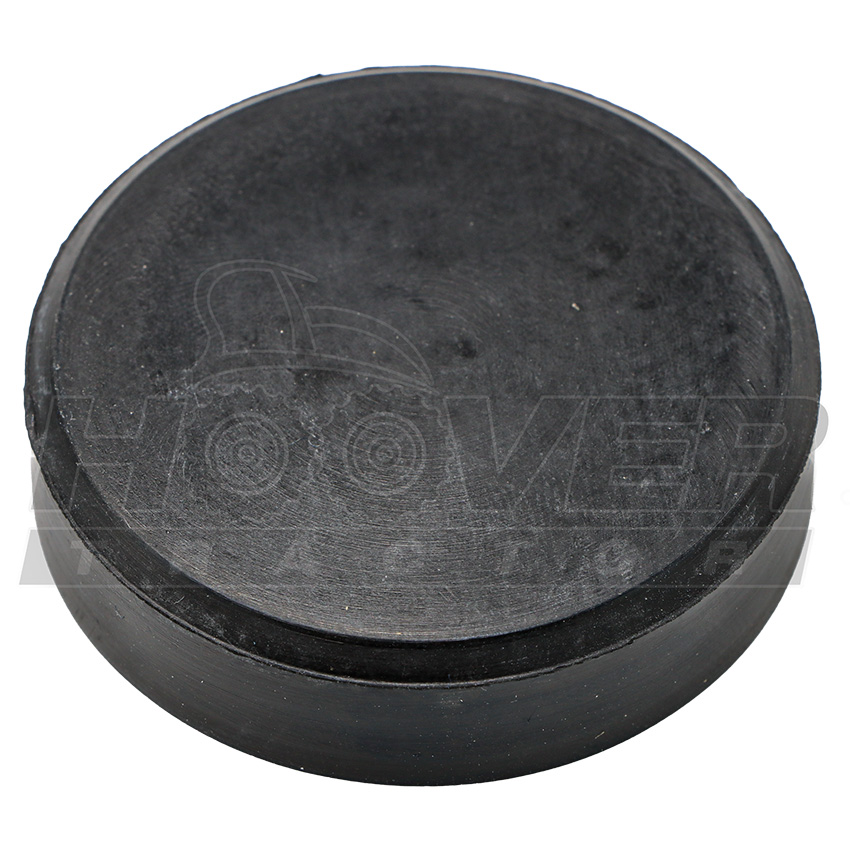

  • 9 SEAL CAP 52

    SEAL CAP 52

    • Part No. T2350-25421
    • 1 shown on diagram
    $7.99
  • 10

    SLEEVE

    • Part No. T4620-25383
    • 1 shown on diagram
    $39.99

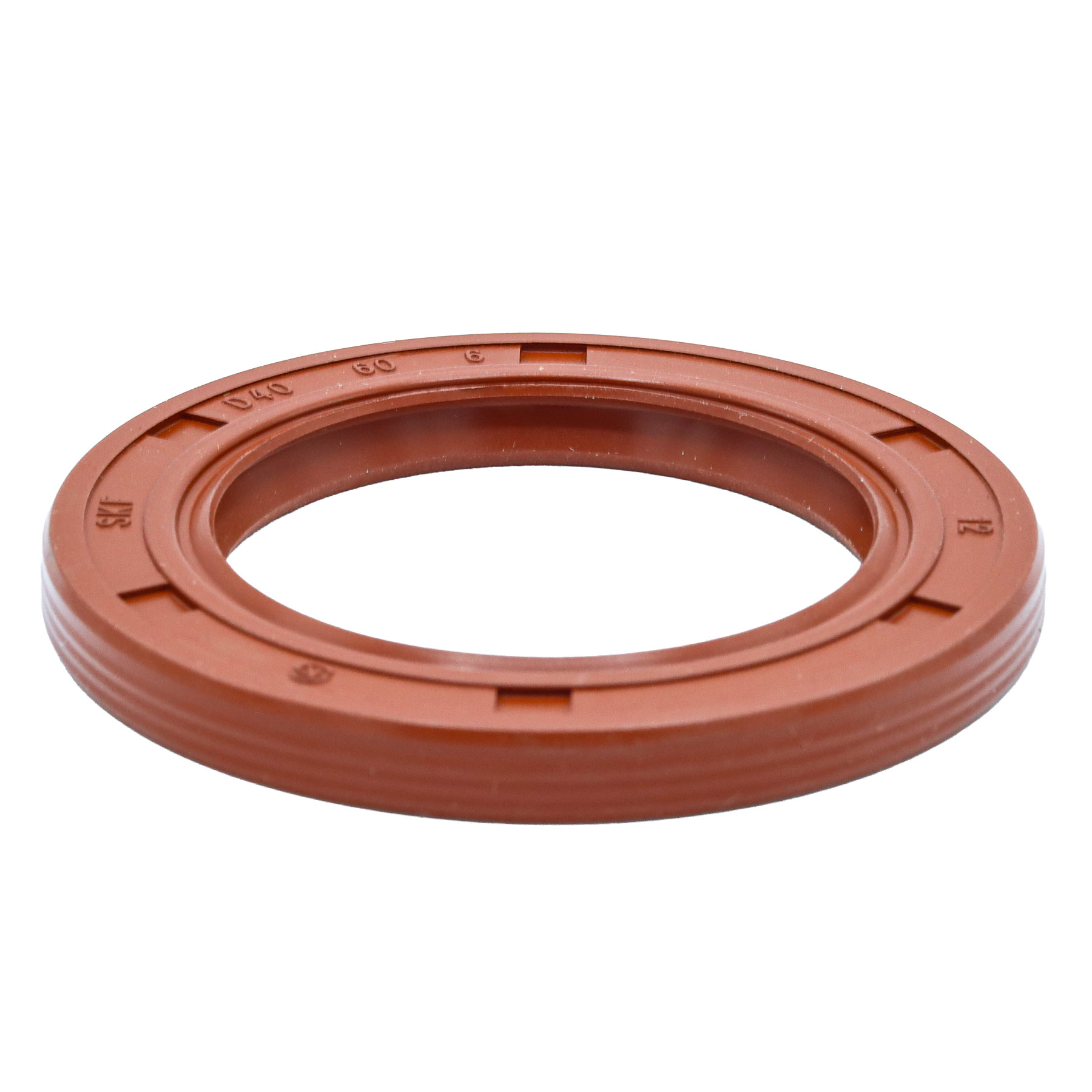

  • 11 SEAL, OIL V

    SEAL, OIL V

    • Part No. T4620-25442
    • 1 shown on diagram
    $25.99

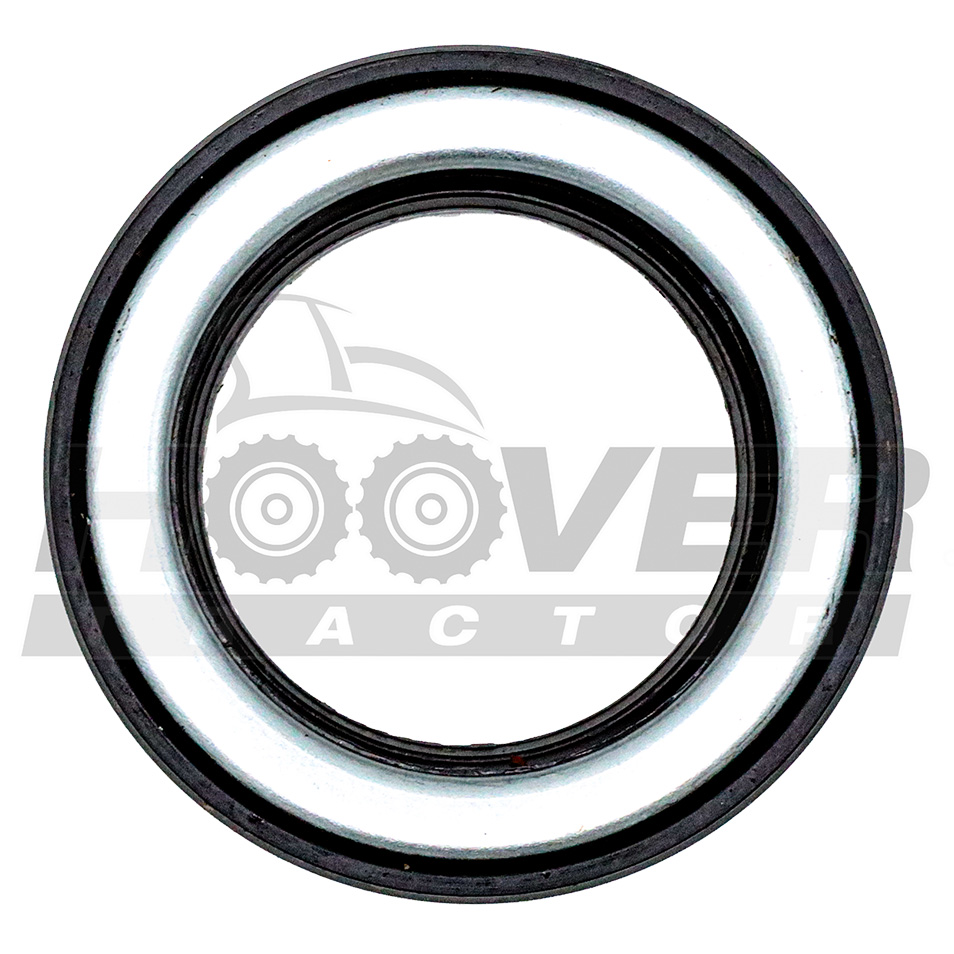

  • 12 OIL SEAL

    OIL SEAL

    • Part No. T2555-29111
    • 1 shown on diagram
    $28.99

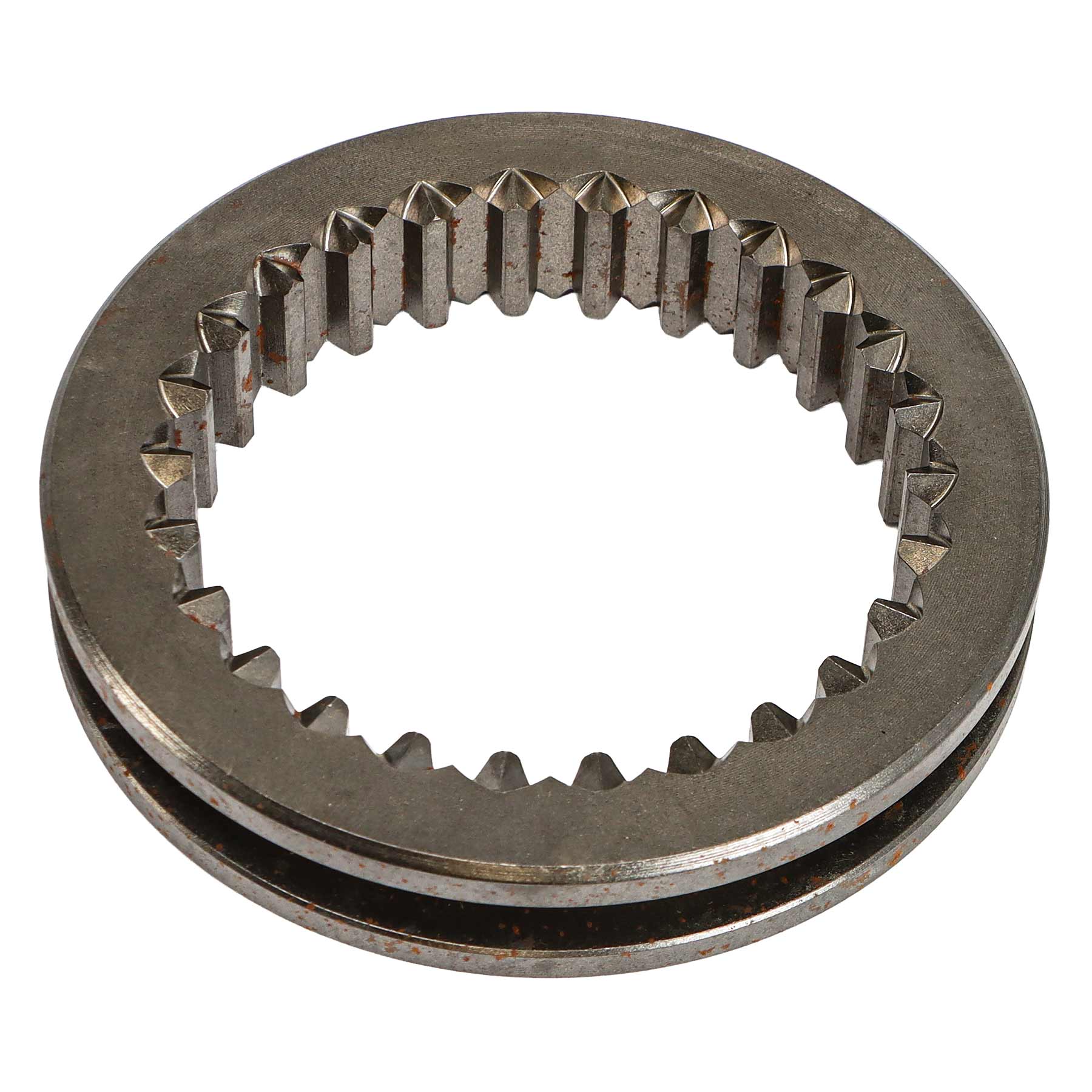

  • 13 SHIFTER

    SHIFTER

    • Part No. T2185-21981
    • 1 shown on diagram
    $98.99

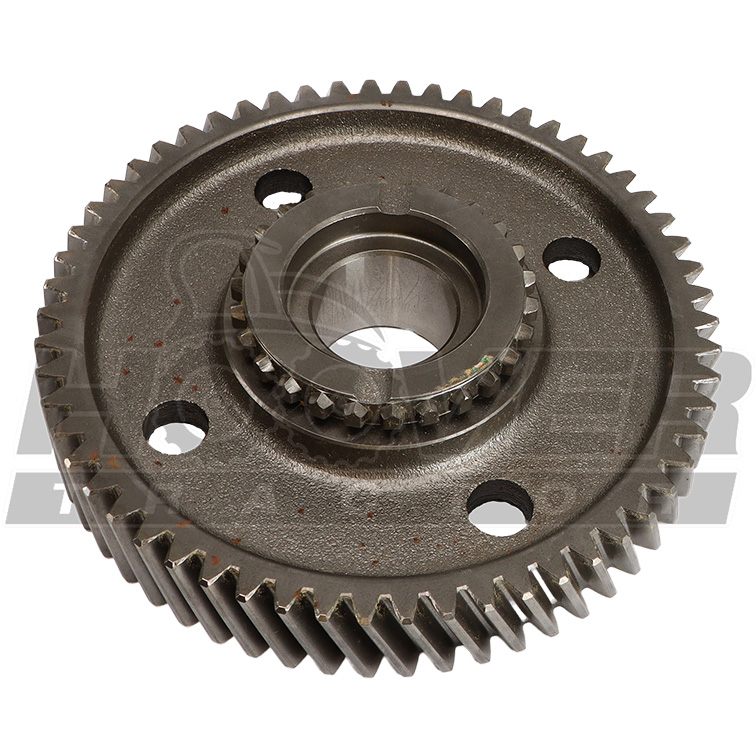

  • 14 GEAR 58

    GEAR 58

    • Part No. T5815-25123
    • 1 shown on diagram
    $269.99
  • 15

    SHAFT, GEAR 13

    • Part No. T5815-25231
    • 1 shown on diagram
    $179.99

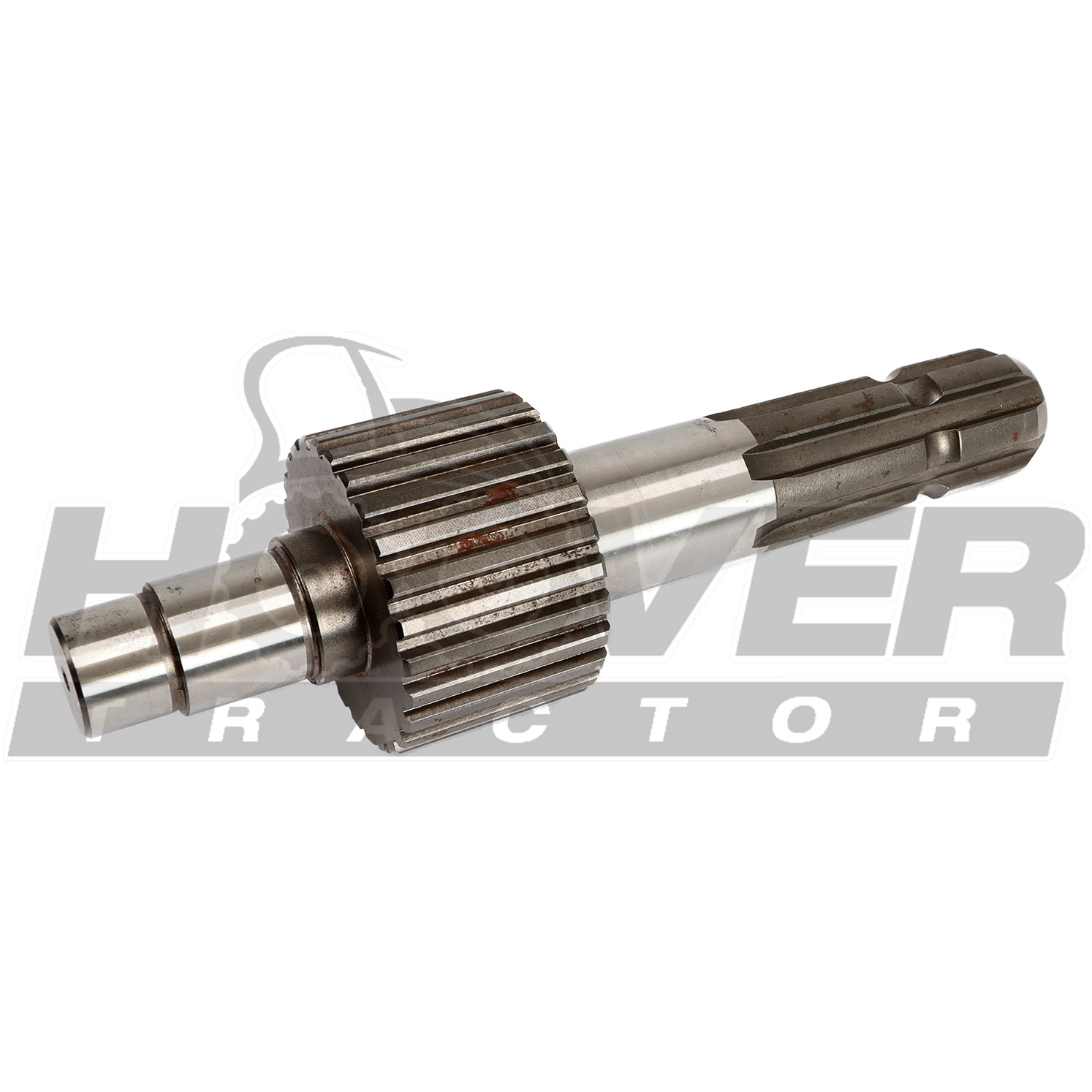

  • 16 SHAFT, PTO OUTPUT

    SHAFT, PTO OUTPUT

    • Part No. T5815-25313
    • 1 shown on diagram
    $259.99
  • 17
    • Part No. T5815-25412
    • 1 shown on diagram
  • 18

    NC – 333-SCA NUMBER REQUIRED BY PSR – PTO REPAIR KIT v, Replaced by KITCKPTO

    • Part No. TC20-SG2C5
    • 1 shown on diagram
    $.00
