REAR AXLE GROUP - TC2-G2A1001

Kioti TRACTOR | CK Series | CK3520

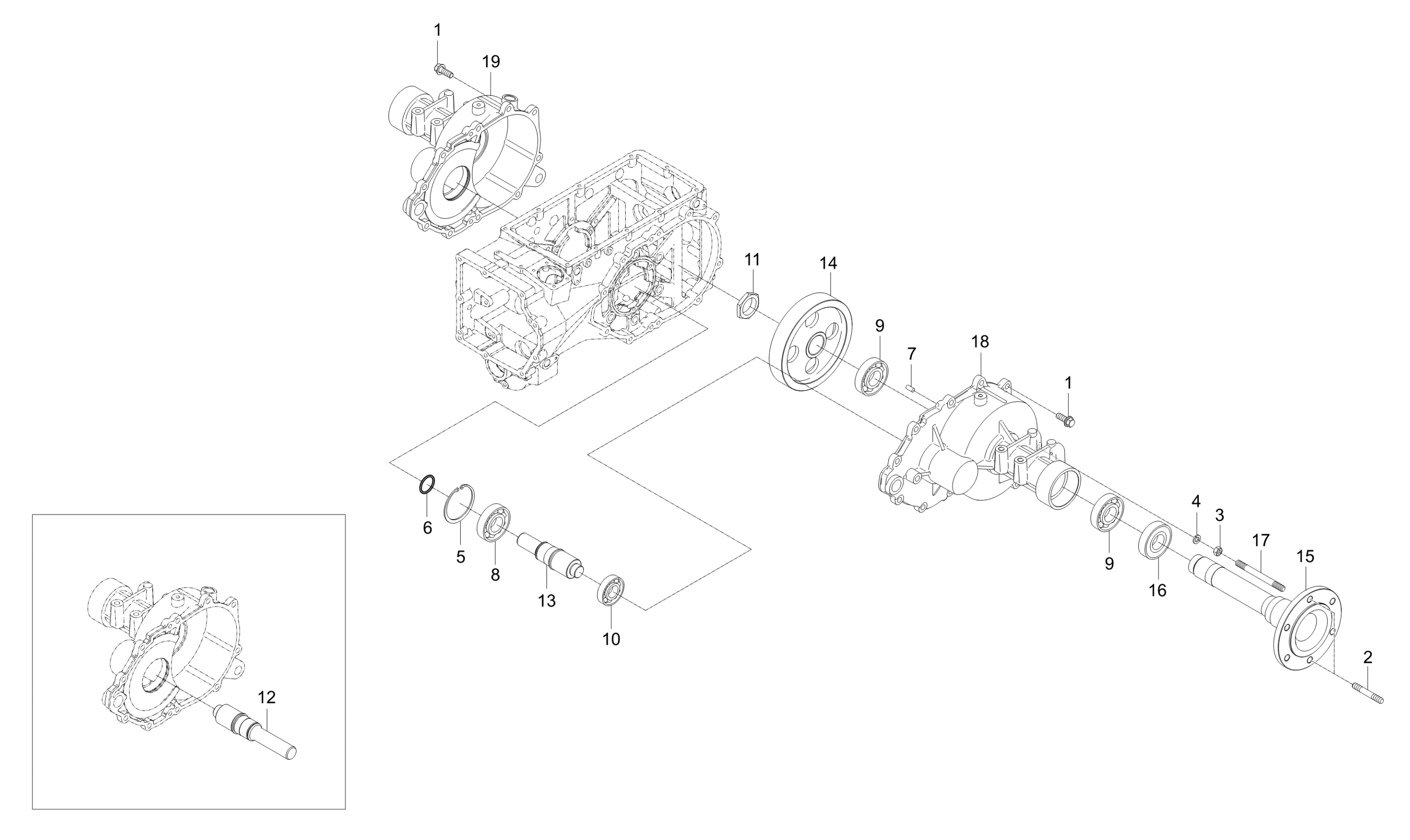

Diagram for REAR AXLE GROUP - TC2-G2A1001
  • 1

    BOLT v

    • Part No. 01177-51235
    • M12XP1.25
    • 16 shown on diagram
    $3.49
  • 2 STUD

    STUD

    • Part No. 01517-51632
    • M16*1.5*32
    • 4 shown on diagram
    $4.49
  • 3 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 4 shown on diagram
    $1.49
  • 4
    • Part No. 04512-50120
    • M12
    • 4 shown on diagram
  • 5

    RING,SNAP

    • Part No. 04611-00850
    • 2 shown on diagram
    $9.99
  • 6
    • Part No. 04811-00390
    • 2 shown on diagram
  • 7
    • Part No. 05012-01018
    • DIA10XL18
    • 4 shown on diagram

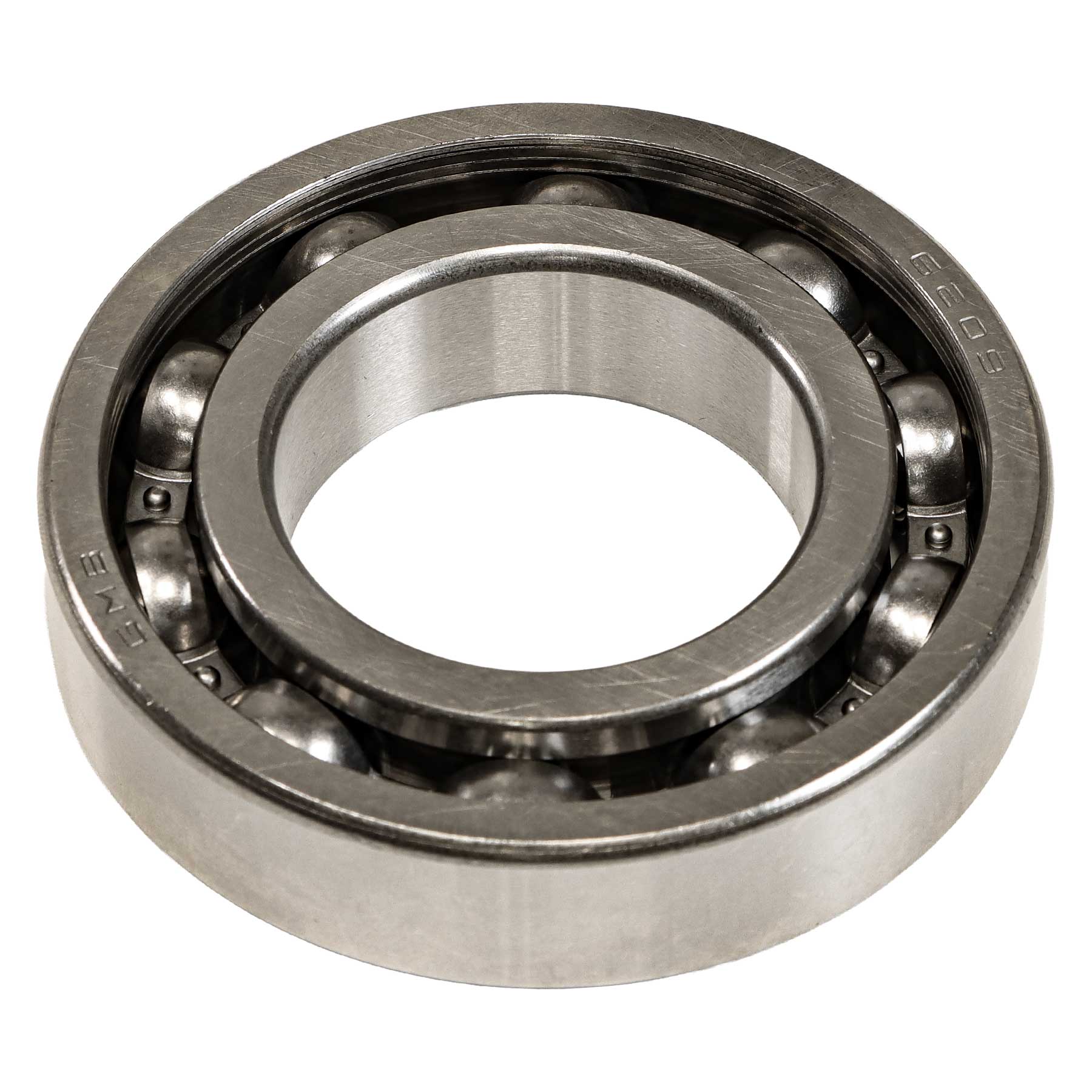

  • 8 BEARING, BALL 45x85x19

    BEARING, BALL 45x85x19

    • Part No. 08101-06209
    • #6209
    • 2 shown on diagram
    $45.99

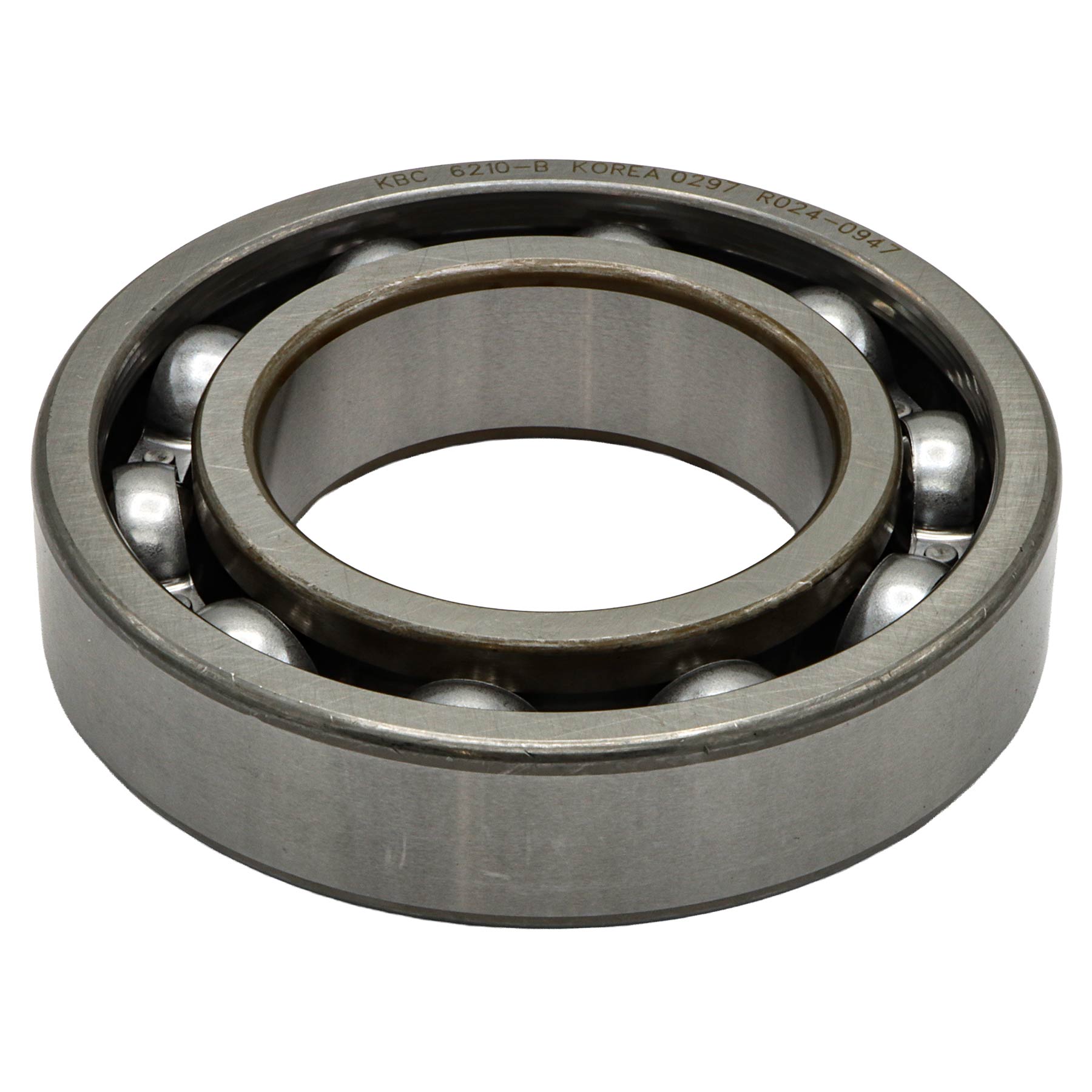

  • 9 BEARING, BALL 50x90x20

    BEARING, BALL 50x90x20

    • Part No. 08101-06210
    • #6210
    • 4 shown on diagram
    $51.99
  • 10 BEARING, BALL 6306

    BEARING, BALL 6306

    • Part No. 08101-06306
    • DIA30
    • 2 shown on diagram
    $29.99
  • 11 NUT, REAR AXLE

    NUT, REAR AXLE

    • Part No. T2185-27202
    • 2 shown on diagram
    $29.99
  • 12

    SHAFT, GEAR 9 in length v

    • Part No. T5815-26711
    • 1 shown on diagram
    $299.99
  • 13

    SHAFT, GEAR 7 in length v

    • Part No. T5815-26721
    • 1 shown on diagram
    $264.99
  • 14

    GEAR, 56

    • Part No. T5815-26832
    • 2 shown on diagram
    $599.99
  • 15

    WHEEL SHAFT

    • Part No. T5815-27113
    • * multiple options for #15
    • 2 shown on diagram
    $414.99
  • 15

    WHEEL SHAFT

    • Part No. T5815-27114
    • Compatibility Interchngable
    • * multiple options for #15
    • 1 shown on diagram
    $.00
  • 16
    • Part No. T5815-27131
    • 2 shown on diagram
  • 17

    BOLT, STUD

    • Part No. T5815-27361
    • M12*1.25
    • 4 shown on diagram
    $12.99
  • 18

    CASE,REAR AXLE LH v

    • Part No. T5815-28134
    • 1 shown on diagram
    $314.99
  • 19
    • Part No. T5815-28144
    • 1 shown on diagram
