FRONT WHEEL DRIVE SHAFT GROUP - TC2-G2B1003

Kioti TRACTOR | CK Series | CK3520

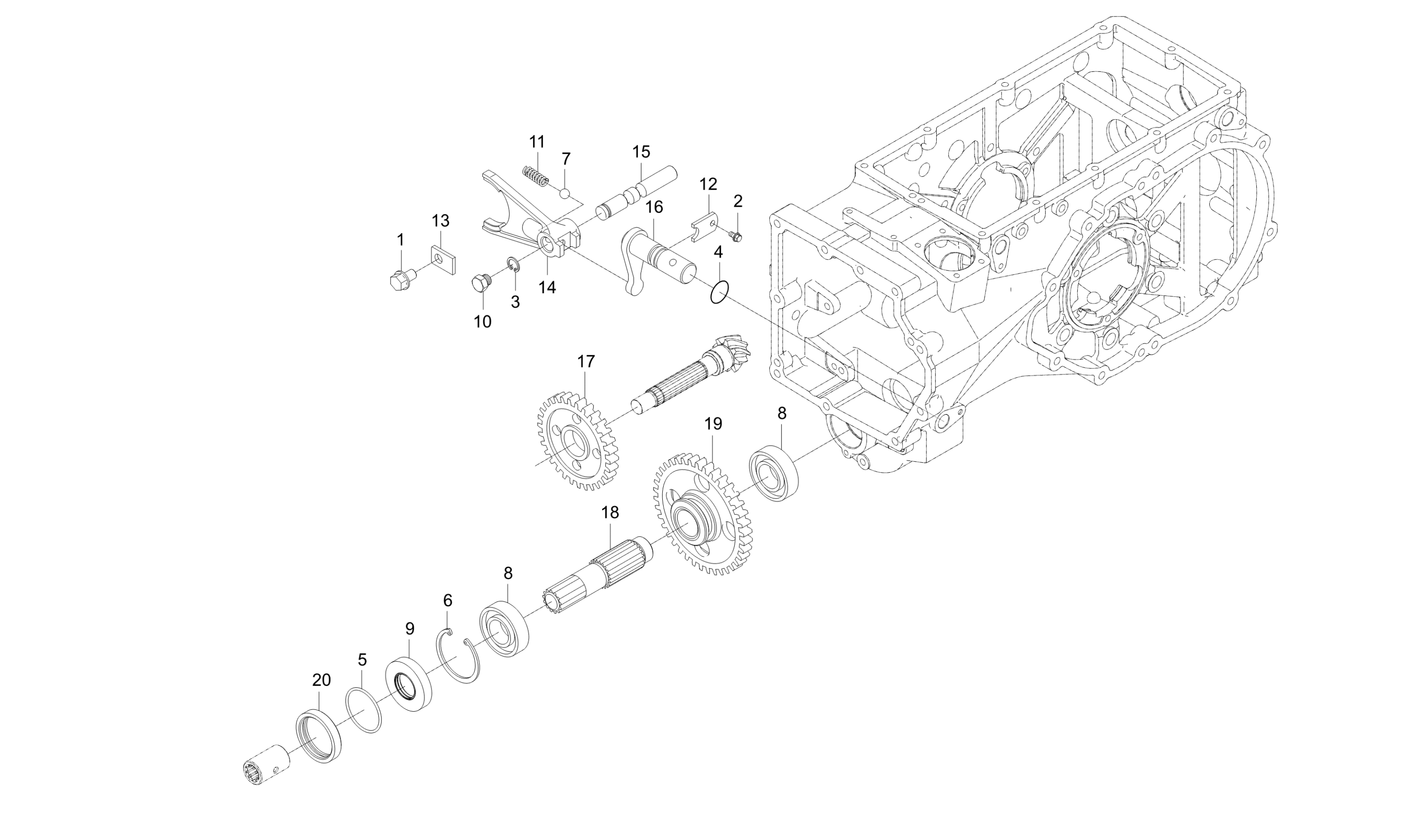

Diagram for FRONT WHEEL DRIVE SHAFT GROUP - TC2-G2B1003
  • 1 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 2 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 3

    SNAP RING

    • Part No. 04611-00120
    • 1 shown on diagram
    $0.67
  • 4 O RING

    O RING

    • Part No. 04811-00140
    • 1 shown on diagram
    $.90
  • 5 O RING

    O RING

    • Part No. 04811-06420
    • DIA42.2
    • 1 shown on diagram
    $1.69
  • 6 CIR-CLIP

    CIR-CLIP

    • Part No. 04611-00520
    • DIA52
    • 1 shown on diagram
    $2.49
  • 7 BALL,STEEL

    BALL,STEEL

    • Part No. 07715-01605
    • DIA7.9375
    • 1 shown on diagram
    $0.56
  • 8 Bearing 25x52x15

    Bearing 25x52x15

    • Part No. 08101-06205
    • DIA25
    • 2 shown on diagram
    $17.99
  • 9
    • Part No. 09502-55210
    • DIA25
    • 1 shown on diagram

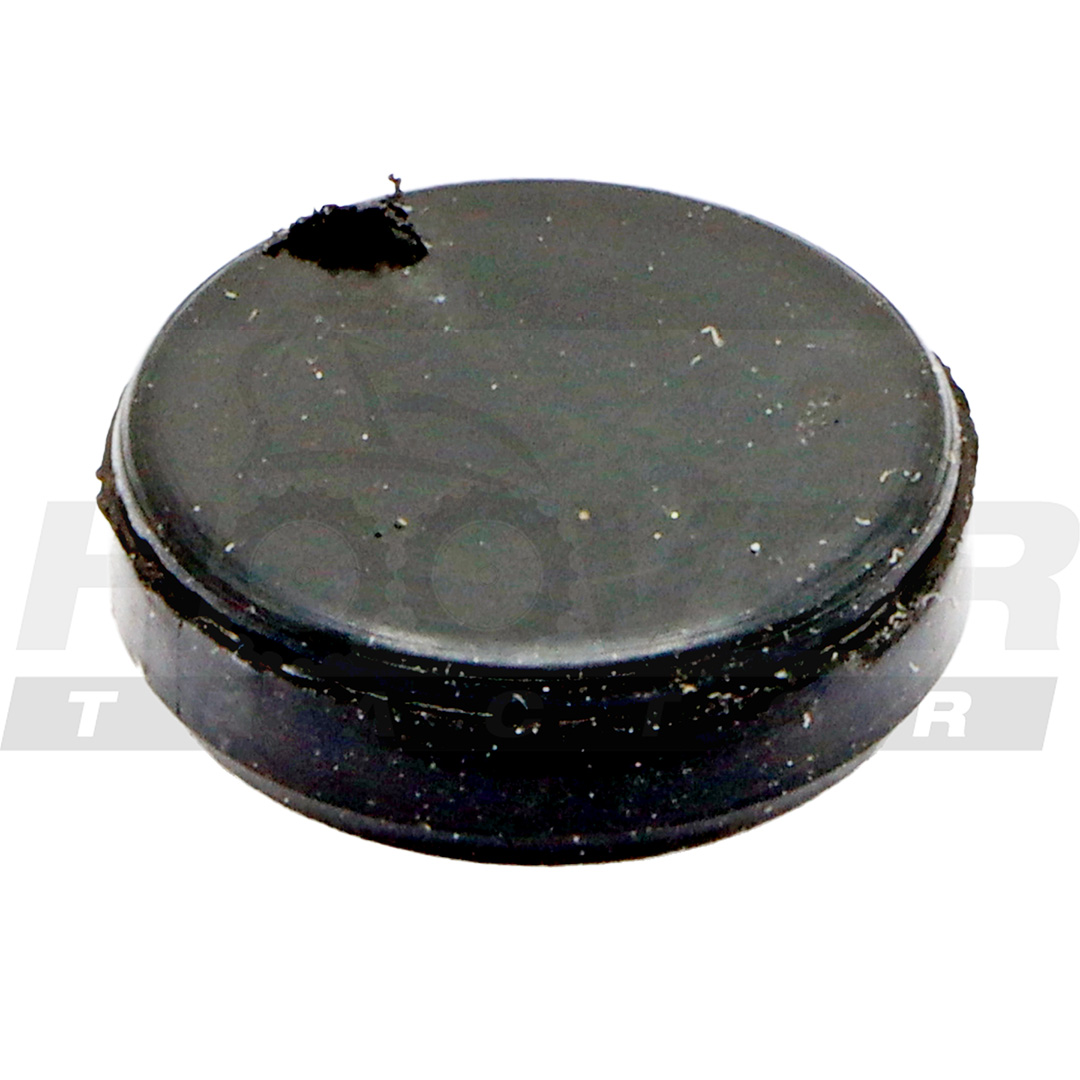

  • 10 STEEL PLUG

    STEEL PLUG

    • Part No. 37220-2125-1
    • 1 shown on diagram
    $4.49
  • 11
    • Part No. 62331-1853-2
    • DIA1.4
    • 1 shown on diagram
  • 12

    STOPPER

    • Part No. T2350-23132
    • T3.2
    • 1 shown on diagram
    $6.49
  • 13

    STOPPER

    • Part No. T2555-23331
    • 1 shown on diagram
    $5.49
  • 14

    FORK, SHIFT(4WD)

    • Part No. T5815-44112
    • 1 shown on diagram
    $99.99
  • 15

    ROD, FORK

    • Part No. T5815-44211
    • 1 shown on diagram
    $22.99
  • 16

    ARM,FRONT DRIVE

    • Part No. T5815-44312
    • 1 shown on diagram
    $59.99

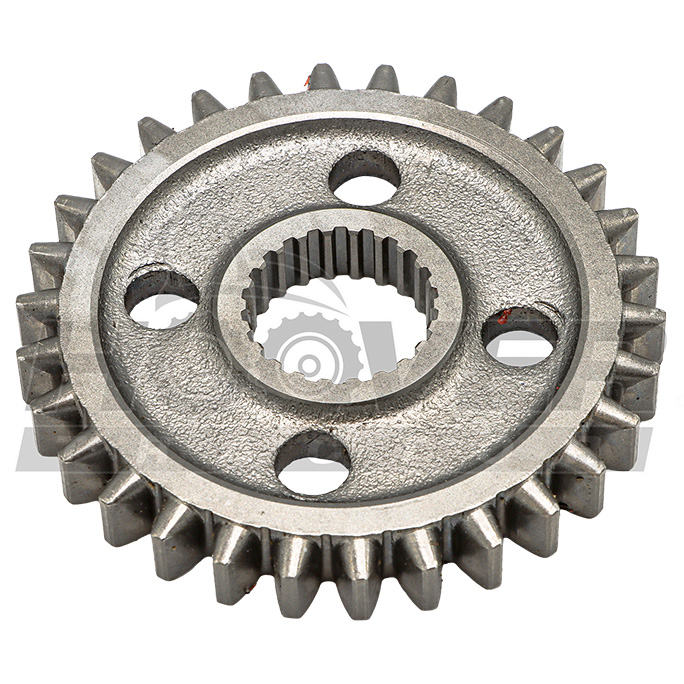

  • 17 GEAR 30

    GEAR 30

    • Part No. T5815-44531
    • 1 shown on diagram
    $114.99
  • 18
    • Part No. T5815-44562
    • 1 shown on diagram

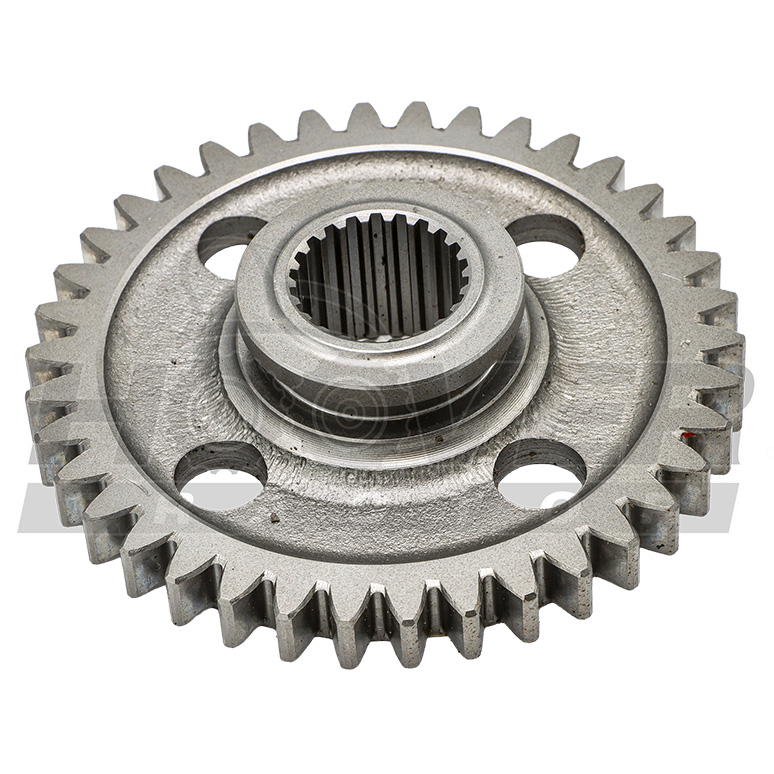

  • 19 GEAR 38

    GEAR 38

    • Part No. T5815-44611
    • 1 shown on diagram
    $174.99
  • 20

    SLEEVE

    • Part No. T5815-44691
    • 1 shown on diagram
    $21.99
