MAIN SHIFT SHAFT GROUP - TC2-G241001

Kioti TRACTOR | CK Series | CK3520

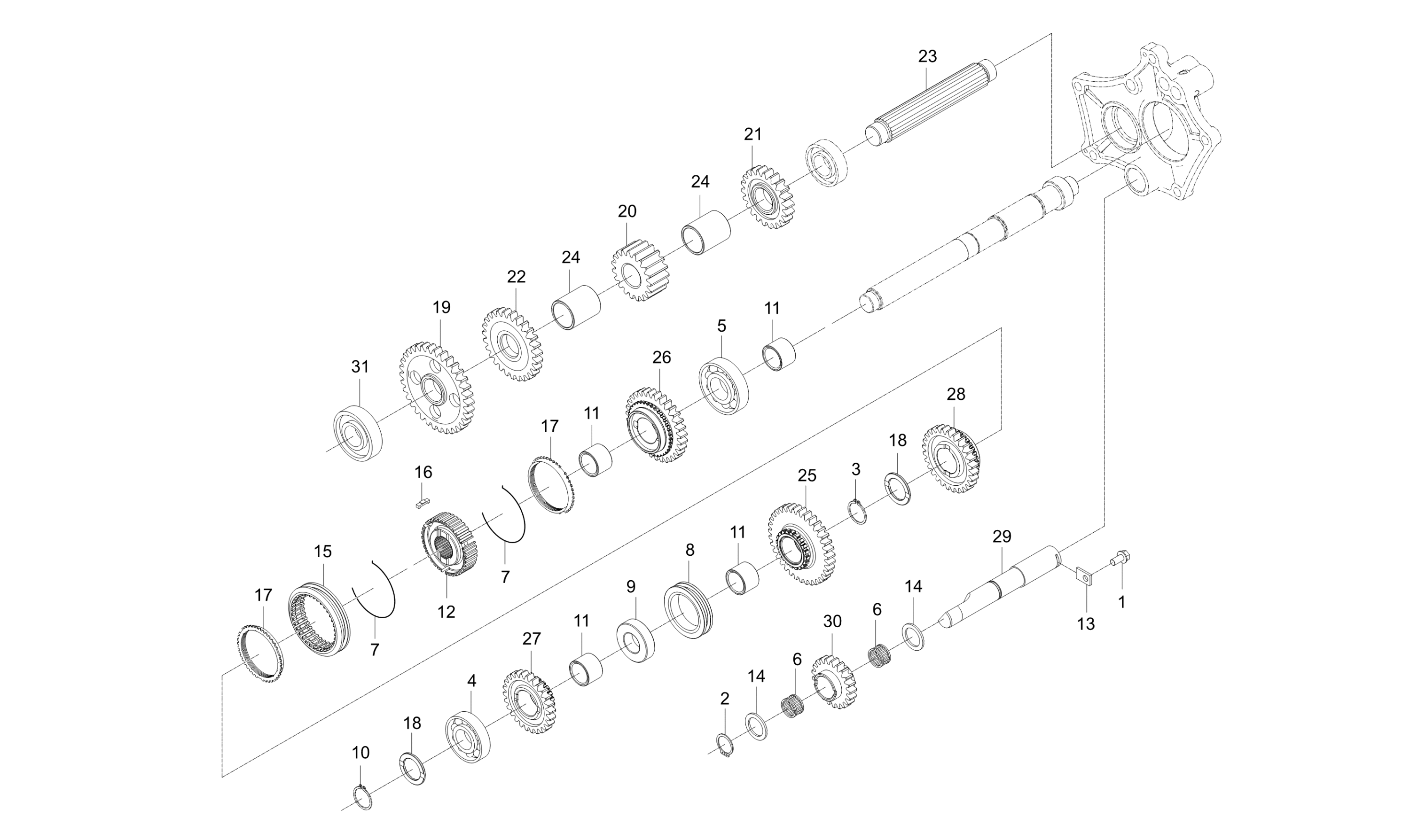

Diagram for MAIN SHIFT SHAFT GROUP - TC2-G241001
  • 1 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 2 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 1 shown on diagram
    $1.09
  • 3 Snap Ring 30mm

    Snap Ring 30mm

    • Part No. 04612-00300
    • DIA30
    • 1 shown on diagram
    $1.59
  • 4 Bearing 25x52x15

    Bearing 25x52x15

    • Part No. 08101-06205
    • DIA25
    • 1 shown on diagram
    $17.99
  • 5 BEARING, BALL 6306

    BEARING, BALL 6306

    • Part No. 08101-06306
    • DIA30
    • 1 shown on diagram
    $29.99
  • 6

    NEEDLE BEARING

    • Part No. 08822-53017
    • Inner diameter 25
    • 2 shown on diagram
    $19.99
  • 7

    SYNCHRONIZER SPRING [NLA]

    • Part No. 38360-2178-1
    • DIA1.2
    • 2 shown on diagram
    $3.99
  • 8
    • Part No. 38430-2175-1
    • 1 shown on diagram
  • 9
    • Part No. 38430-2177-1
    • 1 shown on diagram
  • 10

    RING, SNAP v

    • Part No. 38430-2554-1
    • 1 shown on diagram
    $7.49
  • 11

    RING, IN

    • Part No. 38435-2178-1
    • 4 shown on diagram
    $51.99
  • 12

    HUB, SYNCHRO

    • Part No. T2185-21651
    • 1 shown on diagram
    $92.99
  • 13

    STOPPER

    • Part No. T2350-23132
    • T3.2
    • 1 shown on diagram
    $6.49
  • 14

    COLLAR, THRUST

    • Part No. T2555-25311
    • 2 shown on diagram
    $9.99
  • 15

    SHIFTER

    • Part No. T2610-21754
    • 1 shown on diagram
    $144.99
  • 16 SYNCHRONIZER KEY

    SYNCHRONIZER KEY

    • Part No. T2610-21812
    • 3 shown on diagram
    $6.99
  • 17
    • Part No. T4240-21792
    • 2 shown on diagram
  • 18
    • Part No. T4810-22581
    • 2 shown on diagram
  • 19

    GEAR34

    • Part No. T5815-21421
    • 1 shown on diagram
    $114.99
  • 20

    GEAR 19

    • Part No. T5815-21511
    • 1 shown on diagram
    $89.99
  • 21

    GERA 22

    • Part No. T5815-21521
    • 1 shown on diagram
    $79.99
  • 22

    GEAR,27

    • Part No. T5815-21531
    • 1 shown on diagram
    $81.99
  • 23

    SHAFT,COUNTER

    • Part No. T5815-21561
    • 1 shown on diagram
    $99.99
  • 24

    BUSHING

    • Part No. T5815-21571
    • 2 shown on diagram
    $15.99
  • 25

    GEAR,35

    • Part No. T5815-21611
    • 1 shown on diagram
    $149.99
  • 26

    GEAR 31

    • Part No. T5815-21621
    • 1 shown on diagram
    $164.99
  • 27

    GEAR 26

    • Part No. T5815-21631
    • 1 shown on diagram
    $114.99
  • 28

    GEAR, 28

    • Part No. T5815-21641
    • 1 shown on diagram
    $154.99
  • 29
    • Part No. T5815-22711
    • 1 shown on diagram
  • 30
    • Part No. T5815-22721
    • 1 shown on diagram
  • 31

    BEARING,BALL

    • Part No. 08101-06305
    • DIA25
    • 1 shown on diagram
    $24.99
