TRANSMISSION CASE GROUP - TC2-G224005

Kioti TRACTOR | CK Series | CK3520

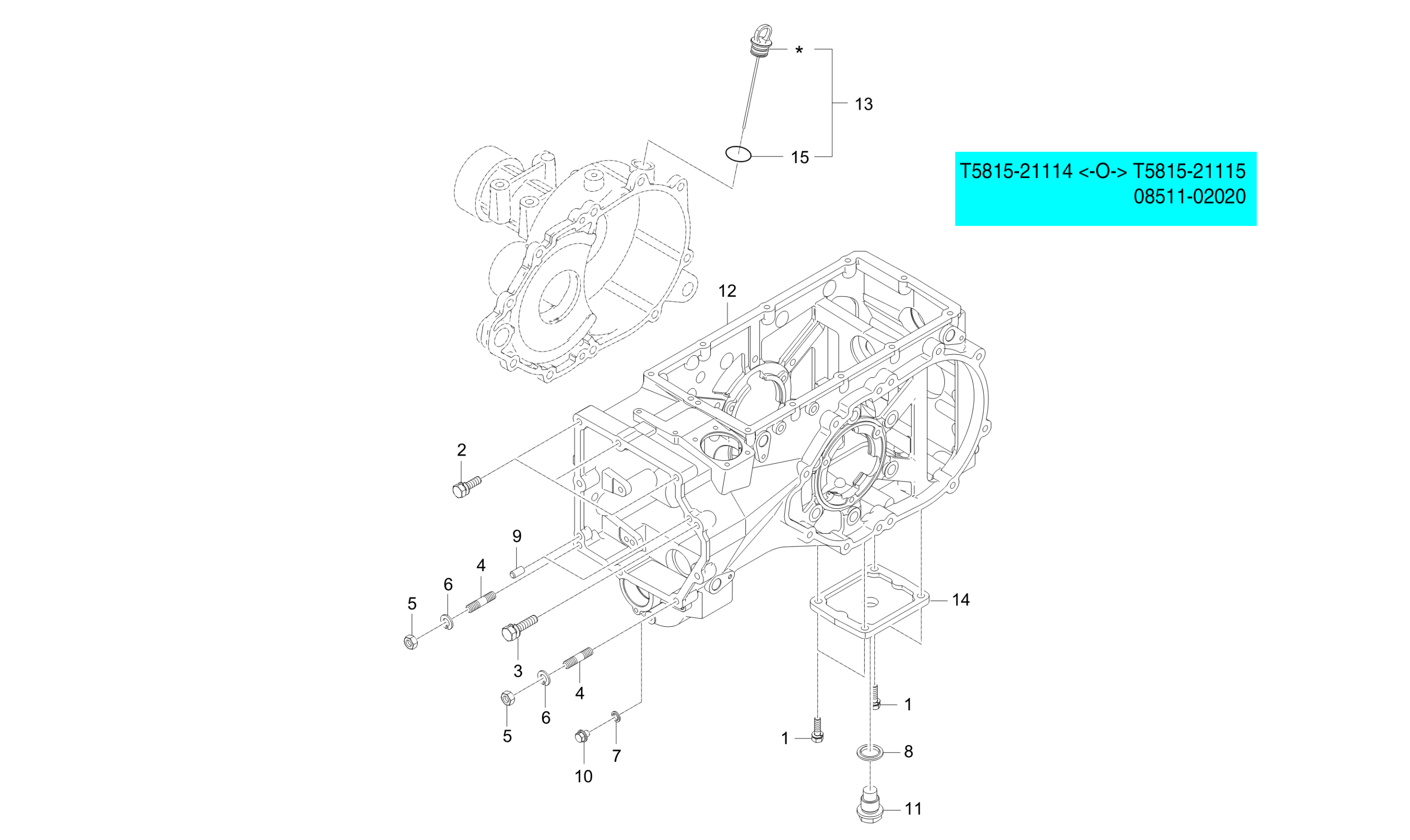

Diagram for TRANSMISSION CASE GROUP - TC2-G224005
  • 1

    BOLT, M10 P1.25×30

    • Part No. 01177-51030
    • M10XP1.25(9T)
    • 4 shown on diagram
    $3.49
  • 2

    BOLT v

    • Part No. 01177-51235
    • M12XP1.25
    • 7 shown on diagram
    $3.49
  • 3

    BOLT

    • Part No. 01177-51250
    • M12XP1.25(9T)
    • 1 shown on diagram
    $3.99
  • 4

    STUD

    • Part No. 01574-51230
    • M12XP1.25
    • 2 shown on diagram
    $5.99
  • 5 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 2 shown on diagram
    $1.49
  • 6
    • Part No. 04512-50120
    • M12
    • 2 shown on diagram
  • 7 WASHER, SEAL M10

    WASHER, SEAL M10

    • Part No. 04717-01000
    • M10
    • 1 shown on diagram
    $1.99
  • 8 WASHER, SEAL

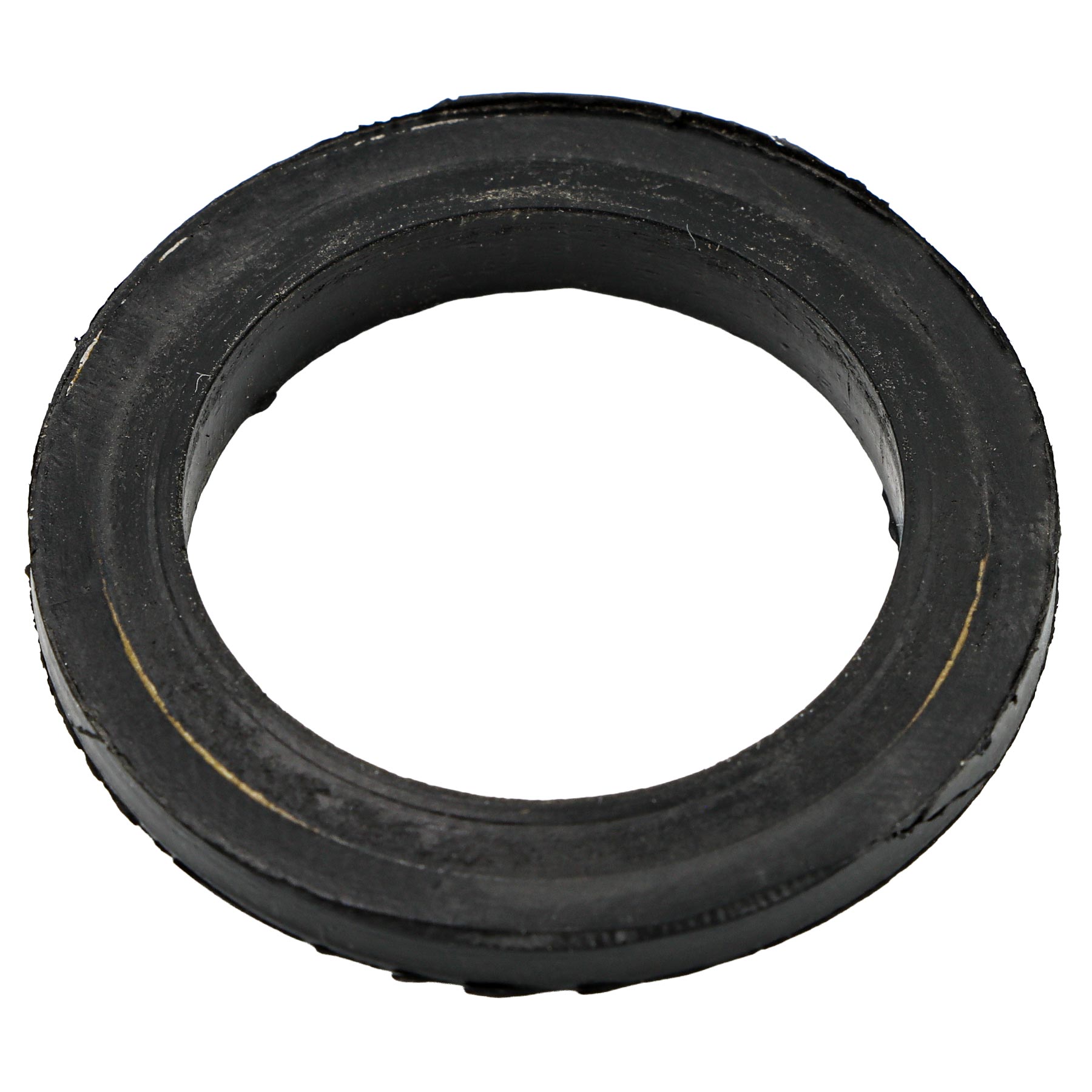

    WASHER, SEAL

    • Part No. 04717-02650
    • PS3/4
    • 1 shown on diagram
    $5.99
  • 9

    PIN, STRAIGHT

    • Part No. 05012-01020
    • DIA10XL20
    • 2 shown on diagram
    $1.79
  • 10
    • Part No. 06331-45010
    • M10XP1.25
    • 1 shown on diagram
  • 11 PLUG

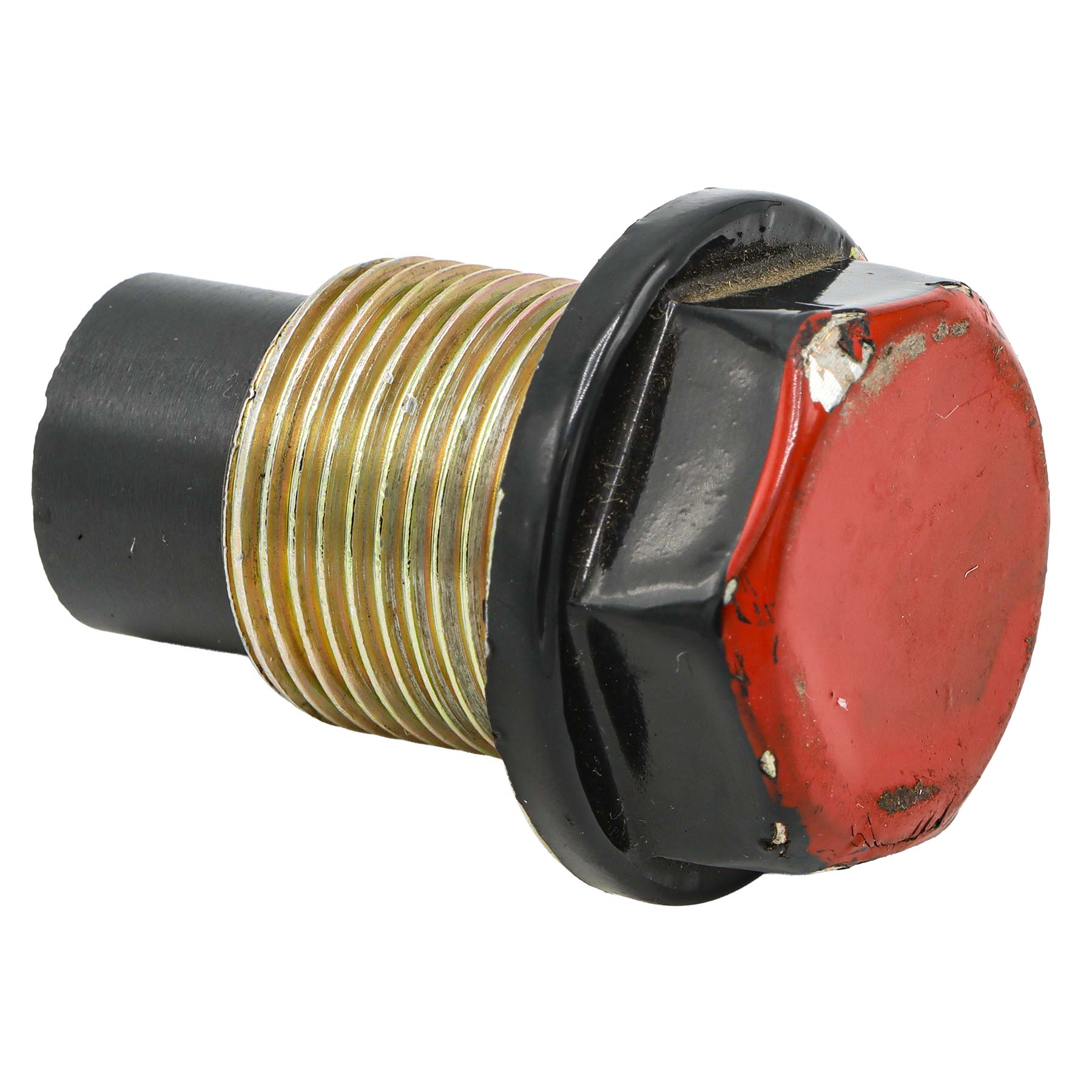

    PLUG

    • Part No. T4125-14261
    • 1 shown on diagram
    $39.99
  • 12

    TRK CASE,TRANSMISSION

    • Part No. T5815-21116
    • 1 shown on diagram
    $964.99
  • 13
    • Part No. T5815-23974
    • 1 shown on diagram
  • 14

    COVER

    • Part No. T5815-24171
    • 1 shown on diagram
    $79.99
  • 15 O RING

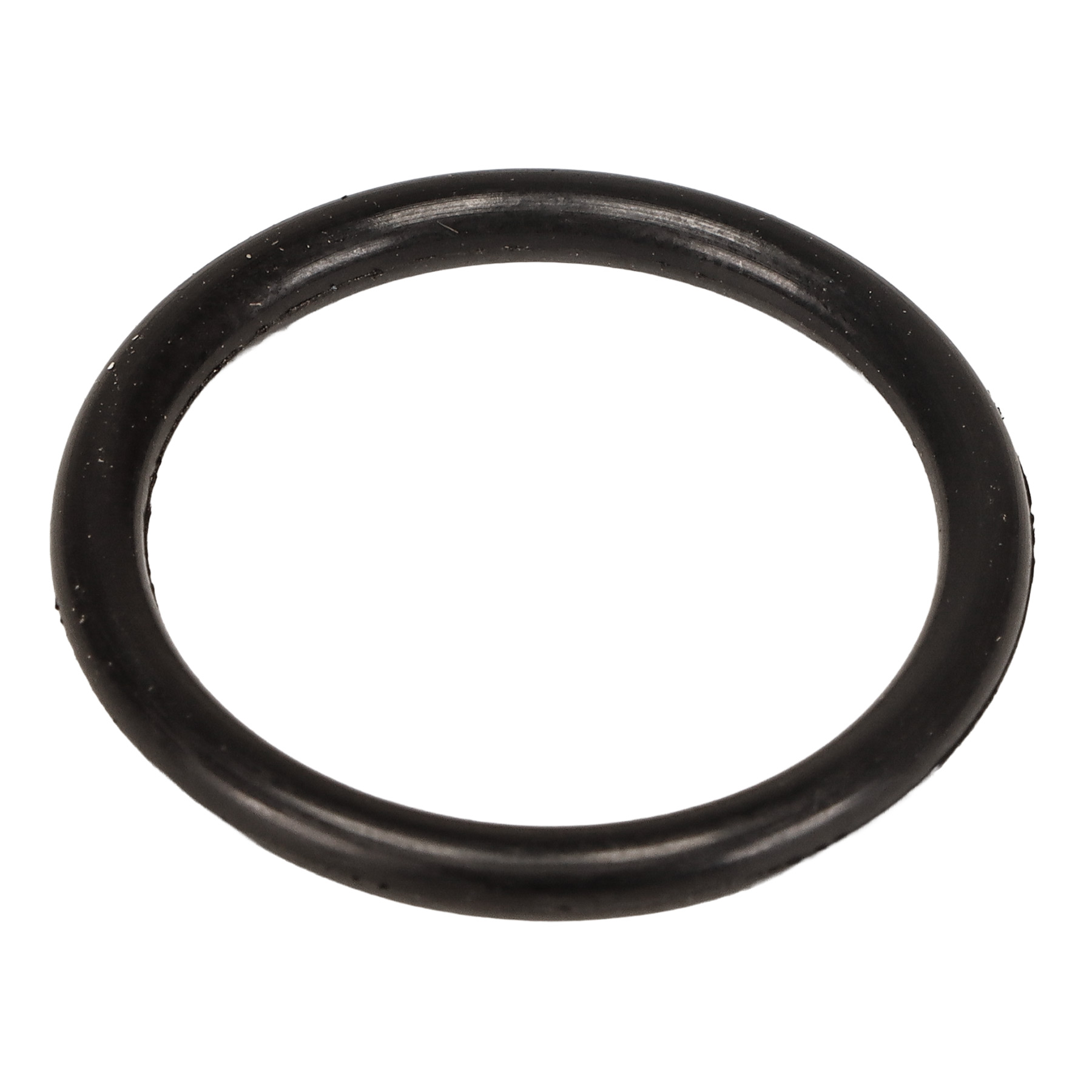

    O RING

    • Part No. 04811-00200
    • DIA19.8
    • 2 shown on diagram
    $1.39
