BRAKE GROUP - TC2-G293001

Kioti TRACTOR | CK Series | CK3520

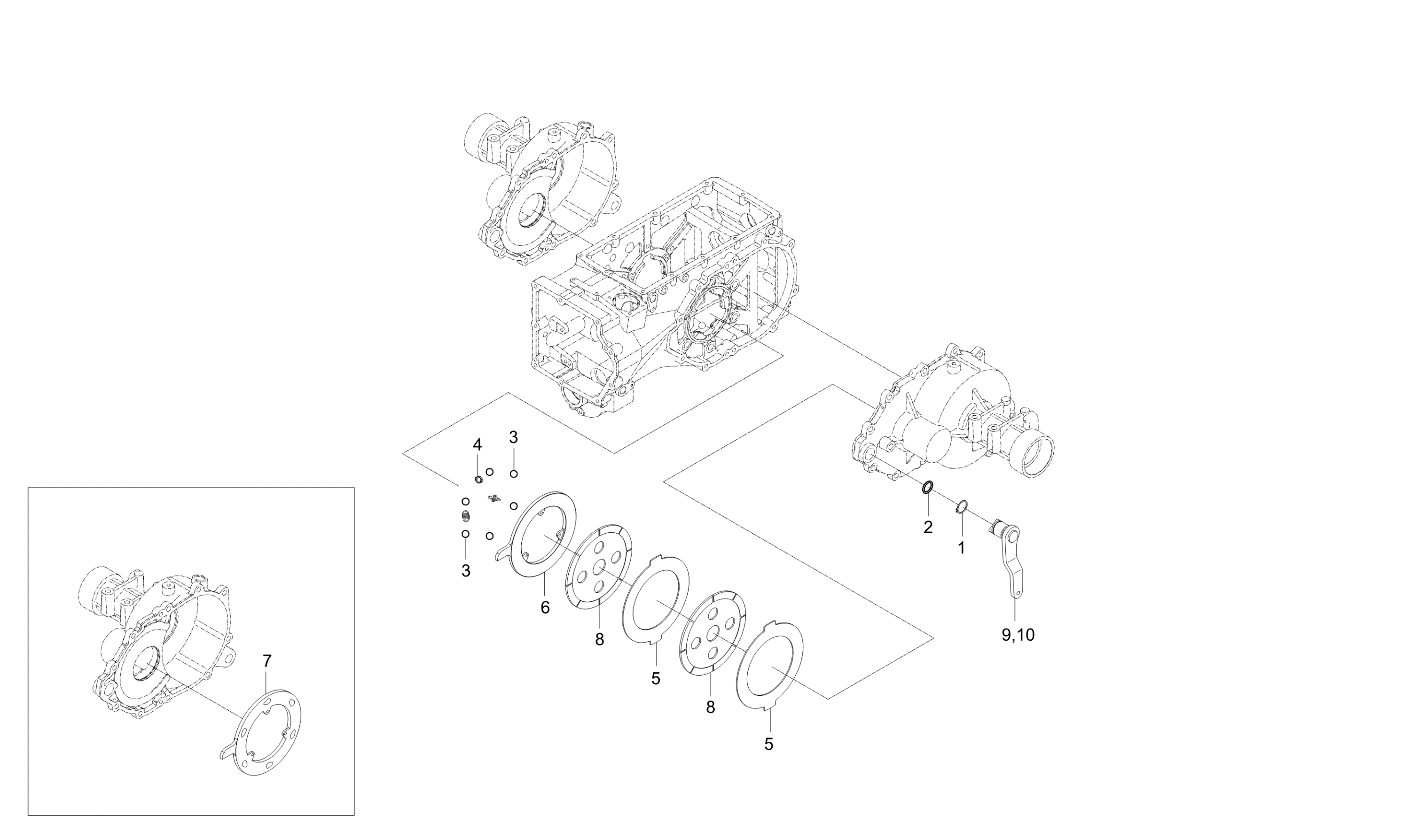

Diagram for BRAKE GROUP - TC2-G293001
  • 1 Snap Ring 30mm

    Snap Ring 30mm

    • Part No. 04612-00300
    • DIA30
    • 2 shown on diagram
    $1.59
  • 2 O RING

    O RING

    • Part No. 04811-00240
    • P24
    • 2 shown on diagram
    $.90
  • 3

    BALL,STEEL v

    • Part No. 07715-00805
    • DIA15.875
    • 12 shown on diagram
    $2.49

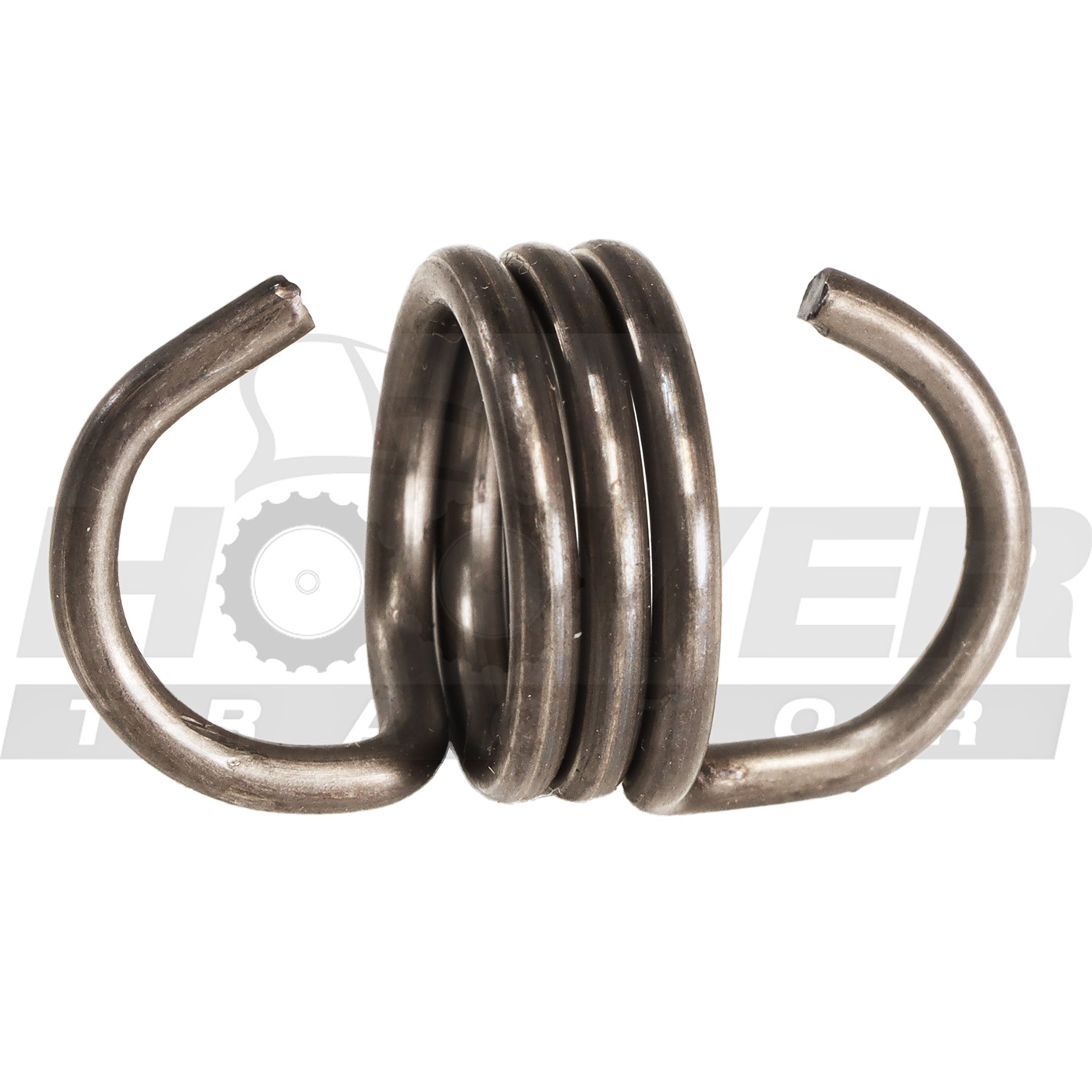

  • 4 FRICTION SPRING

    FRICTION SPRING

    • Part No. T2555-28461
    • 6 shown on diagram
    $14.99
  • 5

    PLATE, BRAKE

    • Part No. T5715-28222
    • 4 shown on diagram
    $49.99
  • 6

    PLATE,CAM LH v

    • Part No. T5715-28243
    • 1 shown on diagram
    $149.99
  • 7

    PLATE,CAM RH

    • Part No. T5715-28253
    • 1 shown on diagram
    $154.99
  • 8

    BREAK DISC

    • Part No. T5755-28211
    • 4 shown on diagram
    $61.99
  • 9

    LEVER,BRAKE CAM LH

    • Part No. T5815-28272
    • 1 shown on diagram
    $.00
  • 10

    LEVER,BRAKE CAM RH

    • Part No. T5815-28282
    • 1 shown on diagram
    $.00
