CLUTCH RELEASE GROUP - TC2-G212003

Kioti TRACTOR | CK Series | CK3520

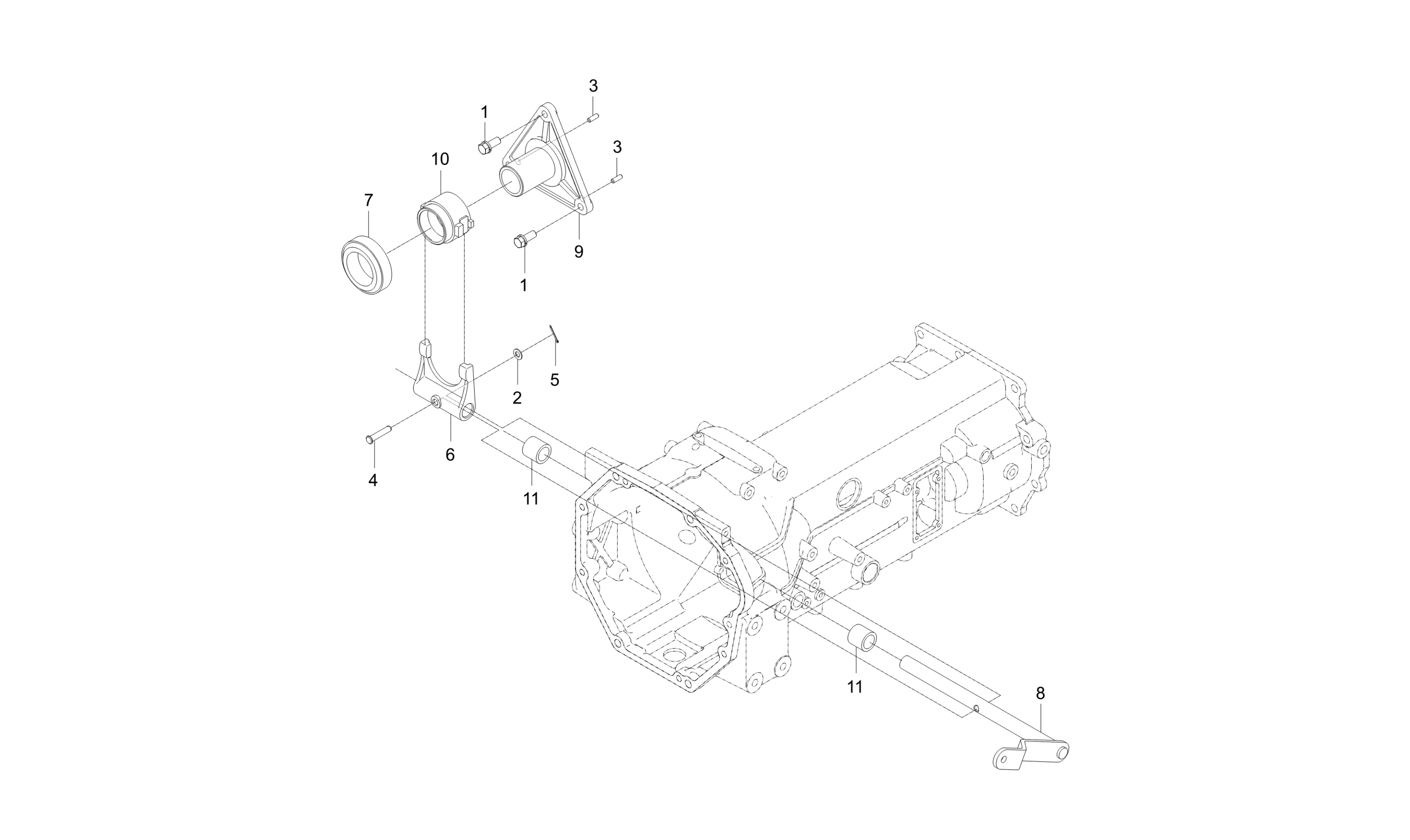

Diagram for CLUTCH RELEASE GROUP - TC2-G212003
  • 1 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 3 shown on diagram
    $3.49
  • 2 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 1 shown on diagram
    $.67
  • 3

    PIN, PARALLEL

    • Part No. 05012-00616
    • DIA7
    • 2 shown on diagram
    $1.59
  • 4
    • Part No. 05112-50840
    • 1 shown on diagram
  • 5

    PIN, SPLIT

    • Part No. 05511-50220
    • DIA1.8XL20
    • 1 shown on diagram
    $0.56
  • 6

    FORK,CLUTCH RELEASE

    • Part No. T2185-14723
    • 1 shown on diagram
    $86.99
  • 7
    • Part No. T2440-14971
    • TK55-7(NSK)
    • 1 shown on diagram
  • 8

    LEVER v

    • Part No. T5815-14711BB
    • 1 shown on diagram
    $79.99
  • 9

    GUDIE, HUB

    • Part No. T5815-14753
    • 1 shown on diagram
    $154.99
  • 10

    HUB,CLUTCH RELEASE

    • Part No. T5815-14814
    • 1 shown on diagram
    $.00

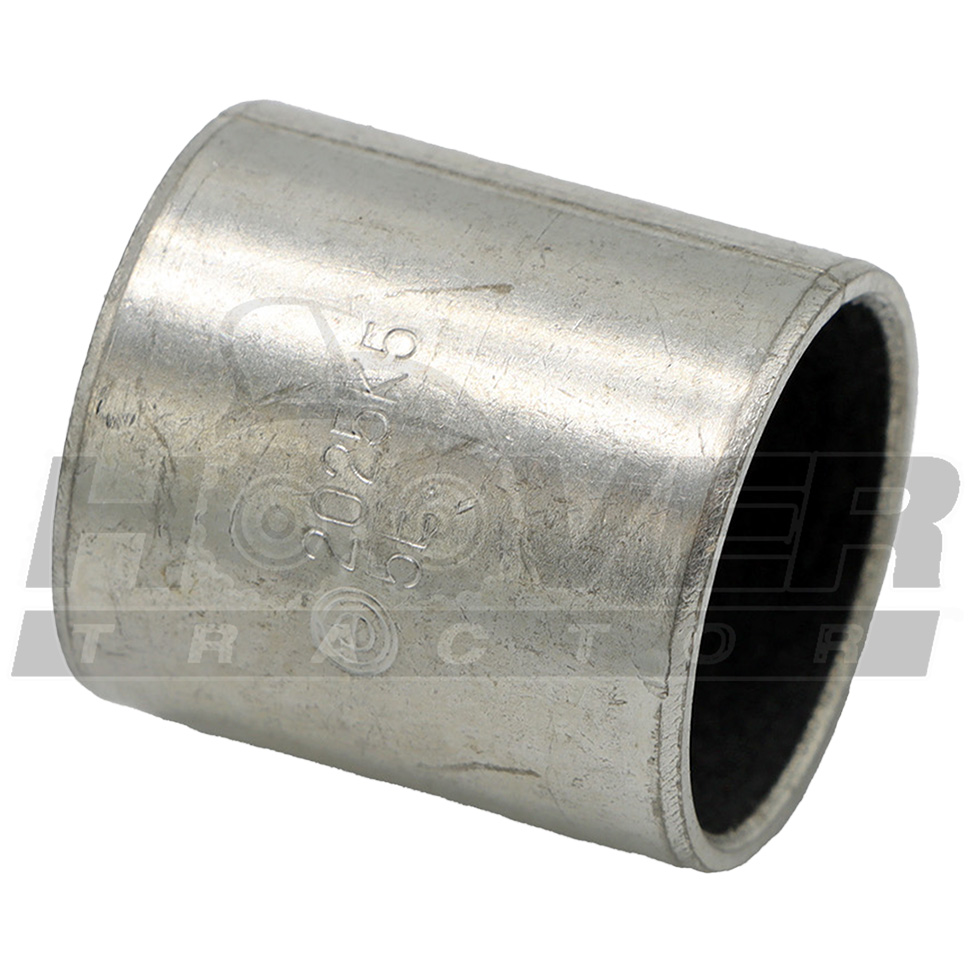

  • 11 BUSH

    BUSH

    • Part No. 08511-02025
    • Inner Diameter 20XL25
    • 2 shown on diagram
    $9.99
