REAR DIFFERENTIAL GROUP - TC2-G282001

Kioti TRACTOR | CK Series | CK3520

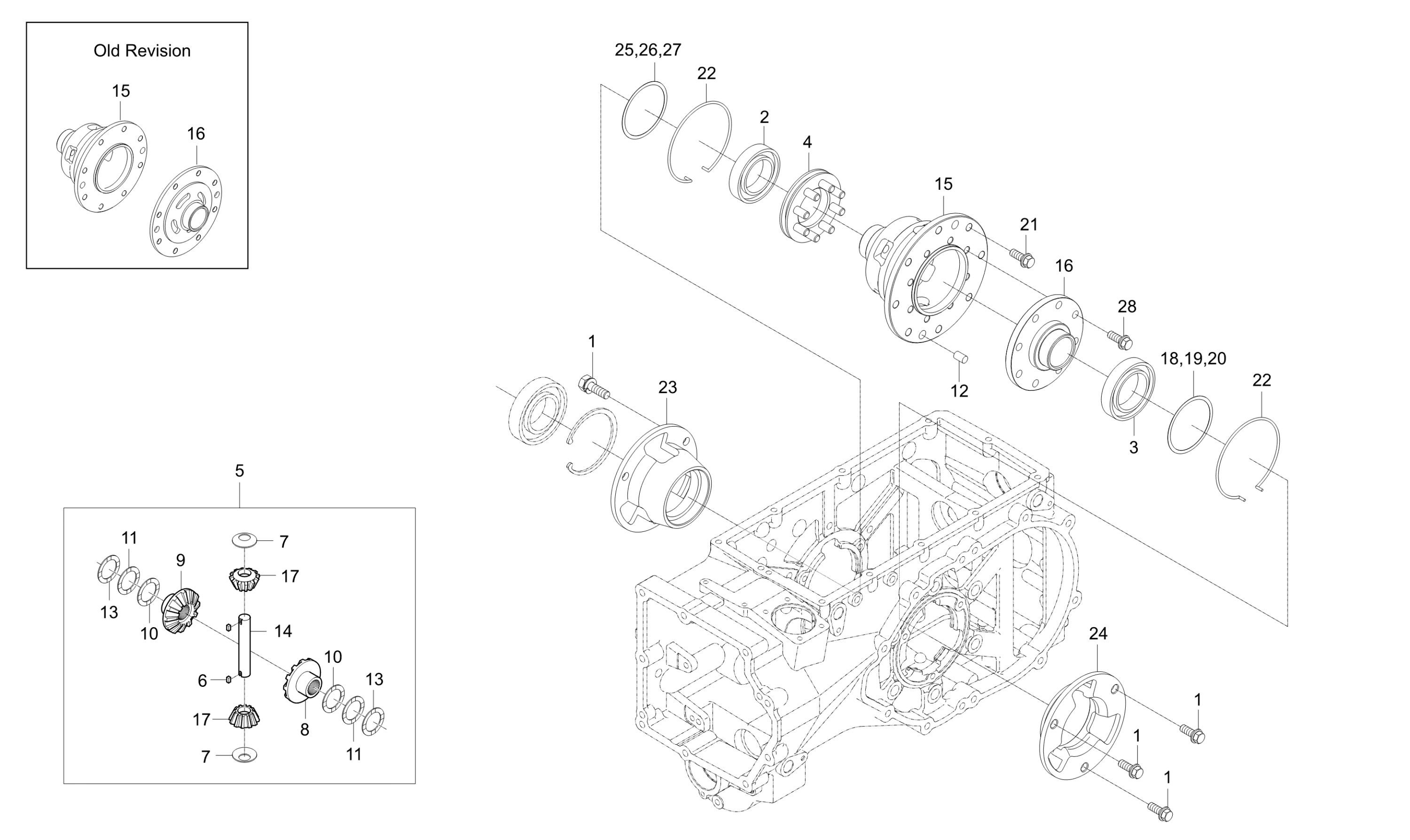

Diagram for REAR DIFFERENTIAL GROUP - TC2-G282001
  • 1 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 6 shown on diagram
    $3.49
  • 2

    BEARING,BALL

    • Part No. 08101-06009
    • #6009
    • 1 shown on diagram
    $45.99

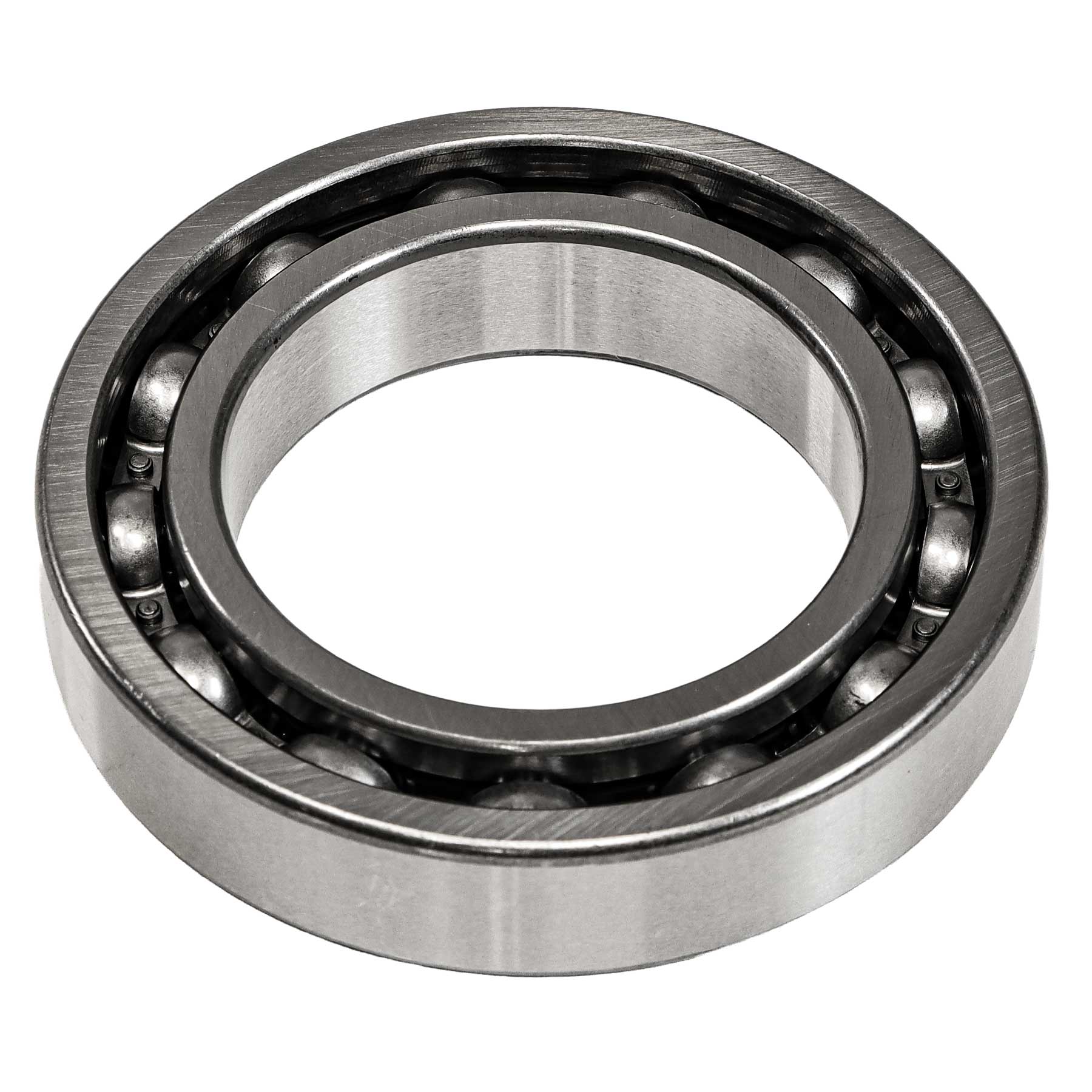

  • 3 BEARING,BALL 50x80x16

    BEARING,BALL 50x80x16

    • Part No. 08101-06010
    • #6010
    • 1 shown on diagram
    $49.99
  • 4

    SHAFT, DIFF. LOCK

    • Part No. 37300-2661-4
    • 1 shown on diagram
    $96.99
  • 5

    ASSY DIFFRENTIAL

    • Part No. T2195-26103
    • 1 shown on diagram
    $814.99
  • 6

    KEY

    • Part No. 31220-2628-1
    • 2 shown on diagram
    $2.99
  • 7

    WASHER, DIFF PINION

    • Part No. 31220-2639-2
    • 2 shown on diagram
    $16.99
  • 8

    GEAR, DIFF RH

    • Part No. 37300-2643-2
    • 1 shown on diagram
    $139.99
  • 9
    • Part No. 37300-2644-2
    • 1 shown on diagram
  • 10

    WASHER, DIFF-1 v

    • Part No. 37300-2648-1
    • 2 shown on diagram
    $21.99
  • 11

    WASHER, DIFFERENTIAL-2 dnr v

    • Part No. 37300-2649-1
    • 2 shown on diagram
    $18.99
  • 12

    PIN, DOWEL

    • Part No. 37300-2817-2
    • 2 shown on diagram
    $11.99
  • 13

    WASHER, DIFF-3 obs v, Replaced by 37300-2648-1

    • Part No. 38240-2647-2
    • 2 shown on diagram
    $.00
  • 14
    • Part No. T2185-26342
    • 1 shown on diagram
  • 15

    CASE, DIFFRENTIAL v

    • Part No. T2185-26511
    • 1 shown on diagram
    $294.99
  • 16

    CAP, DIFFERENTIAL CASE v

    • Part No. T2185-26521
    • 1 shown on diagram
    $86.99
  • 17

    PINION, DIFF

    • Part No. T2240-26355
    • 2 shown on diagram
    $77.99

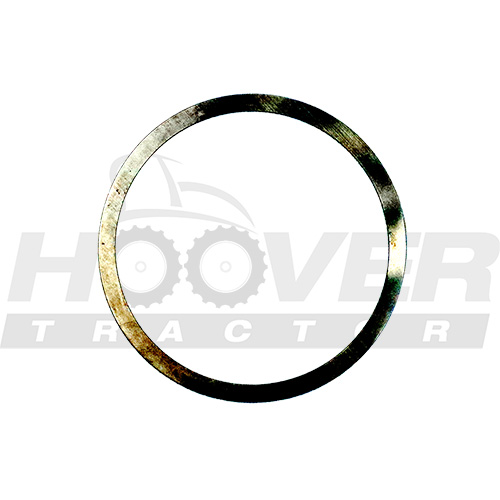

  • 18 SHIM, 0.1

    SHIM, 0.1

    • Part No. T2305-26061
    • T0.1
    • 1 shown on diagram
    $3.49
  • 19

    SHIM, 0.2

    • Part No. T2305-26071
    • T0.2
    • 1 shown on diagram
    $1.59

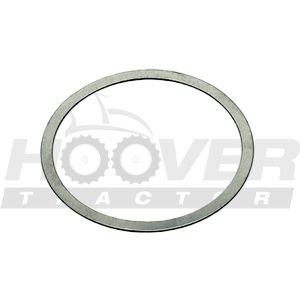

  • 20 SHIM, 0.4

    SHIM, 0.4

    • Part No. T2305-26081
    • T0.4
    • 1 shown on diagram
    $2.49
  • 21
    • Part No. 37800-4387-1
    • M10xP1.25
    • 8 shown on diagram
  • 22

    HOLDING, SPRING

    • Part No. T5715-26591
    • 2 shown on diagram
    $12.99
  • 23

    ROTOR SUPPORT

    • Part No. T5815-26551
    • 1 shown on diagram
    $92.99
  • 24
    • Part No. T5815-26561
    • 1 shown on diagram

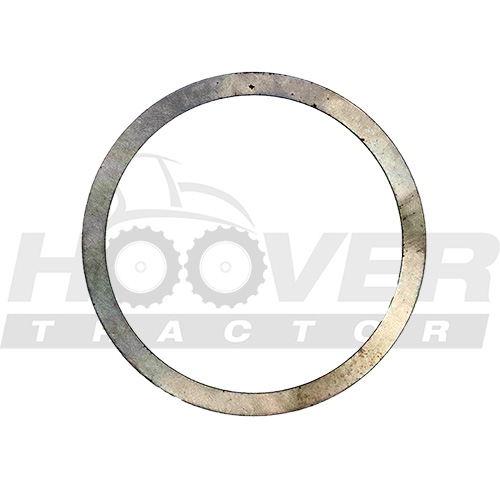

  • 25 SHIM, 0.1

    SHIM, 0.1

    • Part No. U3215-14601
    • 1 shown on diagram
    $2.49

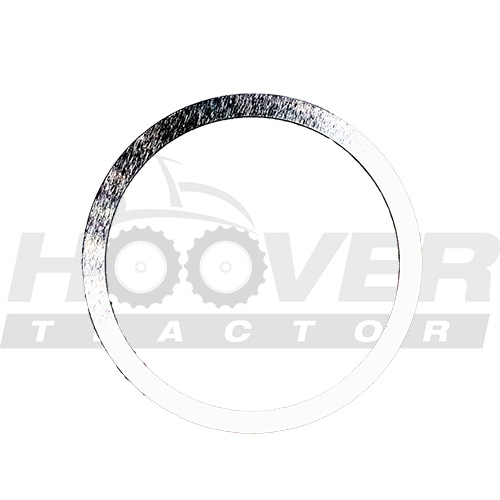

  • 26 SHIM 0.2

    SHIM 0.2

    • Part No. U3215-14611
    • 1 shown on diagram
    $2.49

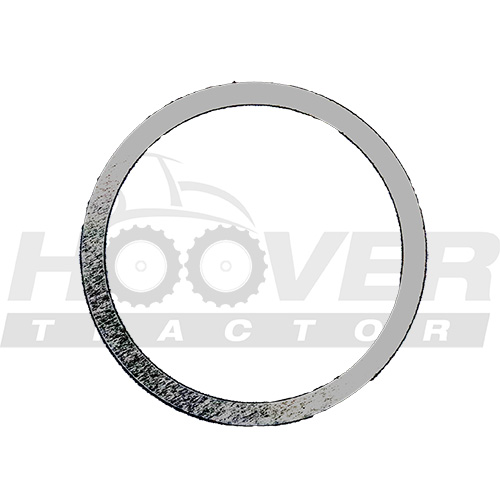

  • 27 SHIM, 0.4

    SHIM, 0.4

    • Part No. U3215-14621
    • 1 shown on diagram
    $2.49
  • 28 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 8 shown on diagram
    $3.49
