DRIVE SHAFT GROUP - TC2-G232003

Kioti TRACTOR | CK Series | CK3520

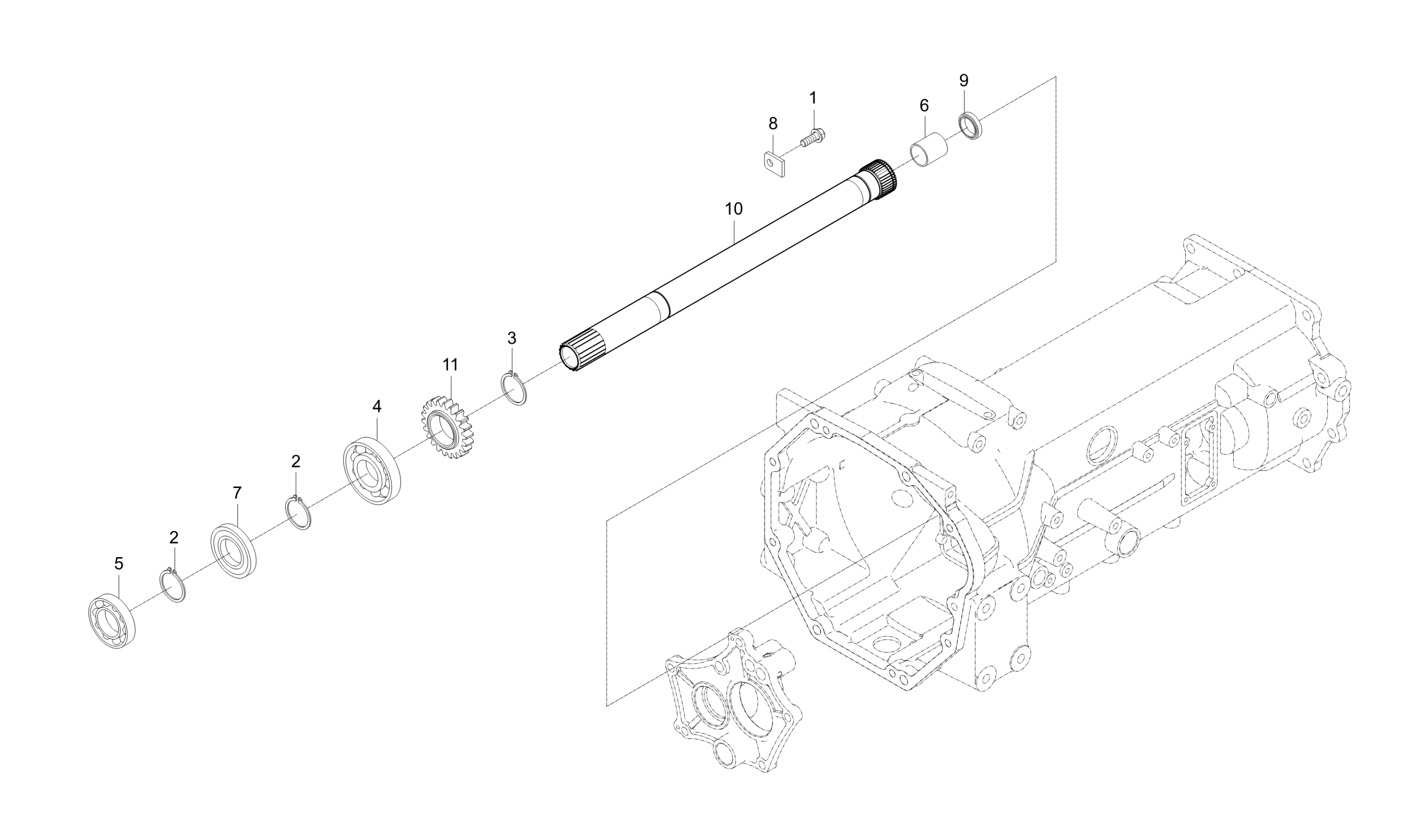

Diagram for DRIVE SHAFT GROUP - TC2-G232003
  • 1 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 2 CIR CLIP, EXTERNAL

    CIR CLIP, EXTERNAL

    • Part No. 04612-00350
    • DIA35
    • 2 shown on diagram
    $1.89
  • 3
    • Part No. 04612-00400
    • 1 shown on diagram
  • 4 Bearing 6207 35x72x17

    Bearing 6207 35x72x17

    • Part No. 08101-06207
    • DIA35
    • 1 shown on diagram
    $28.99

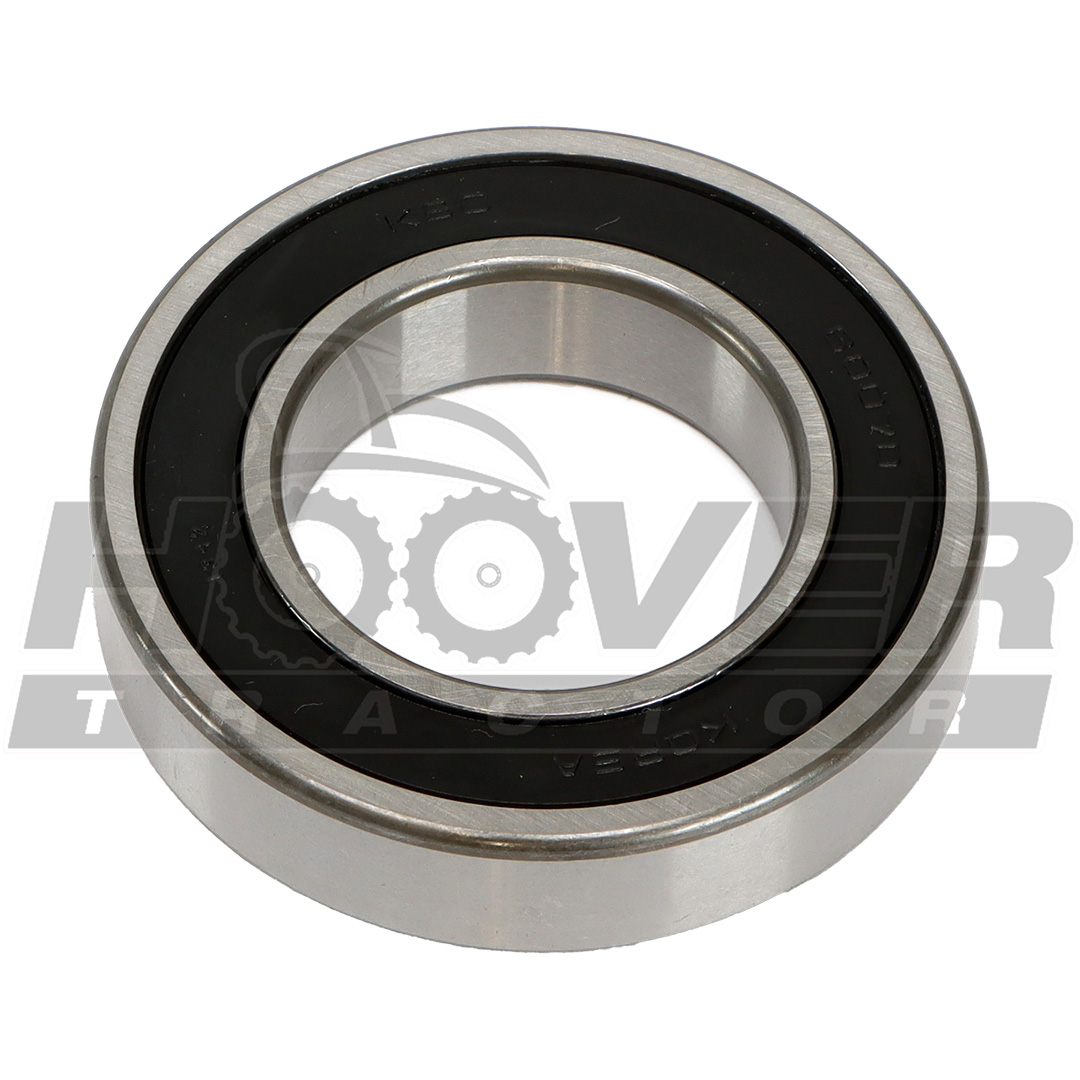

  • 5 BEARING, BALL 6007

    BEARING, BALL 6007

    • Part No. 08141-06007
    • 6007UU
    • 1 shown on diagram
    $37.99
  • 6

    BUSHING

    • Part No. 08511-02520
    • MB2520DU
    • 1 shown on diagram
    $12.99
  • 7

    SEAL,OIL

    • Part No. 09500-35558
    • 1 shown on diagram
    $56.99
  • 8

    STOPPER

    • Part No. T2350-23132
    • T3.2
    • 1 shown on diagram
    $6.49
  • 9 SEAL, OIL

    SEAL, OIL

    • Part No. T2440-21361
    • 1 shown on diagram
    $5.99
  • 10

    SHAFT,MAIN

    • Part No. T5815-21401
    • 1 shown on diagram
    $449.99
  • 11

    GERA 22

    • Part No. T5815-21411
    • 1 shown on diagram
    $79.99
