RADIATOR GROUP - TC2-G612517

Kioti TRACTOR | CK Series | CK3520H

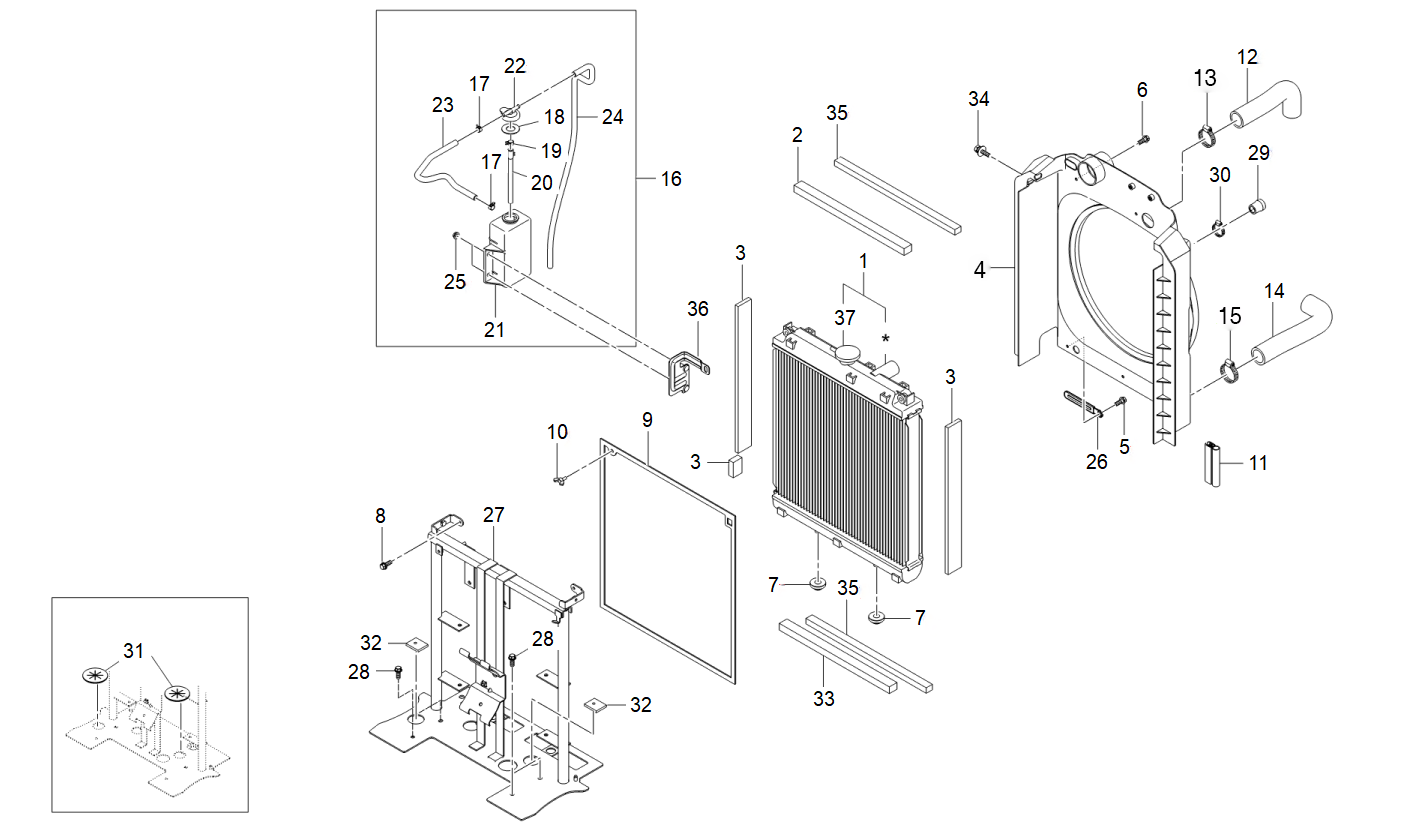

Diagram for RADIATOR GROUP - TC2-G612517
  • 1

    ASSY RADIATOR – OS v

    • Part No. TC26-1800A
    • 1 shown on diagram
    $649.99
  • 2

    SOPNGE,1

    • Part No. T5855-50421
    • 20X26
    • 1 shown on diagram
    $9.99
  • 3

    SPONGE,3

    • Part No. T5855-50441
    • 45X30XL
    • 1 shown on diagram
    $2.49
  • 4
    • Part No. T5855-50454
    • -
    • 1 shown on diagram
  • 5 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 5 shown on diagram
    $1.39
  • 6

    BOLT, FLANGE

    • Part No. 01754-50614
    • M6XP1.0
    • 1 shown on diagram
    $0.73
  • 7

    CUSHION

    • Part No. T4125-13561
    • Serial No. PNN3A0001 and up
    • 2 shown on diagram
    $5.99
  • 8
    • Part No. 01754-50622
    • M6XP1.0
    • 2 shown on diagram
  • 9

    Net-Radiator

    • Part No. T5855-50462
    • 1 shown on diagram
    $114.99

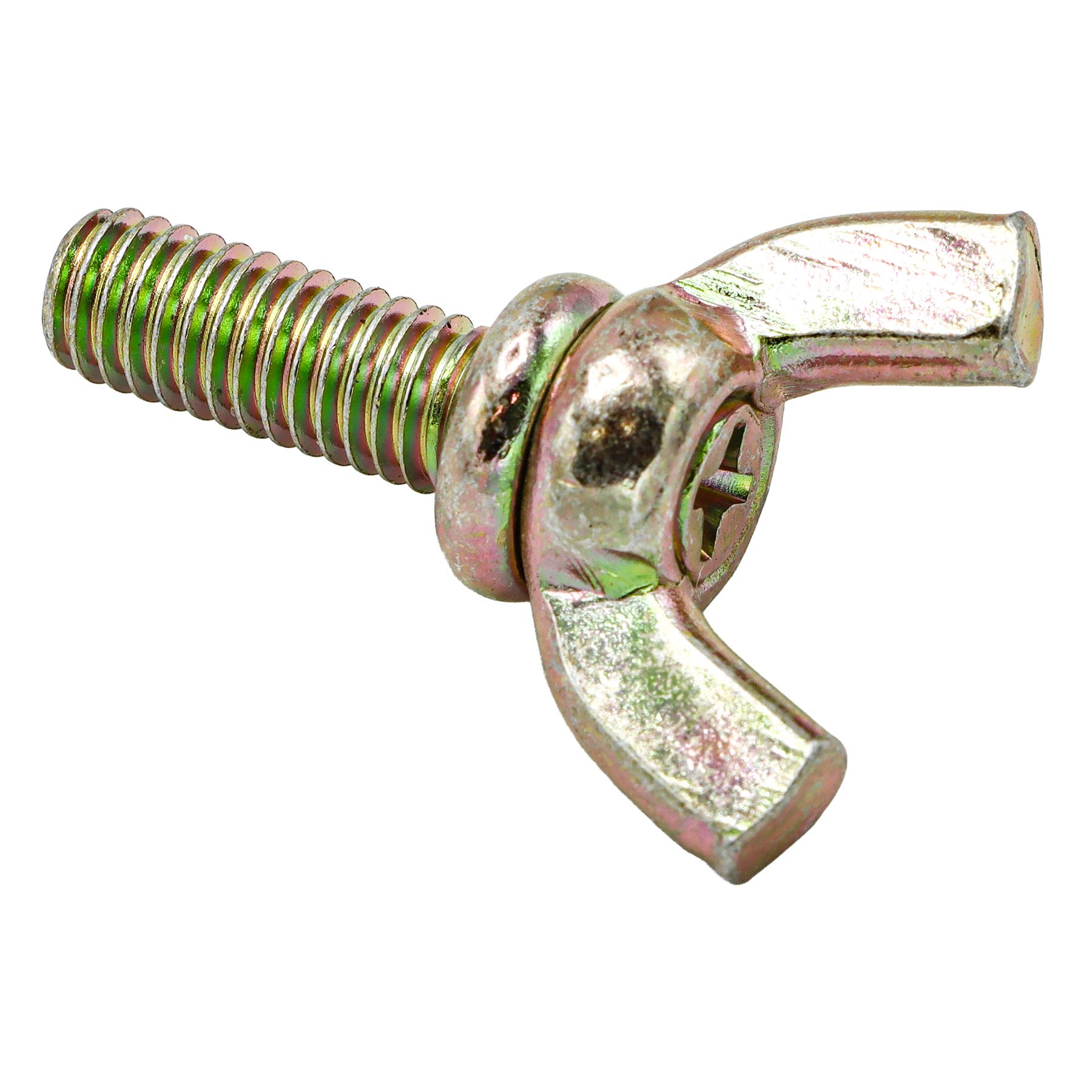

  • 10 BOLT,WING

    BOLT,WING

    • Part No. 01811-50615
    • M6XP1.0
    • 1 shown on diagram
    $2.49
  • 11

    RUBBER,RADIATOR

    • Part No. T5855-50552
    • Serial No. Up to RNN3A0050
    • 2 shown on diagram
    $21.99
  • 12
    • Part No. TC26-0420C
    • Serial No. PNN3A0001 and up
    • OD46/ID35
    • 1 shown on diagram
  • 13

    CLAMP BAND

    • Part No. E1500-18411
    • * multiple options for #13
    • 2 shown on diagram
    $4.49
  • 13

    BAND, HOSE

    • Part No. F6800-91841
    • Compatibility Interchngable
    • 25-40mm
    • * multiple options for #13
    • 1 shown on diagram
    $2.99
  • 13
    • Part No. CE11-0011A
    • Compatibility Interchngable
    • 32-50mm
    • * multiple options for #13
    • 2 shown on diagram
  • 14

    HOSE,LOWER

    • Part No. T5855-50483
    • Serial No. PNN3A0001 and up
    • OD 46 / ID 34
    • 1 shown on diagram
    $43.99
  • 15

    CLAMP BAND

    • Part No. E1500-18411
    • * multiple options for #15
    • 2 shown on diagram
    $4.49
  • 15

    BAND, HOSE

    • Part No. F6800-91841
    • Compatibility Interchngable
    • 25-40mm
    • * multiple options for #15
    • 1 shown on diagram
    $2.99
  • 15
    • Part No. CE11-0011A
    • Compatibility Interchngable
    • 32-50mm
    • * multiple options for #15
    • 2 shown on diagram
  • 16

    RESERVOIR ASSY

    • Part No. T5855-50521
    • 1 shown on diagram
    $69.99
  • 17

    CLIP, TUBE

    • Part No. 14911-4275-1
    • T0.8*#12
    • 2 shown on diagram
    $1.49
  • 18

    PACKING

    • Part No. 15532-7243-2
    • DIA40x1.2T
    • 1 shown on diagram
    $3.49
  • 19

    CLIP, HOSE

    • Part No. 54821-3818-2
    • DIA9.2x8
    • 1 shown on diagram
    $0.59
  • 20
    • Part No. T2350-13602006
    • DIA12x155x1.5T
    • 1 shown on diagram

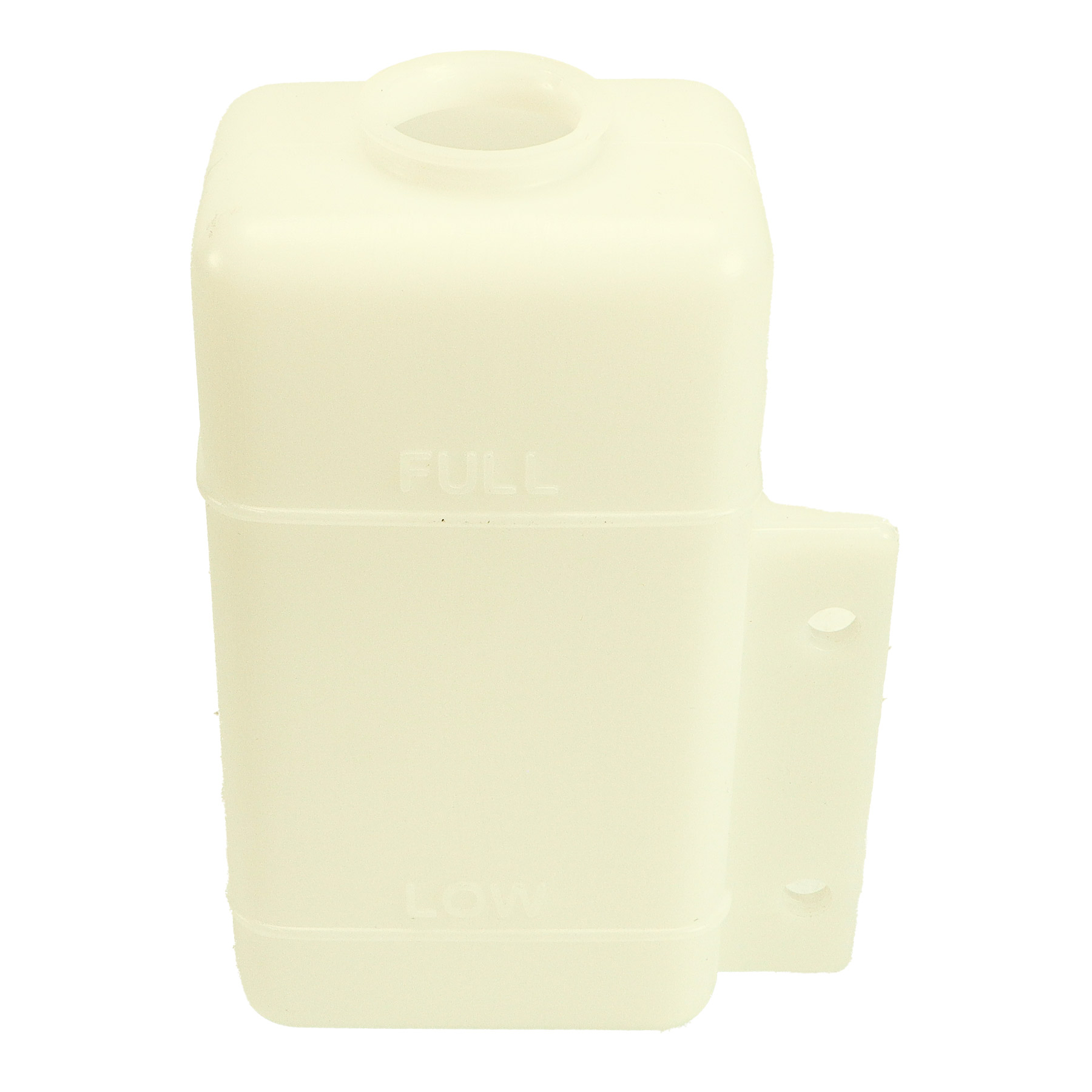

  • 21 TANK, WATER

    TANK, WATER

    • Part No. T2350-13612
    • 170x114x60
    • 1 shown on diagram
    $37.99

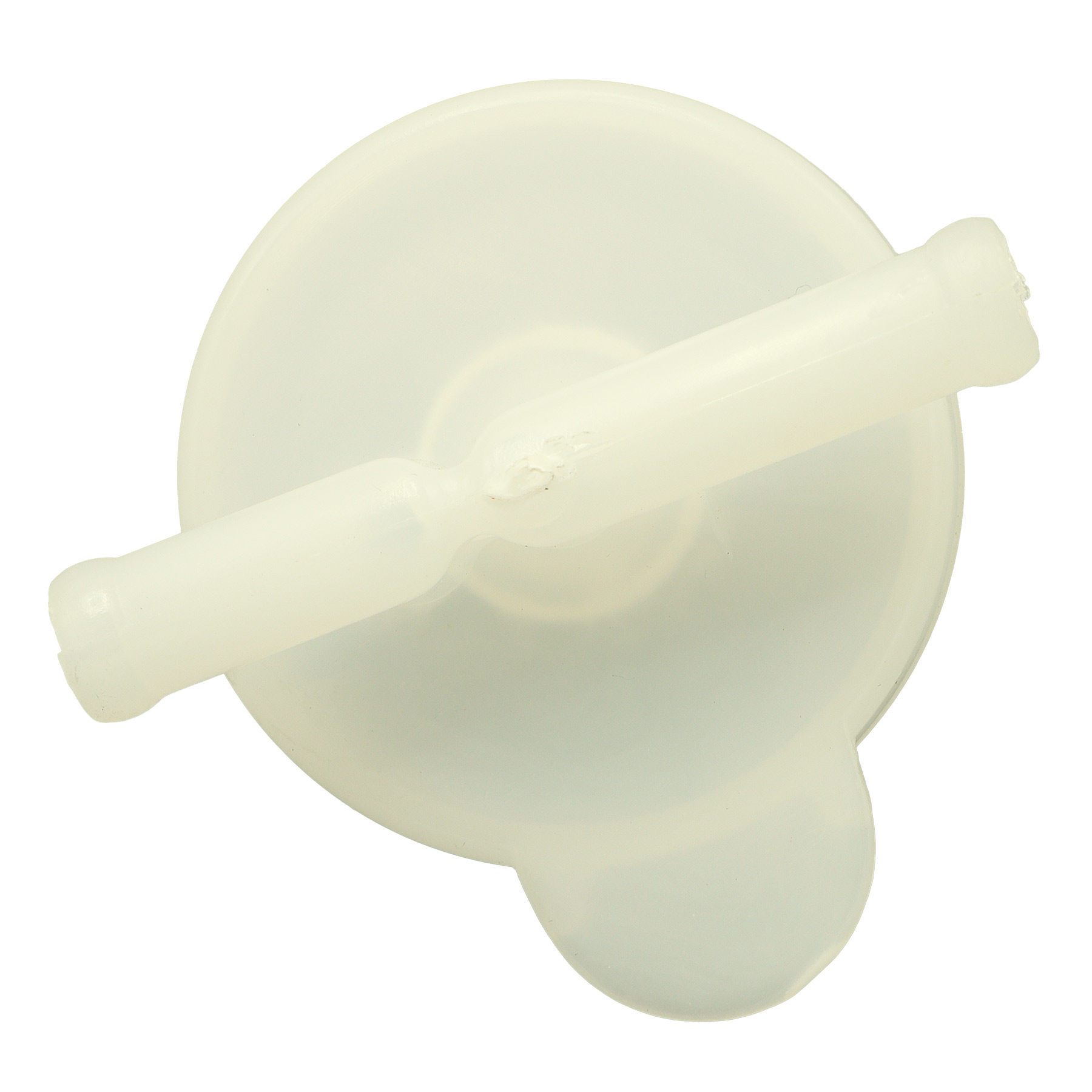

  • 22 CAP, DOUBLE BARB

    CAP, DOUBLE BARB

    • Part No. T5525-50721
    • 56x44.5x34
    • 1 shown on diagram
    $7.99
  • 23

    HOSE, COOLING WATER AUTO RETURN

    • Part No. T5855-50522001
    • L=350
    • 1 shown on diagram
    $9.99
  • 24

    HOSE, OVER FLOW-1 obs v

    • Part No. T5855-50521002
    • L=750
    • 1 shown on diagram
    $15.99
  • 25 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.67
  • 26

    CLAMP

    • Part No. 37150-34471
    • Serial No. PNN3A0001 and up
    • 1 shown on diagram
    $0.7
  • 27

    SUPPORT, RADIATOR dnr v

    • Part No. T5855-50514
    • Serial No. PNN3A0001 and up
    • 1 shown on diagram
    $424.99
  • 28
    • Part No. T2185-70491
    • 4 shown on diagram

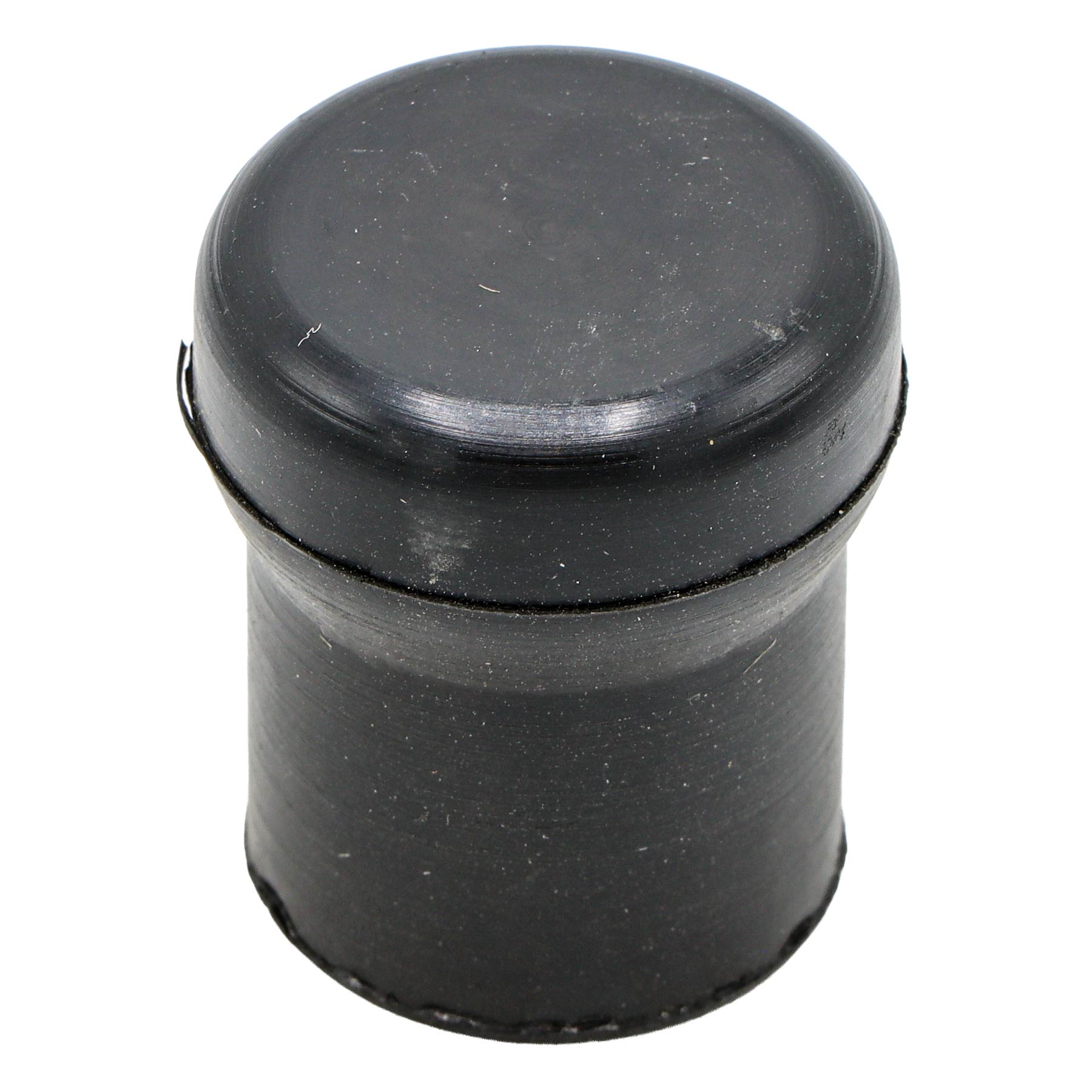

  • 29 CAP, SEALING

    CAP, SEALING

    • Part No. T5535-50451
    • 1 shown on diagram
    $4.49
  • 30

    BAND, HOSE

    • Part No. 66204-3623-1
    • Serial No. PNN3A0001 and up
    • 1 shown on diagram
    $3.99
  • 31

    COVER, RUBBER

    • Part No. T5855-50562
    • T3.0
    • 3 shown on diagram
    $7.49
  • 32

    SPONGE

    • Part No. T4876-50251
    • Serial No. PNN3A0001 and up
    • 1 shown on diagram
    $6.49
  • 33

    SPONGE, 5

    • Part No. T5855-50571
    • High foaming PU foam
    • 1 shown on diagram
    $26.99
  • 34

    BOLT, WASHER

    • Part No. 01027-50616
    • M6XP1.0
    • 2 shown on diagram
    $2.49
  • 35

    SPONGE

    • Part No. T4931-72091
    • Serial No. Up to RNN3A0050
    • 2 shown on diagram
    $5.49
  • 36

    BRACKET

    • Part No. TC26-1615A
    • 1 shown on diagram
    $14.99
  • 37

    Radiator Cap

    • Part No. U3215-77501
    • 1 shown on diagram
    $27.99
