HST PEDAL GROUP - TC2-G647503

Kioti TRACTOR | CK Series | CK3520H

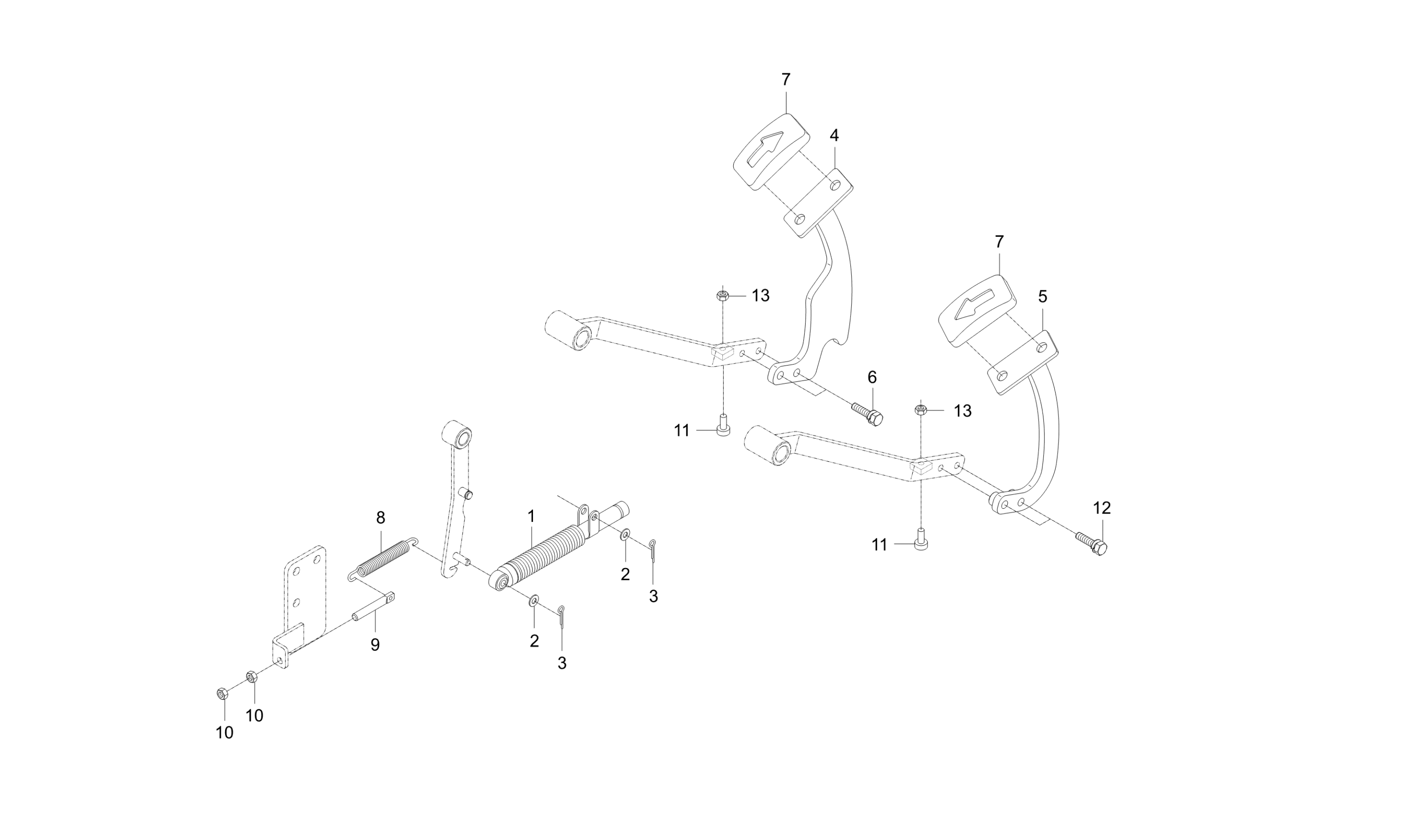

Diagram for HST PEDAL GROUP - TC2-G647503
  • 1 DEMPER ASSY v

    DEMPER ASSY v

    • Part No. TC24-0221A
    • 1 shown on diagram
    $139.99
  • 2 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 2 shown on diagram
    $.79
  • 3

    PIN, SPLIT

    • Part No. 05511-50220
    • DIA1.8XL20
    • 2 shown on diagram
    $0.56
  • 4

    PEDAL v

    • Part No. T5855-55154BB
    • 1 shown on diagram
    $99.99
  • 5

    PEDAL

    • Part No. T5855-55164BB
    • 1 shown on diagram
    $.00

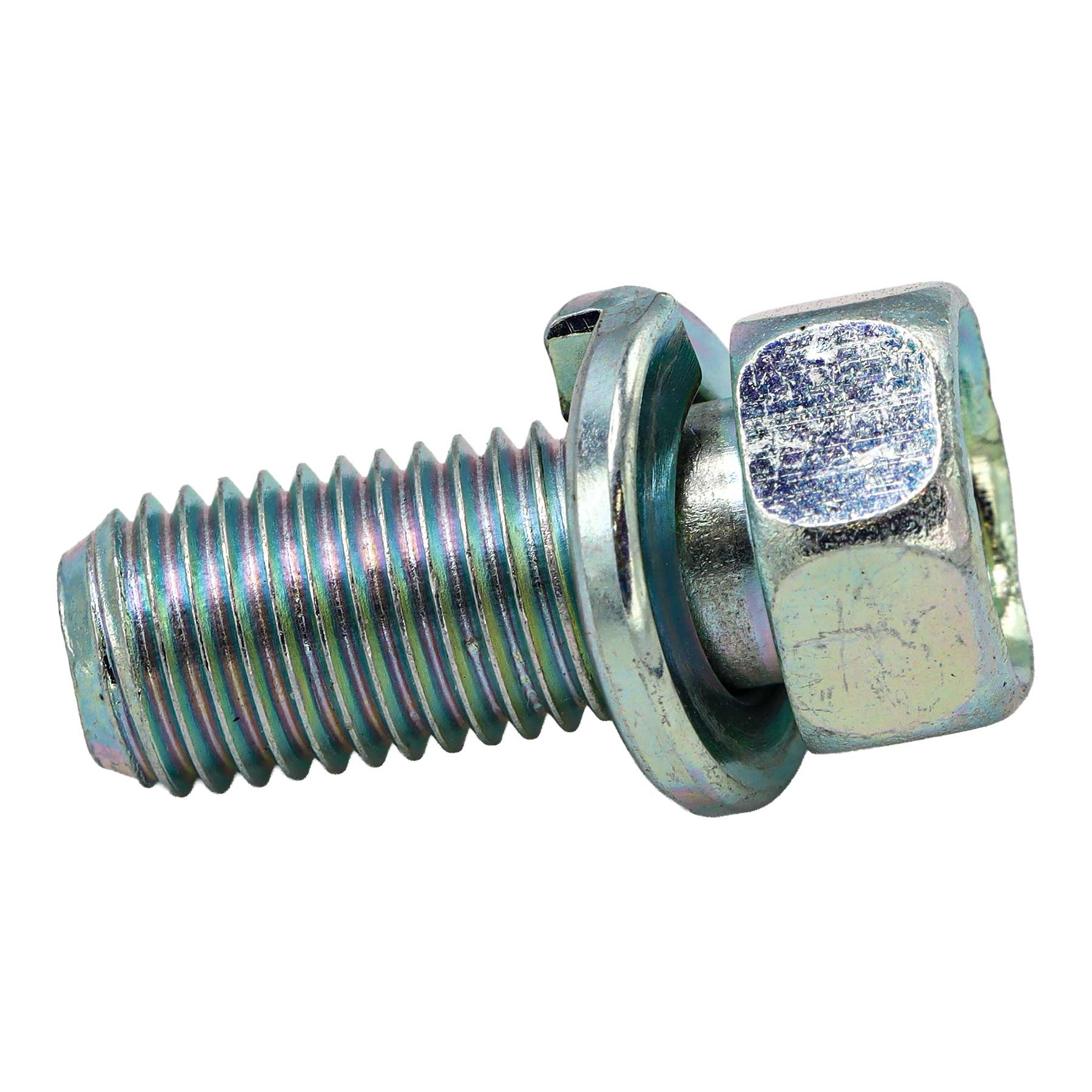

  • 6 BOLT

    BOLT

    • Part No. 01133-51022
    • M10XP1.25
    • 2 shown on diagram
    $2.99
  • 7
    • Part No. T4125-31123
    • 2 shown on diagram
  • 8 SPRING, BRAKE

    SPRING, BRAKE

    • Part No. T4520-26161
    • DIA2.5
    • 1 shown on diagram
    $9.99
  • 9

    BOLT, TENSION ADJUST

    • Part No. T4125-33241
    • 1 shown on diagram
    $12.99
  • 10
    • Part No. 02156-50080
    • M8XP1.25
    • 2 shown on diagram
  • 11

    BOLT, ADJUSTMENT

    • Part No. T2350-55881
    • 2 shown on diagram
    $8.49
  • 12

    BOLT

    • Part No. 01133-51032
    • M10XP1.25
    • 2 shown on diagram
    $3.99
  • 13
    • Part No. 02156-50080
    • M8XP1.25
    • 2 shown on diagram
