RANGE SHIFT LEVER GROUP - TC2-G640502

Kioti TRACTOR | CK Series | CK3520H

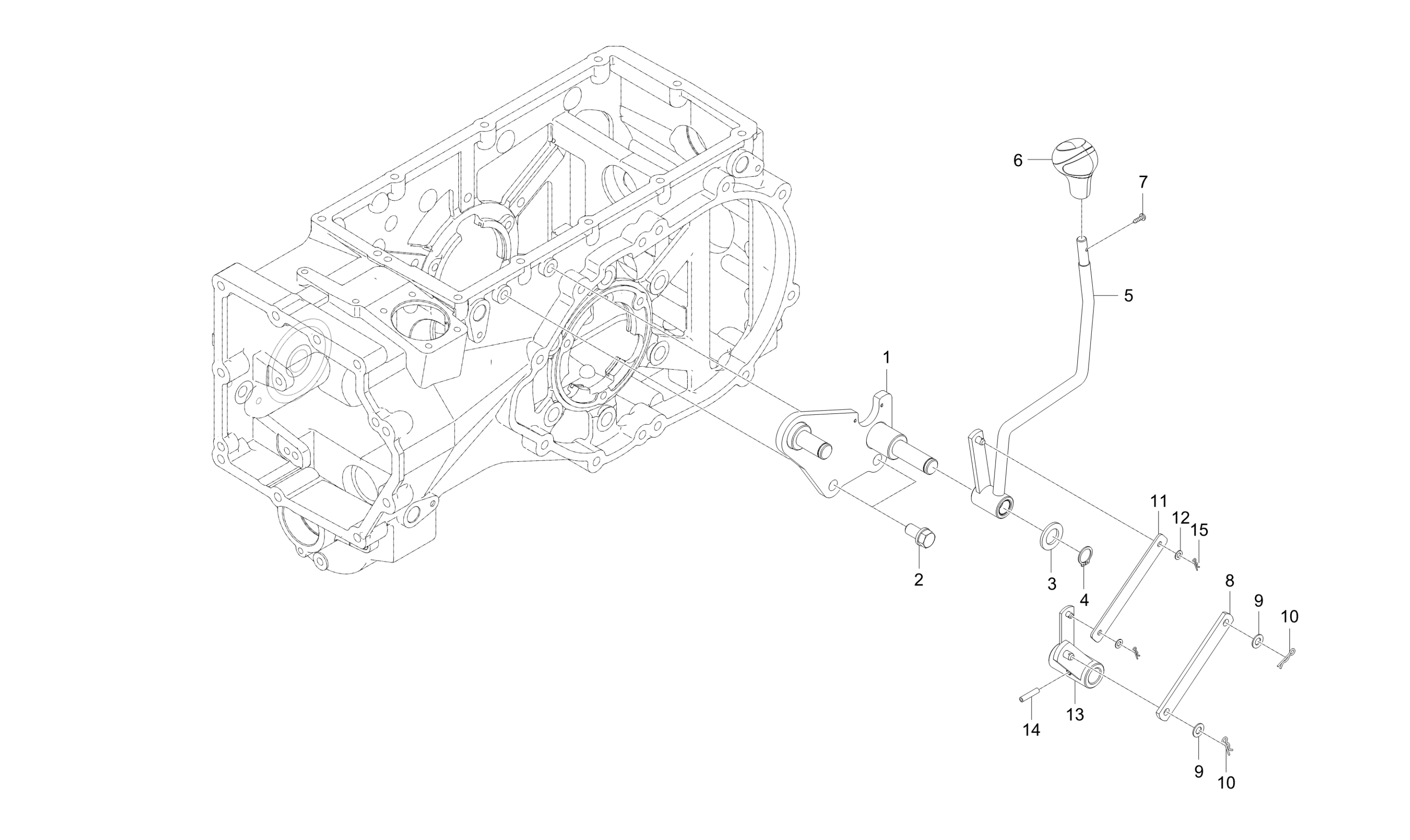

Diagram for RANGE SHIFT LEVER GROUP - TC2-G640502
  • 1

    BRACKET, HI-LO

    • Part No. T5855-56212BB
    • 1 shown on diagram
    $.00
  • 2 BOLT, WASHER M12P1.25 X 25

    BOLT, WASHER M12P1.25 X 25

    • Part No. 01133-51225
    • M12XP1.25
    • 2 shown on diagram
    $3.49
  • 3 Flat Washer M18

    Flat Washer M18

    • Part No. 04011-50180
    • M18
    • 1 shown on diagram
    $1.59
  • 4
    • Part No. 04612-00180
    • DIA18
    • 1 shown on diagram
  • 5

    LEVER,RANGE v

    • Part No. T5855-56224BB
    • 1 shown on diagram
    $85.99

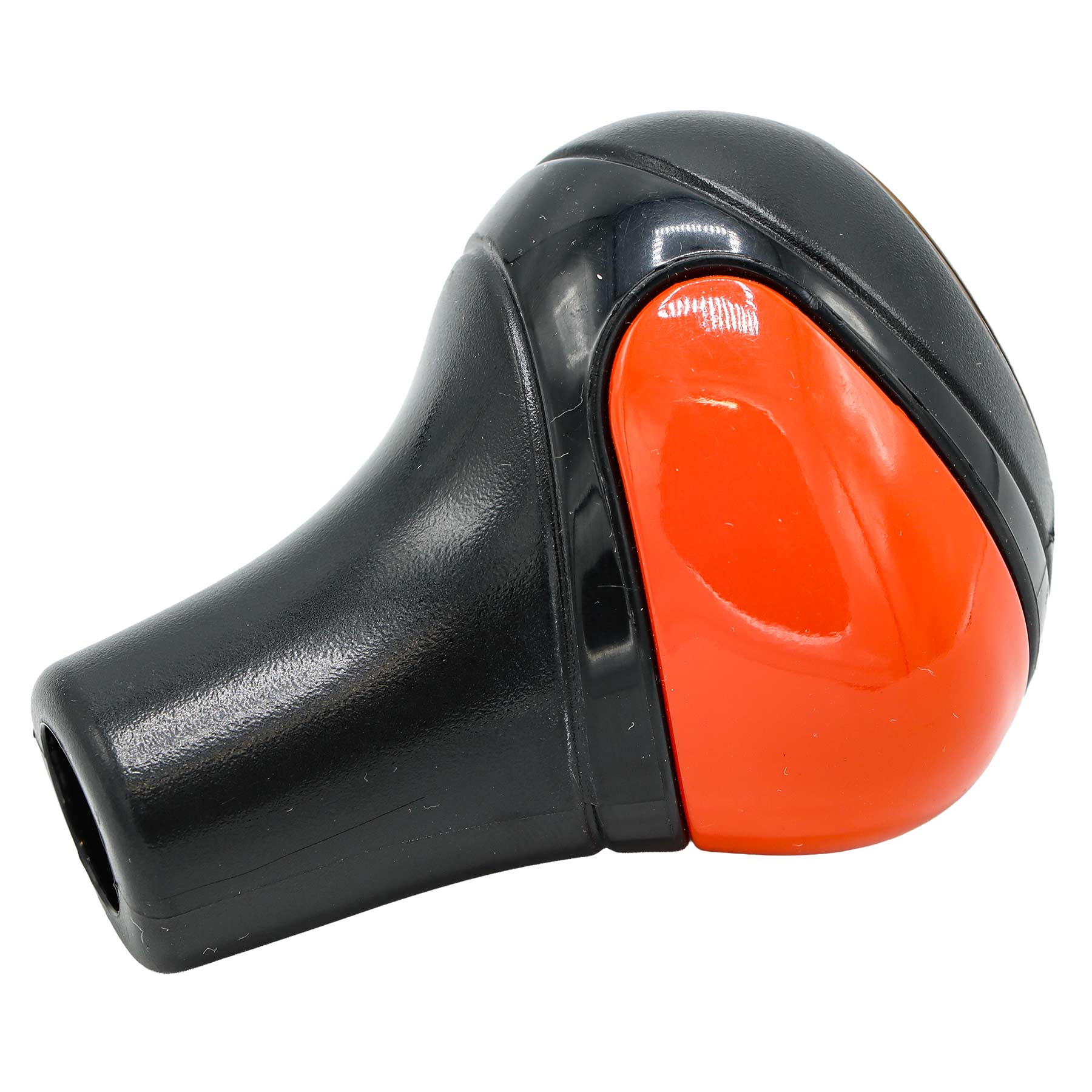

  • 6 GRIP

    GRIP

    • Part No. T5855-56261
    • 1 shown on diagram
    $42.99
  • 7 BOLT,SCREW

    BOLT,SCREW

    • Part No. 03024-50514
    • 1 shown on diagram
    $.79
  • 8

    ROD, RANGE v

    • Part No. T5855-56232
    • T4.5
    • 1 shown on diagram
    $7.99
  • 9 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 2 shown on diagram
    $.67
  • 10
    • Part No. 05525-50800
    • DIA8
    • 2 shown on diagram
  • 11

    BRACKET

    • Part No. T5855-56241
    • T2.3
    • 1 shown on diagram
    $9.99
  • 12 Flat Washer M6

    Flat Washer M6

    • Part No. 04012-50060
    • M6
    • 2 shown on diagram
    $0.67
  • 13

    ARM, RANGE SHIFT

    • Part No. T5855-56252BB
    • 1 shown on diagram
    $35.99
  • 14
    • Part No. 05411-00630
    • DIA6.4XL30
    • 1 shown on diagram
  • 15

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 2 shown on diagram
    $1.19
