FUEL TANK GROUP - TC2-G671001

Kioti TRACTOR | CK Series | CK3520H

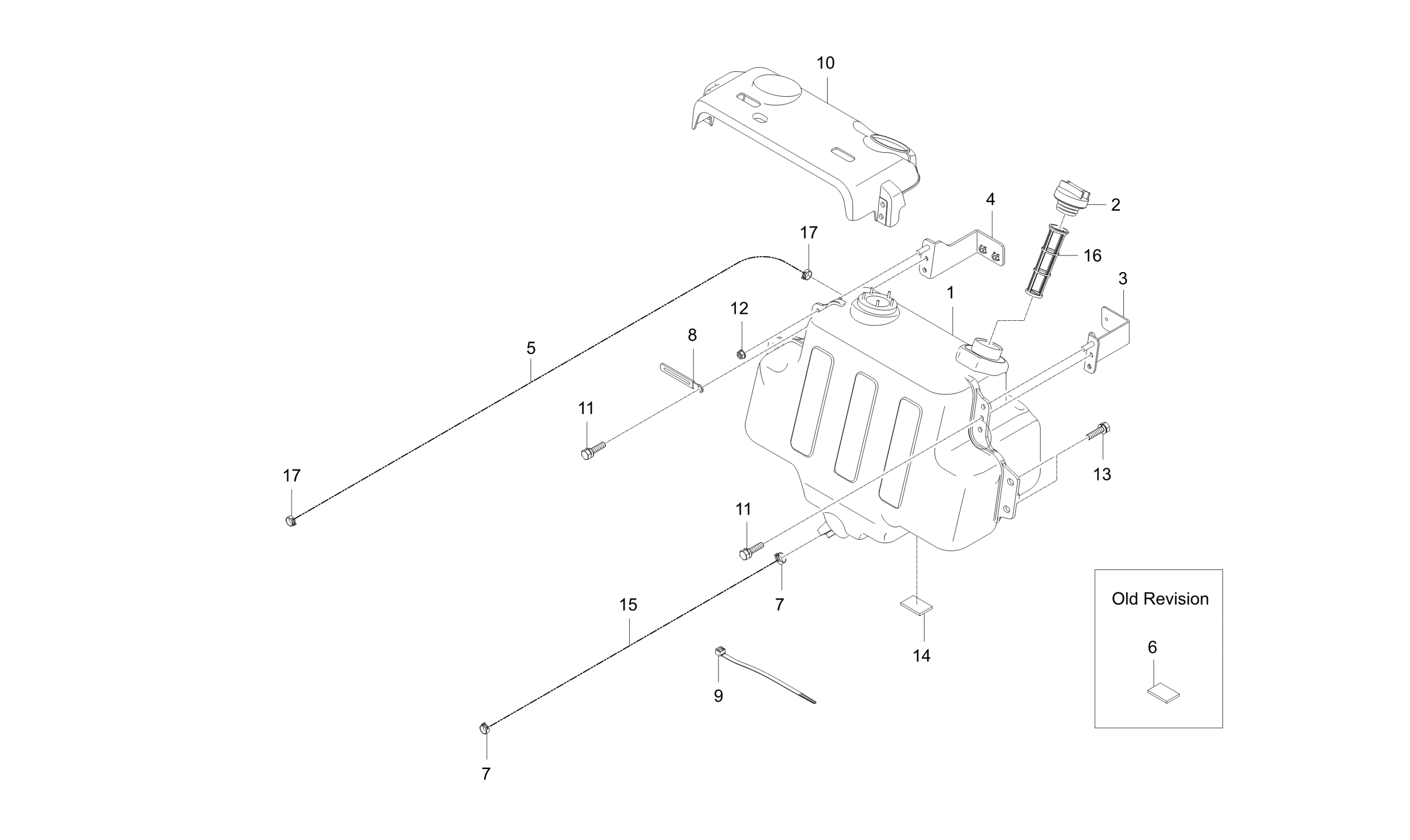

Diagram for FUEL TANK GROUP - TC2-G671001
  • 1

    FUEL TANK

    • Part No. T5855-52213
    • 1 shown on diagram
    $434.99
  • 2 Fuel Tank Cap

    Fuel Tank Cap

    • Part No. T2611-54825
    • 1 shown on diagram
    $43.99
  • 3

    BRACKET, FUEL TANK-LH dnr v.

    • Part No. T5855-52223
    • 1 shown on diagram
    $54.99
  • 4

    BRACKET, FUEL TANK-RH dnr v.

    • Part No. T5855-52233
    • 1 shown on diagram
    $69.99
  • 5
    • Part No. T5525-51022
    • OD13XID8
    • 1 shown on diagram
  • 6

    SPONGE

    • Part No. T5855-52252
    • T3.0
    • 1 shown on diagram
    $4.49
  • 7

    CLAMP, HOSE

    • Part No. 09318-88130
    • DIA13
    • 2 shown on diagram
    $1.09
  • 8

    CLAMP,CORD

    • Part No. 37155-3447-1
    • 1 shown on diagram
    $4.99
  • 9

    BAND CORD

    • Part No. T2185-82551
    • L290
    • 3 shown on diagram
    $1.29
  • 10

    SHEILD,FUEL TANK

    • Part No. T5858-52211
    • 1 shown on diagram
    $44.99
  • 11 BOLT FLANGE

    BOLT FLANGE

    • Part No. 01754-50830
    • M8XP1.25
    • 4 shown on diagram
    $1.89
  • 12 Kioti Flange Nut, M8 P1.25

    Kioti Flange Nut, M8 P1.25

    • Part No. 02751-50080
    • M8XP1.25
    • 2 shown on diagram
    $0.67
  • 13

    BOLT WITH WASHER v

    • Part No. 01135-51025
    • M8*1.25
    • 4 shown on diagram
    $3.49
  • 14 RUBBER, CUSHION v

    RUBBER, CUSHION v

    • Part No. T4810-55312
    • 1 shown on diagram
    $2.49
  • 15

    FUEL,HOSE v

    • Part No. TC26-0085D
    • OD13 / ID7.4
    • 1 shown on diagram
    $84.99
  • 16
    • Part No. T4686-41351
    • 1 shown on diagram
  • 17

    CLIP, HOSE

    • Part No. 15301-7247-0
    • Stan16#
    • 1 shown on diagram
    $2.49
