FRONT WHEEL DRIVE LEVER GROUP - TC2-G644501

Kioti TRACTOR | CK Series | CK3520H

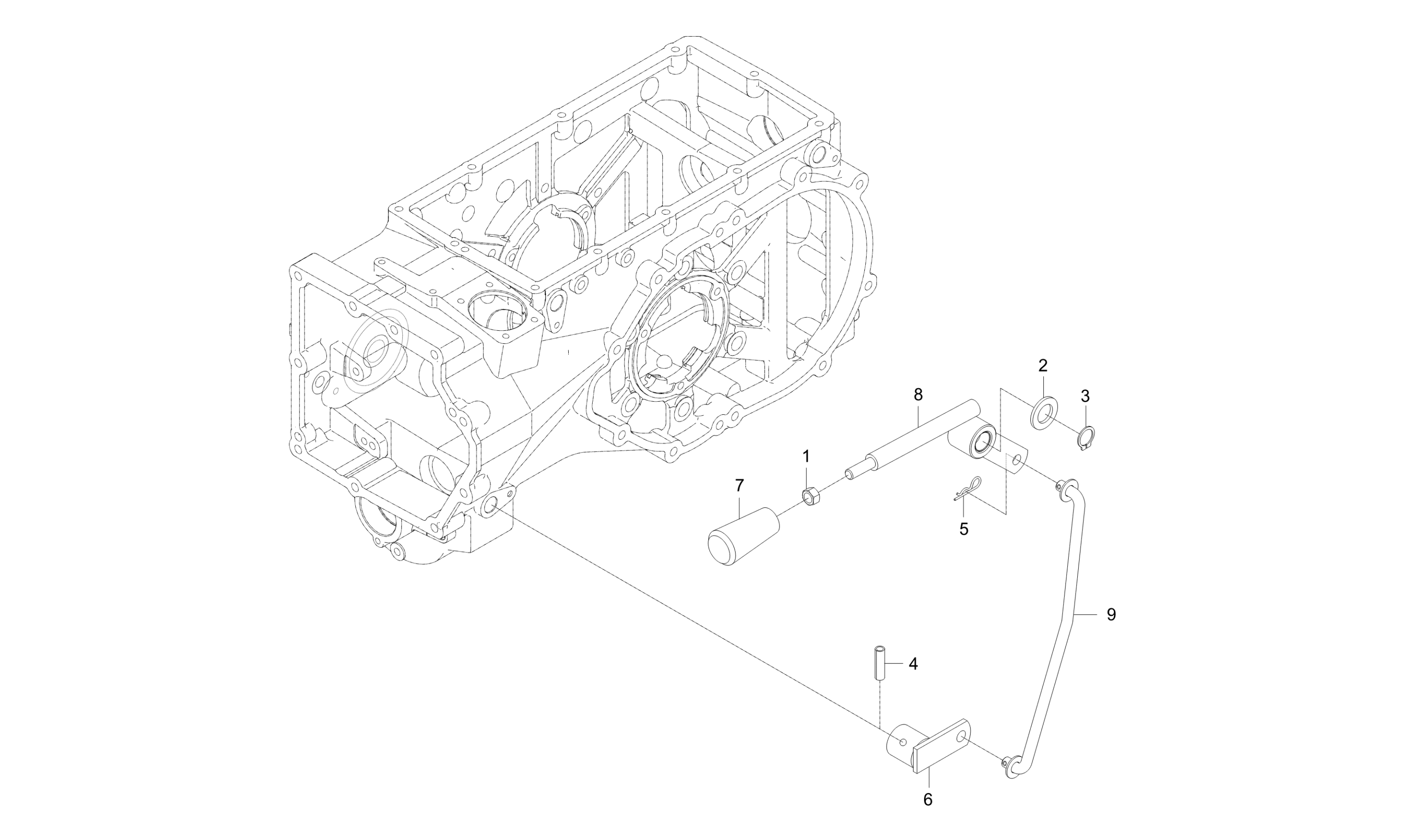

Diagram for FRONT WHEEL DRIVE LEVER GROUP - TC2-G644501
  • 1 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $0.98
  • 2 Flat Washer M18

    Flat Washer M18

    • Part No. 04011-50180
    • M18
    • 1 shown on diagram
    $1.59
  • 3 Snap Ring, External, 18mm

    Snap Ring, External, 18mm

    • Part No. 04612-00180
    • DIA18
    • 1 shown on diagram
    $1.09
  • 4 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00630
    • DIA6.4XL30
    • 1 shown on diagram
    $0.90
  • 5

    PIN, SNAP

    • Part No. 05525-51000
    • DIA10
    • 2 shown on diagram
    $1.29
  • 6

    4wd-Link Arm 1

    • Part No. T2185-44764BB
    • 1 shown on diagram
    $28.99
  • 7

    GRIP

    • Part No. T5715-53611
    • 1 shown on diagram
    $11.99
  • 8

    4WD LEVER

    • Part No. T5855-57613
    • 1 shown on diagram
    $53.99
  • 9

    ROD ,FRONT DRIVE

    • Part No. T5855-57632
    • 1 shown on diagram
    $31.99
