ROPS BAR GROUP - TC2-G631011

Kioti TRACTOR | CK Series | CK3520H

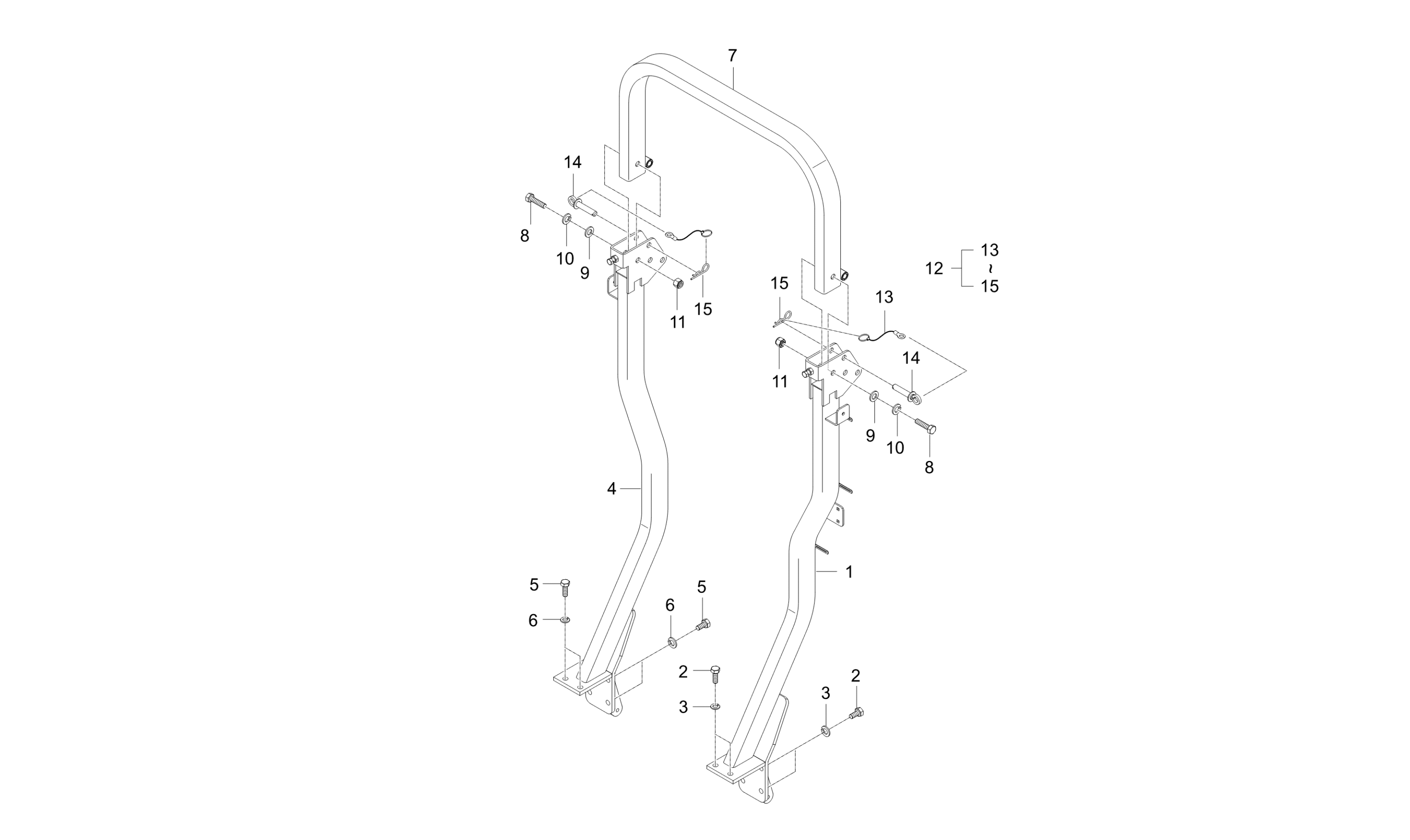

Diagram for ROPS BAR GROUP - TC2-G631011
  • 1

    SUPPORT,LH

    • Part No. TC26-1497B
    • 1 shown on diagram
    $614.99
  • 2

    BOLT

    • Part No. T2230-85242
    • M14*2.0*32
    • 6 shown on diagram
    $4.99
  • 3

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 6 shown on diagram
    $0.9
  • 4

    SUPPORT,RH

    • Part No. TC26-1498B
    • 1 shown on diagram
    $589.99
  • 5

    BOLT

    • Part No. T2230-85242
    • M14*2.0*32
    • 6 shown on diagram
    $4.99
  • 6

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 6 shown on diagram
    $0.9
  • 7

    TRK – ROPS

    • Part No. T5715-55203
    • 1 shown on diagram
    $559.99
  • 8 BOLT

    BOLT

    • Part No. 01173-51690
    • 2 shown on diagram
    $9.99
  • 9 Flat Washer M16

    Flat Washer M16

    • Part No. 04011-50160
    • M16
    • 4 shown on diagram
    $1.19
  • 10 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50160
    • M16
    • 2 shown on diagram
    $1.29

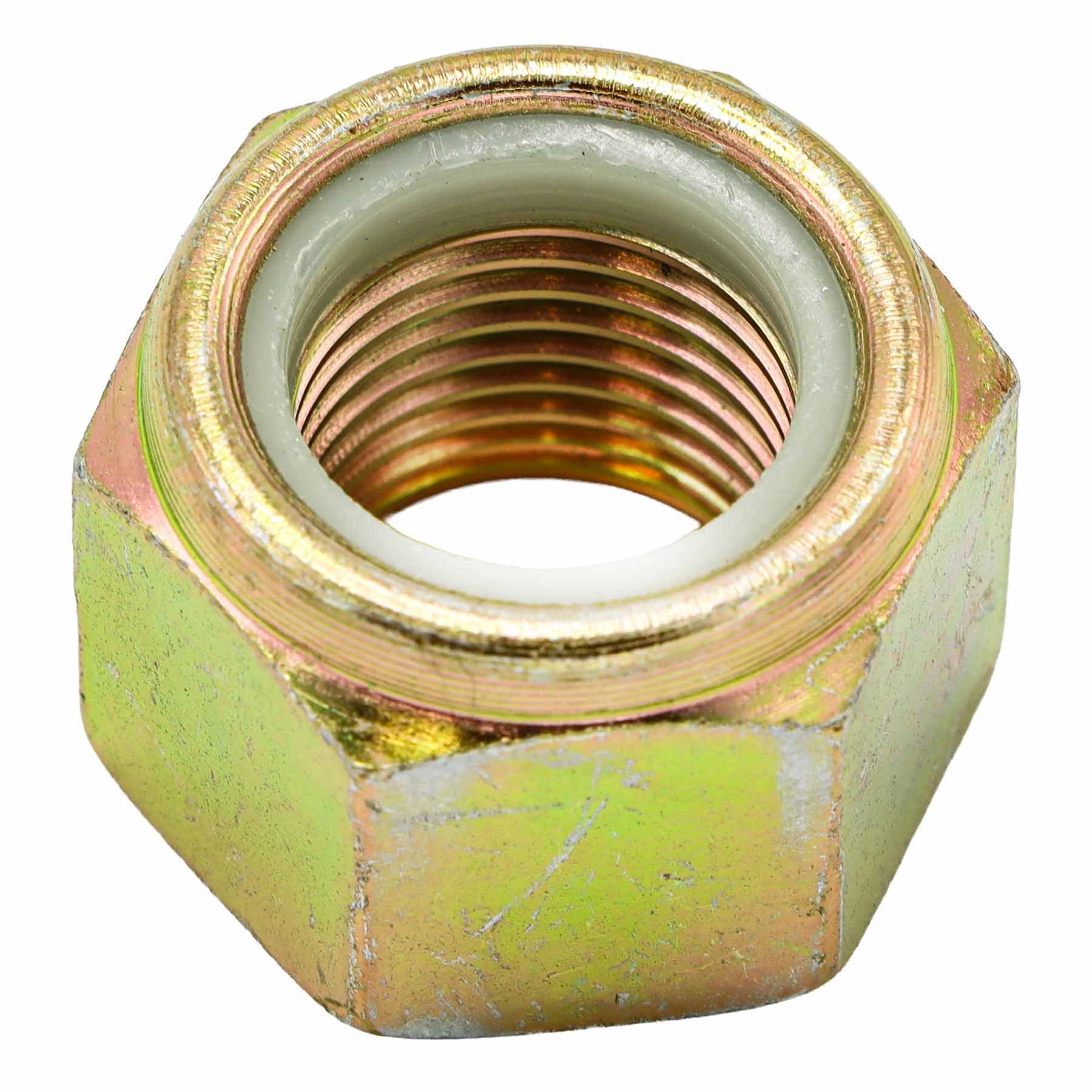

  • 11 NUT

    NUT

    • Part No. T2181-97191
    • 2 shown on diagram
    $7.49
  • 12 PIN, ROPS FIXING

    PIN, ROPS FIXING

    • Part No. TC26-1717BTP
    • 1 shown on diagram
    $34.99
  • 13

    ASSY WIRE

    • Part No. T2145-97151001
    • 1 shown on diagram
    $13.99

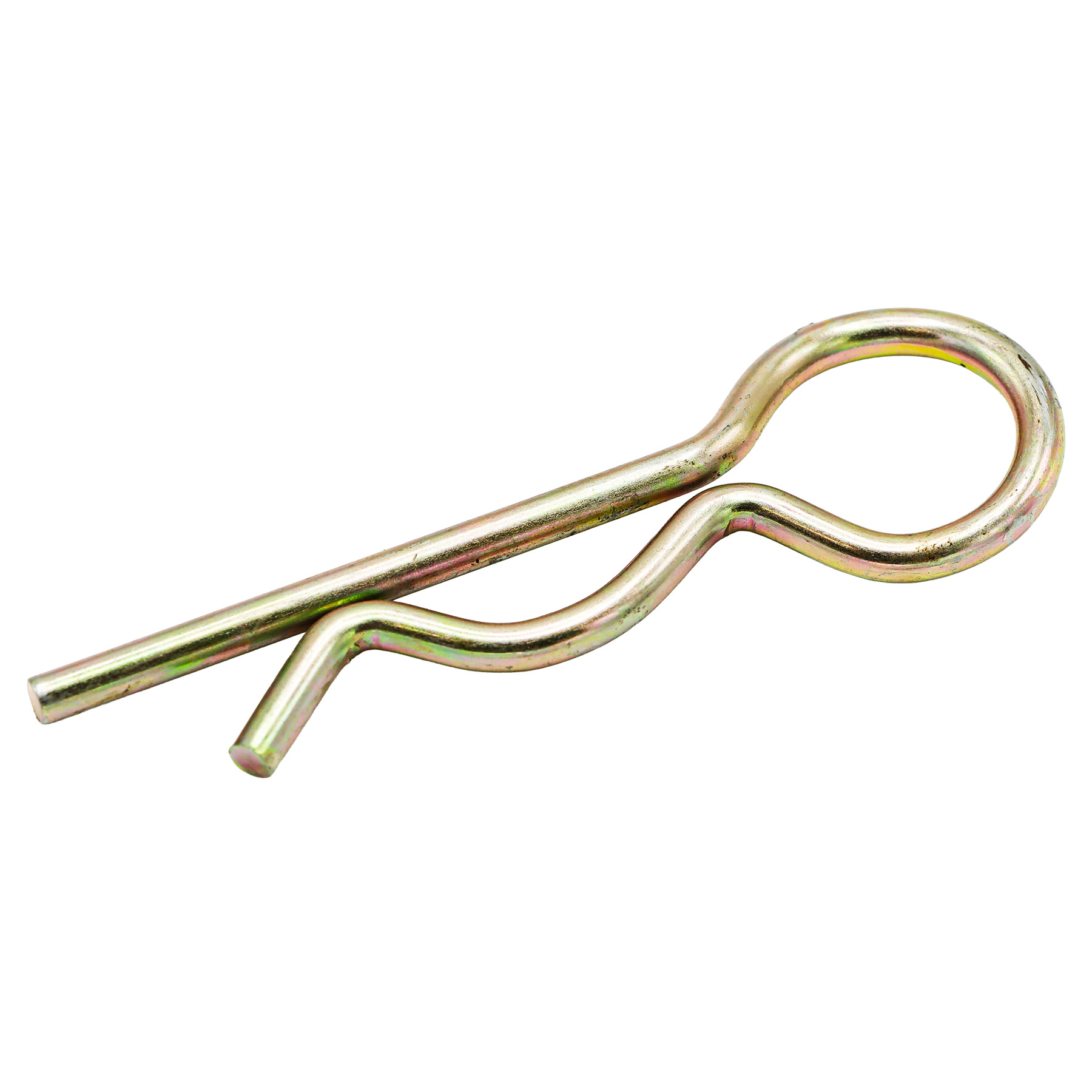

  • 14 PIN, SET B ROPS 16×67 usable, Replaced by TC26-1717BTP

    PIN, SET B ROPS 16×67 usable, Replaced by TC26-1717BTP

    • Part No. T2185-97153
    • 1 shown on diagram
    $23.99
  • 15 Hair Pin

    Hair Pin

    • Part No. 05515-51600
    • DIA16
    • 1 shown on diagram
    $2.99
