SEAT GROUP - TC2-G661022

Kioti TRACTOR | CK Series | CK3520H

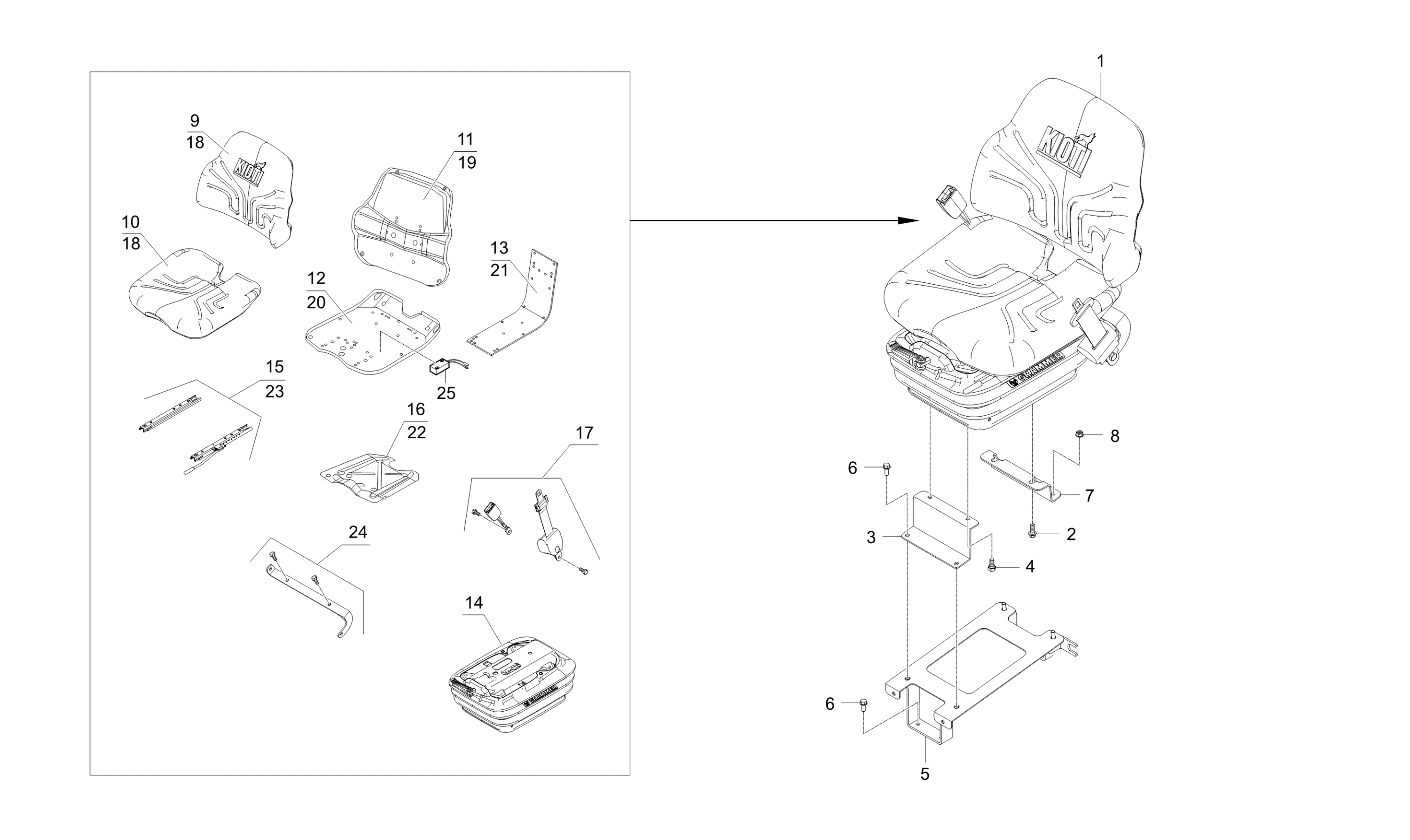

Diagram for SEAT GROUP - TC2-G661022
  • 1

    ASSY SEAT v

    • Part No. TC26-1718C
    • 1 shown on diagram
    $1714.99
  • 2

    BOLT, BONNET

    • Part No. T2350-50633
    • 2 shown on diagram
    $3.49
  • 3
    • Part No. TC26-1734A
    • T3.2
    • 1 shown on diagram
  • 4
    • Part No. 01754-50820
    • M8XP1.25
    • 2 shown on diagram
  • 5
    • Part No. T5855-61114
    • -
    • 1 shown on diagram
  • 6
    • Part No. 01754-50820
    • M8XP1.25
    • 6 shown on diagram
  • 7

    BRACKET, SEAT MOUNTING – RR dnr v

    • Part No. TC26-1735A
    • T3.2
    • 1 shown on diagram
    $15.99
  • 8
    • Part No. 02763-50080
    • M8XP1.25
    • 2 shown on diagram
  • 9 CUSHION, BACK-CPL dnr v

    CUSHION, BACK-CPL dnr v

    • Part No. TC26-1769B
    • 1 shown on diagram
    $479.99
  • 10
    • Part No. TC26-1772A
    • 1 shown on diagram
  • 11

    SEAT, BACK-CPL

    • Part No. TC26-1773A
    • 1 shown on diagram
    $279.99
  • 12

    SEAT PAN CPL v

    • Part No. TC26-1774B
    • 1 shown on diagram
    $379.99
  • 13

    SEAT, BACK-CPL

    • Part No. TC26-1776A
    • 1 shown on diagram
    $539.99
  • 14

    SUSPENSION-MSG283 CPL

    • Part No. TC26-1778A
    • 1 shown on diagram
    $1799.99
  • 15
    • Part No. TC26-1780A
    • 1 shown on diagram
  • 16
    • Part No. TC26-1781A
    • 1 shown on diagram
  • 17

    BELT, SEAT-CPL

    • Part No. TC26-1784A
    • 1 shown on diagram
    $359.99
  • 18

    FASTENER EA=6 PCS BACKREST CUSHION CPL

    • Part No. TC26-1786A
    • 1 shown on diagram
    $25.99
  • 19

    FASTENER SET=4 BACKREST CPL

    • Part No. TC26-1787A
    • 1 shown on diagram
    $57.99
  • 20

    FASTENER-SEAT PAN CPL

    • Part No. TC26-1788A
    • 1 shown on diagram
    $154.99
  • 21
    • Part No. TC26-1789A
    • 1 shown on diagram
  • 22

    FASTENER-SEAT SWITCH CPL

    • Part No. TC26-1790A
    • 1 shown on diagram
    $99.99
  • 23

    FASTENER-SLIDE RAIL CPL

    • Part No. TC26-1792A
    • 1 shown on diagram
    $169.99
  • 24

    BRACKET,BELT-SEAT CPL

    • Part No. TD26-1146A
    • 1 shown on diagram
    $259.99
  • 25

    SWITCH-SAET

    • Part No. TC26-1834A
    • 1 shown on diagram
    $199.99
