TOP LINK GROUP - TC2-G683002

Kioti TRACTOR | CK Series | CK3520H

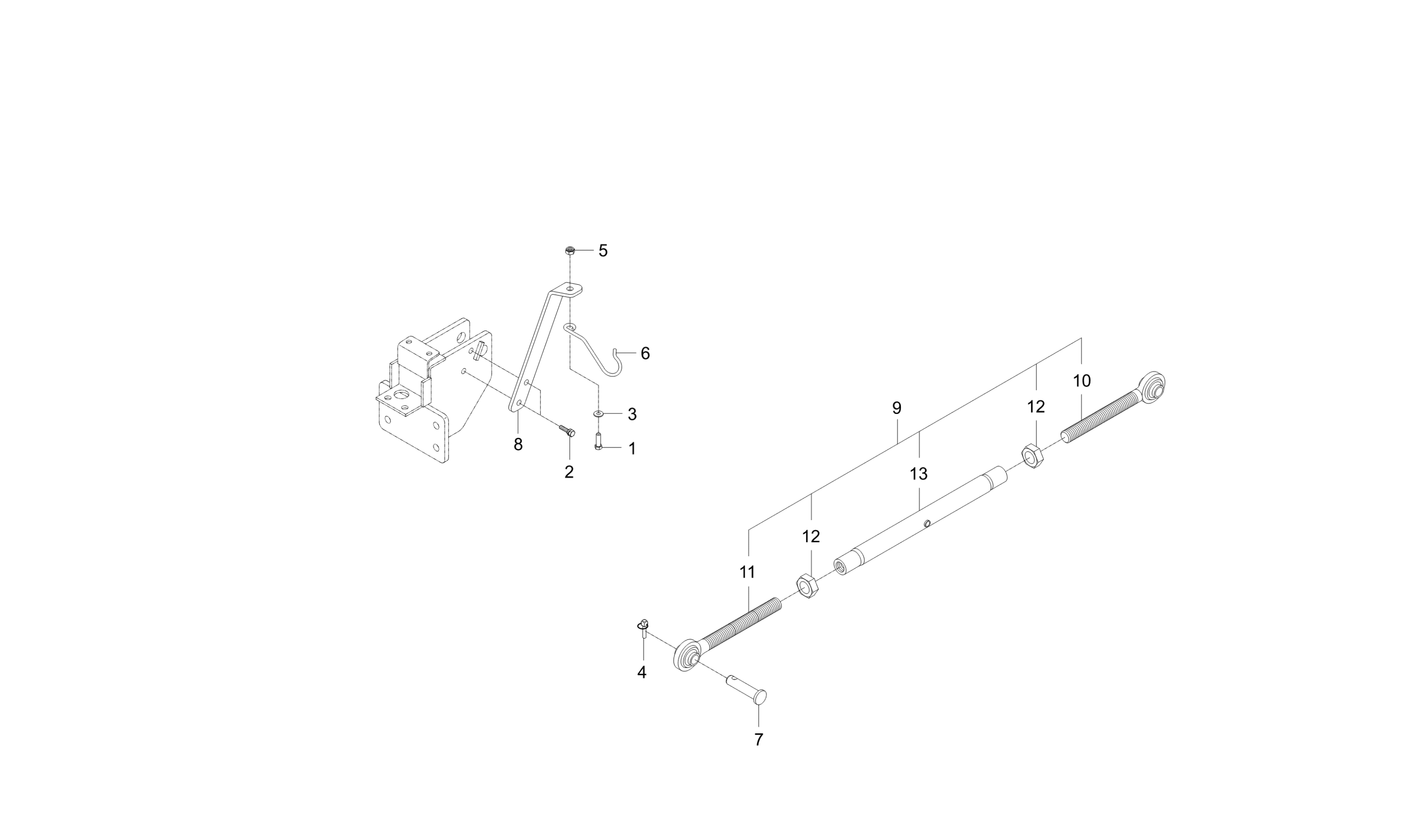

Diagram for TOP LINK GROUP - TC2-G683002
  • 1

    Bolt With Washer, M8 P1.25 x 18mm

    • Part No. 01123-50818
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 2

    FLANGE BOLT v

    • Part No. 01774-51030
    • 1 shown on diagram
    $2.49
  • 3 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 1 shown on diagram
    $.73
  • 4
    • Part No. 34150-3764-4TP
    • DIA10.0
    • 1 shown on diagram
  • 5

    NUT, REMOVE CHECK V

    • Part No. 41182-5151-1
    • DIA10
    • 1 shown on diagram
    $1.49
  • 6

    CLIP,TOP LINK

    • Part No. T5410-48081
    • 1 shown on diagram
    $17.99
  • 7

    PIN TOP LINK

    • Part No. T5710-37631
    • 1 shown on diagram
    $23.99
  • 8

    HOLDER, TOP LINK

    • Part No. TC26-0032ABB
    • 1 shown on diagram
    $17.99

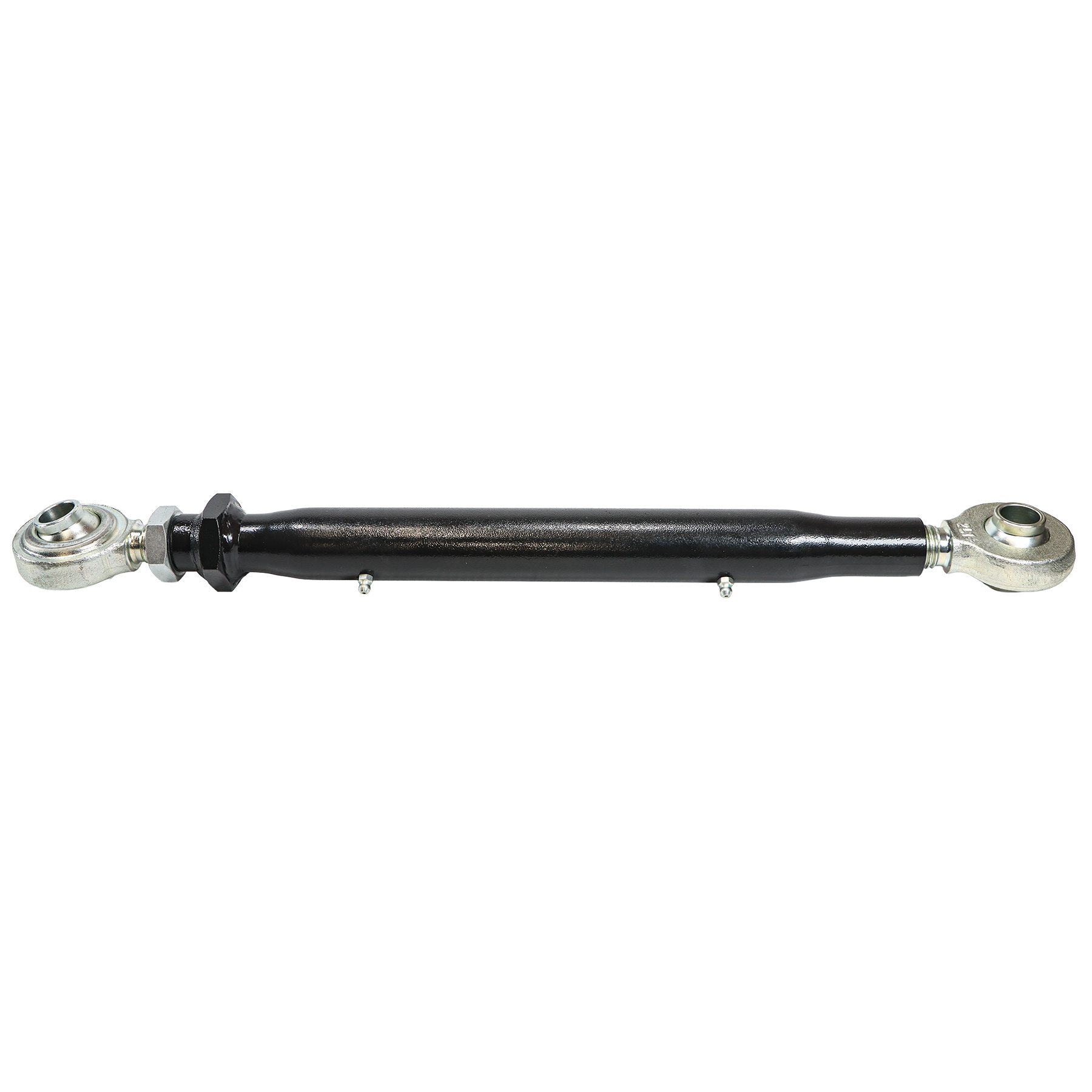

  • 9 ASSY LINK, TOP dnr v

    ASSY LINK, TOP dnr v

    • Part No. TC26-1296A
    • 1 shown on diagram
    $164.99
  • 10
    • Part No. 32240-7121-4
    • 1 shown on diagram
  • 11 JOINT, TOP LINK LH

    JOINT, TOP LINK LH

    • Part No. 32240-7122-4
    • 1 shown on diagram
    $85.99
  • 12

    NUT,TOP LINK

    • Part No. 32244-7118-2
    • M24P3.0
    • 1 shown on diagram
    $15.99
  • 13

    BODY, TOP LINK obs v

    • Part No. TC26-0069A
    • 1 shown on diagram
    $139.99
