STEP SEAT FRAME GROUP - TC2-G633002

Kioti TRACTOR | CK Series | CK3520H

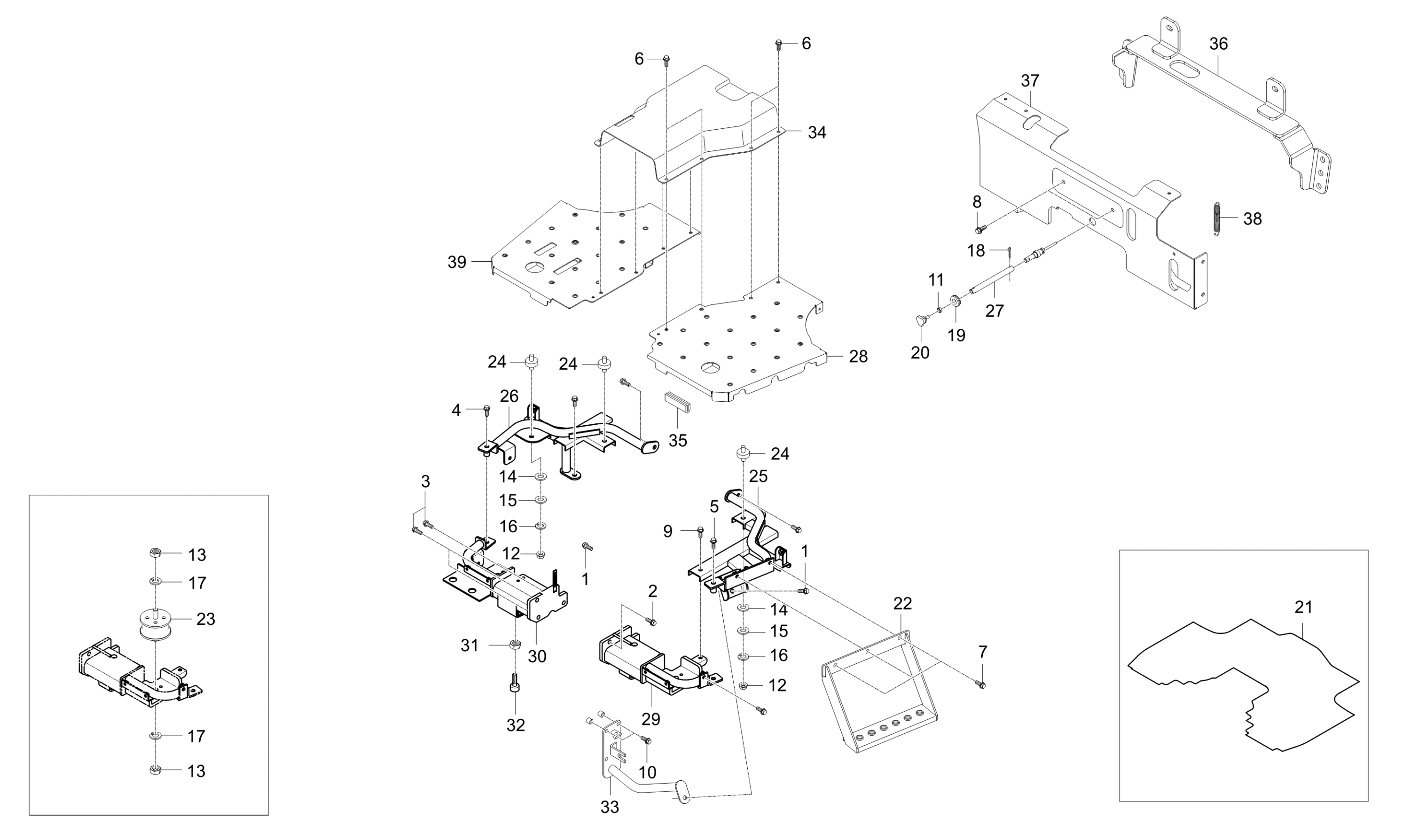

Diagram for STEP SEAT FRAME GROUP - TC2-G633002
  • 1

    BOLT

    • Part No. 01133-51020
    • M10XP1.25
    • 1 shown on diagram
    $2.99
  • 2 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 4 shown on diagram
    $3.49
  • 3 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 4 shown on diagram
    $3.49
  • 4

    BOLT

    • Part No. 01133-51045
    • 1 shown on diagram
    $3.99
  • 5

    BOLT

    • Part No. 01133-51045
    • 1 shown on diagram
    $3.99
  • 6 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 8 shown on diagram
    $1.79
  • 7 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 3 shown on diagram
    $1.79
  • 8 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.79
  • 9

    BOLT, FLANGE

    • Part No. 01754-50822
    • M8XP1.25
    • 1 shown on diagram
    $1.89
  • 10

    BOLT, FLANGE

    • Part No. 01754-50822
    • M8XP1.25
    • 2 shown on diagram
    $1.89
  • 11 NUT

    NUT

    • Part No. 02056-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.49
  • 12 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 4 shown on diagram
    $.98
  • 13 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 4 shown on diagram
    $1.49
  • 14

    Flat Washer M10

    • Part No. 04011-50100
    • M10
    • 4 shown on diagram
    $.67
  • 15

    Flat Washer M10

    • Part No. 04011-50100
    • M10
    • 4 shown on diagram
    $.67
  • 16 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 4 shown on diagram
    $0.79
  • 17
    • Part No. 04512-50120
    • M12
    • 4 shown on diagram
  • 18
    • Part No. 05511-50320
    • DIA2.7XL20
    • 1 shown on diagram
  • 19

    GROMMET

    • Part No. 31355-2949-1
    • 1 shown on diagram
    $4.99
  • 20

    KNOB

    • Part No. 82KC-0807
    • 1 shown on diagram
    $4.49
  • 21

    MAT

    • Part No. T4125-70261
    • T0.4-0.5
    • 1 shown on diagram
    $17.99
  • 22

    Step, Replaced by T4620-70222OE

    • Part No. T4620-70222
    • 1 shown on diagram
    $.00
  • 23
    • Part No. T5410-70211
    • 2 shown on diagram
  • 24 DUSTPROOF RUBBER

    DUSTPROOF RUBBER

    • Part No. T5520-80391
    • 4 shown on diagram
    $32.99
  • 25

    STEP, SUPPORT BRACKET-RR LH dnr v

    • Part No. T5850-62333
    • 1 shown on diagram
    $134.99
  • 26

    BRAKET dnr v

    • Part No. T5850-62343
    • 1 shown on diagram
    $134.99
  • 27
    • Part No. T5855-62051
    • DIA12
    • 1 shown on diagram
  • 28

    ASSY STEP dnr v.

    • Part No. T5855-62327
    • 1 shown on diagram
    $289.99
  • 29

    BRACKET

    • Part No. T5855-62336
    • 1 shown on diagram
    $239.99
  • 30

    BRACKET

    • Part No. T5855-62348
    • 1 shown on diagram
    $234.99
  • 31
    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
  • 32

    BOLT, ADJUSTMENT

    • Part No. T2350-55881
    • 1 shown on diagram
    $8.49
  • 33

    PLATE, STEP dnr v

    • Part No. T5855-62353
    • 1 shown on diagram
    $69.99
  • 34

    STEP,CENTER

    • Part No. T5855-62363
    • T2.3
    • 1 shown on diagram
    $149.99
  • 35

    RUBBER

    • Part No. T5855-62392
    • 1 shown on diagram
    $5.49
  • 36

    BRACKET, NUMBER

    • Part No. TC26-0007B
    • 1 shown on diagram
    $124.99
  • 37
    • Part No. TC26-0042B
    • 1 shown on diagram
  • 38
    • Part No. C7331-21791
    • 1 shown on diagram
  • 39

    STEP,RH(HST)

    • Part No. T5855-62317
    • 1 shown on diagram
    $319.99
