FUEL COOLER GROUP - TC2-G614504

Kioti TRACTOR | CK Series | CK3520H

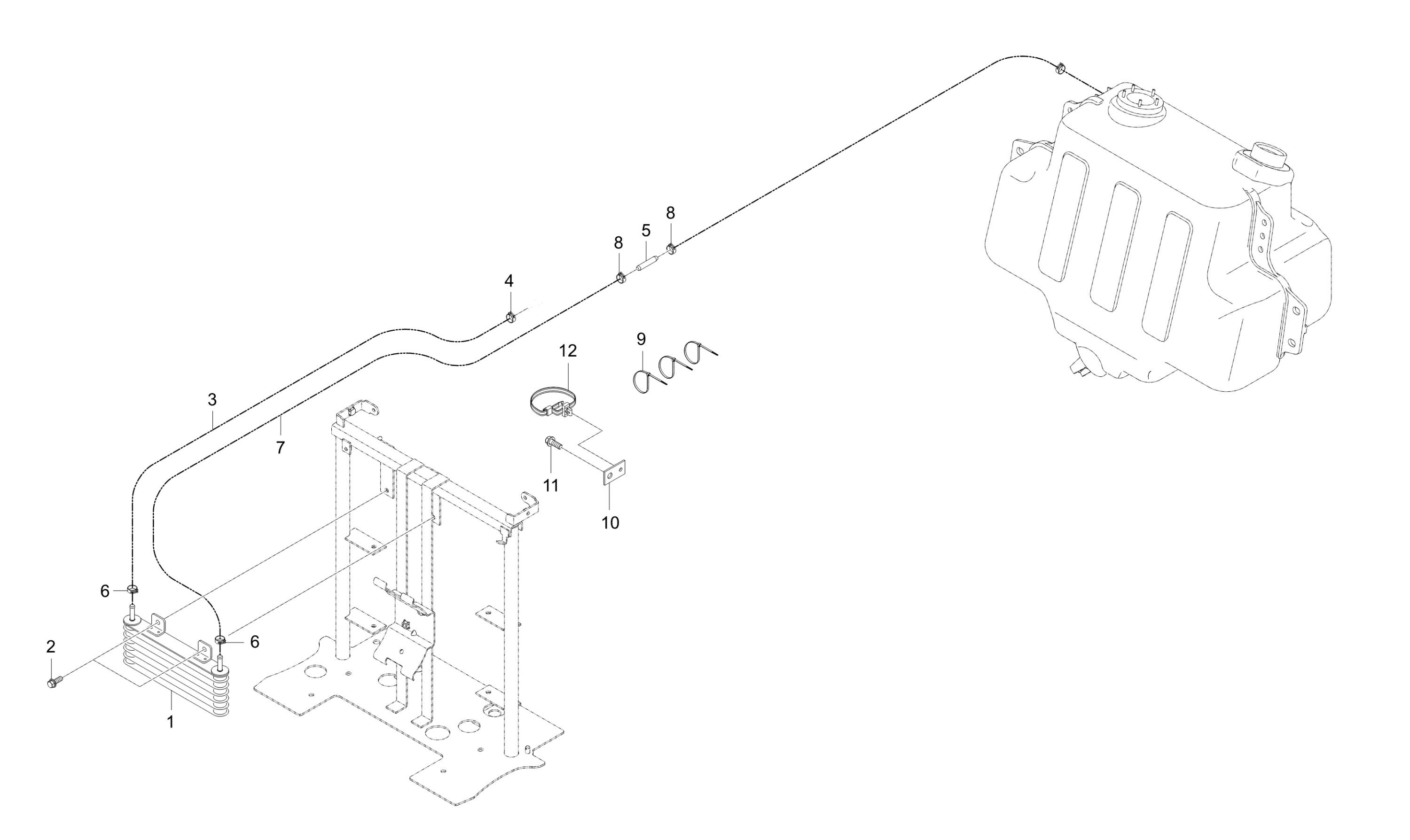

Diagram for FUEL COOLER GROUP - TC2-G614504
  • 1

    COOLER, FUEL v

    • Part No. T5315-81251
    • 1 shown on diagram
    $169.99
  • 2
    • Part No. 01754-50820
    • M8XP1.25
    • 2 shown on diagram
  • 3

    HOSE 4, FUEL

    • Part No. T5620-51642
    • OD14XID8
    • 1 shown on diagram
    $33.99
  • 4

    CLAMP, HOSE

    • Part No. 09318-88130
    • DIA13
    • 1 shown on diagram
    $1.09
  • 5

    TUBE, CONNECTING

    • Part No. T5855-55261
    • 0.8T
    • 1 shown on diagram
    $2.99
  • 6

    CLIP, HOSE

    • Part No. 15301-7247-0
    • Stan16#
    • 3 shown on diagram
    $2.49
  • 7

    FUEL HOSE

    • Part No. T5855-51025
    • OD14 / ID8
    • 1 shown on diagram
    $54.99
  • 8

    CLAMP, HOSE

    • Part No. 09318-88130
    • DIA13
    • 2 shown on diagram
    $1.09
  • 9
    • Part No. P5370-82551
    • 1 shown on diagram
  • 10

    BRACKET WIRE HARNESS

    • Part No. T2185-69771
    • T1.6
    • 1 shown on diagram
    $5.49
  • 11 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50812
    • M8XP1.25
    • 1 shown on diagram
    $1.79
  • 12

    BAND CORD

    • Part No. T2185-82551
    • L290
    • 1 shown on diagram
    $1.29
