BRAKE PEDAL GROUP - TC2-G646504

Kioti TRACTOR | CK Series | CK3520H

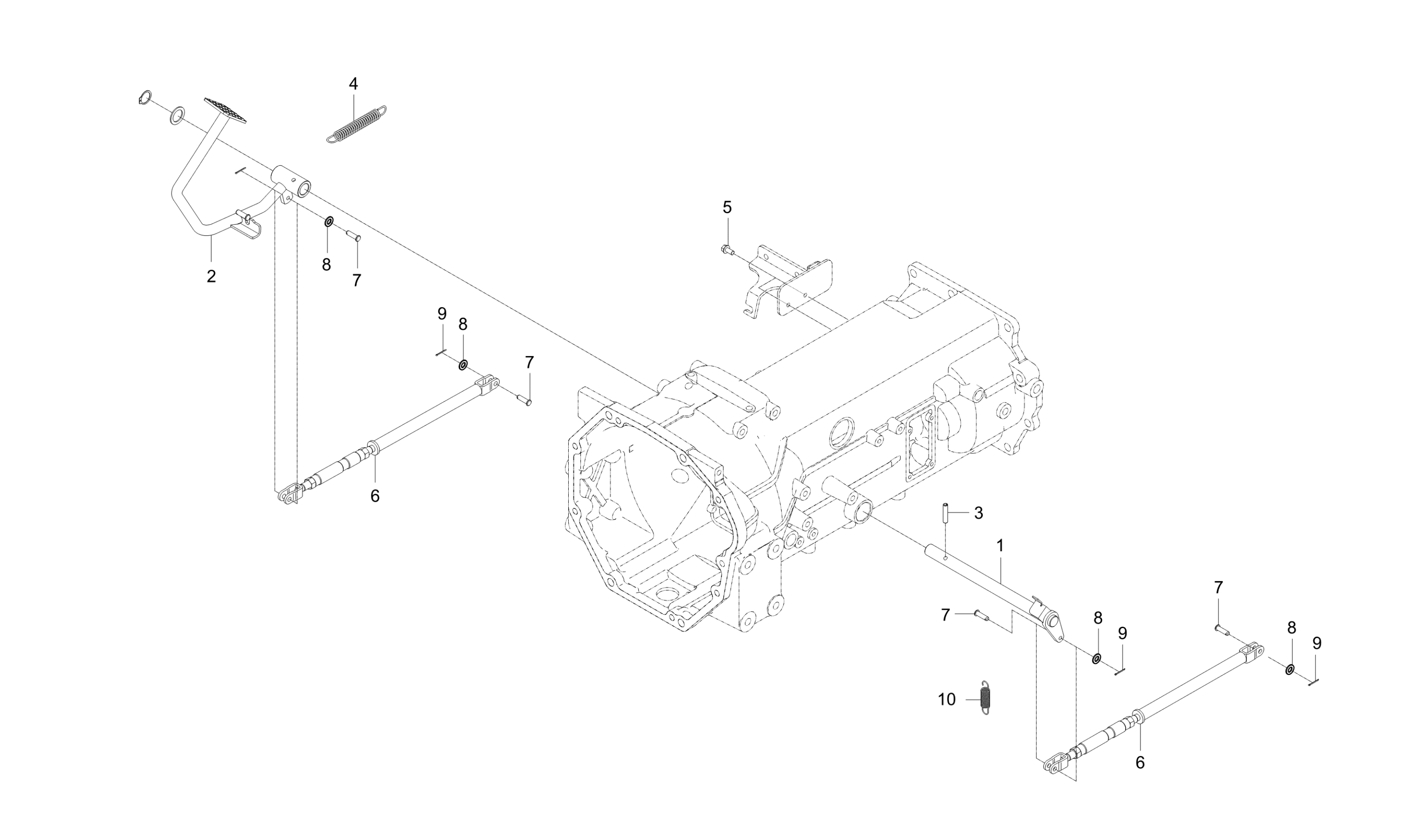

Diagram for BRAKE PEDAL GROUP - TC2-G646504
  • 1

    SHAFT

    • Part No. T5855-55213BB
    • 1 shown on diagram
    $84.99
  • 2

    PEDAL, BRAKE HST

    • Part No. T5855-55223BB
    • 1 shown on diagram
    $.00

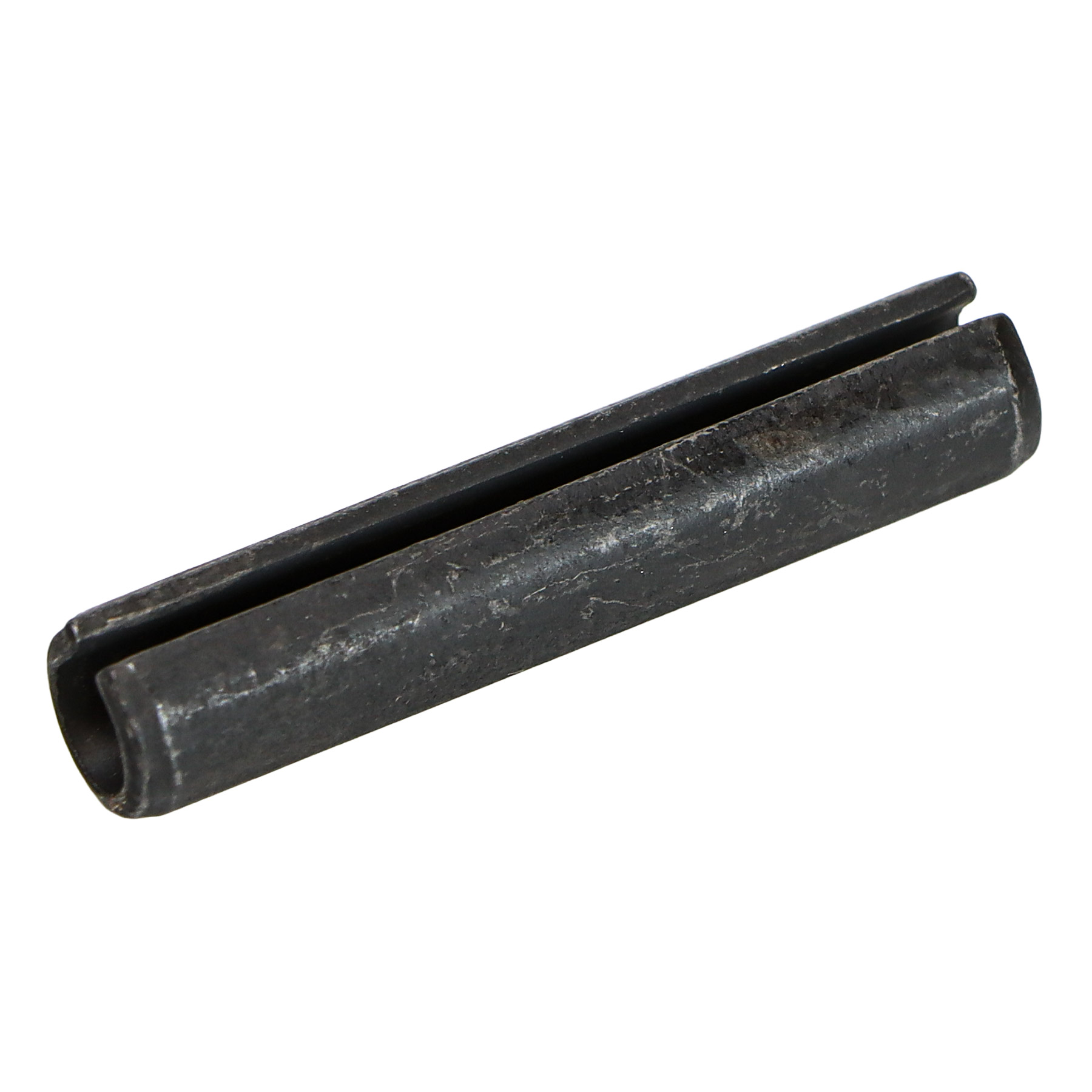

  • 3 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00840
    • DIA8.6XL40
    • 1 shown on diagram
    $1.49

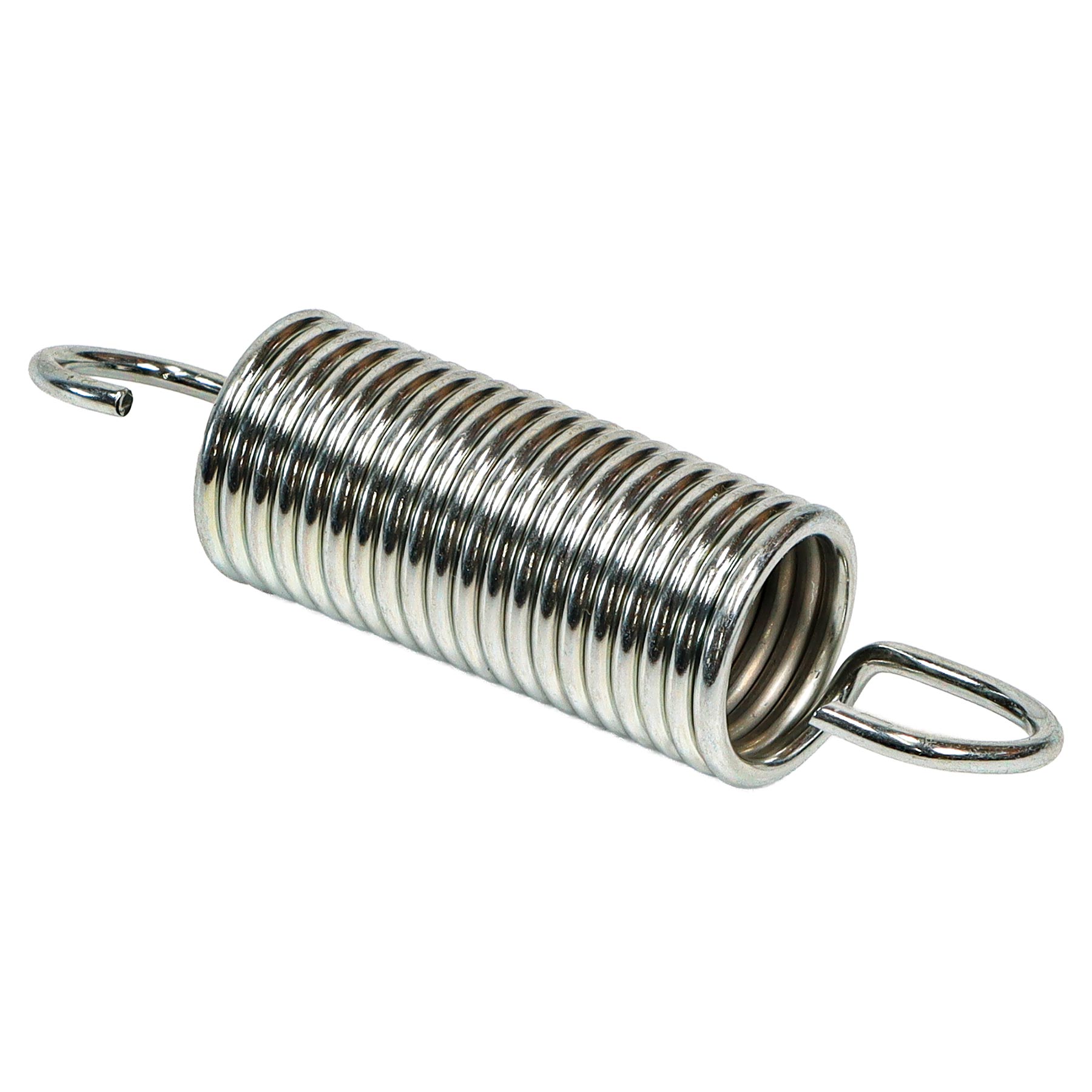

  • 4 SPRING, BRAKE

    SPRING, BRAKE

    • Part No. T4520-26161
    • DIA2.5
    • 1 shown on diagram
    $9.99
  • 5 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 6
    • Part No. T5855-55271
    • -
    • 2 shown on diagram
  • 7 Pin, Joint M8x28mm

    Pin, Joint M8x28mm

    • Part No. 05122-50828
    • DIA8XL28
    • 4 shown on diagram
    $3.49
  • 8 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 4 shown on diagram
    $.79
  • 9

    PIN, SPLIT

    • Part No. 05511-50220
    • DIA1.8XL20
    • 4 shown on diagram
    $0.56
  • 10 SPRING

    SPRING

    • Part No. T4520-27831
    • DIA2.0
    • 1 shown on diagram
    $6.49
