DRAWBAR GROUP - TC2-G692010

Kioti TRACTOR | CK Series | CK3520H

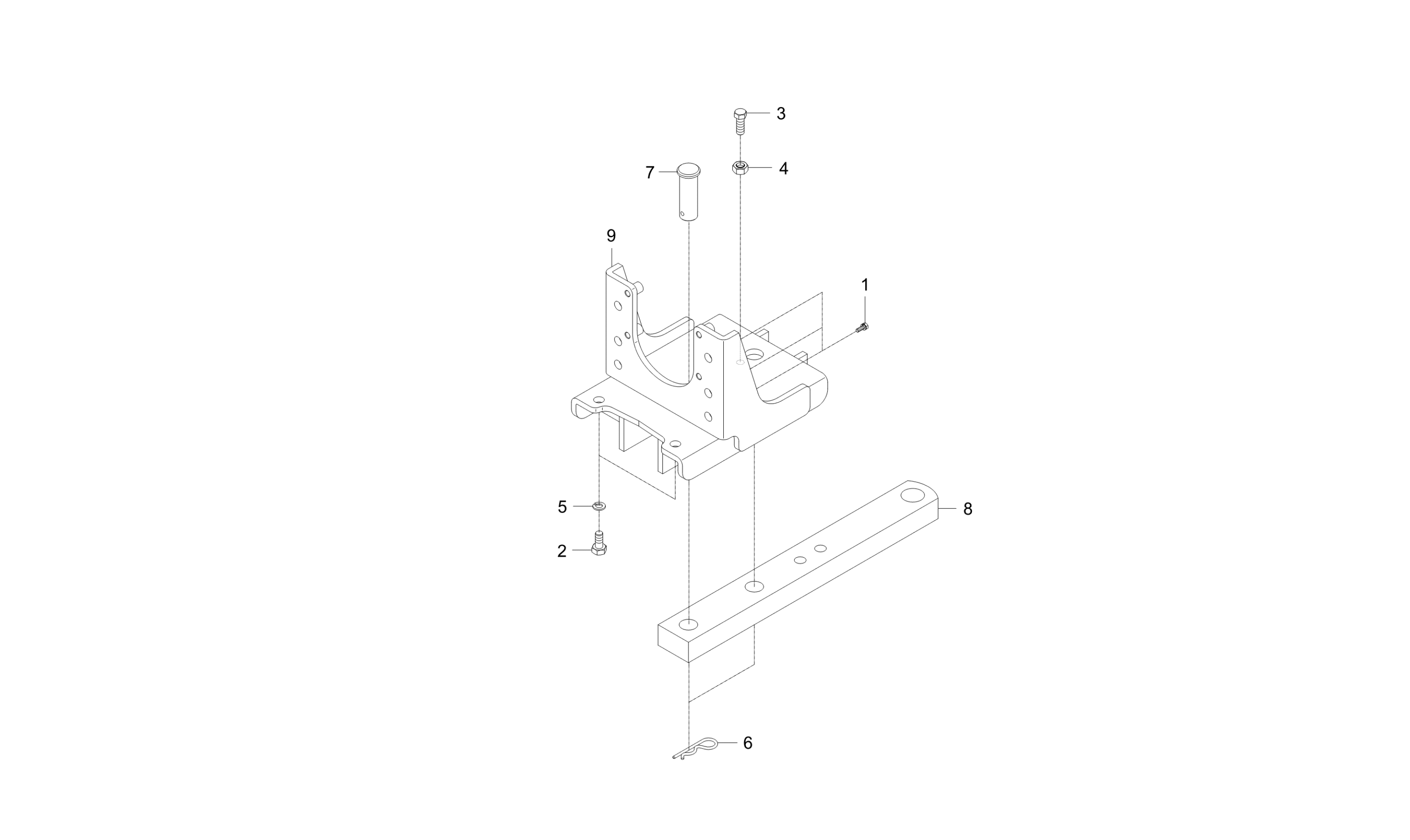

Diagram for DRAWBAR GROUP - TC2-G692010
  • 1 BOLT

    BOLT

    • Part No. 01133-51025
    • M10XP1.25
    • 6 shown on diagram
    $3.49
  • 2

    Bolt (01173-51430)

    • Part No. 01173-51430
    • M14P1.5*30
    • 2 shown on diagram
    $4.49
  • 3 BOLT

    BOLT

    • Part No. 01175-51030
    • 1 shown on diagram
    $2.49
  • 4 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $.98
  • 5

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 2 shown on diagram
    $0.9

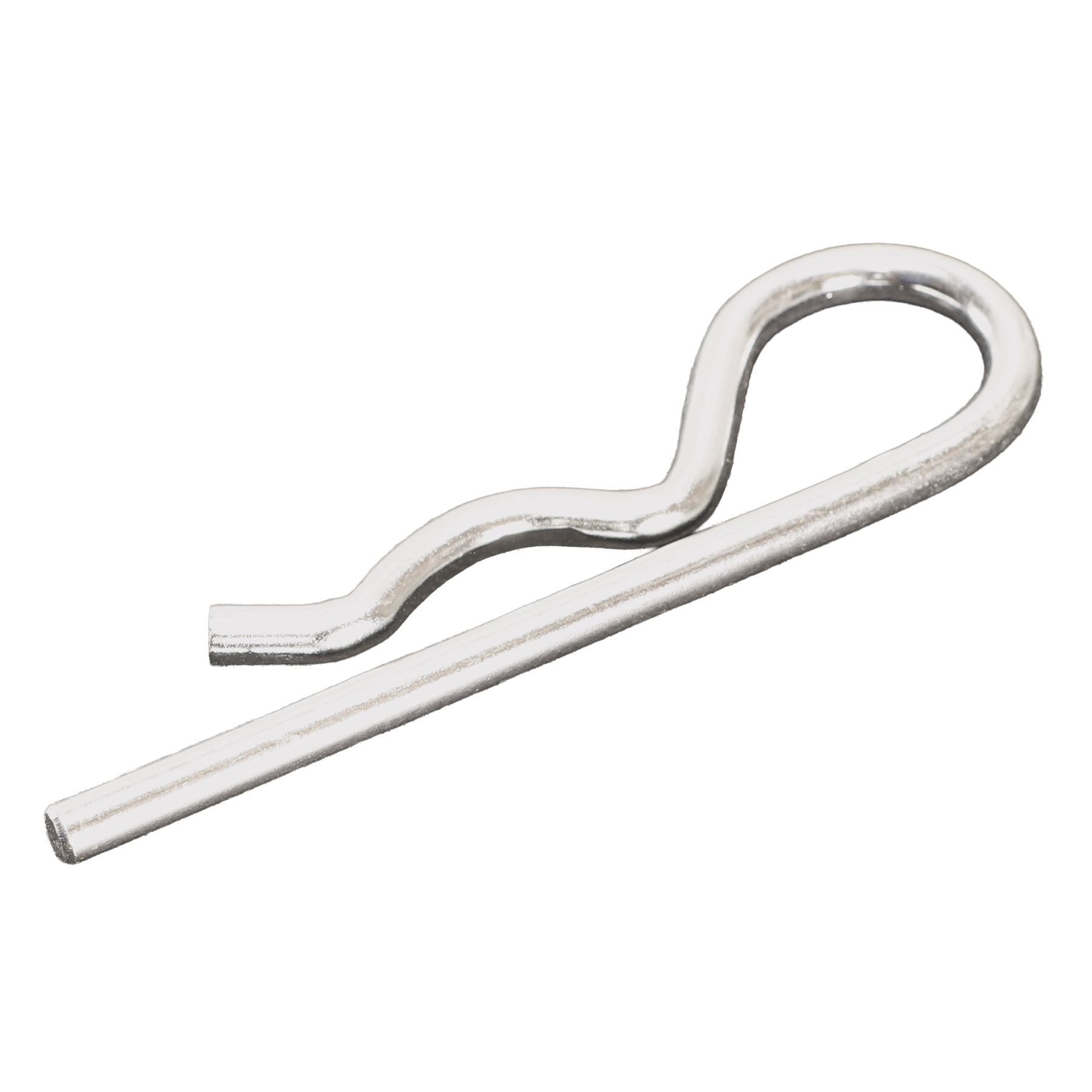

  • 6 CIR CLIP

    CIR CLIP

    • Part No. 70515-1633-4TP
    • DIA5.0
    • 2 shown on diagram
    $6.49

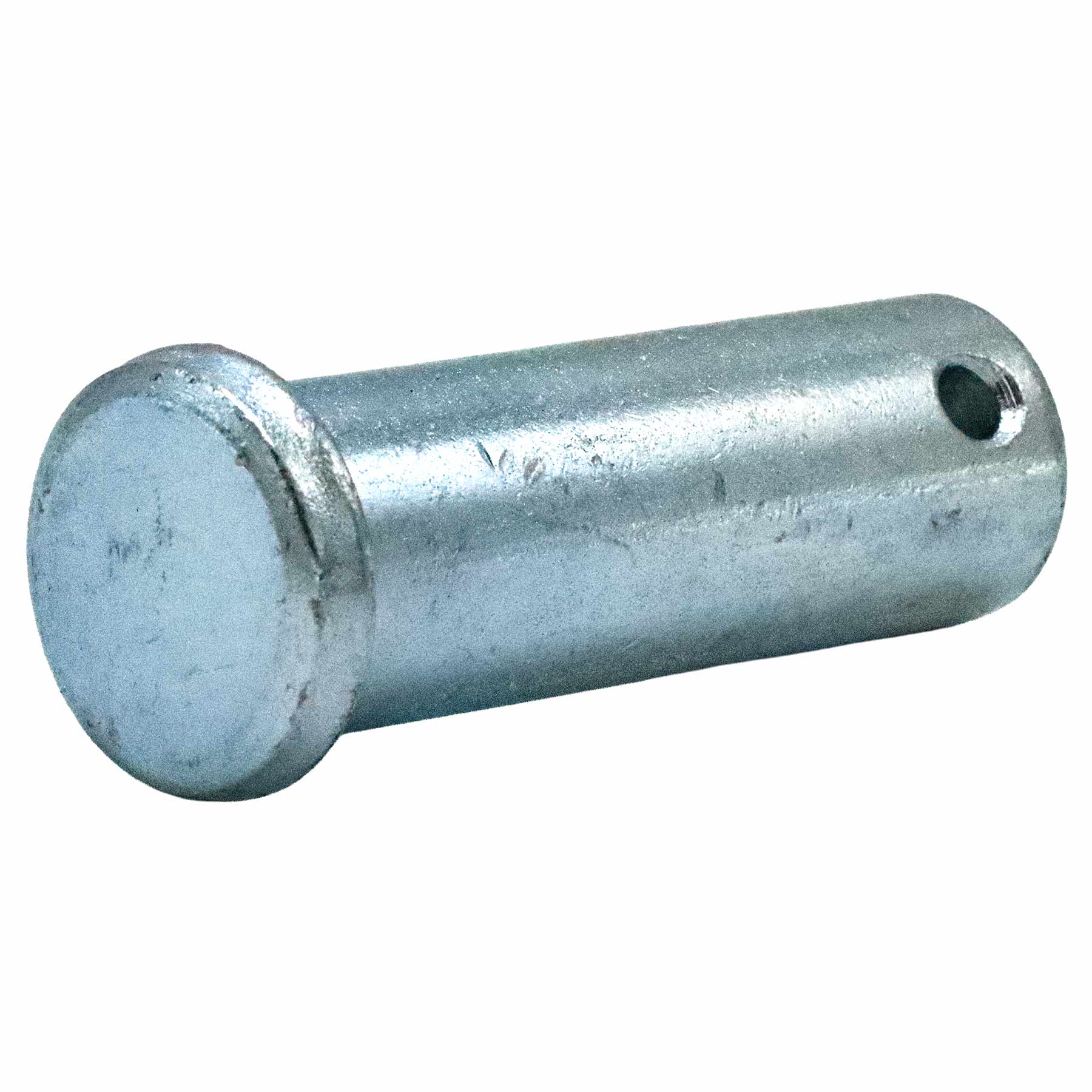

  • 7 PIN, JOINT

    PIN, JOINT

    • Part No. T2445-29781TP
    • DIA25
    • 2 shown on diagram
    $19.99
  • 8 Draw Bar

    Draw Bar

    • Part No. T2611-29731
    • 1 shown on diagram
    $264.99
  • 9

    DRAW BAR FRAME

    • Part No. T5855-65913BB
    • 1 shown on diagram
    $619.99
