ENGINE STOP LEVER GROUP - 3A165LXB-E160

Kioti TRACTOR | CK Series | CK25H

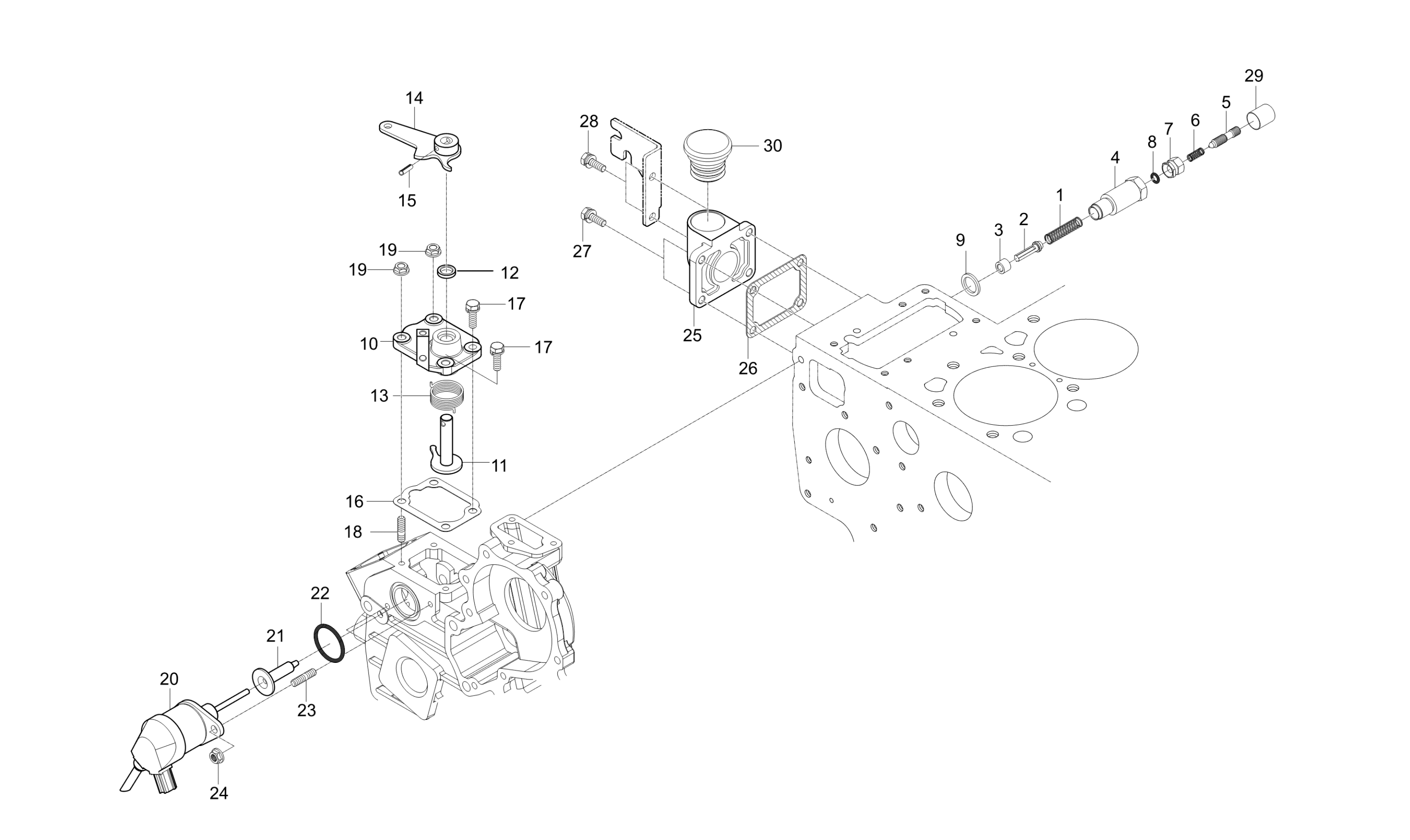

Diagram for ENGINE STOP LEVER GROUP - 3A165LXB-E160
  • 1

    SPRING

    • Part No. E5850-54261
    • 1 shown on diagram
    $3.49
  • 2

    SHAFT, IDLE ADJUSTMENT

    • Part No. E5850-54272
    • 1 shown on diagram
    $9.49
  • 3

    BUSH

    • Part No. E5850-54282
    • 1 shown on diagram
    $16.99
  • 4

    ADJUSTMENT BODY, IDLE dnr v

    • Part No. E5850-54291
    • 1 shown on diagram
    $39.99
  • 5

    IDEL ADJUSTING BOLT dnr v

    • Part No. E5850-54251
    • * multiple options for #5
    • 1 shown on diagram
    $5.99
  • 5

    IDEL ADJUSTING BOLT v

    • Part No. E5850-54252
    • Compatibility New repl old
    • * multiple options for #5
    • 1 shown on diagram
    $7.49
  • 6

    SPRING v

    • Part No. 15521-5426-1
    • DIA0.5
    • 1 shown on diagram
    $1.49
  • 7

    NUT

    • Part No. E5850-92011
    • 1 shown on diagram
    $13.99
  • 8

    O RING

    • Part No. 04811-00060
    • 1 shown on diagram
    $0.68
  • 9

    PACKING

    • Part No. 04724-00140
    • Inner Diameter 14.1
    • 1 shown on diagram
    $3.99
  • 10 PLATE, SPEED CONTROL

    PLATE, SPEED CONTROL

    • Part No. E5850-57112
    • 1 shown on diagram
    $25.99
  • 11

    LEVER 2, ENGINE STOP

    • Part No. E5850-57741
    • * multiple options for #11
    • 1 shown on diagram
    $0.00
  • 11

    LEVER 2, ENGINE STOP v

    • Part No. E5850-57742
    • Compatibility New repl old
    • * multiple options for #11
    • 1 shown on diagram
    $14.99
  • 12

    SEAL, OIL

    • Part No. 15471-5798-1
    • 1 shown on diagram
    $7.99
  • 13

    SPRING v

    • Part No. E5850-57921
    • 1 shown on diagram
    $4.49
  • 14

    STOP LEVER 1

    • Part No. E5850-57731
    • 1 shown on diagram
    $19.99
  • 15 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00420
    • DIA4.4XL20
    • 1 shown on diagram
    $0.68
  • 16 GASKET, SPEED CONTROL PLATE

    GASKET, SPEED CONTROL PLATE

    • Part No. E5850-57212
    • 1 shown on diagram
    $4.49
  • 17

    BOLT, WASHER

    • Part No. 01023-50620
    • Applied Dates Up to 2007-06-20
    • M6XP1.0
    • * multiple options for #17
    • 2 shown on diagram
    $1.39
  • 17

    BOLT w- WASHER

    • Part No. 01023-50618
    • Compatibility No interchange
    • M6XP1.0
    • * multiple options for #17
    • 2 shown on diagram
    $1.79
  • 18

    STUD

    • Part No. 15221-8821-1
    • DIA6,M6*1.0*32
    • 2 shown on diagram
    $3.99
  • 19 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02761-50060
    • M6XP1.0
    • 2 shown on diagram
    $0.67
  • 20

    ASSY SOLENOID dnr v, Replaced by E6820-60012

    • Part No. E6850-60011
    • Applied Dates 2007-01-11 to 2008-03-30
    • Serial No. G70200001 and up
    • * multiple options for #20
    • 1 shown on diagram
    $0.00
  • 20

    SOLENOID, ENGINE STOP, Replaced by E6820-60012

    • Part No. E6850-60012
    • Compatibility Call for compat
    • Applied Dates 2008-03-31 to 2011-05-31
    • * multiple options for #20
    • 1 shown on diagram
    $0.00
  • 20 Engine Stop Solenoid, 3 Pin

    Engine Stop Solenoid, 3 Pin

    • Part No. E6820-60011
    • Compatibility Interchngable
    • * multiple options for #20
    • 1 shown on diagram
    $154.99
  • 21

    ENGINE STOP SOLENOID GUIDE v

    • Part No. E5850-56603
    • 1 shown on diagram
    $4.99
  • 22 O RING

    O RING

    • Part No. 04814-06310
    • 1 shown on diagram
    $3.49
  • 23 STUD

    STUD

    • Part No. 01513-50614
    • 2 shown on diagram
    $3.49
  • 24 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02761-50060
    • M6XP1.0
    • 2 shown on diagram
    $0.67
  • 25

    OIL INPUT COVER

    • Part No. E5850-33111
    • 1 shown on diagram
    $15.99
  • 26 GASKET, OIL FILLER

    GASKET, OIL FILLER

    • Part No. E5500-51662
    • t1.0
    • 1 shown on diagram
    $3.99
  • 27

    BOLT w- WASHER

    • Part No. 01023-50618
    • M6XP1.0
    • 2 shown on diagram
    $1.79
  • 28

    BOLT

    • Part No. 01023-50622
    • HEX10*33
    • 2 shown on diagram
    $1.29
  • 29 CAP

    CAP

    • Part No. E5205-54271
    • T0.5*60*60
    • 1 shown on diagram
    $5.49

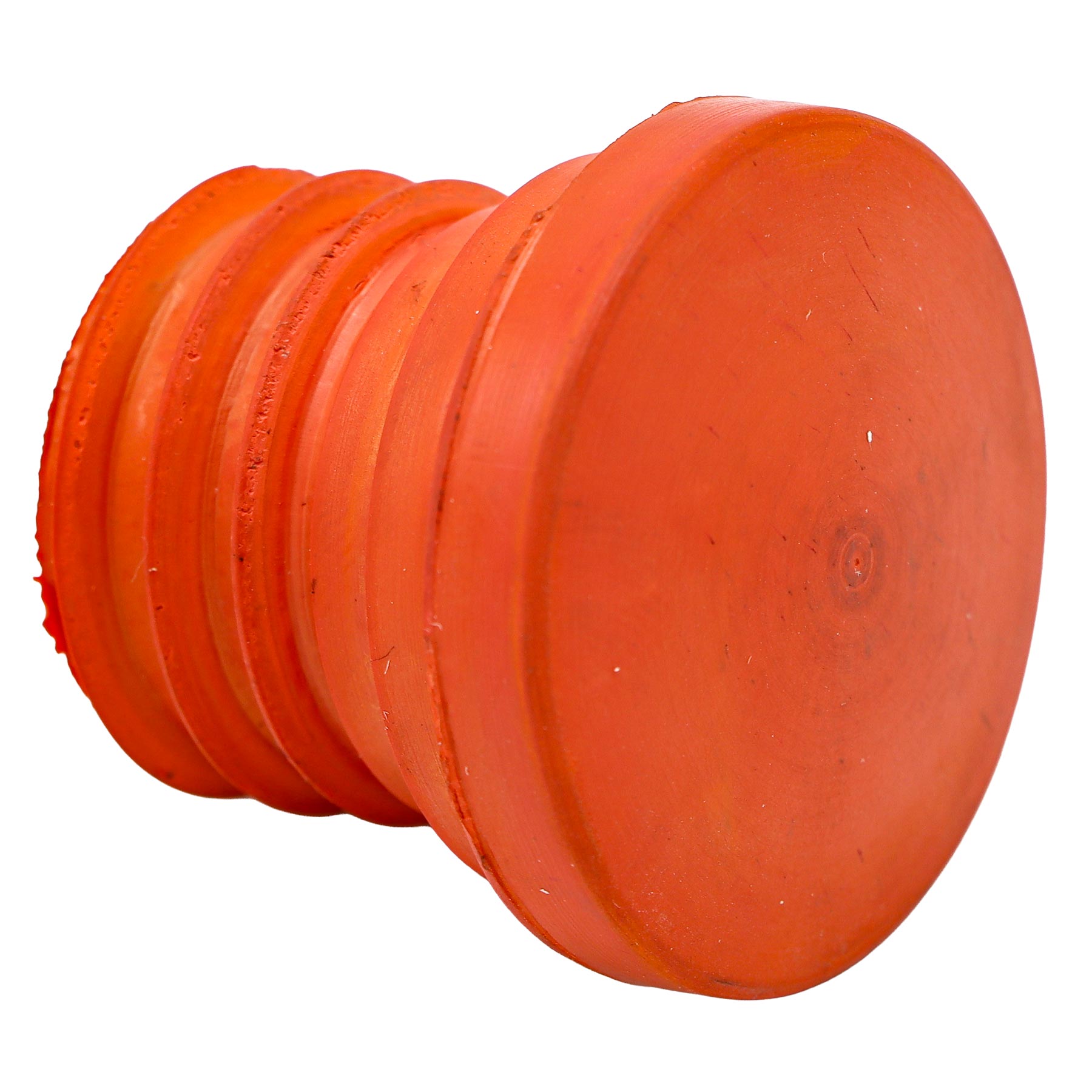

  • 30 PLUG, OIL V

    PLUG, OIL V

    • Part No. E5800-33144
    • 1 shown on diagram
    $9.49
