FLYWHEEL GROUP - TD1300E-E120

Kioti TRACTOR | CK Series | CK25H

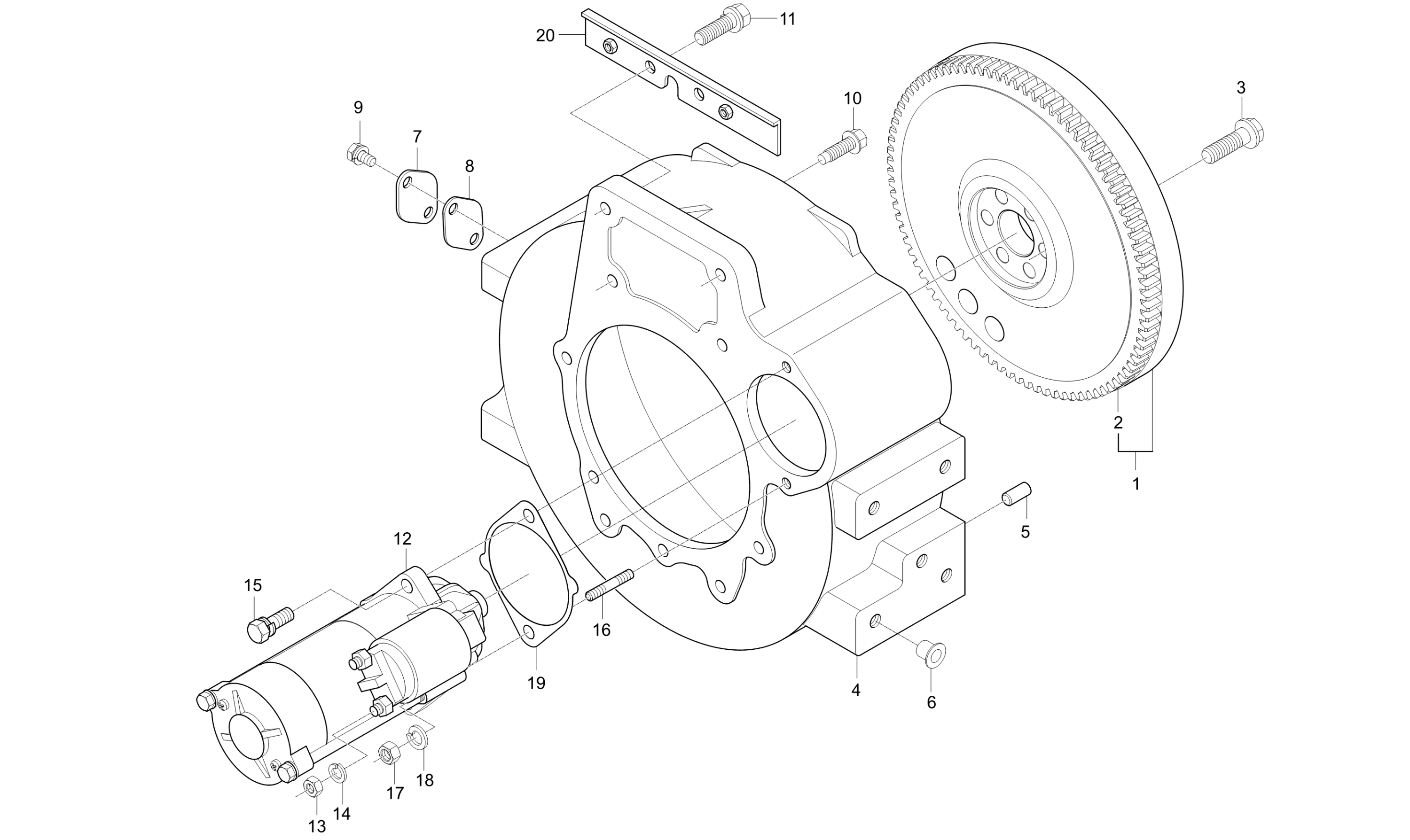

Diagram for FLYWHEEL GROUP - TD1300E-E120
  • 1

    FLYWHEEL ASSY v

    • Part No. E5500-25014
    • Applied Dates 2000-05-04 to 2005-06-27
    • Serial No. Up to E70200216
    • * multiple options for #1
    • 1 shown on diagram
    $469.99
  • 1

    ASS’Y FLYWHEEL

    • Part No. E5505-25011
    • Compatibility Call for compat
    • Applied Dates 2005-09-29 to 2006-01-10
    • Serial No. E70200217 to F70200100
    • * multiple options for #1
    • 1 shown on diagram
    $564.99
  • 1

    ASS’Y FLYWHEEL

    • Part No. E5505-25012
    • Compatibility No interchange
    • Applied Dates 2006-01-11 and up
    • Serial No. F70200101 and up
    • * multiple options for #1
    • 1 shown on diagram
    $734.99
  • 2 RING GEAR

    RING GEAR

    • Part No. 15221-6382-4
    • OD280*TD230*20
    • 1 shown on diagram
    $129.99
  • 3 BOLT, FLYWHEEL v

    BOLT, FLYWHEEL v

    • Part No. E5500-25164
    • Applied Dates 1997-09-08 to 2005-09-28
    • Serial No. Up to E70200216
    • * multiple options for #3
    • 6 shown on diagram
    $9.99
  • 3 FLYWHEEL BOLT

    FLYWHEEL BOLT

    • Part No. E6200-25163
    • Compatibility No interchange
    • Applied Dates 2005-09-29 and up
    • Serial No. E70200217 and up
    • * multiple options for #3
    • 6 shown on diagram
    $15.99
  • 4

    HOUSING,FLYWHEEL dnr v

    • Part No. E5900-04614
    • Applied Dates 1997-09-23 to 2005-09-28
    • * multiple options for #4
    • 1 shown on diagram
    $374.99
  • 4

    HOUSING,FLYWHEEL

    • Part No. E5900-04615
    • Compatibility New repl old
    • Applied Dates 2005-09-29 and up
    • * multiple options for #4
    • 1 shown on diagram
    $434.99
  • 5

    PIN,STRAIGHT

    • Part No. 05012-01025
    • 2 shown on diagram
    $1.89
  • 6

    PLUG

    • Part No. 31220-1429-3
    • 10 shown on diagram
    $3.49
  • 7 COVER

    COVER

    • Part No. 15521-0468-2
    • T2.6*65*28
    • 1 shown on diagram
    $6.49
  • 8 GASKET

    GASKET

    • Part No. 15521-0479-2
    • T2*60*42
    • 1 shown on diagram
    $2.99
  • 9 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 10 FLANGE BOLT

    FLANGE BOLT

    • Part No. 01674-51032
    • Applied Dates 1993-08-20 and up
    • 11 shown on diagram
    $2.49
  • 11 Bolt With Washer, M12 P1.25×40

    Bolt With Washer, M12 P1.25×40

    • Part No. 01133-51240
    • Applied Dates 1995-06-05 and up
    • M12XP1.25
    • 2 shown on diagram
    $4.49
  • 12

    STARTING MOTOR v, Replaced by E5500-63016

    • Part No. E5500-63015
    • Applied Dates 2001-01-03 to 2004-06-21
    • Serial No. Up to D70200501
    • * multiple options for #12
    • 1 shown on diagram
    $378.54
  • 12 STARTER MOTOR ASSY

    STARTER MOTOR ASSY

    • Part No. E5500-63016
    • Compatibility New repl old
    • Applied Dates 2005-01-01 and up
    • Serial No. D70200502 and up
    • * multiple options for #12
    • 1 shown on diagram
    $474.99
  • 13 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • Applied Dates 1993-11-18 and up
    • M8XP1.25
    • 1 shown on diagram
    $0.85
  • 14 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 1 shown on diagram
    $0.61
  • 15 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01133-51030
    • M10XP1.25
    • 1 shown on diagram
    $2.99
  • 16 STUD

    STUD

    • Part No. 01517-51028
    • Applied Dates 1993-12-17 and up
    • M10XP1.25
    • 1 shown on diagram
    $5.49
  • 17 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $0.98
  • 18 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 1 shown on diagram
    $0.79
  • 19

    GASKET v

    • Part No. E6200-04622
    • Applied Dates 1997-11-24 to 2006-08-25
    • Serial No. Up to D70200151
    • * multiple options for #19
    • 1 shown on diagram
    $5.49
  • 19 GASKET V

    GASKET V

    • Part No. E6200-04623
    • Compatibility New repl old
    • Applied Dates 2006-08-26 to 2008-04-01
    • Serial No. H70200001 and up
    • T0.5
    • * multiple options for #19
    • 1 shown on diagram
    $7.99
  • 20

    Support, Replaced by T2185-81132BB

    • Part No. T2185-81132
    • Applied Dates 2004-01-16 to 2006-09-03
    • 1 shown on diagram
    $13.99
