ALTERNATOR GROUP - TD1300E-E200

Kioti TRACTOR | CK Series | CK25H

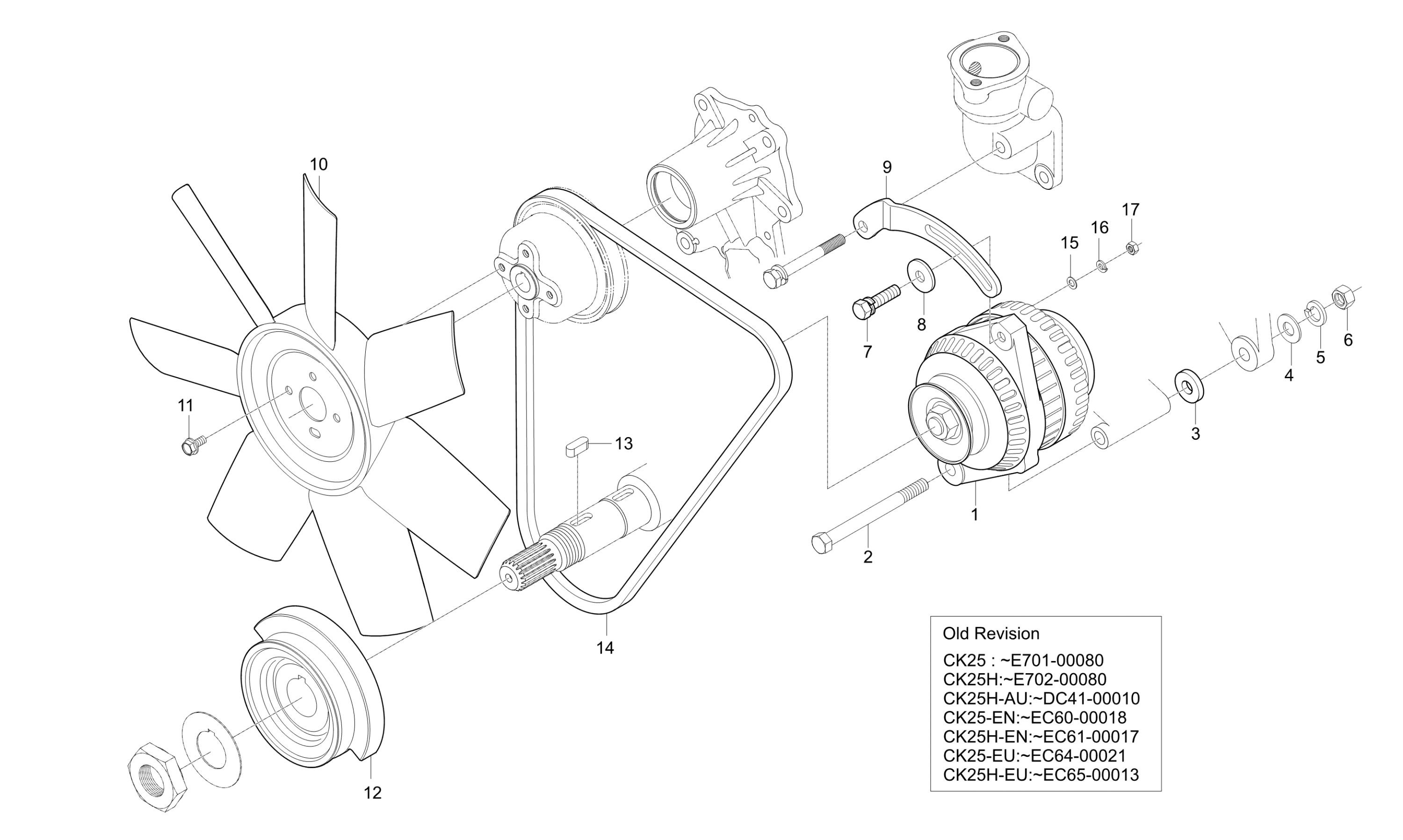

Diagram for ALTERNATOR GROUP - TD1300E-E200
  • 1

    ASS’Y, DYNAMO

    • Part No. E6213-64012
    • Applied Dates 2003-04-24 and up
    • 1 shown on diagram
    $719.99
  • 2

    SPACER, Replaced by E5800-64102BB

    • Part No. E5800-64102
    • Applied Dates 2003-04-24 and up
    • DIA24*T5.15
    • 1 shown on diagram
    $0.00
  • 3

    BOLT

    • Part No. 01173-51005
    • Applied Dates 2003-04-24 and up
    • 1 shown on diagram
    $7.49
  • 4 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • Applied Dates 2003-02-20 and up
    • M10
    • 1 shown on diagram
    $0.73
  • 5 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50100
    • M10
    • 1 shown on diagram
    $0.79
  • 6 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $0.98
  • 7

    Bolt With Washer, M8 P1.25 x 32mm

    • Part No. 01123-50832
    • HEX12*43
    • 1 shown on diagram
    $2.49
  • 8 Flat Washer M8

    Flat Washer M8

    • Part No. 04015-50080
    • M8
    • 1 shown on diagram
    $1.09
  • 9

    STAY,ALTERNATOR

    • Part No. E5629-64421
    • Applied Dates 2004-05-10 and up
    • 1 shown on diagram
    $12.99

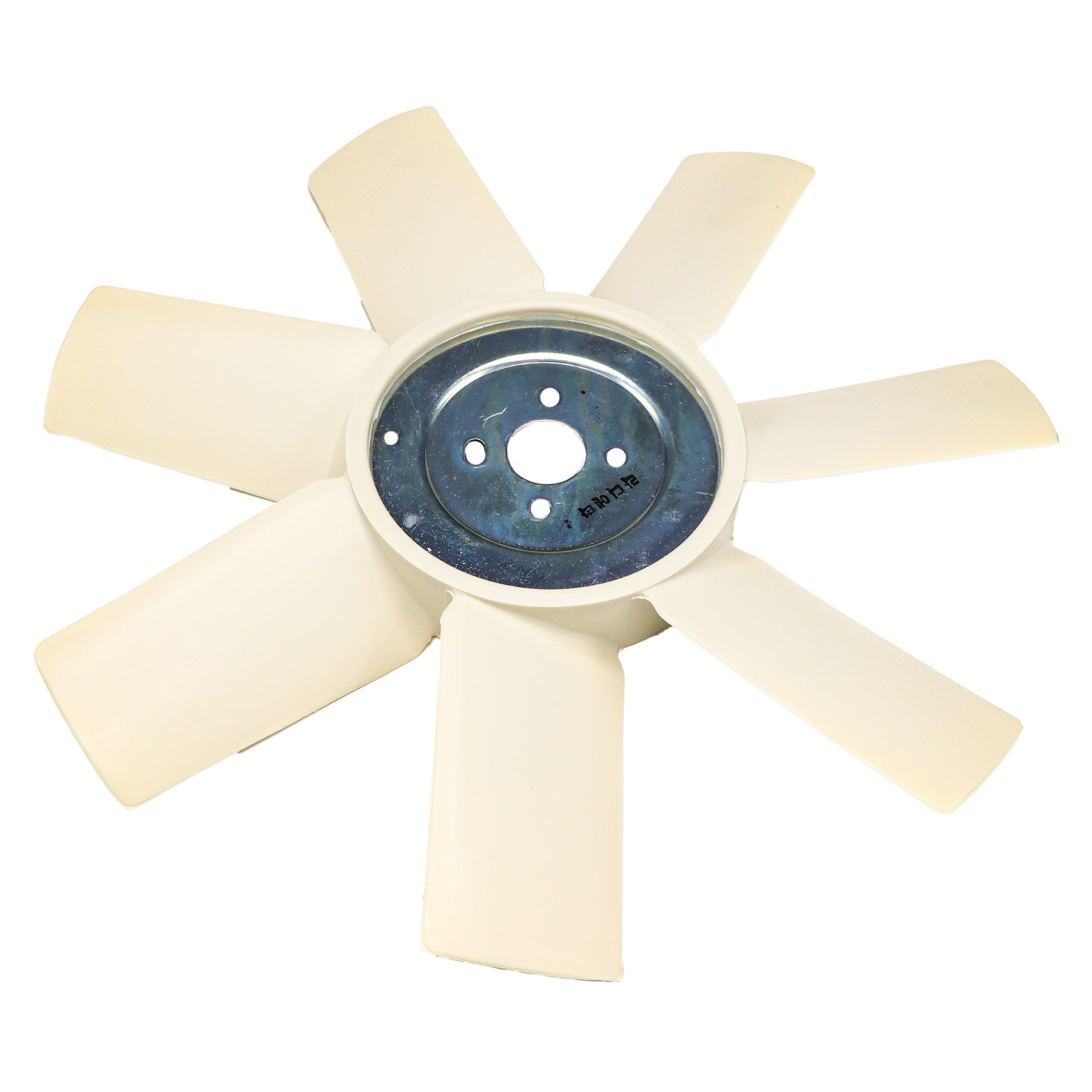

  • 10 USE 15521 74111

    USE 15521 74111

    • Part No. 15521-7411-1
    • 1 shown on diagram
    $59.99
  • 11 BOLT, FLANGE

    BOLT, FLANGE

    • Part No. 01754-50612
    • M6XP1.0
    • 4 shown on diagram
    $1.39
  • 12

    PULLEY,PAN DRIVE v

    • Part No. E5500-74284
    • Applied Dates Up to 2006-04-05
    • 1 shown on diagram
    $52.99
  • 13

    KEY

    • Part No. 05712-00720
    • W7XL20
    • 1 shown on diagram
    $5.49
  • 14 BELT HM 41.5

    BELT HM 41.5

    • Part No. E5405-72531
    • 1 shown on diagram
    $15.99
  • 15 Nut M5 P0.80

    Nut M5 P0.80

    • Part No. 02054-50050
    • M5*P1.0
    • 1 shown on diagram
    $0.43
  • 16

    Flat Washer M5

    • Part No. 04012-50050
    • M5
    • 1 shown on diagram
    $0.67
  • 17 Spring Lock Washer M5

    Spring Lock Washer M5

    • Part No. 04512-50050
    • M5
    • 1 shown on diagram
    $0.55
