OIL PAN GROUP - TD1300A-E020

Kioti TRACTOR | CK Series | CK25H

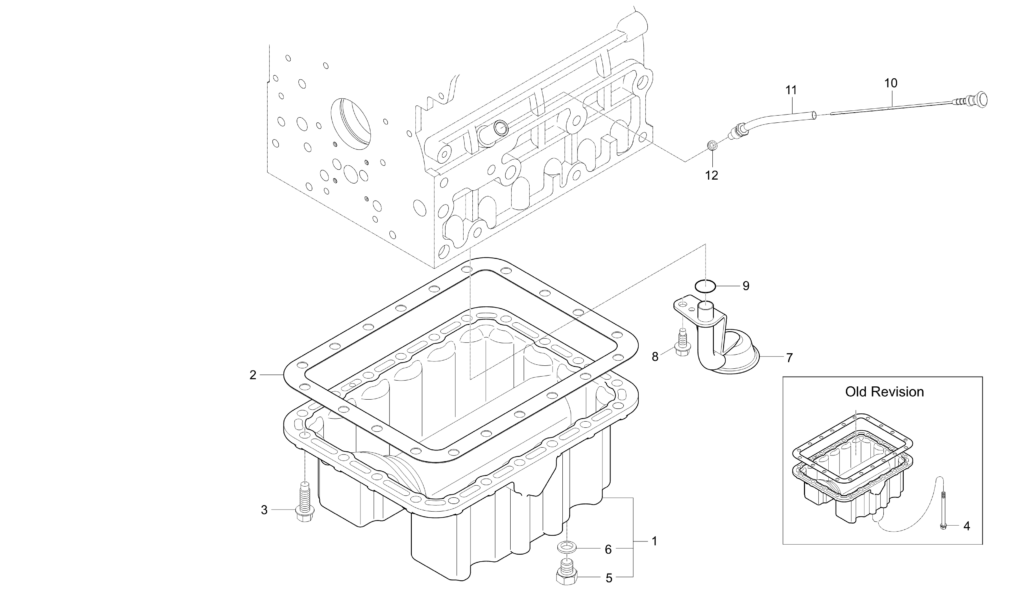

Diagram for OIL PAN GROUP - TD1300A-E020
  • 1

    OIL PAN ASSY

    • Part No. E5600-A0071
    • 1 shown on diagram
    $249.99
  • 2

    GASKET,OIL PAN v

    • Part No. E5515-01622
    • Applied Dates 1993-10-08 to 2006-08-25
    • * multiple options for #2
    • 1 shown on diagram
    $48.99
  • 2 GASKET,OIL PAN

    GASKET,OIL PAN

    • Part No. E5500-01623
    • Compatibility New repl old
    • Applied Dates 2006-08-26 and up
    • * multiple options for #2
    • 1 shown on diagram
    $31.99
  • 3 FLANGE BOLT

    FLANGE BOLT

    • Part No. 01674-51032
    • Applied Dates 2007-05-07 and up
    • 20 shown on diagram
    $2.49
  • 4

    BOLT WITH WASHER

    • Part No. E6200-91092
    • Applied Dates 1993-08-20 to 2007-05-06
    • HEX14,M10*1.25*125
    • 2 shown on diagram
    $7.49
  • 5

    PLUG, OIL DRAIN dnr v

    • Part No. 15221-3375-2
    • Applied Dates Up to 2007-01-30
    • HEX19,M12*1.25*28
    • * multiple options for #5
    • 2 shown on diagram
    $4.99
  • 5

    Oil Drain Plug: M12x1.25

    • Part No. 06331-35012
    • Compatibility Interchngable
    • Applied Dates 2007-05-07 and up
    • M12*P1.25
    • * multiple options for #5
    • 2 shown on diagram
    $4.99
  • 6 WASHER, SEAL

    WASHER, SEAL

    • Part No. 04717-01200
    • Applied Dates 2007-05-07 and up
    • 2 shown on diagram
    $2.49
  • 7

    FILTER,OIL 1

    • Part No. E5900-32112
    • Applied Dates 1993-11-24 and up
    • 1 shown on diagram
    $31.99
  • 8

    BOLT, FLANGE WITH PIN

    • Part No. 01654-50820
    • Applied Dates 1995-11-27 and up
    • 1 shown on diagram
    $1.89
  • 9 O RING

    O RING

    • Part No. 04811-00140
    • 1 shown on diagram
    $0.90
  • 10

    GAUGE OIL v

    • Part No. E5900-36414
    • Applied Dates 2001-08-30 to 2004-02-23
    • * multiple options for #10
    • 1 shown on diagram
    $8.99
  • 10

    OIL GAUGE, (black) V, Replaced by E5629-36413

    • Part No. E5629-36411
    • Compatibility New repl old
    • Applied Dates 2004-02-24 to 2004-04-21
    • * multiple options for #10
    • 1 shown on diagram
    $0.00
  • 10

    GAUGE,OIL (orange) V, Replaced by E5629-36413

    • Part No. E5629-36412
    • Compatibility Interchngable
    • Applied Dates 2004-04-22 and up
    • * multiple options for #10
    • 1 shown on diagram
    $0.00
  • 10 GAUGE, OIL DIPSTICK v

    GAUGE, OIL DIPSTICK v

    • Part No. E5629-36413
    • Compatibility Interchngable
    • * multiple options for #10
    • 1 shown on diagram
    $24.99
  • 11 OIL GAUGE GUIDE PIPE

    OIL GAUGE GUIDE PIPE

    • Part No. E6305-36422
    • Applied Dates 2004-02-24 and up
    • 1 shown on diagram
    $25.99
  • 12 PACKING

    PACKING

    • Part No. E7310-36431
    • Applied Dates 2004-02-24 and up
    • 1 shown on diagram
    $1.79
