PISTON & CRANKSHAFT GROUP - TD1300LX-E100

Kioti TRACTOR | CK Series | CK25H

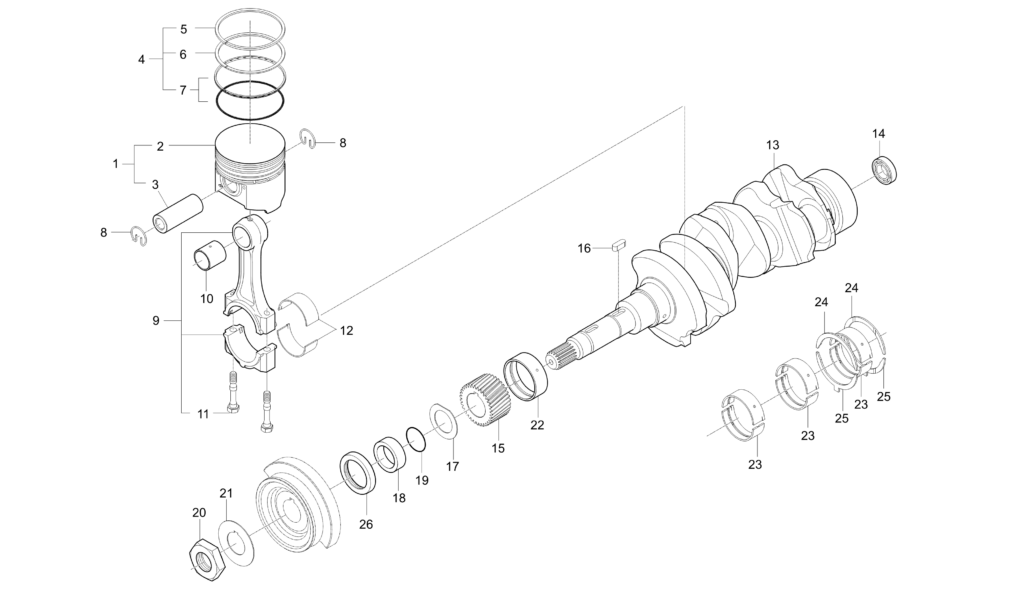

Diagram for PISTON & CRANKSHAFT GROUP - TD1300LX-E100
  • 1

    ASSY,PIN & PISTION v

    • Part No. E5500-21015
    • 3 shown on diagram
    $164.99
  • 2

    PISTON v

    • Part No. E5500-21116
    • 3 shown on diagram
    $75.99
  • 3

    PIN, PISTON

    • Part No. 15521-2131-1
    • DIA25*69
    • 3 shown on diagram
    $23.99
  • 4

    ASSY,RING PISTON

    • Part No. E5500-21053
    • 3 shown on diagram
    $209.99
  • 5

    RING 1,PISTON

    • Part No. E5500-21153
    • 3 shown on diagram
    $61.99
  • 6

    RING 2,PISTON

    • Part No. E5500-21164
    • 3 shown on diagram
    $21.99
  • 7

    ASSY,OIL RING

    • Part No. E5500-21203
    • 3 shown on diagram
    $44.99
  • 8

    CIR CLIP, PISTON PIN v

    • Part No. E5500-21332
    • 6 shown on diagram
    $1.39
  • 9

    CON ROD ASSEMBLY v

    • Part No. E5500-22015
    • Applied Dates 2005-09-30 to 2007-05-20
    • * multiple options for #9
    • 3 shown on diagram
    $374.99
  • 9

    CON ROD ASSEMBLY

    • Part No. E5500-22016
    • Compatibility Interchngable
    • Applied Dates 2007-05-21 and up
    • * multiple options for #9
    • 3 shown on diagram
    $509.99
  • 10

    BUSH,PISTION PIN v

    • Part No. E5500-21353
    • 3 shown on diagram
    $19.99
  • 11

    BOLT, CONNECTING ROD v

    • Part No. E5500-22142
    • Applied Dates Up to 2007-05-20
    • HEX13,M8*1.0*62
    • * multiple options for #11
    • 6 shown on diagram
    $14.99
  • 11

    BOLT, CONNECTING ROD

    • Part No. E5800-22141
    • Compatibility Interchngable
    • Applied Dates 2007-05-21 and up
    • * multiple options for #11
    • 6 shown on diagram
    $9.99
  • 12

    METAL,CRANK PIN -ORDER 2PC PER CYLINDER

    • Part No. E6200-22312
    • 6 shown on diagram
    $15.99
  • 13

    ASSY,CRANK SHAFT

    • Part No. E5505-A0090
    • 1 shown on diagram
    $2,534.99
  • 14 BEARING,BALL 15x32x9

    BEARING,BALL 15x32x9

    • Part No. 08121-06002
    • #6002ZZ
    • 1 shown on diagram
    $12.99
  • 15

    GEAR, CRANKSHAFT

    • Part No. E6200-24112
    • 1 shown on diagram
    $76.99
  • 16

    KEY

    • Part No. 05712-00720
    • W7XL20
    • 1 shown on diagram
    $5.49
  • 17

    OIL SLINGER

    • Part No. 15471-2331-1
    • T1*53*53
    • 1 shown on diagram
    $1.59
  • 18

    COLLAR, CRANKSHAFT dnr v

    • Part No. E6510-23251
    • 1 shown on diagram
    $39.99
  • 19 O RING

    O RING

    • Part No. 04811-10300
    • DIA29.5
    • 1 shown on diagram
    $1.19
  • 20

    CRANKSHAFT NUT

    • Part No. 15221-2336-1
    • HEX46,M30*1.5*18
    • 1 shown on diagram
    $18.99
  • 21

    WASHER, CRANKSHAFT obs v

    • Part No. E5500-23382
    • Applied Dates Up to 2007-01-28
    • T1.0
    • 1 shown on diagram
    $3.49
  • 22

    METAL1, CRANKSHAFT

    • Part No. E6200-23472
    • 1 shown on diagram
    $36.99
  • 23 METAL2, CRANKSHAFT

    METAL2, CRANKSHAFT

    • Part No. E6200-23482
    • 6 shown on diagram
    $17.99
  • 24

    SIDE METAL 1 V

    • Part No. 15521-2353-1
    • OD72*ID58*T2
    • * multiple options for #24
    • 2 shown on diagram
    $12.99
  • 24

    METAL SIDE 1 V

    • Part No. E6300-23531
    • Compatibility Interchngable
    • * multiple options for #24
    • 2 shown on diagram
    $13.99
  • 25

    SIDE METAL 2 v

    • Part No. 19202-2354-1
    • OD72*TD58*T2
    • * multiple options for #25
    • 2 shown on diagram
    $18.99
  • 25

    SIDE METAL 2 V

    • Part No. E6300-23541
    • Compatibility Interchngable
    • * multiple options for #25
    • 2 shown on diagram
    $13.99
  • 26 OIL SEAL V 42x55x9

    OIL SEAL V 42x55x9

    • Part No. E5500-11302
    • 1 shown on diagram
    $12.99
