WATER PUMP GROUP - EA4-G163002

Kioti TRACTOR | CK Series | CK25H

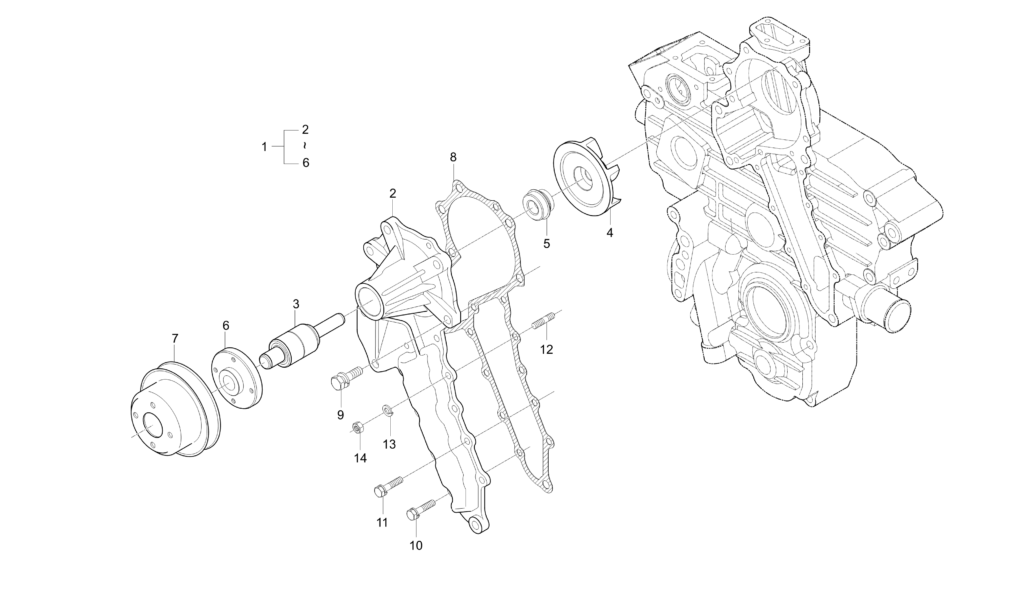

Diagram for WATER PUMP GROUP - EA4-G163002
  • 1

    ASSY WATER PUMP dnr v

    • Part No. E5627-73031
    • * multiple options for #1
    • 1 shown on diagram
    $119.99
  • 1 ASSY PUMP,WATER V

    ASSY PUMP,WATER V

    • Part No. E5627-73032
    • Compatibility Interchngable
    • * multiple options for #1
    • 1 shown on diagram
    $189.99
  • 2

    BODY WATER PUMP

    • Part No. E5627-73411
    • 1 shown on diagram
    $144.99
  • 3

    BEARING, WATER PUMP

    • Part No. E5800-73551
    • D607010RSE
    • 1 shown on diagram
    $89.99
  • 4

    IMPELLAR v

    • Part No. E5800-73513
    • 1 shown on diagram
    $21.99
  • 5

    MECHANICAL SEAL ASSY v

    • Part No. E5800-73052
    • 1 shown on diagram
    $39.99
  • 6

    FLANGE, WATER PUMP

    • Part No. E5627-73521
    • * multiple options for #6
    • 1 shown on diagram
    $36.99
  • 6

    FLANGE dnr v

    • Part No. E5627-73522
    • Compatibility Interchngable
    • * multiple options for #6
    • 1 shown on diagram
    $23.99
  • 7

    PULLEY, FAN

    • Part No. E5616-74252ED
    • 1 shown on diagram
    $53.99
  • 8

    GASKET WATER PUMP v

    • Part No. E5627-73431
    • * multiple options for #8
    • 1 shown on diagram
    $9.99
  • 8 GASKET WATER PUMP v

    GASKET WATER PUMP v

    • Part No. E5627-73432
    • Compatibility New repl old
    • * multiple options for #8
    • 1 shown on diagram
    $14.99
  • 9 Bolt With Washer, M8 P1.25 x 28mm

    Bolt With Washer, M8 P1.25 x 28mm

    • Part No. 01123-50828
    • 4 shown on diagram
    $2.49
  • 10 Bolt With Washer, M8 P1.25 x 28mm

    Bolt With Washer, M8 P1.25 x 28mm

    • Part No. 01123-50828
    • 1 shown on diagram
    $2.49
  • 11

    BOLT w- WASHER

    • Part No. 01023-50618
    • M6XP1.0
    • 8 shown on diagram
    $1.79
  • 12

    STUD

    • Part No. 15221-8821-1
    • DIA6,M6*1.0*32
    • 1 shown on diagram
    $3.99
  • 13 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50060
    • M06
    • 1 shown on diagram
    $0.61
  • 14 NUT

    NUT

    • Part No. 02056-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.49
