MAIN BEARING CASE GROUP - TD1400-050

Kioti TRACTOR | CK Series | CK25H

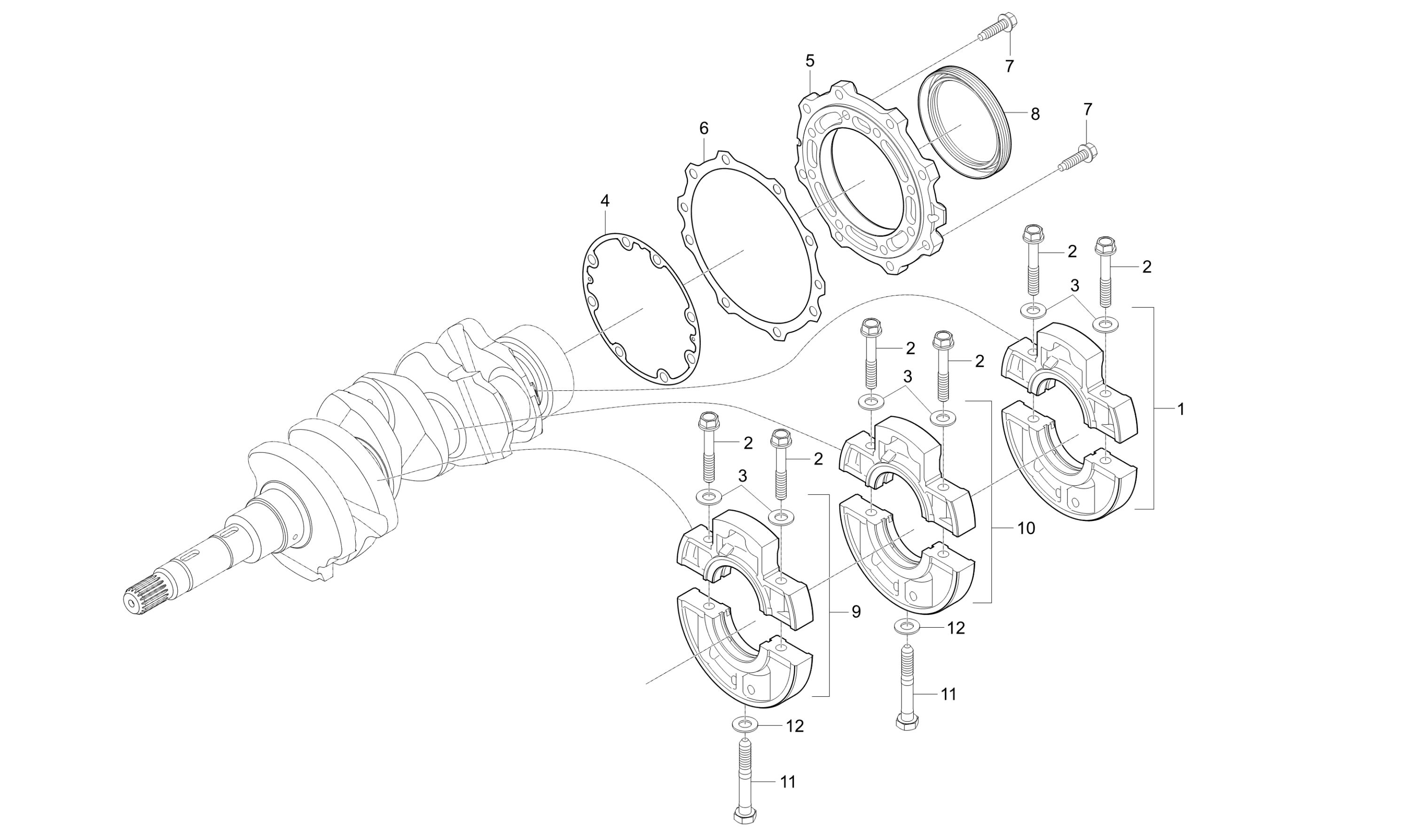

Diagram for MAIN BEARING CASE GROUP - TD1400-050
  • 1

    ASSY,MAIN BEARING CASE

    • Part No. E6200-A0100
    • 1 shown on diagram
    $149.99
  • 2

    BOLT 1, BEARING CASE

    • Part No. 15521-0454-3
    • HEX14,M8*1.25*67
    • 6 shown on diagram
    $16.99
  • 3

    WASHER,PLAIN

    • Part No. 15521-9401-1
    • T1.2*17*17
    • 6 shown on diagram
    $1.89
  • 4

    GASKET,BEARING V

    • Part No. E5500-04365
    • Applied Dates 1999-04-06 and up
    • 1 shown on diagram
    $12.99
  • 5

    COVER,BEARING CASE

    • Part No. E5500-04812
    • Applied Dates 1993-10-08 to 2007-01-28
    • * multiple options for #5
    • 1 shown on diagram
    $46.99
  • 5

    COVER,BEARING CASE

    • Part No. E5500-04813
    • Compatibility Interchngable
    • Applied Dates 2007-01-29 and up
    • * multiple options for #5
    • 1 shown on diagram
    $65.99
  • 6

    GASKET,COVER V

    • Part No. E5500-04822
    • Applied Dates 1993-10-08 to 2006-08-25
    • * multiple options for #6
    • 1 shown on diagram
    $3.49
  • 6

    GASKET,COVER

    • Part No. E5500-04823
    • Compatibility New repl old
    • Applied Dates 2006-08-26 and up
    • * multiple options for #6
    • 1 shown on diagram
    $14.99
  • 7

    FLANGE BOLT

    • Part No. 01654-50830
    • Applied Dates 1993-08-20 and up
    • M8x1.25
    • 16 shown on diagram
    $1.89
  • 8 OIL SEAL 80x102x13

    OIL SEAL 80x102x13

    • Part No. E5500-04464
    • Applied Dates 2002-05-02 and up
    • 1 shown on diagram
    $36.99
  • 9

    MAIN BEARING CASE 1 ASS’Y

    • Part No. E6200-A0080
    • 1 shown on diagram
    $139.99
  • 10

    MAIN BEARING CASE ASS’Y 2 obs v

    • Part No. E6200-A0090
    • 1 shown on diagram
    $139.99
  • 11

    BEARING CASE BOLT 2

    • Part No. 15291-0456-2
    • HEX17,M10*1.25*88
    • 2 shown on diagram
    $14.99
  • 12

    WASHER

    • Part No. 15521-9402-1
    • Applied Dates Up to 2007-03-29
    • T1.6*23*23
    • * multiple options for #12
    • 2 shown on diagram
    $0.96
  • 12

    Flat Washer M10

    • Part No. 04014-50100
    • Compatibility Interchngable
    • Applied Dates 2007-03-30 and up
    • M10
    • * multiple options for #12
    • 2 shown on diagram
    $0.79
