WATER HOSE GROUP - 3A165LXB-E190

Kioti TRACTOR | CK Series | CK25H

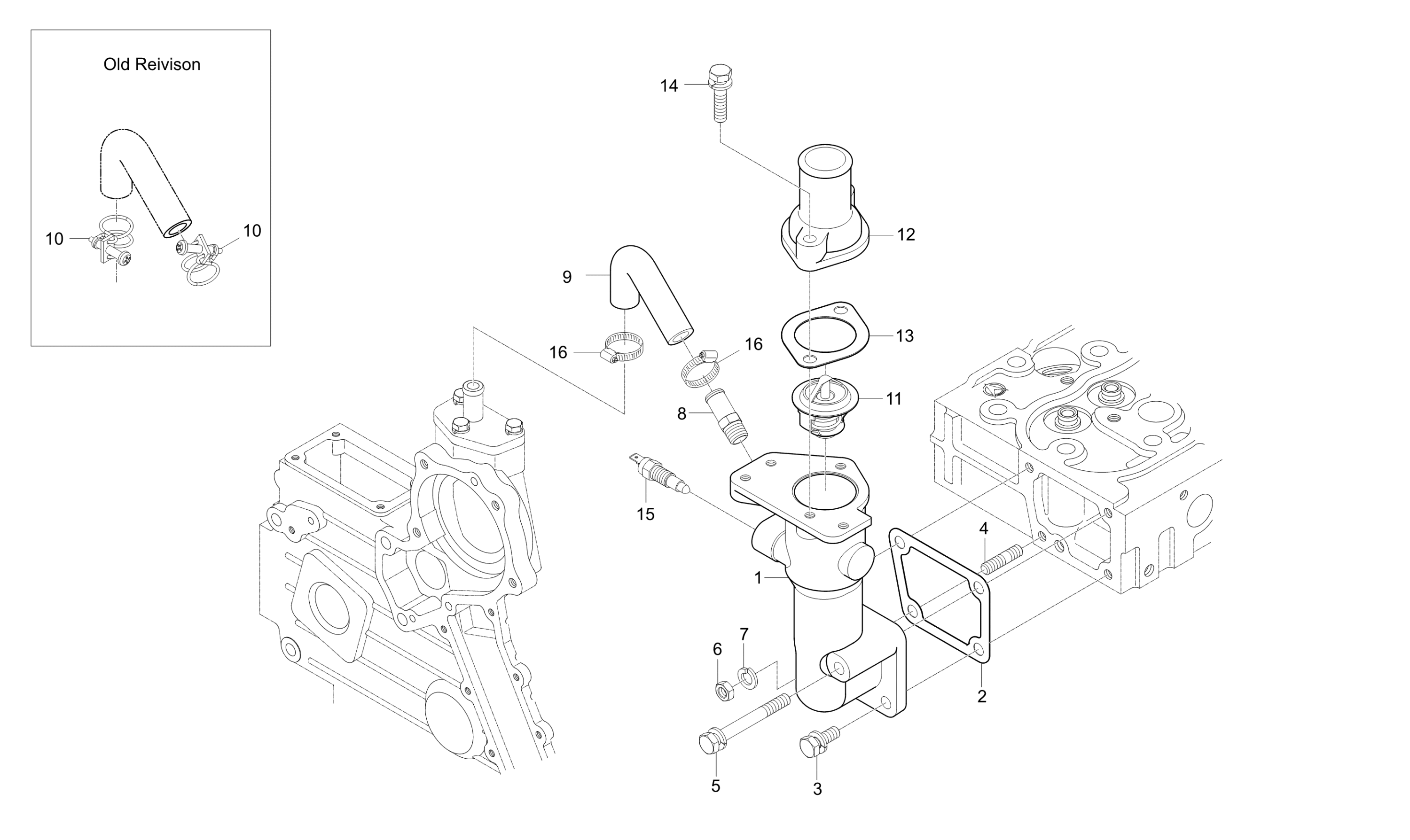

Diagram for WATER HOSE GROUP - 3A165LXB-E190
  • 1

    PLANGE, WATER

    • Part No. E5640-72911
    • 1 shown on diagram
    $124.99
  • 2 THERMOSTAT HOUSING GASKET

    THERMOSTAT HOUSING GASKET

    • Part No. E5500-72922
    • t0.5
    • 1 shown on diagram
    $4.49
  • 3 Bolt With Washer, M8 P1.25 x 22mm

    Bolt With Washer, M8 P1.25 x 22mm

    • Part No. 01123-50822
    • Applied Dates Up to 2009-03-26
    • M8XP1.25
    • * multiple options for #3
    • 2 shown on diagram
    $2.49
  • 3 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • Compatibility Interchngable
    • Applied Dates 2004-01-31 to 2004-01-16
    • Serial No. D70200001 and up
    • M8XP1.25
    • * multiple options for #3
    • 2 shown on diagram
    $1.19
  • 4 STUD

    STUD

    • Part No. 01513-50822
    • M8XP1.25
    • 1 shown on diagram
    $3.99
  • 5

    Bolt With Washer, M8 P1.25 x 70mm

    • Part No. 01123-50870
    • Applied Dates Up to 2009-03-26
    • M8XP1.25
    • * multiple options for #5
    • 1 shown on diagram
    $3.49
  • 5

    FLANGE BOLT

    • Part No. 01754-50870
    • Compatibility Interchngable
    • M8*P1.25
    • * multiple options for #5
    • 1 shown on diagram
    $3.49
  • 6 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • Applied Dates Up to 2008-07-21
    • M8XP1.25
    • * multiple options for #6
    • 1 shown on diagram
    $0.85
  • 6 NUT, FLANGE

    NUT, FLANGE

    • Part No. 02763-50080
    • Compatibility Interchngable
    • M8XP1.25
    • * multiple options for #6
    • 1 shown on diagram
    $0.85
  • 7 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • Applied Dates Up to 2008-07-21
    • M08
    • 1 shown on diagram
    $0.61
  • 8

    HOSE, WATER RETURN v

    • Part No. E5500-73342
    • * multiple options for #8
    • 1 shown on diagram
    $9.99
  • 8

    Water Return Pipe (E5500-73343)

    • Part No. E5500-73343
    • Compatibility New repl old
    • * multiple options for #8
    • 1 shown on diagram
    $9.99
  • 9

    HOSE,WATER

    • Part No. E5627-73341
    • * multiple options for #9
    • 1 shown on diagram
    $9.99
  • 9

    HOSE, WATER PUMP v

    • Part No. E5627-73342
    • Compatibility Interchngable
    • * multiple options for #9
    • 1 shown on diagram
    $11.99
  • 10

    CLAMP, HOSE

    • Part No. 09318-88180
    • DIA18
    • 2 shown on diagram
    $2.49
  • 11 Thermostat 160°F 71°C 44mm

    Thermostat 160°F 71°C 44mm

    • Part No. E5800-73011
    • 1 shown on diagram
    $38.99
  • 12

    COVER, THERMOSTAT dnr v

    • Part No. E5500-73263
    • 1 shown on diagram
    $14.99
  • 13 Gasket, Thermostat

    Gasket, Thermostat

    • Part No. E5500-73272
    • t1.0
    • 1 shown on diagram
    $5.99
  • 14 Bolt With Washer, M8 P1.25 x 35mm

    Bolt With Washer, M8 P1.25 x 35mm

    • Part No. 01123-50835
    • Applied Dates Up to 2009-03-26
    • M8XP1.25
    • * multiple options for #14
    • 2 shown on diagram
    $2.49
  • 14 BOLT v

    BOLT v

    • Part No. 01754-50835
    • Compatibility Interchngable
    • M8XP1.25
    • * multiple options for #14
    • 2 shown on diagram
    $1.89
  • 15 TEMPERATURE SENSOR ASSY

    TEMPERATURE SENSOR ASSY

    • Part No. E7240-32731
    • 1 shown on diagram
    $45.99
  • 16

    BAND, HOSE

    • Part No. F6800-91831
    • Applied Dates 2014-12-24 and up
    • * multiple options for #16
    • 2 shown on diagram
    $1.89
  • 16

    CLAMP, HOSE dnr v

    • Part No. E5700-73361
    • Compatibility Interchngable
    • Applied Dates 2007-05-26 to 2007-10-31
    • * multiple options for #16
    • 2 shown on diagram
    $3.49
  • 16

    CLAMP dnr v

    • Part No. E5700-73362
    • Compatibility New repl old
    • * multiple options for #16
    • 2 shown on diagram
    $3.99
