GOVERNOR GROUP - TD1300-135

Kioti TRACTOR | CK Series | CK25H

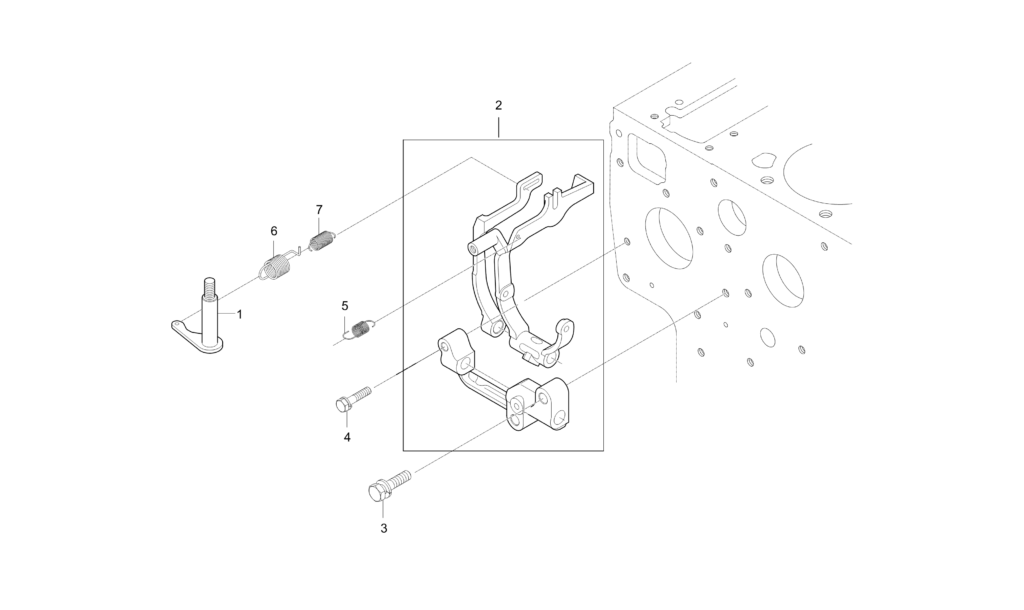

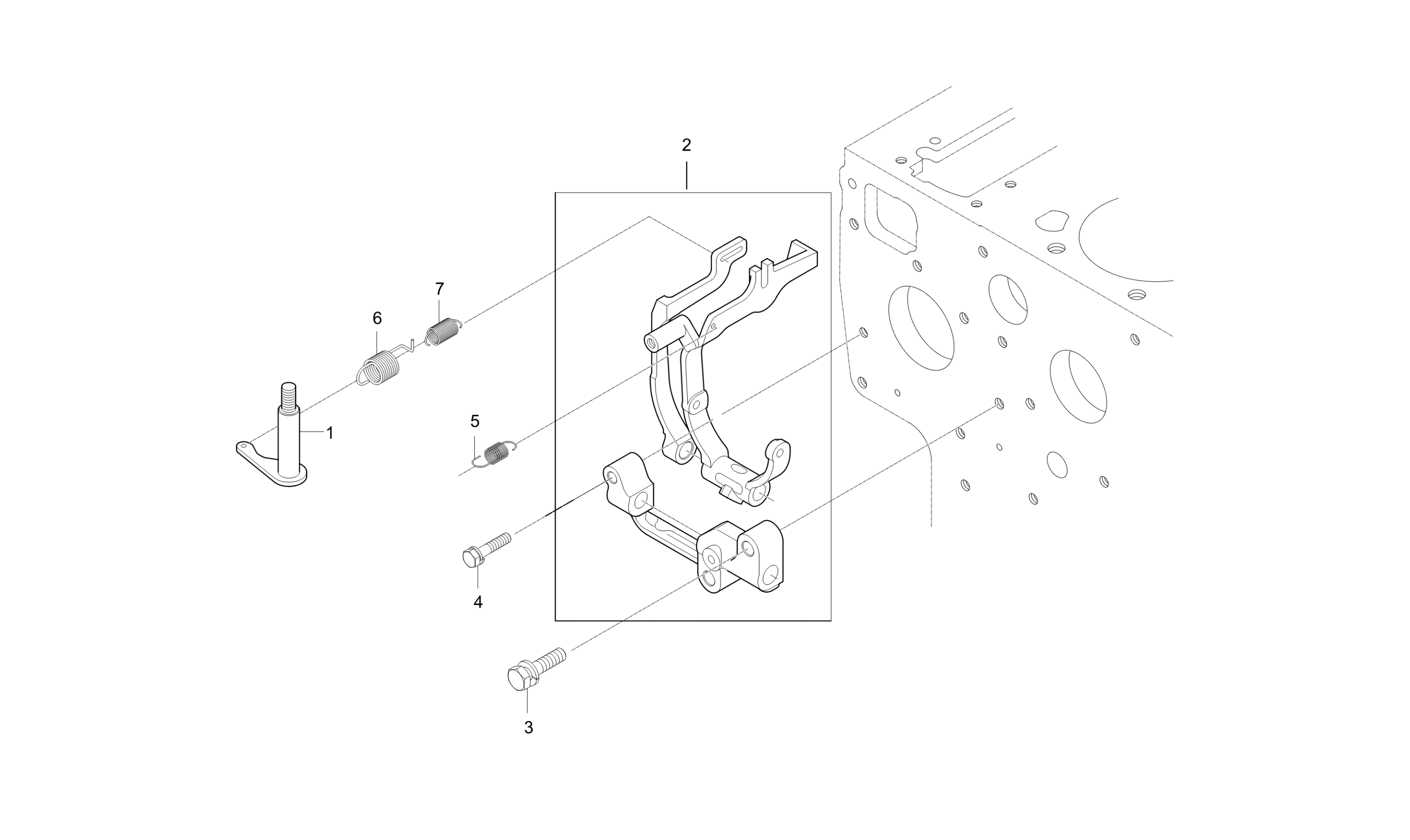

Diagram for GOVERNOR GROUP - TD1300-135
  • 1

    ASSY LEVER,GOVERNOR

    • Part No. 15601-5602-1
    • 1 shown on diagram
    $17.99
  • 2

    FORK LEVER ASSEMBLY

    • Part No. E5900-56052
    • Applied Dates 2003-04-23 and up
    • 1 shown on diagram
    $199.99
  • 3

    Bolt With Washer, M8 P1.25 x 32mm

    • Part No. 01123-50832
    • HEX12*43
    • 2 shown on diagram
    $2.49
  • 4

    BOLT, WASHER

    • Part No. 01023-50628
    • HEX10*38
    • 1 shown on diagram
    $1.49
  • 5

    SPRING, STARTER

    • Part No. 15601-5648-1
    • DIA0.5
    • 1 shown on diagram
    $2.99
  • 6 SPRING 1, GOVERNOR

    SPRING 1, GOVERNOR

    • Part No. 15521-5641-2
    • DIA1.0
    • 1 shown on diagram
    $2.49
  • 7 GOVERNOR SPRING 2 (15521-5642-1)

    GOVERNOR SPRING 2 (15521-5642-1)

    • Part No. 15521-5642-1
    • DIA0.6
    • 1 shown on diagram
    $2.49
