VALVE ROCKER ARM GROUP - TD1300-070

Kioti TRACTOR | CK Series | CK25H

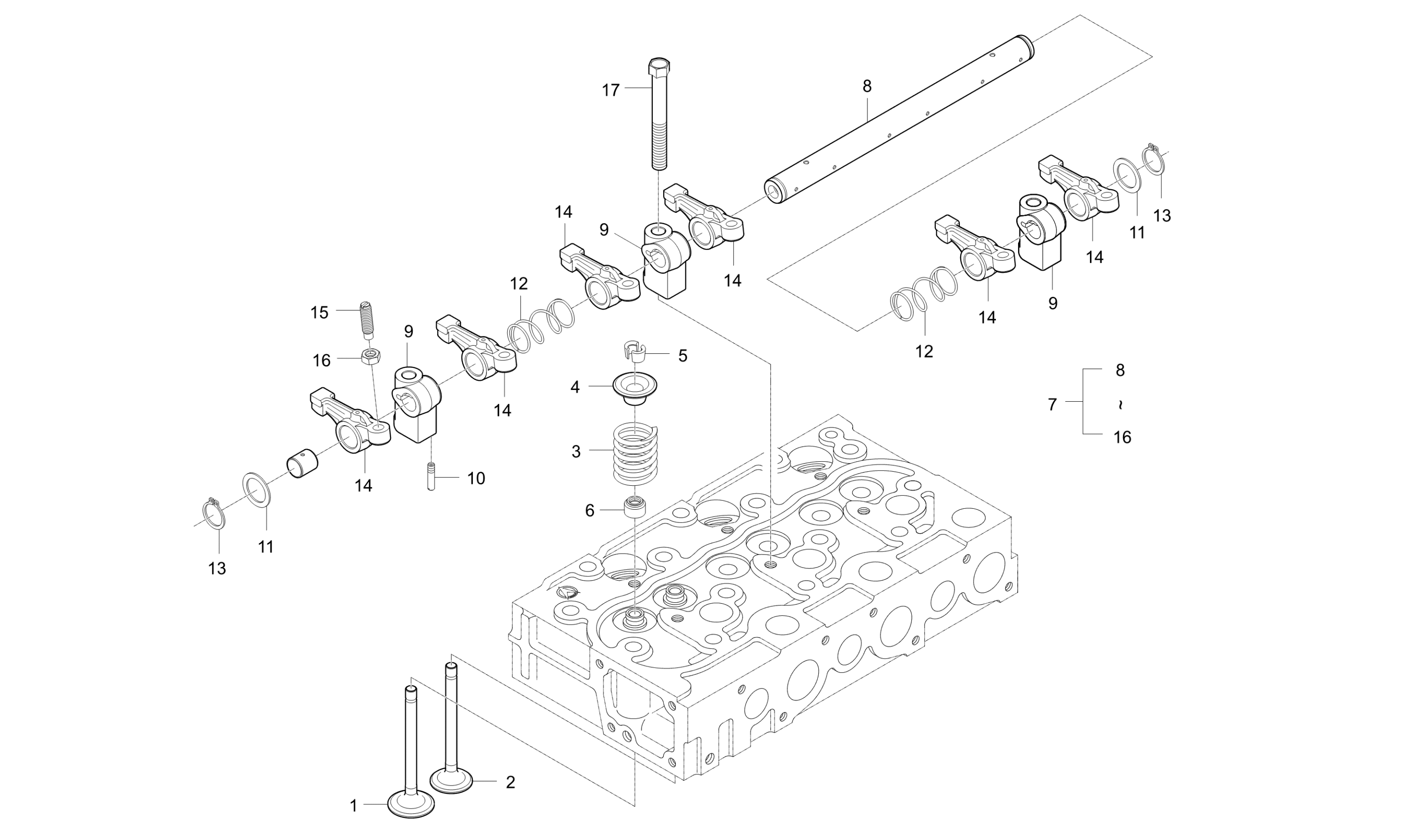

Diagram for VALVE ROCKER ARM GROUP - TD1300-070
  • 1

    IN-VALVE v

    • Part No. E5500-13112
    • Applied Dates 2000-11-22 and up
    • 3 shown on diagram
    $27.99
  • 2

    EX-VALVE

    • Part No. E5500-13122
    • Applied Dates 2000-11-22 and up
    • 3 shown on diagram
    $29.99
  • 3

    VALVE SPRING

    • Part No. 15221-1324-2
    • DIA3.5
    • 6 shown on diagram
    $6.49
  • 4

    RETAINER,VALVE SPRING, Replaced by E5500-13333

    • Part No. E5500-13332
    • Applied Dates 1993-10-08 and up
    • 6 shown on diagram
    $5.54
  • 5

    COLLET,VALVE SPRING v, Replaced by E6403-13361

    • Part No. E5500-13362
    • Applied Dates 1996-12-03 to 2008-10-27
    • 12 shown on diagram
    $0.00
  • 6 SEAL,VALVE STEM

    SEAL,VALVE STEM

    • Part No. E5500-13152
    • Applied Dates 1996-03-28 and up
    • 6 shown on diagram
    $5.49
  • 7

    ASSY SHAFT, ROCKER ARM obs v

    • Part No. 15325-0001-A
    • 1 shown on diagram
    $279.99
  • 8

    SHAFT ASSY,ROCKERARM obs v

    • Part No. 15321-1405-1
    • 1 shown on diagram
    $37.99
  • 9

    SUPPORT, ROCKER ARM obs v

    • Part No. 15221-1435-1
    • 40G
    • 3 shown on diagram
    $13.99
  • 10

    SCREW,FIXING obs v

    • Part No. 15221-1442-1
    • DIA6,M5*0.8*25
    • 1 shown on diagram
    $1.19
  • 11

    WASHER, PLAIN obs v

    • Part No. 15221-1443-1
    • T1.2*23*23
    • 2 shown on diagram
    $0.82
  • 12

    SPRING, ROCKER ARM

    • Part No. 15221-1431-2
    • DIA1.6
    • 2 shown on diagram
    $1.09
  • 13 RING,SNAP

    RING,SNAP

    • Part No. 04612-00140
    • DIA14
    • 2 shown on diagram
    $0.55
  • 14

    ROCKER ARM ASSY

    • Part No. 15601-1403-1
    • 6 shown on diagram
    $28.99
  • 15

    SCREW,ADJUSTING

    • Part No. E5500-14232
    • Applied Dates 1993-10-08 and up
    • DIA10,M8*1.0*34
    • 6 shown on diagram
    $6.99
  • 16

    NUT

    • Part No. 15021-1424-1
    • HEX12,M8*1.0*11
    • 6 shown on diagram
    $1.59
  • 17

    BOLT, R/A SUPPORT

    • Part No. E5500-91501
    • Applied Dates 2003-10-13 and up
    • M8*1.25-56.5
    • 3 shown on diagram
    $4.49
