GEAR CASE GROUP - TD1300E-E040

Kioti TRACTOR | CK Series | CK25H

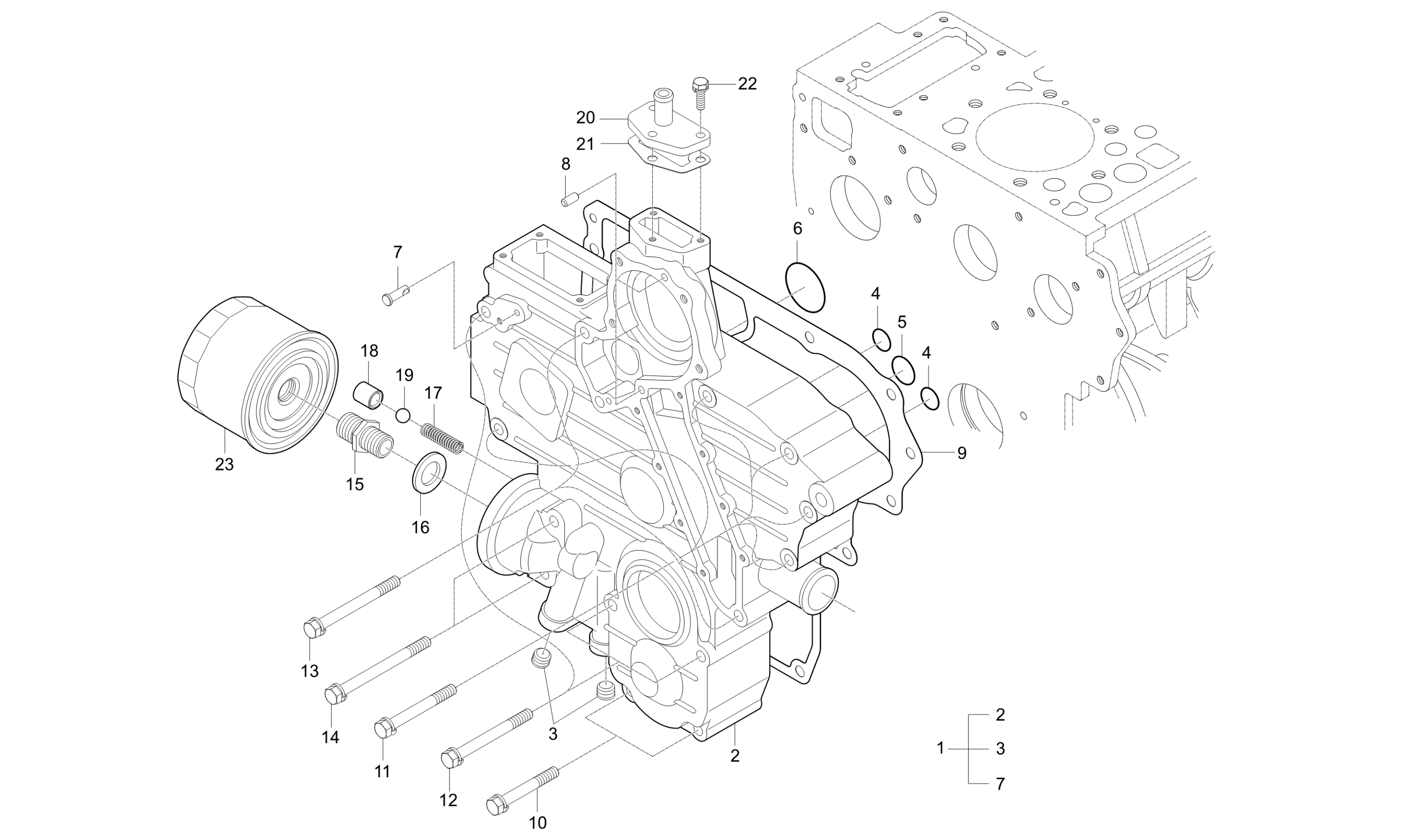

Diagram for GEAR CASE GROUP - TD1300E-E040
  • 1

    CASE ASSY,GEAR obs v

    • Part No. E8100-A0061
    • * multiple options for #1
    • 1 shown on diagram
    $1,114.99
  • 1

    ASSY,GEAR CASE

    • Part No. E8100-A0062
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $719.99
  • 1

    ASSY,GEAR CASE

    • Part No. E8100-A0063
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $719.99
  • 1

    GEARCASE ASS’Y

    • Part No. E8100-A0064
    • Compatibility New repl old
    • * multiple options for #1
    • 1 shown on diagram
    $709.99
  • 2

    GEAR CASE

    • Part No. E5505-04112
    • Applied Dates 2003-05-09 to 2007-04-23
    • 1 shown on diagram
    $299.99
  • 3

    PLUG

    • Part No. E5900-96031
    • Applied Dates 2004-01-12 and up
    • 2 shown on diagram
    $4.49
  • 4 O RING

    O RING

    • Part No. 04811-00150
    • Applied Dates 1993-01-18 and up
    • DIA14.8
    • 2 shown on diagram
    $1.09
  • 5 O RING

    O RING

    • Part No. 04811-00200
    • Applied Dates 1993-01-18 and up
    • DIA19.8
    • 1 shown on diagram
    $1.39
  • 6 O RING

    O RING

    • Part No. 04811-00360
    • 1 shown on diagram
    $1.19
  • 7

    START SPRING PIN

    • Part No. 15221-5628-2
    • DIA10*27
    • 1 shown on diagram
    $6.49
  • 8

    STRAIGHT PIN

    • Part No. 05012-00612
    • 2 shown on diagram
    $1.49

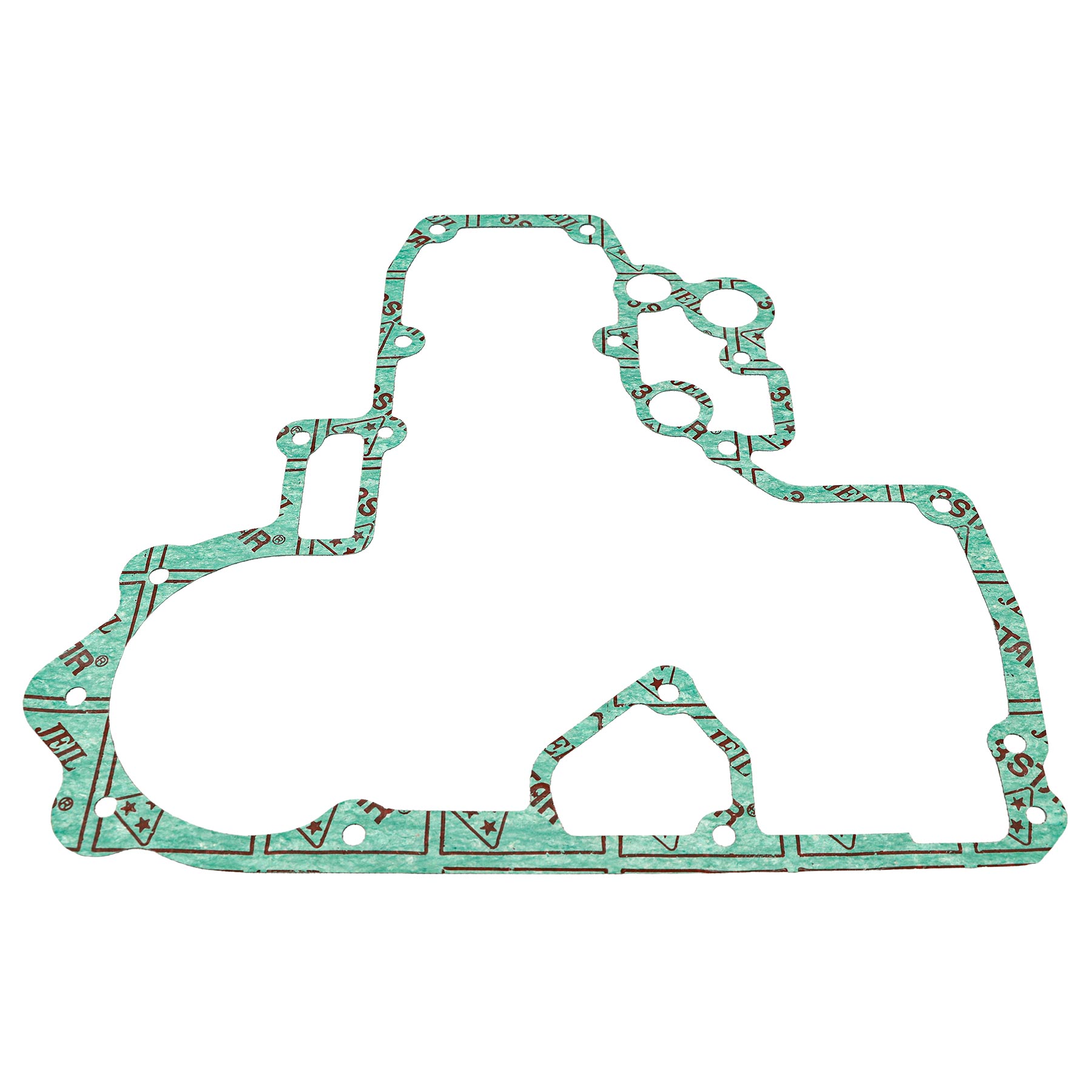

  • 9 GEARCASE GASKET V

    GEARCASE GASKET V

    • Part No. E6300-04135
    • Applied Dates 2001-01-22 to 2006-08-25
    • 1 shown on diagram
    $22.99
  • 10

    Bolt With Washer, M8 P1.25 x 60mm

    • Part No. 01123-50860
    • Applied Dates 1994-05-14 and up
    • M8XP1.25
    • 2 shown on diagram
    $3.49
  • 11

    Bolt With Washer, M8 P1.25 x 70mm

    • Part No. 01123-50870
    • Applied Dates 1994-05-14 and up
    • M8XP1.25
    • 5 shown on diagram
    $3.49
  • 12

    Bolt With Washer, M8 P1.25 x 80mm

    • Part No. 01123-50880
    • Applied Dates 1993-08-20 and up
    • M8XP1.25
    • 3 shown on diagram
    $3.99
  • 13

    Bolt With Washer, M8 P1.25 x 85mm

    • Part No. 01123-50885
    • Applied Dates 1993-05-31 and up
    • 3 shown on diagram
    $3.99
  • 14

    Bolt With Washer, M8 P1.25 x 95mm

    • Part No. 01123-50895
    • Applied Dates 1993-05-31 and up
    • M8*1.25
    • 2 shown on diagram
    $3.99
  • 15

    REAR MOUNT ASSEMBLY

    • Part No. 15521-3229-1
    • HEX24,M20*1.5*47
    • 1 shown on diagram
    $14.99
  • 16 Flat Washer M18

    Flat Washer M18

    • Part No. 04011-50180
    • M18
    • 1 shown on diagram
    $1.59
  • 17

    SPRING

    • Part No. 15241-3695-2
    • DIA1.2
    • 1 shown on diagram
    $6.49
  • 18

    SEAT,VALVE

    • Part No. E5500-36932
    • Applied Dates 1994-04-30 and up
    • DIA16*21
    • 1 shown on diagram
    $16.99
  • 19

    STEEL BALL

    • Part No. 07715-03213
    • 13/32"(10.3188)
    • 1 shown on diagram
    $0.68
  • 20

    Water Return Flange

    • Part No. 15521-7332-1
    • 1 shown on diagram
    $16.99
  • 21

    GASKET

    • Part No. 15521-7333-1
    • Applied Dates Up to 2006-08-25
    • T0.5*68*43
    • 1 shown on diagram
    $0.94
  • 22

    BOLT, WASHER

    • Part No. 01023-50620
    • Applied Dates 1993-06-08 and up
    • M6XP1.0
    • 3 shown on diagram
    $1.39
  • 23 Engine Oil Filter

    Engine Oil Filter

    • Part No. E6201-32443
    • Applied Dates 1998-09-15 and up
    • 1 shown on diagram
    $15.99
