CYLINDER BLOCK GROUP - TD1300LX-E010

Kioti TRACTOR | CK Series | CK25H

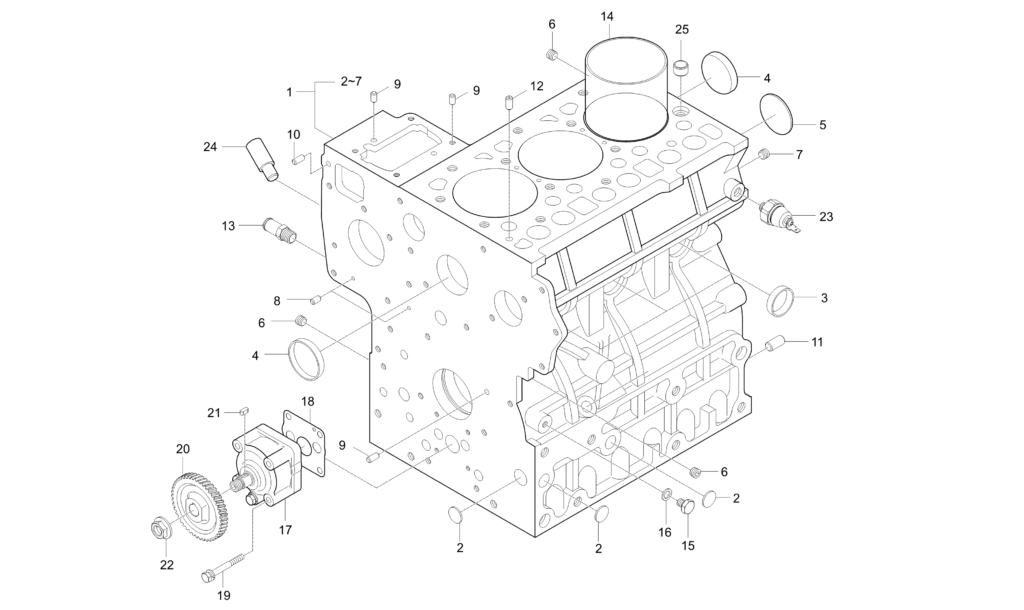

Diagram for CYLINDER BLOCK GROUP - TD1300LX-E010
  • 1

    CYLINDER BLOCK ASSEMBLY

    • Part No. E5505-A0011
    • 1 shown on diagram
    $2,949.99
  • 2 PLUG

    PLUG

    • Part No. 06311-75015
    • T1.6*18*18
    • 3 shown on diagram
    $1.99

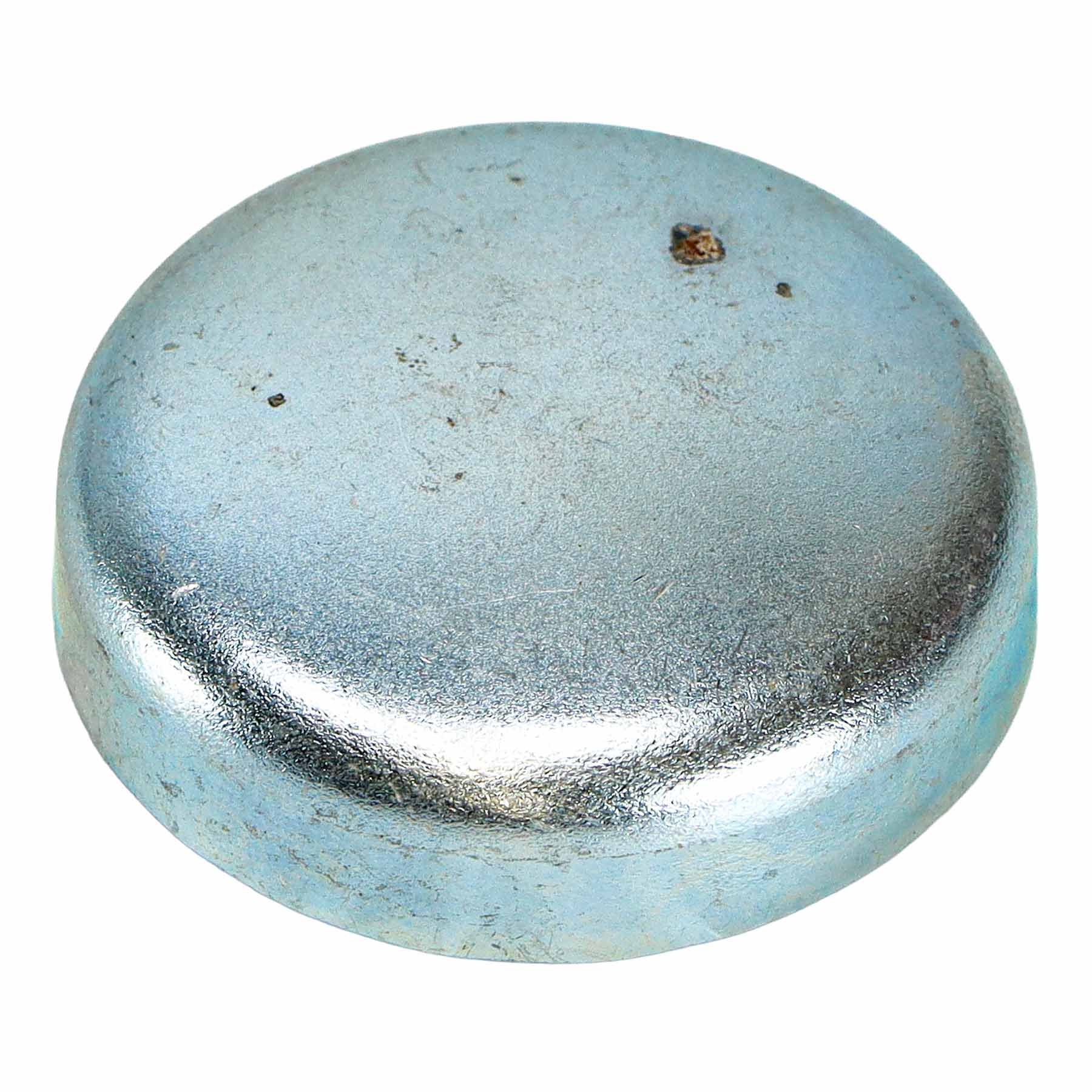

  • 3 CAP, SEALING

    CAP, SEALING

    • Part No. 15221-0338-3
    • 5 shown on diagram
    $3.99
  • 4

    CAP SEALING

    • Part No. 15221-0339-2
    • 2 shown on diagram
    $4.49
  • 5

    PLUG

    • Part No. 06311-75045
    • DIA45
    • 1 shown on diagram
    $3.49
  • 6 PLUG, Replaced by E5900-96022

    PLUG, Replaced by E5900-96022

    • Part No. E5900-96021
    • * multiple options for #6
    • 5 shown on diagram
    $4.99
  • 6 PLUG

    PLUG

    • Part No. E5900-96022
    • Compatibility Interchngable
    • * multiple options for #6
    • 5 shown on diagram
    $3.99
  • 7

    PLUG

    • Part No. E5900-96031
    • * multiple options for #7
    • 2 shown on diagram
    $4.49
  • 7

    PLUG

    • Part No. E5900-96032
    • Compatibility Interchngable
    • * multiple options for #7
    • 2 shown on diagram
    $2.49
  • 8

    STRAIGHT PIN

    • Part No. 05012-00408
    • DIA4XL8
    • 2 shown on diagram
    $1.49
  • 9

    Parallel Pin (05012-00609)

    • Part No. 05012-00609
    • 2 shown on diagram
    $1.49
  • 10

    STRAIGHT PIN

    • Part No. 05012-00612
    • 2 shown on diagram
    $1.49
  • 11 PIN, STRAIGHT 05012-01018

    PIN, STRAIGHT 05012-01018

    • Part No. 05012-01018
    • DIA10XL18
    • 1 shown on diagram
    $1.79
  • 12

    PIN, TUBE

    • Part No. 15221-3365-1
    • DIA8*18
    • 1 shown on diagram
    $7.49
  • 13

    HOSE, WATER RETURN v

    • Part No. E5500-73342
    • 1 shown on diagram
    $9.99
  • 14

    LINER, CYLINDER v

    • Part No. E5500-02313
    • 3 shown on diagram
    $129.99
  • 15

    PLUG

    • Part No. 15221-3361-1
    • HEX14,M8*1.25
    • 1 shown on diagram
    $5.49
  • 16 WASHER

    WASHER

    • Part No. 15021-3366-1
    • T1.5
    • 1 shown on diagram
    $3.99
  • 17

    Oil Pump Assembly Replaced By E6500-35012

    • Part No. E6200-35012
    • 1 shown on diagram
    $98.99
  • 18

    GASKET,OIL PUMP v

    • Part No. E5500-35153
    • Applied Dates 2006-08-26 to 2007-01-17
    • T0.3*60*60
    • * multiple options for #18
    • 1 shown on diagram
    $2.49
  • 18 GASKET,OIL PUMP

    GASKET,OIL PUMP

    • Part No. E5500-35154
    • Compatibility New repl old
    • Applied Dates 2007-01-18 and up
    • T0.3*60*60
    • * multiple options for #18
    • 1 shown on diagram
    $3.99
  • 19

    BOLT

    • Part No. 01023-50650
    • M6*PI.0
    • 4 shown on diagram
    $1.59
  • 20

    GEAR OIL PUMP DRIVING

    • Part No. 19202-3566-1
    • 220G
    • 1 shown on diagram
    $59.99
  • 21 KEY

    KEY

    • Part No. 05712-00410
    • W4XL10
    • 1 shown on diagram
    $2.49
  • 22

    FLANGE NUT

    • Part No. E6300-35681
    • M12*P1.25
    • 1 shown on diagram
    $1.79
  • 23 OIL SWITCH

    OIL SWITCH

    • Part No. E5500-39013
    • 1 shown on diagram
    $22.99
  • 24

    Oil Gauge Guide

    • Part No. E5752-35692
    • 1 shown on diagram
    $21.99
  • 25

    PIN, PIPE

    • Part No. E6301-33812
    • 1 shown on diagram
    $6.49
