CAMSHAFT GROUP - TD1300-090

Kioti TRACTOR | CK Series | CK25H

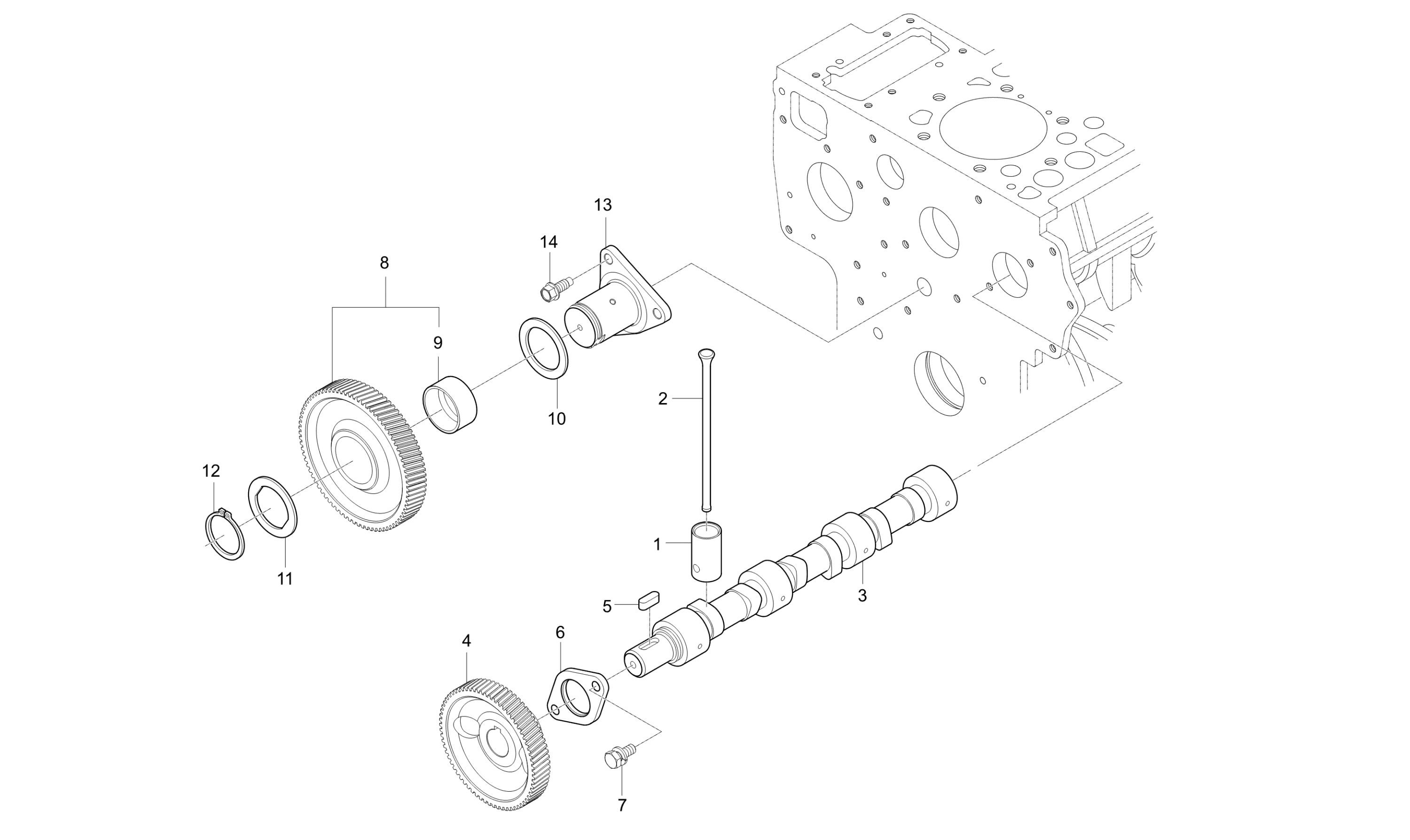

Diagram for CAMSHAFT GROUP - TD1300-090
  • 1

    TAPPET

    • Part No. E5500-15553
    • Applied Dates 1995-12-08 and up
    • 6 shown on diagram
    $37.99
  • 2

    ROD,PUSH

    • Part No. E5500-15112
    • Applied Dates 2000-11-22 and up
    • 6 shown on diagram
    $13.99
  • 3

    ASSY CAM SHAFT obs v

    • Part No. E5500-A0110
    • * multiple options for #3
    • 1 shown on diagram
    $564.99
  • 3

    ASSY,CAM SHAFT

    • Part No. E5500-A0111
    • Compatibility New repl old
    • * multiple options for #3
    • 1 shown on diagram
    $794.99
  • 4

    GEAR, CAMSHAFT

    • Part No. 15521-1651-1
    • 820G
    • 1 shown on diagram
    $119.99
  • 5

    KEY

    • Part No. 05712-00720
    • W7XL20
    • 1 shown on diagram
    $5.49
  • 6

    CAMSHAFT,STOPPER

    • Part No. E5500-16272
    • Applied Dates 1997-07-08 and up
    • 1 shown on diagram
    $28.99
  • 7

    Bolt With Washer, M8 P1.25 x 18mm

    • Part No. 01123-50818
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 8

    ASSY,GEAR IDLE

    • Part No. E5500-24012
    • Applied Dates 1999-04-23 and up
    • 1 shown on diagram
    $129.99
  • 9

    BUSH, IDLE GEAR

    • Part No. 15221-2428-1
    • OD34*T4*18
    • 2 shown on diagram
    $12.99
  • 10

    COLLAR, 1

    • Part No. 15521-2436-1
    • OD45*ID26*18
    • 1 shown on diagram
    $9.99
  • 11

    COLLAR, 1

    • Part No. 15521-2437-1
    • OD45*ID24*T2.5
    • 1 shown on diagram
    $7.99
  • 12

    SNAP RING

    • Part No. 15221-2432-1
    • T2.5
    • 1 shown on diagram
    $7.49
  • 13

    SHAFT GEAR,IDLE

    • Part No. E5500-24252
    • Applied Dates 1993-08-20 and up
    • 1 shown on diagram
    $66.99
  • 14 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • Applied Dates 2003-06-28 and up
    • M8XP1.25
    • 3 shown on diagram
    $1.19
