SPEED CONTROL LEVER GROUP - TD1300A-E140

Kioti TRACTOR | CK Series | CK25H

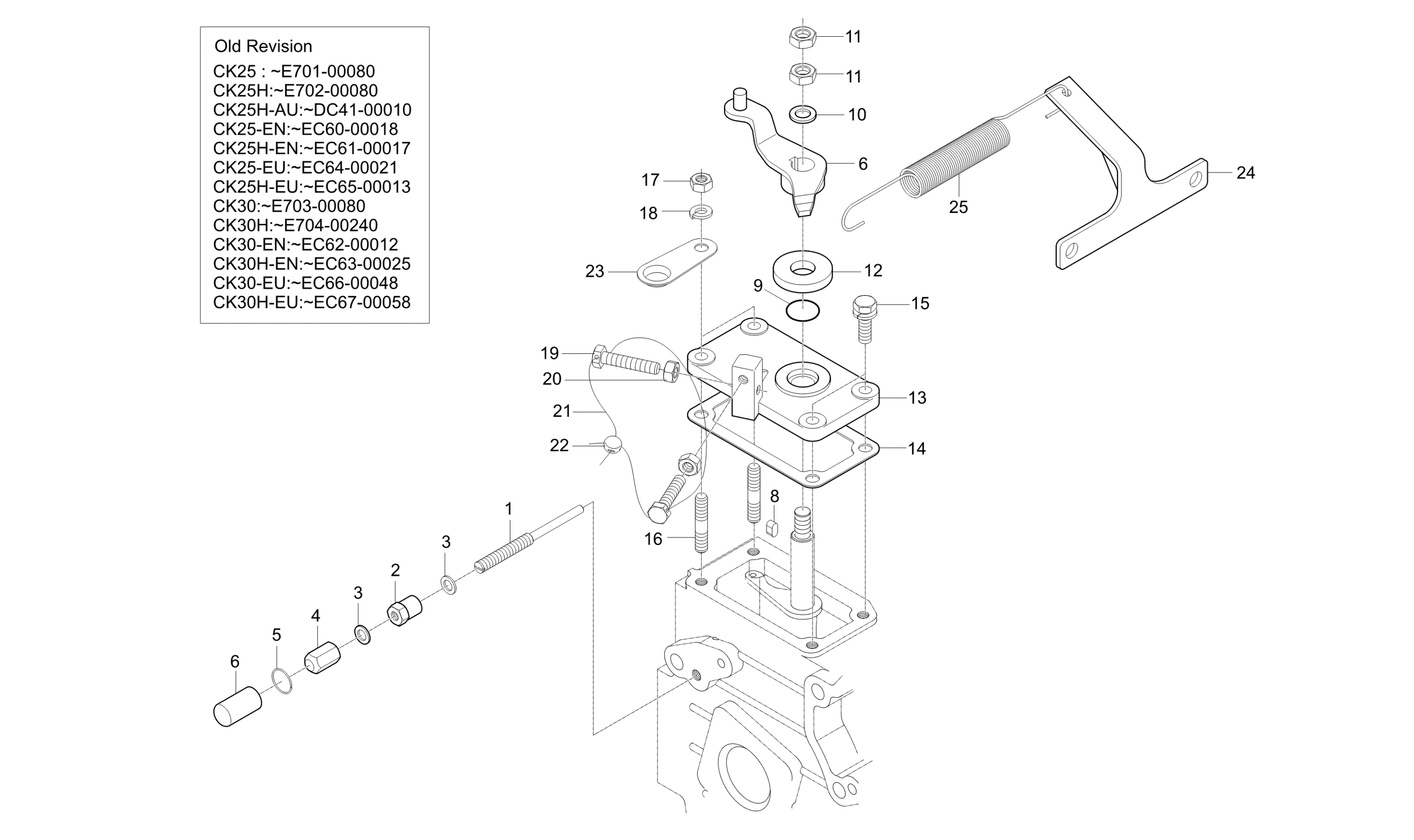

Diagram for SPEED CONTROL LEVER GROUP - TD1300A-E140
  • 1

    ADJUSTING BOLT

    • Part No. 15601-5412-1
    • Applied Dates Up to 2007-05-09
    • M6*1.0
    • 1 shown on diagram
    $6.49
  • 2

    NUT

    • Part No. E6305-92021
    • Applied Dates 2003-02-24 and up
    • 1 shown on diagram
    $21.99
  • 3

    GASKET

    • Part No. E6305-96652
    • Applied Dates 2003-04-09 and up
    • D=9.8,T=1.0
    • 2 shown on diagram
    $2.99
  • 4

    CAP NUT

    • Part No. E6305-54221
    • Applied Dates 2003-02-24 and up
    • 1 shown on diagram
    $15.99
  • 5

    SNAP RING

    • Part No. E6305-54281
    • Applied Dates 2003-02-24 and up
    • D=0.8
    • 1 shown on diagram
    $2.49
  • 6

    CAP

    • Part No. E6305-54421
    • Applied Dates 2003-02-24 and up
    • D=12,T=1.0
    • 1 shown on diagram
    $12.99
  • 7

    LEVER,SPEED CONTROL v

    • Part No. E5611-57152
    • Applied Dates 2003-10-30 and up
    • 1 shown on diagram
    $24.99
  • 8

    Key (05712-00408)

    • Part No. 05712-00408
    • 5*5*12
    • 1 shown on diagram
    $1.99
  • 9 O RING

    O RING

    • Part No. 04811-00120
    • DIA11.8
    • 1 shown on diagram
    $0.79
  • 10 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 1 shown on diagram
    $0.79
  • 11 NUT

    NUT

    • Part No. 02112-50080
    • M8*P1.25
    • 2 shown on diagram
    $0.55
  • 12

    PLATE, FRICTION

    • Part No. 17011-5738-3
    • Applied Dates Up to 2006-08-25
    • DIA30*10,T5.0
    • 1 shown on diagram
    $7.49
  • 13

    PLATE, SPEED CONTROL

    • Part No. 15521-5711-3
    • 100G
    • 1 shown on diagram
    $35.99
  • 14

    GASKET

    • Part No. 15221-5721-1
    • Applied Dates Up to 2006-08-25
    • T1.0*96*54
    • 1 shown on diagram
    $1.49
  • 15

    BOLT, WASHER

    • Part No. 01023-50620
    • Applied Dates Up to 2008-11-27
    • M6XP1.0
    • 2 shown on diagram
    $1.39
  • 16

    STUD (01518-50622)

    • Part No. 01518-50622
    • 2 shown on diagram
    $3.49
  • 17 NUT

    NUT

    • Part No. 02056-50060
    • Applied Dates 2015-01-01 to 2008-11-27
    • M6XP1.0
    • 2 shown on diagram
    $0.49
  • 18 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50060
    • Applied Dates Up to 2008-11-27
    • M06
    • 2 shown on diagram
    $0.61
  • 19

    SCREW, STOPPER

    • Part No. E5753-57281
    • Applied Dates 2004-03-30 and up
    • 2 shown on diagram
    $4.99
  • 20 NUT

    NUT

    • Part No. 02056-50060
    • M6XP1.0
    • 2 shown on diagram
    $0.49
  • 21

    WIRE (07811-11210)

    • Part No. 07811-11210
    • Applied Dates Up to 2005-03-17
    • DIA1.2*110
    • * multiple options for #21
    • 1 shown on diagram
    $0.88
  • 21

    WIRE

    • Part No. 07811-10820
    • Compatibility New repl old
    • Applied Dates 2005-03-18 and up
    • * multiple options for #21
    • 1 shown on diagram
    $2.99
  • 22

    LEAD, SEALING

    • Part No. 07918-00001
    • 1 shown on diagram
    $0.96
  • 23

    CLAMP, HOSE

    • Part No. E5900-72732
    • T0.8
    • 1 shown on diagram
    $2.49
  • 24

    BRACKET,SPRING

    • Part No. E6305-41291
    • Applied Dates 2004-01-26 and up
    • 1 shown on diagram
    $15.99
  • 25

    SPRING

    • Part No. 52200-4192-1
    • Applied Dates 2004-01-26 and up
    • DIA14
    • 1 shown on diagram
    $11.99
