FUEL TANK GROUP - CK25M-T850A

Kioti TRACTOR | CK Series | CK25

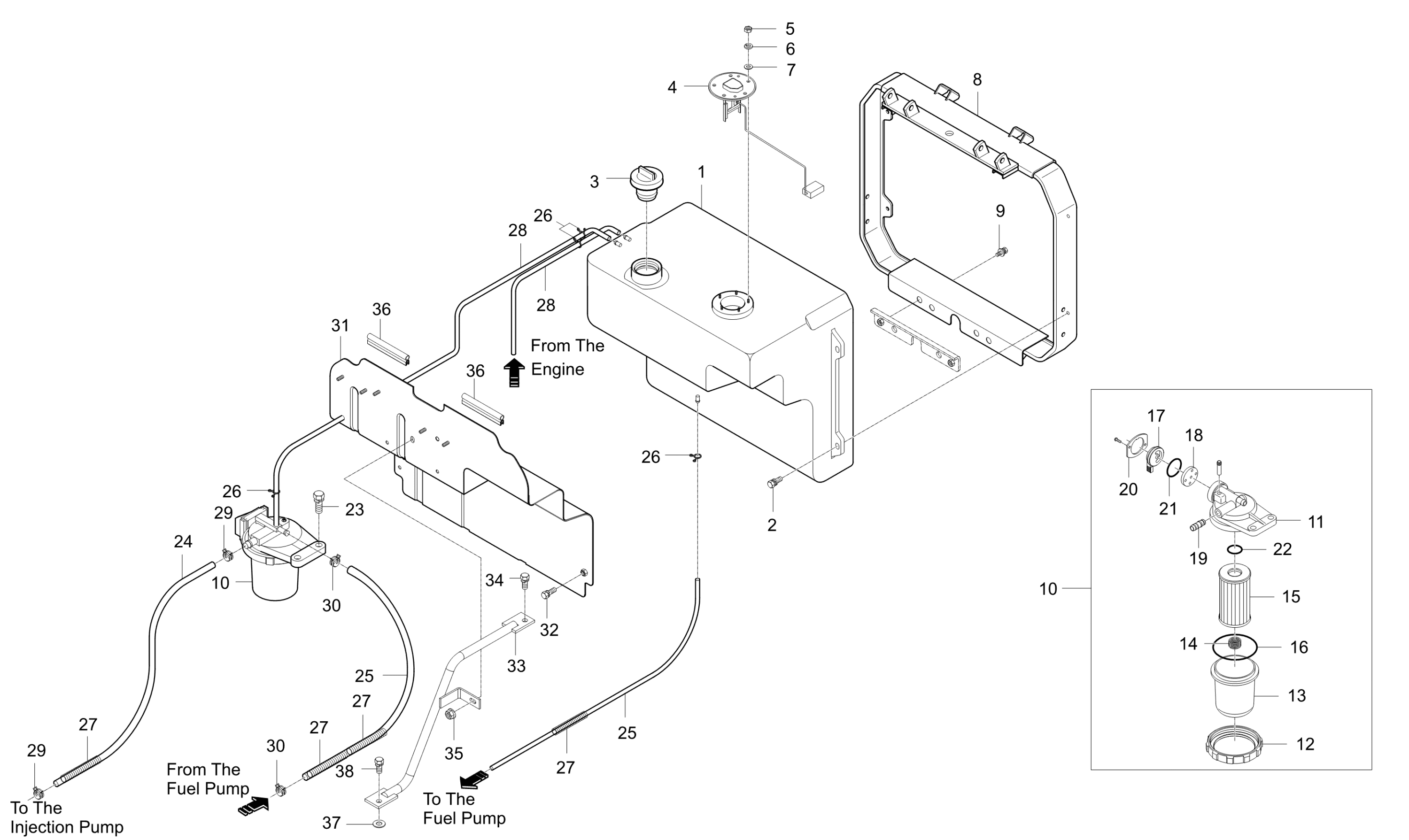

Diagram for FUEL TANK GROUP - CK25M-T850A

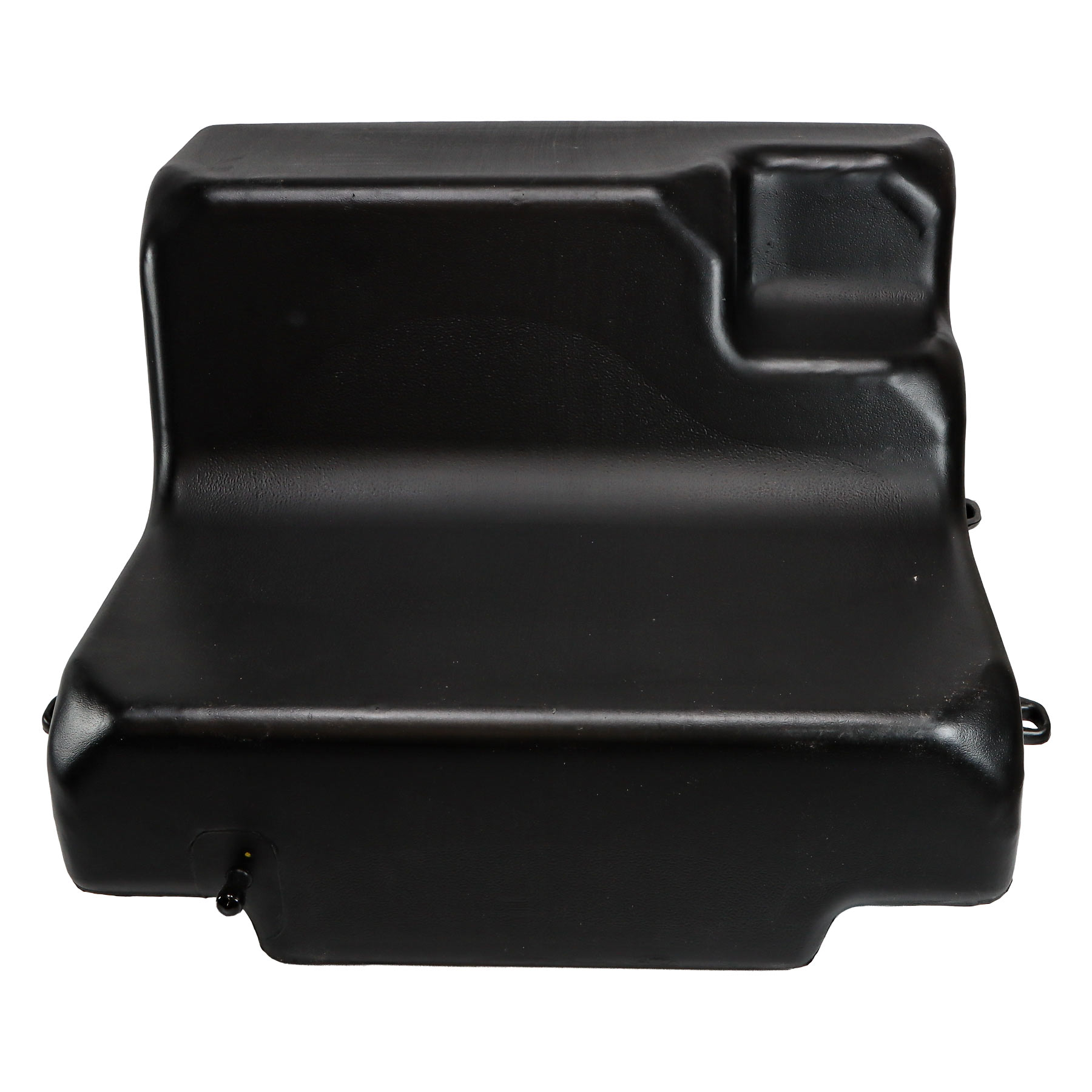

  • 1 COMP, TANK, FUEL v

    COMP, TANK, FUEL v

    • Part No. T2185-81112
    • 1 shown on diagram
    $234.99
  • 2

    Bolt With Washers, M8 P1.25 x 20mm

    • Part No. 01125-50820
    • Applied Dates 2007-01-23 and up
    • Serial No. D70100001 to D70100194
    • M8XP1.25
    • * multiple options for #2
    • 4 shown on diagram
    $2.49
  • 2

    Bolt With Washers, M8 P1.25 x 25mm

    • Part No. 01125-50825
    • Compatibility Interchngable
    • Applied Dates 2004-04-14 and up
    • Serial No. D70100001 and up
    • M8XP1.25
    • * multiple options for #2
    • 4 shown on diagram
    $2.49
  • 3

    FUEL CAP ASSY, Replaced by T2611-54825

    • Part No. T2611-54822
    • * multiple options for #3
    • 1 shown on diagram
    $41.83
  • 3

    Fuel Cap Assy Replaced by T2611-54825

    • Part No. T2611-54823
    • Compatibility New repl old
    • * multiple options for #3
    • 1 shown on diagram
    $0.00
  • 4

    ASS Y FUEL SENDER V, Replaced by T2198-69263

    • Part No. T2185-69262
    • Applied Dates 2007-01-31 to 2006-12-03
    • Serial No. D70100001 to G70100404
    • * multiple options for #4
    • 1 shown on diagram
    $0.00
  • 4

    UNIT,FUEL, Replaced by T2198-69263

    • Part No. T2185-69321
    • Compatibility Interchngable
    • Applied Dates 2006-12-04 to 2007-01-28
    • * multiple options for #4
    • 1 shown on diagram
    $0.00
  • 4

    ASS Y FUEL SENDER V, Replaced by T2198-69263

    • Part No. T2185-69262
    • Compatibility Interchngable
    • * multiple options for #4
    • 1 shown on diagram
    $0.00
  • 4

    UNIT,FUEL V, Replaced by T2198-69263

    • Part No. T2198-69262
    • Compatibility Interchngable
    • Applied Dates 2007-10-26 and up
    • Serial No. G70100405 and up
    • * multiple options for #4
    • 1 shown on diagram
    $46.62

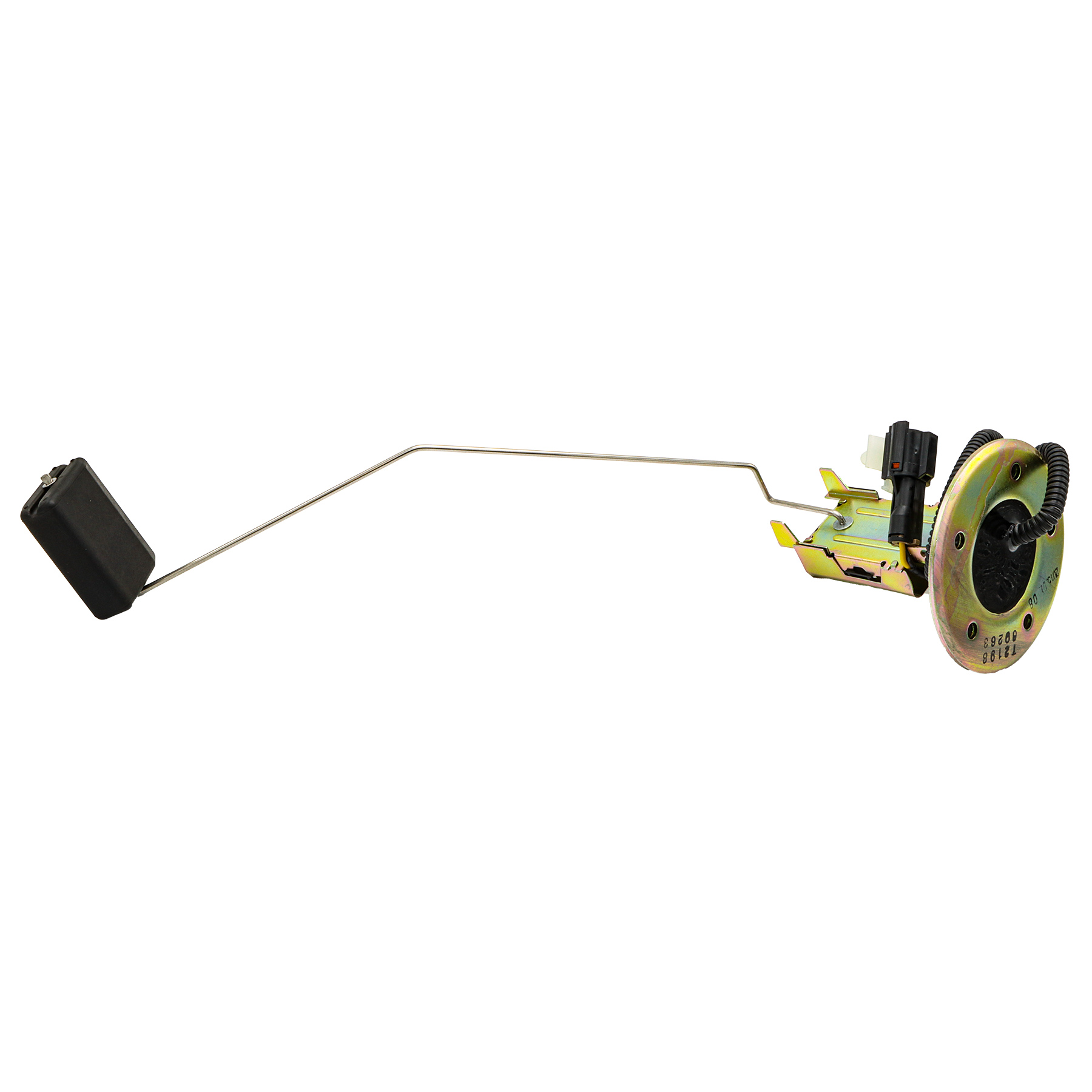

  • 4 ASS Y FUEL SENDER V

    ASS Y FUEL SENDER V

    • Part No. T2198-69263
    • Compatibility New repl old
    • * multiple options for #4
    • 1 shown on diagram
    $99.99
  • 5

    Nut M4XP0.7 (02054-50040)

    • Part No. 02054-50040
    • M4XP0.7
    • 5 shown on diagram
    $0.61
  • 6

    WASHER, SPRING

    • Part No. 04512-50040
    • M04
    • 5 shown on diagram
    $0.55
  • 7

    Flat Washer M4

    • Part No. 04012-50040
    • 5 shown on diagram
    $1.89
  • 8

    Fuel Tank Support

    • Part No. T2185-81123
    • Applied Dates 2004-01-16 to 2006-11-15
    • Serial No. D70100001 to F70100560
    • * multiple options for #8
    • 1 shown on diagram
    $169.99
  • 8

    Fuel Tank Support, Replaced by T2185-81124BB

    • Part No. T2185-81124
    • Compatibility No interchange
    • Applied Dates 2006-11-16 and up
    • Serial No. F70100561 and up
    • * multiple options for #8
    • 1 shown on diagram
    $154.99
  • 9 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • Applied Dates Up to 2006-09-03
    • M8XP1.25
    • 2 shown on diagram
    $2.49
  • 10

    FUEL FILTER ASSY V, Replaced by T4240-35017

    • Part No. T4240-35015
    • Applied Dates 2004-02-11 to 2006-07-20
    • Serial No. D70100001 to F70100660
    • * multiple options for #10
    • 1 shown on diagram
    $0.00
  • 10

    ASSY FILTER,FUEL v

    • Part No. T4125-35011
    • Compatibility Call for compat
    • Applied Dates 2006-12-31 to 2007-07-31
    • Serial No. G70100001 to G70100244
    • * multiple options for #10
    • 1 shown on diagram
    $79.99
  • 10

    FUEL FILTER ASSY

    • Part No. T4125-35012
    • Compatibility New repl old
    • Applied Dates 2007-08-01 and up
    • Serial No. G70100245 and up
    • * multiple options for #10
    • 1 shown on diagram
    $68.99
  • 11

    BODY, FUEL FILTER

    • Part No. T4240-35023
    • Applied Dates Up to 2006-07-20
    • Serial No. Up to F70100660
    • * multiple options for #11
    • 1 shown on diagram
    $0.00
  • 11

    BODY,FUEL FILTER

    • Part No. T4125-35021
    • Compatibility Call for compat
    • Serial No. G70100001 and up
    • * multiple options for #11
    • 1 shown on diagram
    $41.99
  • 12 RING RETAINER

    RING RETAINER

    • Part No. 84612-4315-0
    • 1 shown on diagram
    $17.99
  • 13

    FILTER POT

    • Part No. T4240-43133
    • * multiple options for #13
    • 1 shown on diagram
    $19.99

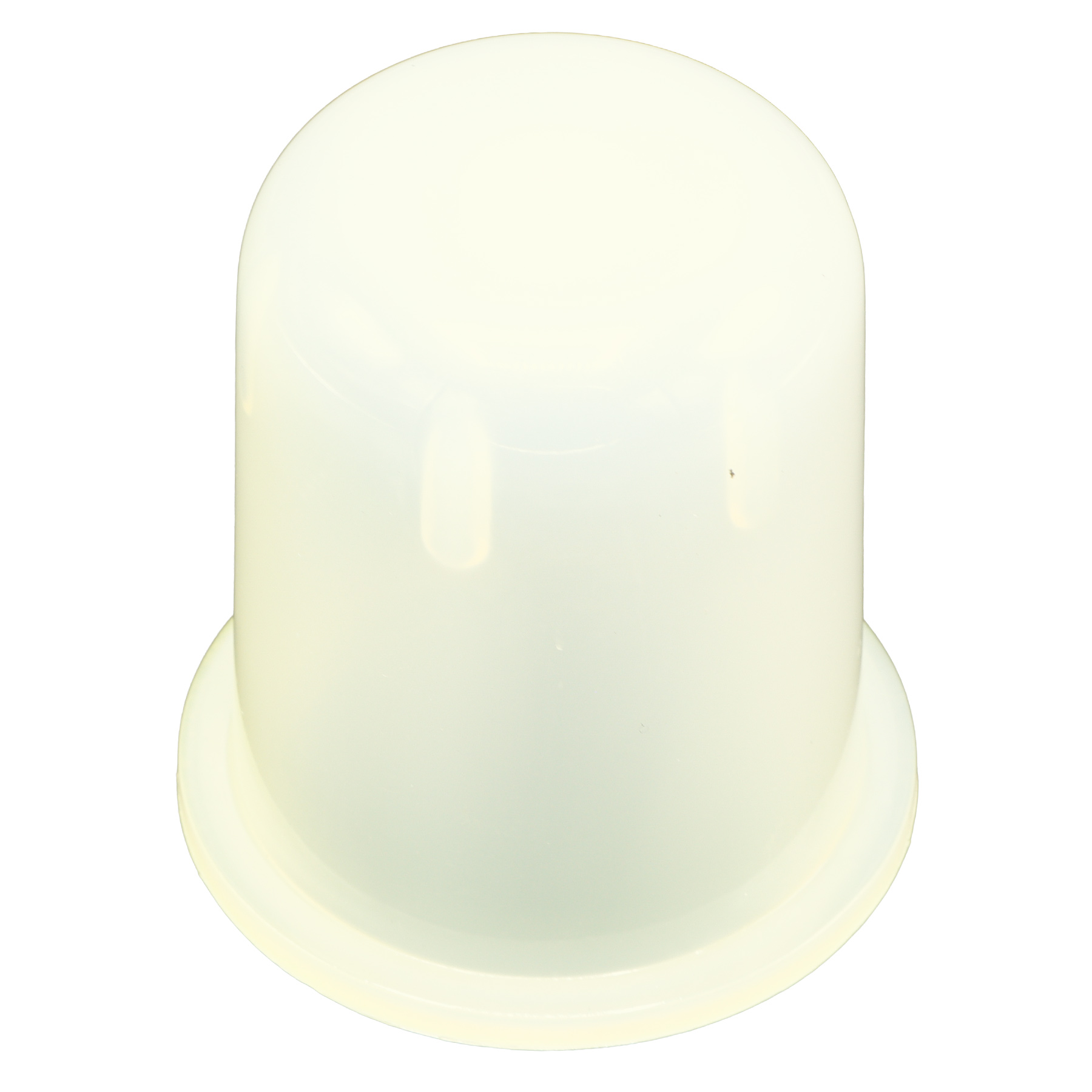

  • 13 POT, FILTER

    POT, FILTER

    • Part No. T4240-43134
    • Compatibility New repl old
    • * multiple options for #13
    • 1 shown on diagram
    $38.99
  • 14 SPRING v

    SPRING v

    • Part No. 84612-4393-0
    • DIA1.2
    • 1 shown on diagram
    $1.59
  • 15 Fuel Filter Cartridge

    Fuel Filter Cartridge

    • Part No. 84612-4316-0
    • 1 shown on diagram
    $7.99
  • 16 O-ring, Fuel Filter Bowl

    O-ring, Fuel Filter Bowl

    • Part No. 04811-50650
    • 1 shown on diagram
    $1.69
  • 17

    FILTER GRIP

    • Part No. T4240-35083
    • 1 shown on diagram
    $11.99
  • 18

    SUPPORT,HANDLE

    • Part No. T4240-35092
    • 1 shown on diagram
    $1.49
  • 19

    NIPPLE

    • Part No. 84612-4317-0
    • 1 shown on diagram
    $2.49
  • 20

    THRUST PLATE

    • Part No. 84612-4354-0
    • 1 shown on diagram
    $0.76
  • 21

    O RING

    • Part No. 04811-10290
    • 1 shown on diagram
    $1.29
  • 22 O RING

    O RING

    • Part No. 04811-00160
    • DIA15.8
    • 1 shown on diagram
    $1.09
  • 23 Bolt With Washer, M8 P1.25 x 30mm

    Bolt With Washer, M8 P1.25 x 30mm

    • Part No. 01123-50830
    • Applied Dates Up to 2007-12-31
    • Serial No. Up to G70100554
    • M8P1.25*30
    • * multiple options for #23
    • 2 shown on diagram
    $2.49
  • 23 BOLT, FLANGE, M8 P1.25

    BOLT, FLANGE, M8 P1.25

    • Part No. 01754-50825
    • Compatibility Interchngable
    • M8XP1.25
    • * multiple options for #23
    • 2 shown on diagram
    $2.49
  • 24

    HOSE 1, FUEL

    • Part No. 09661-80370
    • Applied Dates Up to 2006-07-20
    • Serial No. Up to F70100660
    • * multiple options for #24
    • 1 shown on diagram
    $11.99
  • 24

    HOSE

    • Part No. 09661-80300
    • Compatibility Call for compat
    • Applied Dates 2006-12-31 and up
    • Serial No. G70100001 and up
    • * multiple options for #24
    • 1 shown on diagram
    $7.49
  • 25

    HOSE

    • Part No. 09661-80450
    • 2 shown on diagram
    $13.99
  • 26

    CLAMP, FUEL HOSE

    • Part No. 38430-4515-1
    • Applied Dates Up to 2005-04-11
    • Serial No. Up to E70100080
    • Wire19#
    • * multiple options for #26
    • 6 shown on diagram
    $5.49
  • 26

    CLIP, TUBE

    • Part No. 14911-4275-1
    • Compatibility New repl old
    • Applied Dates 2005-04-20 and up
    • Serial No. 370100001 and up
    • T0.8*#12
    • * multiple options for #26
    • 6 shown on diagram
    $1.49
  • 27

    PROTECTOR SPRING v

    • Part No. 67111-5832-3
    • Applied Dates 2006-07-21 and up
    • 3 shown on diagram
    $13.99
  • 28

    FUEL PIPE 4

    • Part No. 38430-3556-1
    • 2 shown on diagram
    $7.49
  • 29

    CLIP HOSE

    • Part No. 15271-4271-1
    • DIA0.8*50
    • 2 shown on diagram
    $1.49
  • 30

    CLIP HOSE

    • Part No. 15271-4271-1
    • DIA0.8*50
    • 2 shown on diagram
    $1.49
  • 31

    Cut Off Plate

    • Part No. T2185-81153
    • Applied Dates 2004-01-16 to 2007-01-10
    • Serial No. D70100001 to F70100660
    • * multiple options for #31
    • 1 shown on diagram
    $159.99
  • 31

    Cut Off Plate

    • Part No. T2185-81154
    • Compatibility No interchange
    • Applied Dates 2007-01-11 to 2007-08-30
    • Serial No. G70100001 to G70100304
    • * multiple options for #31
    • 1 shown on diagram
    $124.99
  • 31

    PLATE,CUT-OFF

    • Part No. T2185-81155
    • Compatibility New repl old
    • Applied Dates 2007-08-31 and up
    • Serial No. G70100305 and up
    • * multiple options for #31
    • 1 shown on diagram
    $144.99
  • 32

    BOLT, WASHER

    • Part No. 01023-50616
    • M6XP1.0
    • 2 shown on diagram
    $1.19
  • 33

    Plate Cut Off Holder

    • Part No. T2185-81162
    • 1 shown on diagram
    $36.99
  • 34 Bolt With Washer, M8 P1.25 x 22mm

    Bolt With Washer, M8 P1.25 x 22mm

    • Part No. 01123-50822
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 35 Nut, Flange, M6 P1.00 02751-50060

    Nut, Flange, M6 P1.00 02751-50060

    • Part No. 02751-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.73
  • 36

    RUBBER(SHUTTER PLATE)

    • Part No. T2185-81172
    • 2 shown on diagram
    $15.99
  • 37

    WASHER,PLAIN

    • Part No. 76KD-1020
    • 21*21*T3.2
    • 1 shown on diagram
    $3.49
  • 38 Bolt With Washer, M8 P1.25 x 30mm

    Bolt With Washer, M8 P1.25 x 30mm

    • Part No. 01123-50830
    • M8P1.25*30
    • * multiple options for #38
    • 1 shown on diagram
    $2.49
  • 38 Bolt With Washer, M8 P1.25 x 22mm

    Bolt With Washer, M8 P1.25 x 22mm

    • Part No. 01123-50822
    • Compatibility Interchngable
    • Applied Dates 2008-01-01 and up
    • Serial No. D70100001 and up
    • M8XP1.25
    • * multiple options for #38
    • 1 shown on diagram
    $2.49
