POSITION CONTROL LEVER GROUP - CK30M-T780-1A

Kioti TRACTOR | CK Series | CK25

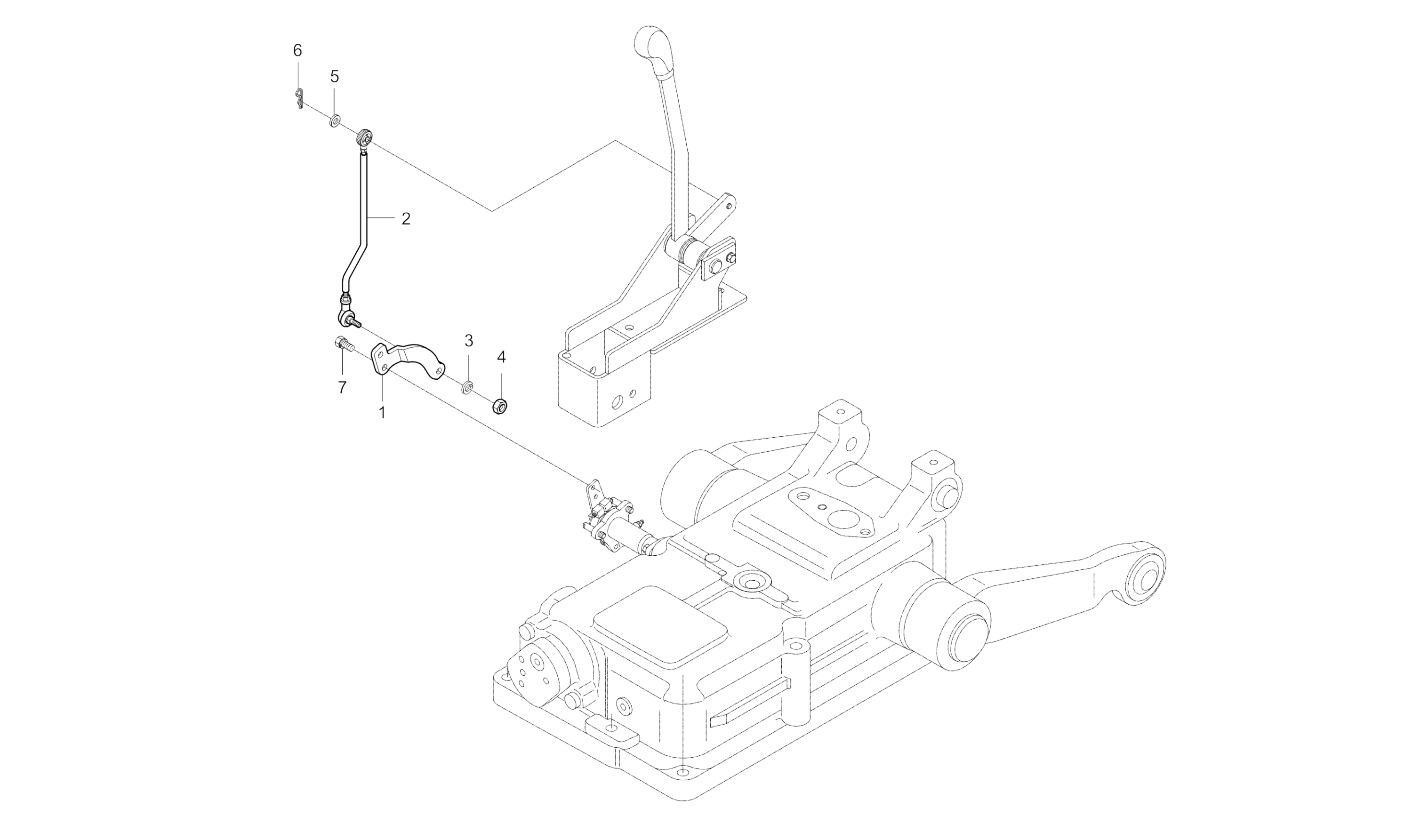

Diagram for POSITION CONTROL LEVER GROUP - CK30M-T780-1A
  • 1

    LEVER 2

    • Part No. T2185-65471
    • T6.0
    • * multiple options for #1
    • 1 shown on diagram
    $7.99
  • 1

    LEVER 2

    • Part No. T2185-65472
    • Compatibility Interchngable
    • Applied Dates 2008-01-04 to 2011-01-01
    • Serial No. H70100001 and up
    • T6.0
    • * multiple options for #1
    • 1 shown on diagram
    $9.99
  • 2

    ROD 1,POSITION CONTROL

    • Part No. T2195-65481
    • 1 shown on diagram
    $89.99
  • 3 WASHER, SPRING

    WASHER, SPRING

    • Part No. 04512-50060
    • M06
    • 1 shown on diagram
    $0.61
  • 4 NUT

    NUT

    • Part No. 02056-50060
    • M6XP1.0
    • 1 shown on diagram
    $0.49
  • 5 Flat Washer M8

    Flat Washer M8

    • Part No. 04012-50080
    • M8
    • 1 shown on diagram
    $0.67
  • 6
    • Part No. 05525-50800
    • DIA8
    • 1 shown on diagram
  • 7 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
