RADIATOR GROUP - CK30M-T030A

Kioti TRACTOR | CK Series | CK25

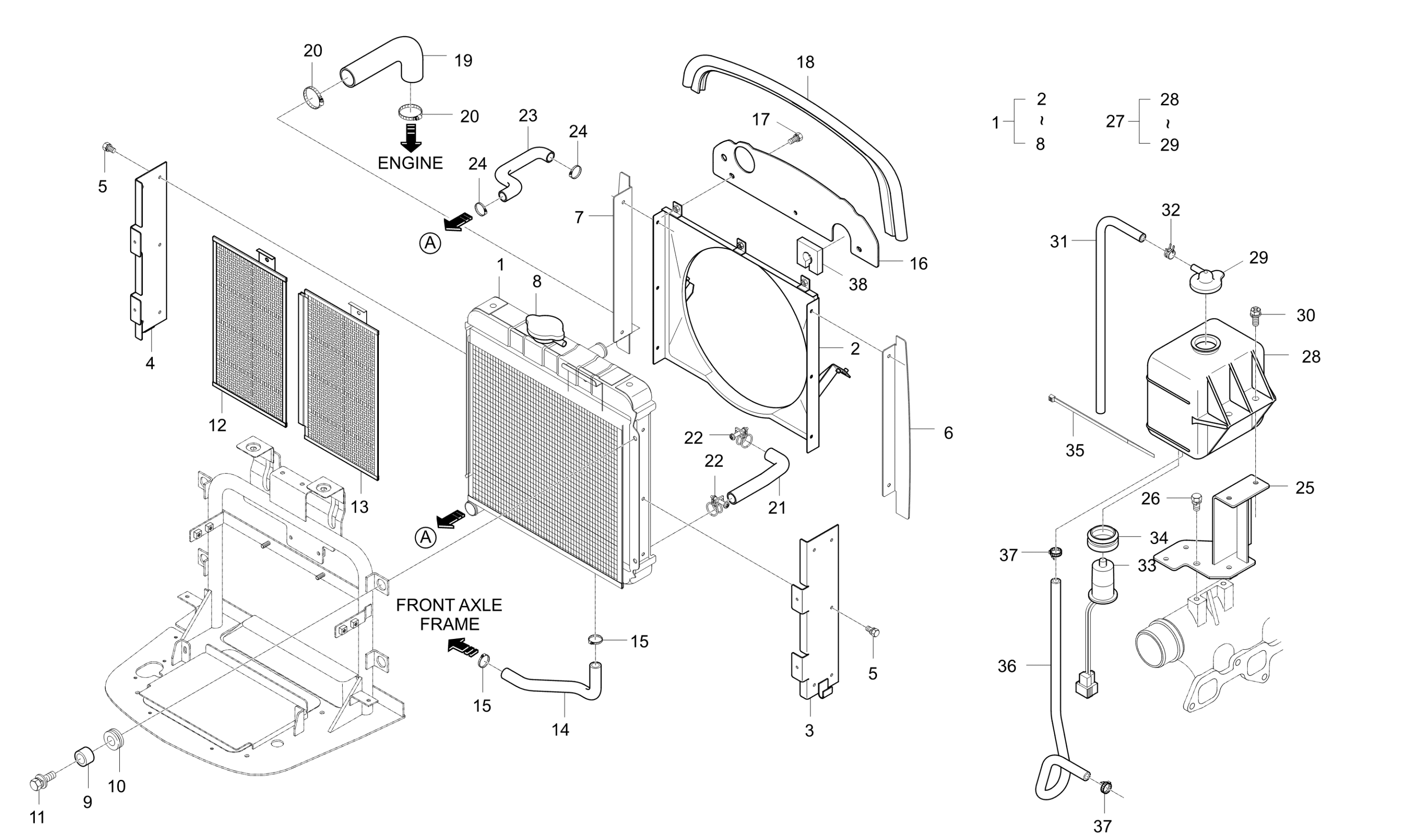

Diagram for RADIATOR GROUP - CK30M-T030A
  • 1

    Radiator, Replaced by T2185-13502-SP

    • Part No. T2185-13502
    • Applied Dates 2004-01-12 and up
    • 1 shown on diagram
    $0.00
  • 2

    SHIROUD

    • Part No. T2185-13521
    • 1 shown on diagram
    $184.99
  • 3

    SUPPORT(LH)

    • Part No. T2185-13531
    • 1 shown on diagram
    $9.99
  • 4

    SUPPORT(RH)

    • Part No. T2185-13541
    • 1 shown on diagram
    $9.99
  • 5 BOLT, WASHER

    BOLT, WASHER

    • Part No. 01023-50614
    • M6P1.0
    • 10 shown on diagram
    $1.19
  • 6

    PLATE, SIDE COVER(LH)

    • Part No. T2185-13631
    • Applied Dates 2004-01-12 and up
    • T1.2
    • 1 shown on diagram
    $3.49
  • 7

    PLATE, SIDE COVER(RH)

    • Part No. T2185-13641
    • Applied Dates 2004-01-12 and up
    • T1.2
    • 1 shown on diagram
    $3.49
  • 8

    ASS Y CAP, Replaced by P15110900

    • Part No. E6200-72631
    • Applied Dates 2004-05-21 and up
    • 1 shown on diagram
    $0.00
  • 9

    SPACER

    • Part No. T2350-50421
    • DIA13.8XT2.3
    • 4 shown on diagram
    $4.49
  • 10

    GROMMET

    • Part No. T2350-50431
    • 4 shown on diagram
    $4.99
  • 11

    BOLT

    • Part No. 01127-50825
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 12

    NET 1

    • Part No. T2185-13111
    • Applied Dates Up to 2006-10-11
    • * multiple options for #12
    • 1 shown on diagram
    $85.99
  • 12

    Net 1

    • Part No. T2185-13112
    • Compatibility Interchngable
    • Applied Dates 2006-10-12 to 2007-02-15
    • Serial No. F70100661 to G70100040
    • * multiple options for #12
    • 1 shown on diagram
    $85.99
  • 13

    NET 2

    • Part No. T2185-13122
    • Applied Dates Up to 2006-10-11
    • * multiple options for #13
    • 1 shown on diagram
    $75.99
  • 13

    NET 2

    • Part No. T2185-13123
    • Compatibility Interchngable
    • Applied Dates 2006-10-12 to 2007-02-15
    • Serial No. F70100661 to G70100040
    • * multiple options for #13
    • 1 shown on diagram
    $88.99
  • 14 Radiator Drain hose

    Radiator Drain hose

    • Part No. T2185-13551
    • 1 shown on diagram
    $19.99
  • 15

    CLAMP, HOSE obs v

    • Part No. 15109-7336-4
    • Applied Dates Up to 2005-04-11
    • Serial No. Up to G70100040
    • Wire #19
    • * multiple options for #15
    • 2 shown on diagram
    $3.49
  • 15

    CLAMP, HOSE dnr v

    • Part No. E5700-73361
    • Compatibility New repl old
    • Applied Dates 2005-04-12 to 2007-02-10
    • Serial No. E70100081 to D70100104
    • * multiple options for #15
    • 2 shown on diagram
    $3.49
  • 16

    PLATE

    • Part No. T2185-13561
    • Applied Dates Up to 2006-11-14
    • T2.3
    • * multiple options for #16
    • 1 shown on diagram
    $15.99
  • 16

    Radiator Plate

    • Part No. T2185-13562
    • Compatibility New repl old
    • Applied Dates 2006-11-15 to 2007-02-15
    • Serial No. F70100661 to G70100040
    • T2.3
    • * multiple options for #16
    • 1 shown on diagram
    $21.99
  • 17 Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    • Part No. 01125-50816
    • M8XP1.25
    • 3 shown on diagram
    $2.49
  • 18

    RUBBER (RADIATOR)

    • Part No. T2185-13592
    • 1 shown on diagram
    $16.99

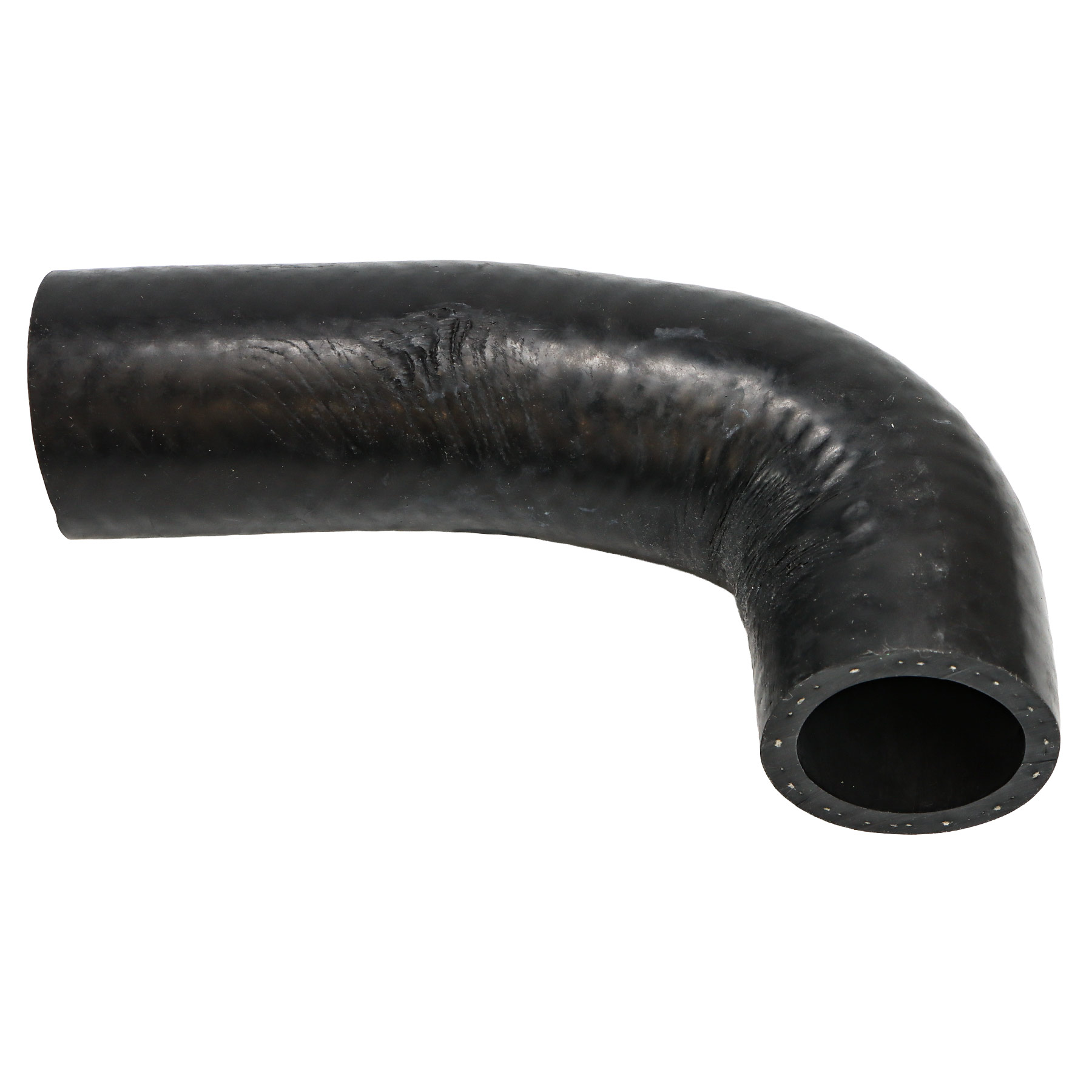

  • 19 HOSE, WATER (UPPER) v

    HOSE, WATER (UPPER) v

    • Part No. T2185-13571
    • 1 shown on diagram
    $35.99
  • 20

    BAND

    • Part No. 15108-7287-3
    • Wire #45
    • 2 shown on diagram
    $3.99
  • 21 Water Hose (Lower) 1-1/4″

    Water Hose (Lower) 1-1/4″

    • Part No. T2185-13581
    • 1 shown on diagram
    $39.99
  • 22

    BAND

    • Part No. 15108-7287-3
    • Wire #45
    • 2 shown on diagram
    $3.99

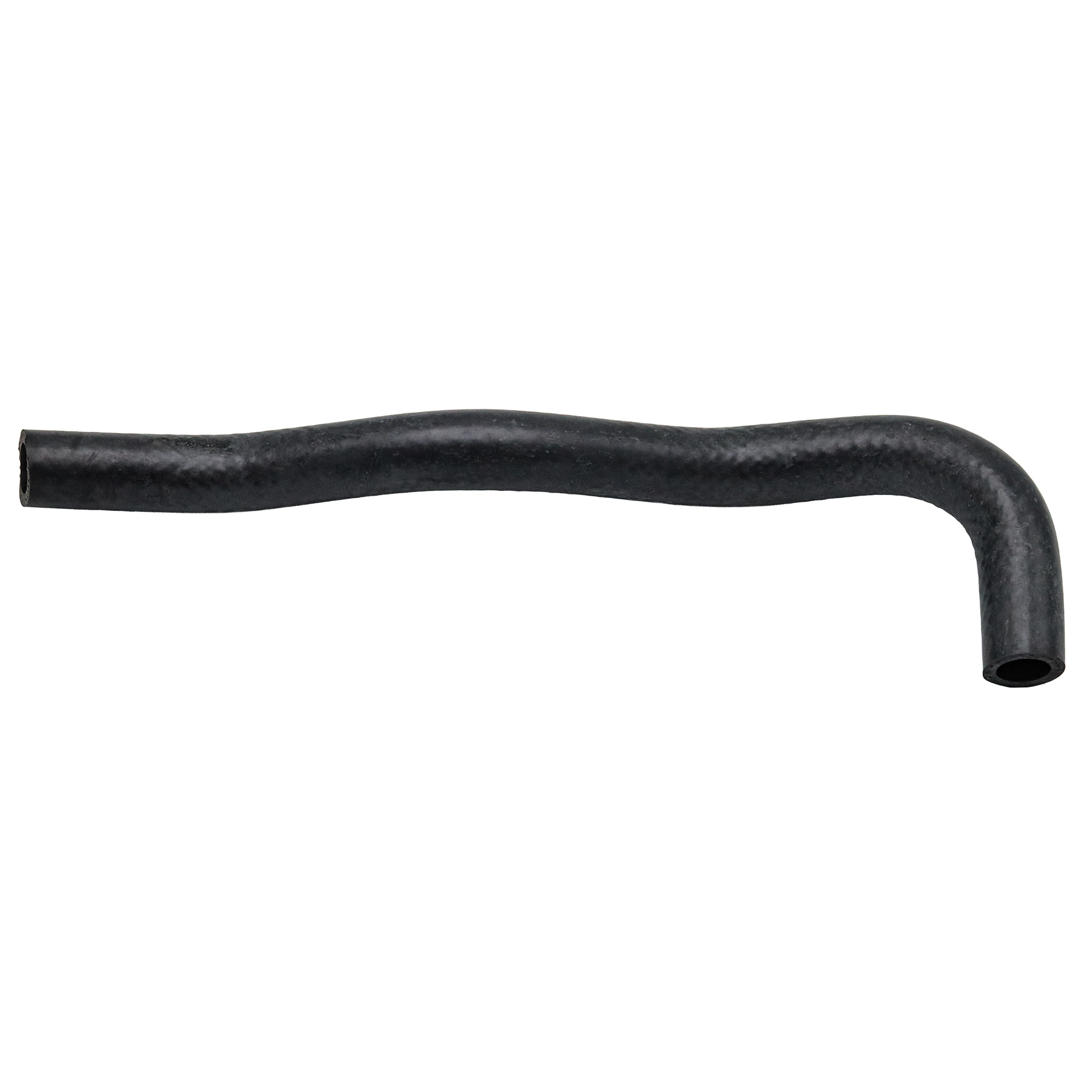

  • 23 HOSE, WATER RETURN 1/2″

    HOSE, WATER RETURN 1/2″

    • Part No. T2540-73341
    • 1 shown on diagram
    $9.99
  • 24

    CLAMP, HOSE obs v

    • Part No. 15109-7336-4
    • Wire #19
    • 2 shown on diagram
    $3.49
  • 25

    HOLDER, RESERVOIR TANK dnr v

    • Part No. T2185-72462
    • Applied Dates 2004-03-23 to 2004-04-28
    • 1 shown on diagram
    $29.99
  • 26 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 27

    WATER TANK ASSY dnr v

    • Part No. T4340-A0110
    • Applied Dates Up to 2006-11-12
    • Serial No. Up to F70100660
    • * multiple options for #27
    • 1 shown on diagram
    $25.99
  • 27

    Reservoir Tank, Replaced by T4710-72416

    • Part No. T4710-72412
    • Compatibility Call for compat
    • Applied Dates 2006-11-13 to 2007-11-30
    • Serial No. G70100001 to G70100554
    • * multiple options for #27
    • 1 shown on diagram
    $0.00
  • 28

    TANK,AUX. v

    • Part No. E6200-72412
    • Applied Dates Up to 2006-11-12
    • Serial No. Up to F70100660
    • * multiple options for #28
    • 1 shown on diagram
    $22.99
  • 28

    ASSY, TANK WATER

    • Part No. T4710-72432
    • Compatibility Call for compat
    • Applied Dates 2006-11-13 and up
    • Serial No. G70100001 and up
    • * multiple options for #28
    • 1 shown on diagram
    $33.99

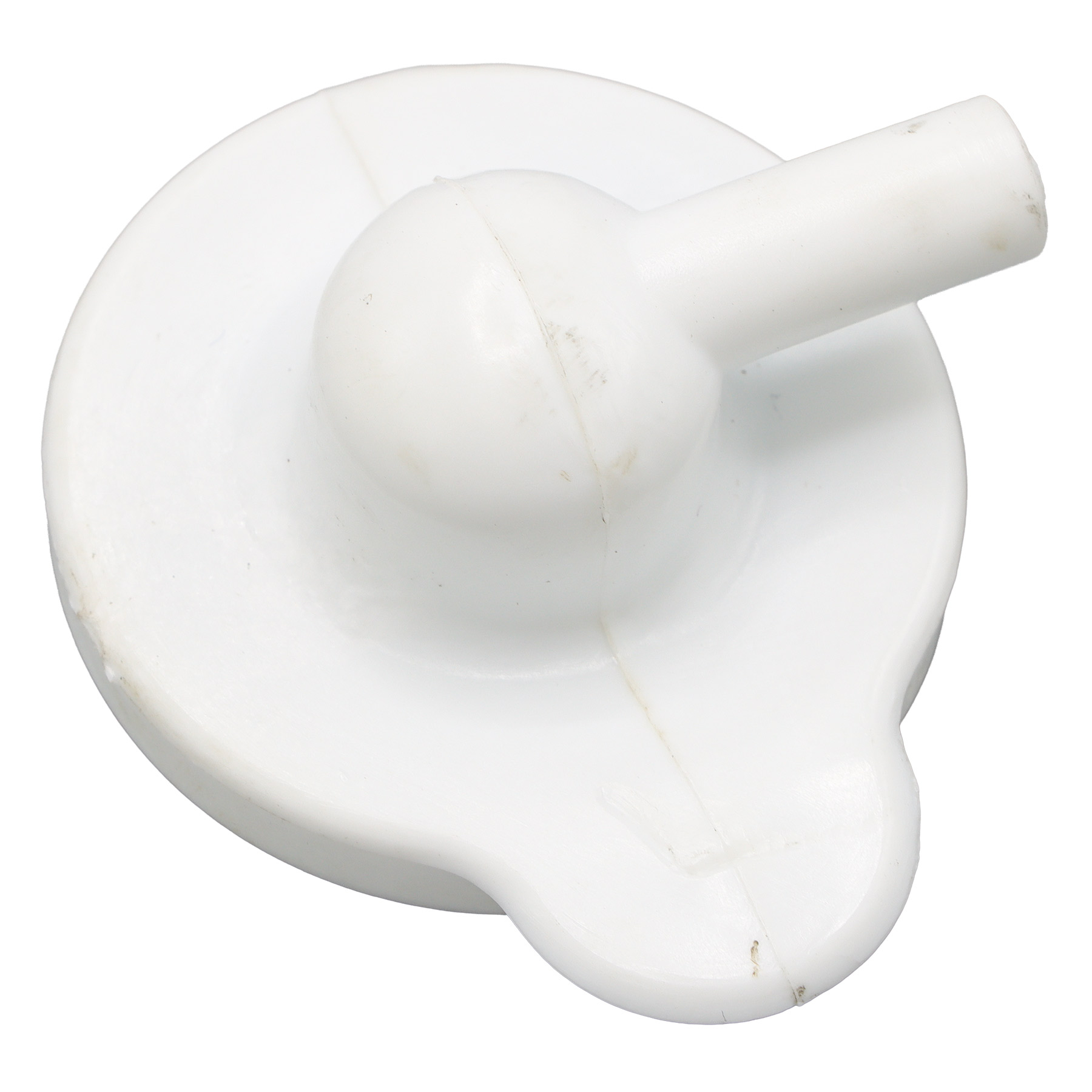

  • 29 CAP

    CAP

    • Part No. 15301-7242-0
    • Applied Dates Up to 2006-11-12
    • * multiple options for #29
    • 1 shown on diagram
    $5.49
  • 29 Cap, Black Threaded

    Cap, Black Threaded

    • Part No. E7100-72411
    • Compatibility Call for compat
    • Applied Dates 2006-11-13 and up
    • * multiple options for #29
    • 1 shown on diagram
    $23.99
  • 30 FLANGE BOLT, HEX HEAD M8

    FLANGE BOLT, HEX HEAD M8

    • Part No. 01754-50820
    • Applied Dates 2004-01-30 and up
    • M8XP1.25
    • 2 shown on diagram
    $1.19
  • 31 Over Flow Hose

    Over Flow Hose

    • Part No. 15301-7244-0
    • 1 shown on diagram
    $12.99
  • 32

    CLIP, TUBE

    • Part No. 14911-4275-1
    • T0.8*#12
    • 1 shown on diagram
    $1.49
  • 33

    SWITCH,COOLINGWATER obs v

    • Part No. 15521-7299-2
    • 1 shown on diagram
    $39.99

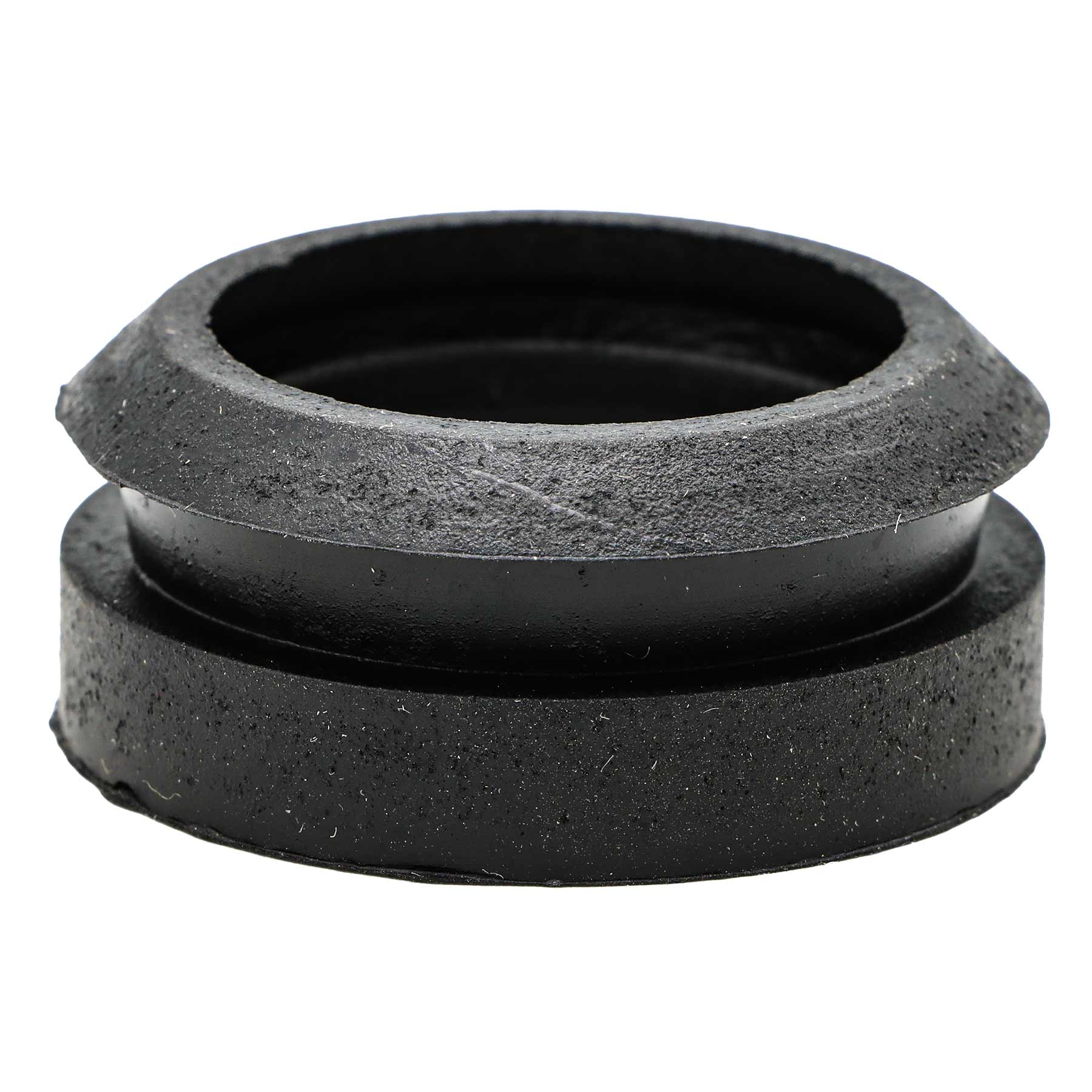

  • 34 RUBBER HOLDER

    RUBBER HOLDER

    • Part No. 15301-7245-0
    • 1 shown on diagram
    $3.99
  • 35

    Band Cord (T4520-82561)

    • Part No. T4520-82561
    • L200
    • 1 shown on diagram
    $0.59
  • 36 Over Flow Hose 1

    Over Flow Hose 1

    • Part No. E5800-72711
    • OD13*ID8*L580
    • 1 shown on diagram
    $14.99
  • 37

    CLIP, HOSE

    • Part No. 15301-7247-0
    • Stan16#
    • 2 shown on diagram
    $2.49
  • 38

    SPONGE(RADIATOR)

    • Part No. T2185-13611
    • 1 shown on diagram
    $6.99
