BRAKE PEDAL GROUP - CK30M-T470A

Kioti TRACTOR | CK Series | CK25

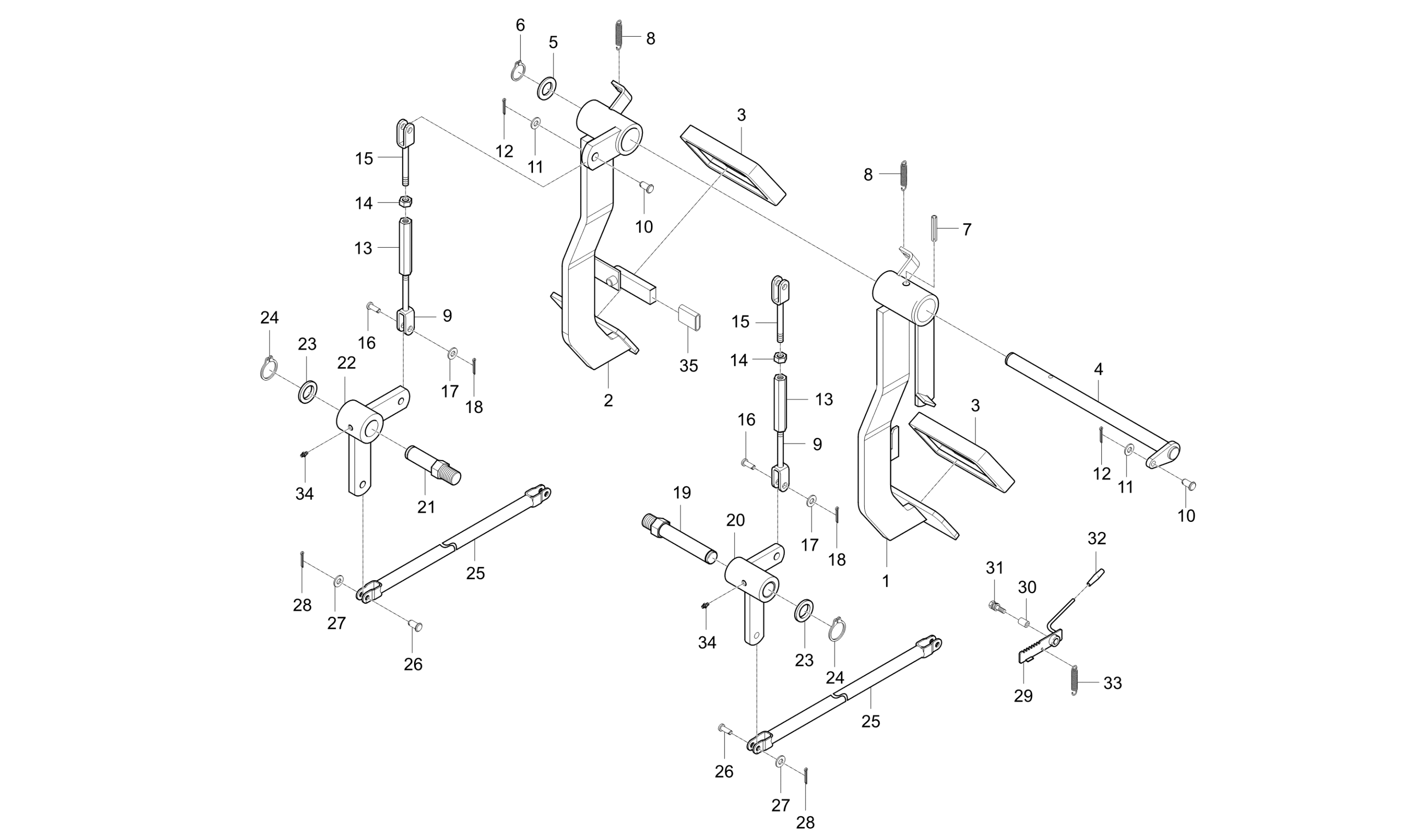

Diagram for BRAKE PEDAL GROUP - CK30M-T470A
  • 1

    PEDAL, BRAKE-LH dnr v

    • Part No. T2185-55712
    • 1 shown on diagram
    $57.99
  • 2

    PEDAL, BRAKE(RH)

    • Part No. T2185-55722
    • 1 shown on diagram
    $79.99
  • 3 COVER,PEDAL

    COVER,PEDAL

    • Part No. T2670-55531
    • 2 shown on diagram
    $23.99
  • 4

    SHAFT, PEDAL

    • Part No. T2185-55731
    • * multiple options for #4
    • 1 shown on diagram
    $49.99
  • 4

    SHAFT, PEDAL

    • Part No. T2185-55731BB
    • Compatibility No interchange
    • * multiple options for #4
    • 1 shown on diagram
    $54.99
  • 5

    COLLAR dnr v

    • Part No. 84612-1445-0
    • DIA36*8
    • 1 shown on diagram
    $11.99
  • 6 CIR-CLIP

    CIR-CLIP

    • Part No. 04612-00250
    • DIA25
    • 1 shown on diagram
    $1.09
  • 7 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00840
    • DIA8.6XL40
    • 1 shown on diagram
    $1.49
  • 8

    SPRING BRAKE

    • Part No. T2350-55961
    • DIA2.3
    • 2 shown on diagram
    $6.49
  • 9

    ROD 1,BRAKE

    • Part No. T2610-55751
    • 2 shown on diagram
    $24.99
  • 10

    Pin, Joint M10x28mm

    • Part No. 05122-51028
    • DIA10XL28
    • 2 shown on diagram
    $3.49
  • 11 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 2 shown on diagram
    $0.73
  • 12

    Split Pin (05511-50318)

    • Part No. 05511-50318
    • DIA2.7XL18
    • 2 shown on diagram
    $0.40
  • 13

    TURNBUCKLE

    • Part No. 32350-2898-4
    • HEX14
    • 2 shown on diagram
    $28.99
  • 14 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 2 shown on diagram
    $0.98
  • 15

    BRAKE ROD 2

    • Part No. T2185-55761
    • 2 shown on diagram
    $19.99
  • 16

    Pin, Joint M10x28mm

    • Part No. 05122-51028
    • DIA10XL28
    • 2 shown on diagram
    $3.49
  • 17 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 2 shown on diagram
    $0.73
  • 18

    Split Pin (05511-50318)

    • Part No. 05511-50318
    • Compatibility New repl old
    • Applied Dates 2004-11-19 and up
    • Serial No. D70100195 to G70100180
    • DIA2.7XL18
    • 2 shown on diagram
    $0.40
  • 19

    BRAKE SHAFT(LH)

    • Part No. T2185-55801
    • HEX27
    • * multiple options for #19
    • 1 shown on diagram
    $15.99
  • 19

    Brake Shaft (LH)

    • Part No. T2185-55802
    • Compatibility New repl old
    • Applied Dates 2004-01-14 to 2004-04-28
    • Serial No. D70100001 and up
    • HEX27
    • * multiple options for #19
    • 1 shown on diagram
    $27.99
  • 20

    LEVER, BRAKE

    • Part No. T2185-55781
    • Serial No. Up to G70100404
    • * multiple options for #20
    • 1 shown on diagram
    $35.99
  • 20

    LEVER,BRAKE v

    • Part No. T2185-55782
    • Compatibility New repl old
    • Applied Dates 2007-10-26 to 2011-01-01
    • Serial No. G70100405 and up
    • * multiple options for #20
    • 1 shown on diagram
    $59.99
  • 21

    BRAKE SHAFT(RH)

    • Part No. T2185-55811
    • HEX27
    • * multiple options for #21
    • 1 shown on diagram
    $14.99
  • 21

    BRAKE SHAFT(RH)

    • Part No. T2185-55812
    • Compatibility New repl old
    • Applied Dates 2004-01-14 to 2004-04-28
    • Serial No. D70100001 and up
    • HEX27
    • * multiple options for #21
    • 1 shown on diagram
    $18.99
  • 22

    BRAKE LEVER

    • Part No. T2185-55792
    • Applied Dates 2004-09-01 to 2007-10-25
    • Serial No. D70100155 to G70100404
    • * multiple options for #22
    • 1 shown on diagram
    $39.99
  • 22

    LEVER, BRAKE v

    • Part No. T2185-55793
    • Compatibility New repl old
    • Applied Dates 2007-10-26 to 2011-01-01
    • Serial No. G70100405 and up
    • * multiple options for #22
    • 1 shown on diagram
    $46.99
  • 23

    Flat Washer M20

    • Part No. 04011-50200
    • M20
    • 2 shown on diagram
    $1.59
  • 24 Snap Ring (04612-00200)

    Snap Ring (04612-00200)

    • Part No. 04612-00200
    • DIA20
    • 2 shown on diagram
    $1.09
  • 25

    ROD, 3 BRAKE

    • Part No. T2610-55771
    • * multiple options for #25
    • 2 shown on diagram
    $0.00
  • 25

    ROD 3,BARKE

    • Part No. T2610-55772
    • Compatibility Interchngable
    • Applied Dates 2004-01-14 to 2004-04-28
    • Serial No. D70100001 and up
    • * multiple options for #25
    • 2 shown on diagram
    $54.99
  • 25

    ROD 3, BRAKE

    • Part No. T2610-55772BB
    • Compatibility No interchange
    • Applied Dates 2009-01-25 and up
    • * multiple options for #25
    • 2 shown on diagram
    $57.99
  • 26 Pin, Joint M8x28mm

    Pin, Joint M8x28mm

    • Part No. 05122-50828
    • Compatibility New repl old
    • Applied Dates 2006-11-04 and up
    • Serial No. F70100561 and up
    • DIA8XL28
    • 4 shown on diagram
    $3.49
  • 27 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 4 shown on diagram
    $0.79
  • 28 PIN, SPLIT

    PIN, SPLIT

    • Part No. 05511-50218
    • DIA1.8XL18
    • 4 shown on diagram
    $0.56
  • 29

    Parking Brake Lever, Replaced by T2185-55912BB

    • Part No. T2185-55911
    • * multiple options for #29
    • 1 shown on diagram
    $38.99
  • 29

    LEVER,SET v

    • Part No. T2185-55912
    • Compatibility New repl old
    • * multiple options for #29
    • 1 shown on diagram
    $38.99
  • 30

    SPACER

    • Part No. T2350-55951
    • 1 shown on diagram
    $5.49
  • 31

    Bolt With Washers, M8 P1.25 x 25mm

    • Part No. 01125-50825
    • M8XP1.25
    • 1 shown on diagram
    $2.49
  • 32

    GRIP

    • Part No. T2350-55921
    • * multiple options for #32
    • 1 shown on diagram
    $1.89
  • 32

    GRIP

    • Part No. T2350-55922
    • Compatibility New repl old
    • Applied Dates Up to 2007-06-20
    • Serial No. Up to G70100180
    • * multiple options for #32
    • 1 shown on diagram
    $5.49
  • 33

    FRICTION SPRING

    • Part No. 57781-5121-1
    • Compatibility Old repl new
    • Applied Dates 2005-10-01 to 2007-02-10
    • Serial No. E70100251 to G70100040
    • DIA1.2
    • 1 shown on diagram
    $3.49
  • 34 Grease Nipple M6 P0.75

    Grease Nipple M6 P0.75

    • Part No. 06613-10675
    • Applied Dates 2003-12-18 to 2004-10-25
    • Serial No. 370100001 to D70100194
    • M6XP0.75
    • * multiple options for #34
    • 2 shown on diagram
    $2.49
  • 34 NIPPLE, GREASE M6 P1.0

    NIPPLE, GREASE M6 P1.0

    • Part No. 06611-15675
    • Compatibility New repl old
    • Applied Dates Up to 2004-04-28
    • Serial No. Up to G70100404
    • A-M6F
    • * multiple options for #34
    • 1 shown on diagram
    $1.69
  • 35

    VYNIL TUBE

    • Part No. T2612-24921
    • Ø18x1.5T
    • 1 shown on diagram
    $3.99
