BONNET 3 GROUP - CK30M-T830A

Kioti TRACTOR | CK Series | CK25

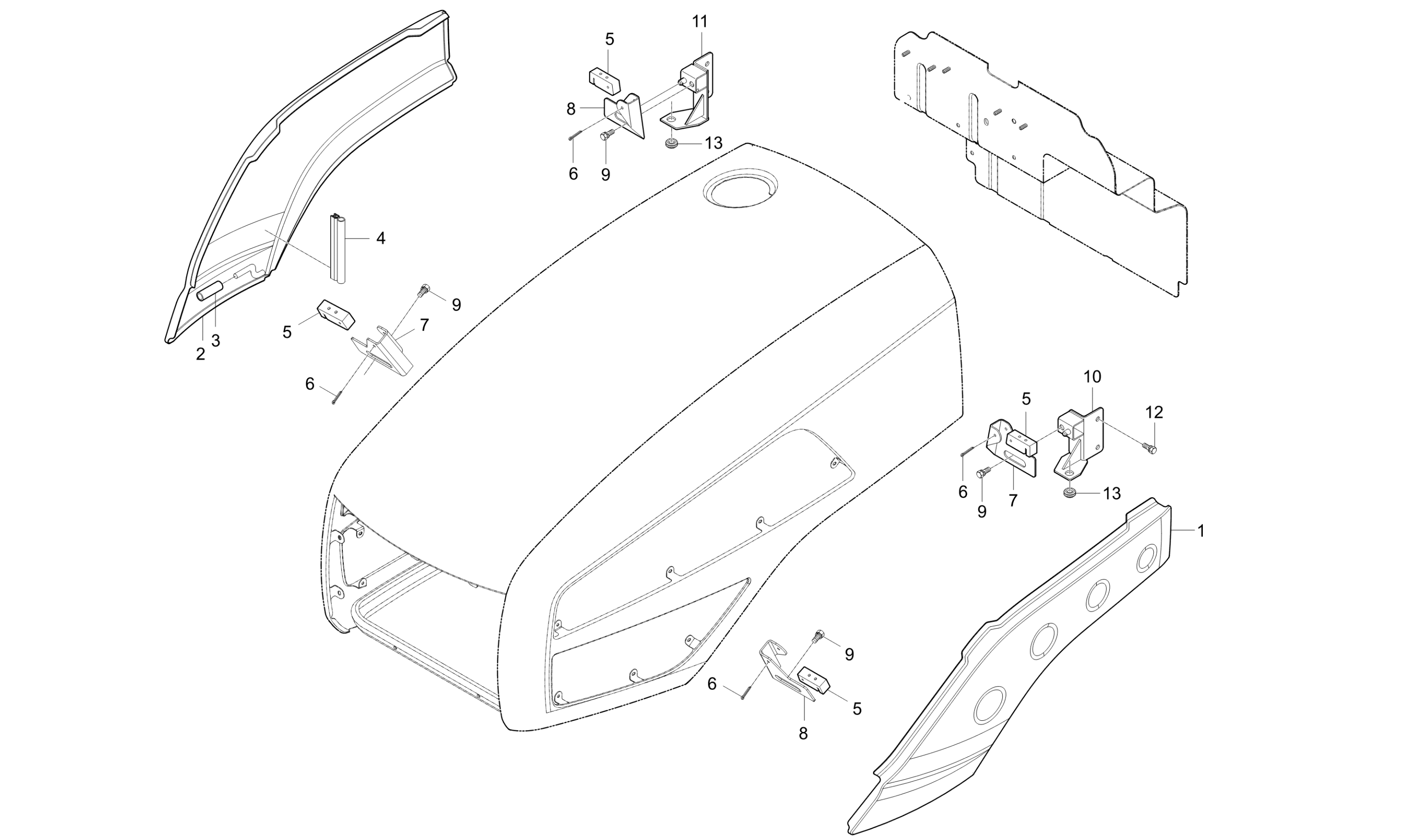

Diagram for BONNET 3 GROUP - CK30M-T830A
  • 1

    Side Cover (LH), Replaced by T2185-50824BB

    • Part No. T2185-50823
    • Applied Dates 2004-01-09 to 2004-06-20
    • Serial No. D70100001 to D70100104
    • * multiple options for #1
    • 1 shown on diagram
    $199.99
  • 1

    SIDE COVER(LH) v

    • Part No. T2185-50824
    • Compatibility Interchngable
    • Applied Dates 2004-06-21 to 2007-02-10
    • Serial No. Up to G70100040
    • * multiple options for #1
    • 1 shown on diagram
    $199.99
  • 2

    COVER, SIDE (RH), Replaced by T2185-50834

    • Part No. T2185-50833
    • Applied Dates 2004-01-09 to 2004-06-20
    • Serial No. D70100001 to D70100104
    • * multiple options for #2
    • 1 shown on diagram
    $0.00
  • 2

    COVER, SIDE RH, Replaced by T2185-50834BK

    • Part No. T2185-50834
    • Compatibility Interchngable
    • Applied Dates 2004-06-21 to 2007-02-10
    • Serial No. Up to G70100040
    • * multiple options for #2
    • 1 shown on diagram
    $199.99
  • 3

    HOSE, FUEL obs v

    • Part No. 09661-60030
    • 2 shown on diagram
    $1.89
  • 4

    RUBBER

    • Part No. T2185-50891
    • 2 shown on diagram
    $5.99
  • 5

    Side Cover Hook, Replaced by T2185-50842

    • Part No. T2185-50841
    • 4 shown on diagram
    $6.99
  • 6

    Split Pin (05511-50325)

    • Part No. 05511-50325
    • 4 shown on diagram
    $0.68
  • 7

    Stay Plate 1

    • Part No. T2185-50852
    • Applied Dates 2004-02-18 and up
    • T1.6
    • 2 shown on diagram
    $8.99
  • 8

    PLATE, STAY 2

    • Part No. T2185-50862
    • Applied Dates 2004-02-18 and up
    • T1.6
    • 2 shown on diagram
    $13.99
  • 9 Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    Bolt With Washers, M8 P1.25 x 16mm (01125-50816)

    • Part No. 01125-50816
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 10

    PLATE, SIDE COVER(LH)

    • Part No. T2185-50872
    • 1 shown on diagram
    $28.99
  • 11

    PLATE, SIDE COVER(RH), Replaced by T2185-50882BB

    • Part No. T2185-50882
    • 1 shown on diagram
    $24.88
  • 12 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 4 shown on diagram
    $1.09
  • 13 GROMMET

    GROMMET

    • Part No. T4682-50251
    • 2 shown on diagram
    $1.89
