MAIN SHIFT LEVER GROUP - CK30M-T320A

Kioti TRACTOR | CK Series | CK25

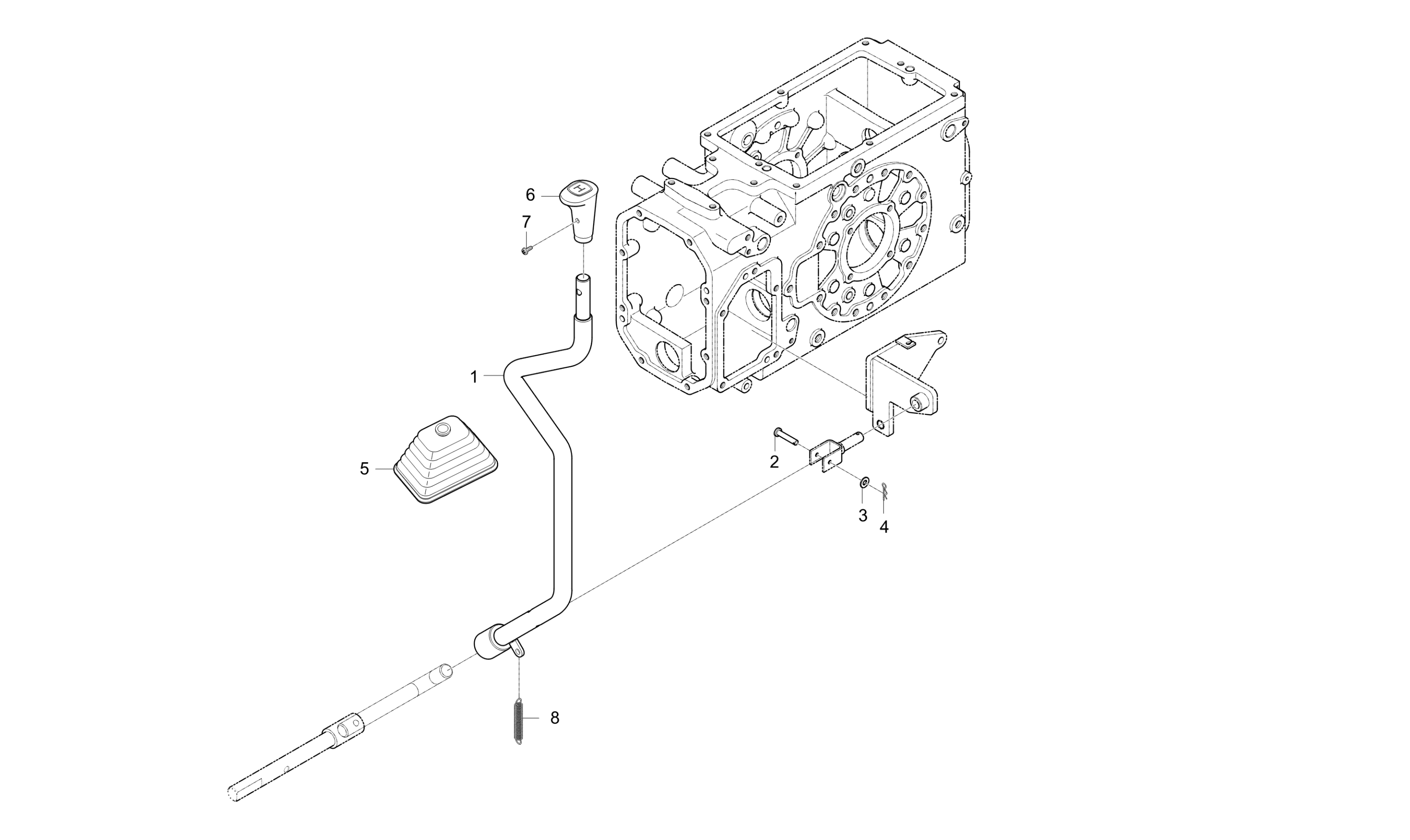

Diagram for MAIN SHIFT LEVER GROUP - CK30M-T320A
  • 1

    LEVER, MAIN SHIFT v

    • Part No. T2185-21313
    • Applied Dates 2004-04-06 to 2004-08-17
    • Serial No. D70100001 to D70100104
    • * multiple options for #1
    • 1 shown on diagram
    $39.99
  • 1

    LEVER, MAIN SHIFT v

    • Part No. T2181-21311
    • Compatibility No interchange
    • Applied Dates 2004-08-18 to 2004-11-24
    • Serial No. D70100105 and up
    • * multiple options for #1
    • 1 shown on diagram
    $46.99
  • 1

    LEVER,MAIN SPEED CHANGE v

    • Part No. T2181-21312
    • Compatibility New repl old
    • Applied Dates 2004-11-25 and up
    • Serial No. E70100081 and up
    • * multiple options for #1
    • 1 shown on diagram
    $124.99
  • 2 Pin, Joint M6x35mm

    Pin, Joint M6x35mm

    • Part No. 05122-50635
    • DIA6XL35
    • 1 shown on diagram
    $2.49
  • 3 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 1 shown on diagram
    $0.73
  • 4

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 1 shown on diagram
    $1.19
  • 5 JABALA(MAIN-SHIFT)

    JABALA(MAIN-SHIFT)

    • Part No. T2185-60372
    • 1 shown on diagram
    $47.99
  • 6

    GRIP, MAIN SHIFT

    • Part No. T2610-66441
    • Applied Dates Up to 2011-06-30
    • * multiple options for #6
    • 1 shown on diagram
    $46.99
  • 6

    GRIP v

    • Part No. T4115-66441
    • Compatibility New repl old
    • Applied Dates 2011-07-01 and up
    • * multiple options for #6
    • 1 shown on diagram
    $43.99
  • 7

    SCREW v

    • Part No. 03024-50516
    • Applied Dates Up to 2007-11-29
    • Serial No. Up to G70100554
    • * multiple options for #7
    • 1 shown on diagram
    $0.79
  • 7

    SCREW

    • Part No. 03004-50616
    • Compatibility New repl old
    • Applied Dates 2007-11-30 and up
    • Serial No. G70100555 and up
    • M6XP1.0
    • * multiple options for #7
    • 1 shown on diagram
    $0.73
  • 8

    SPRING BRAKE

    • Part No. T2350-55961
    • Applied Dates 2004-04-06 to 2004-08-17
    • Serial No. D70100001 to D70100104
    • DIA2.3
    • * multiple options for #8
    • 1 shown on diagram
    $6.49
  • 8 SPRING

    SPRING

    • Part No. T4520-27831
    • Compatibility No interchange
    • Applied Dates 2004-08-18 to 2007-06-20
    • Serial No. D70100105 to G70100180
    • DIA2.0
    • * multiple options for #8
    • 1 shown on diagram
    $6.49
