SHUTTLE LEVER GROUP - CK30M-T300A

Kioti TRACTOR | CK Series | CK25

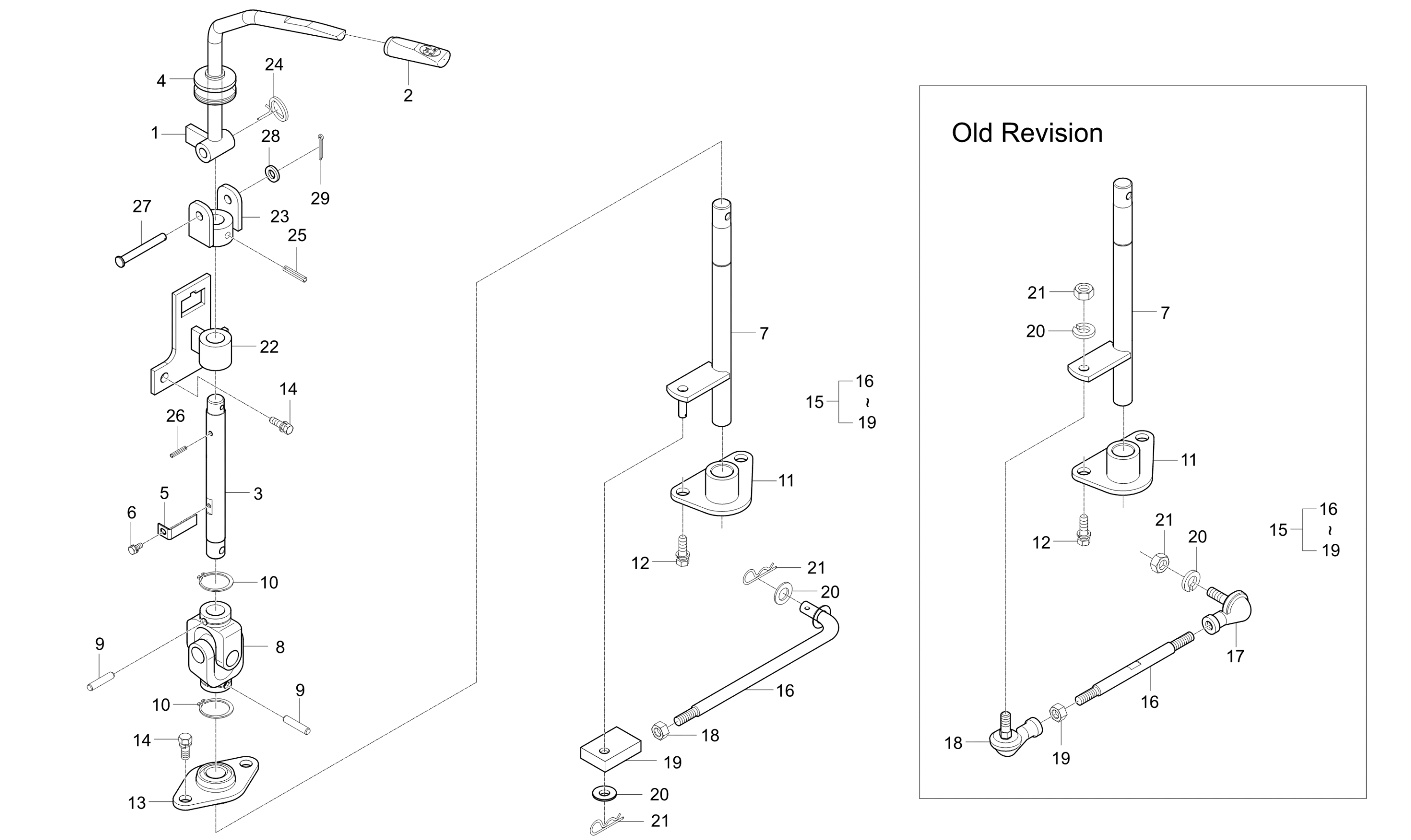

Diagram for SHUTTLE LEVER GROUP - CK30M-T300A
  • 1

    SHUTTLE,LEVER dnr v

    • Part No. T2185-65603
    • Applied Dates 2004-02-26 to 2004-07-21
    • Serial No. D70100001 to D70100154
    • * multiple options for #1
    • 1 shown on diagram
    $39.99
  • 1

    SHUTTLE LEVER

    • Part No. T2185-65604
    • Compatibility Interchngable
    • Applied Dates 2004-07-22 to 2004-10-31
    • Serial No. D70100155 to D70100194
    • * multiple options for #1
    • 1 shown on diagram
    $39.99
  • 1

    SHUTTLE LEVER

    • Part No. T2185-65605
    • Compatibility New repl old
    • Applied Dates 2004-11-01 to 2005-11-07
    • Serial No. D70100195 to E70100430
    • * multiple options for #1
    • 1 shown on diagram
    $31.99
  • 1

    SHUTTLE LEVER

    • Part No. T2185-65606
    • Compatibility New repl old
    • Applied Dates 2005-11-08 to 2007-06-20
    • Serial No. E70100431 to G70100180
    • * multiple options for #1
    • 1 shown on diagram
    $51.99
  • 2

    GRIP -SHUTTLE LEVER

    • Part No. T2615-65712
    • Applied Dates Up to 2007-05-01
    • Serial No. Up to G70100140
    • * multiple options for #2
    • 1 shown on diagram
    $28.99

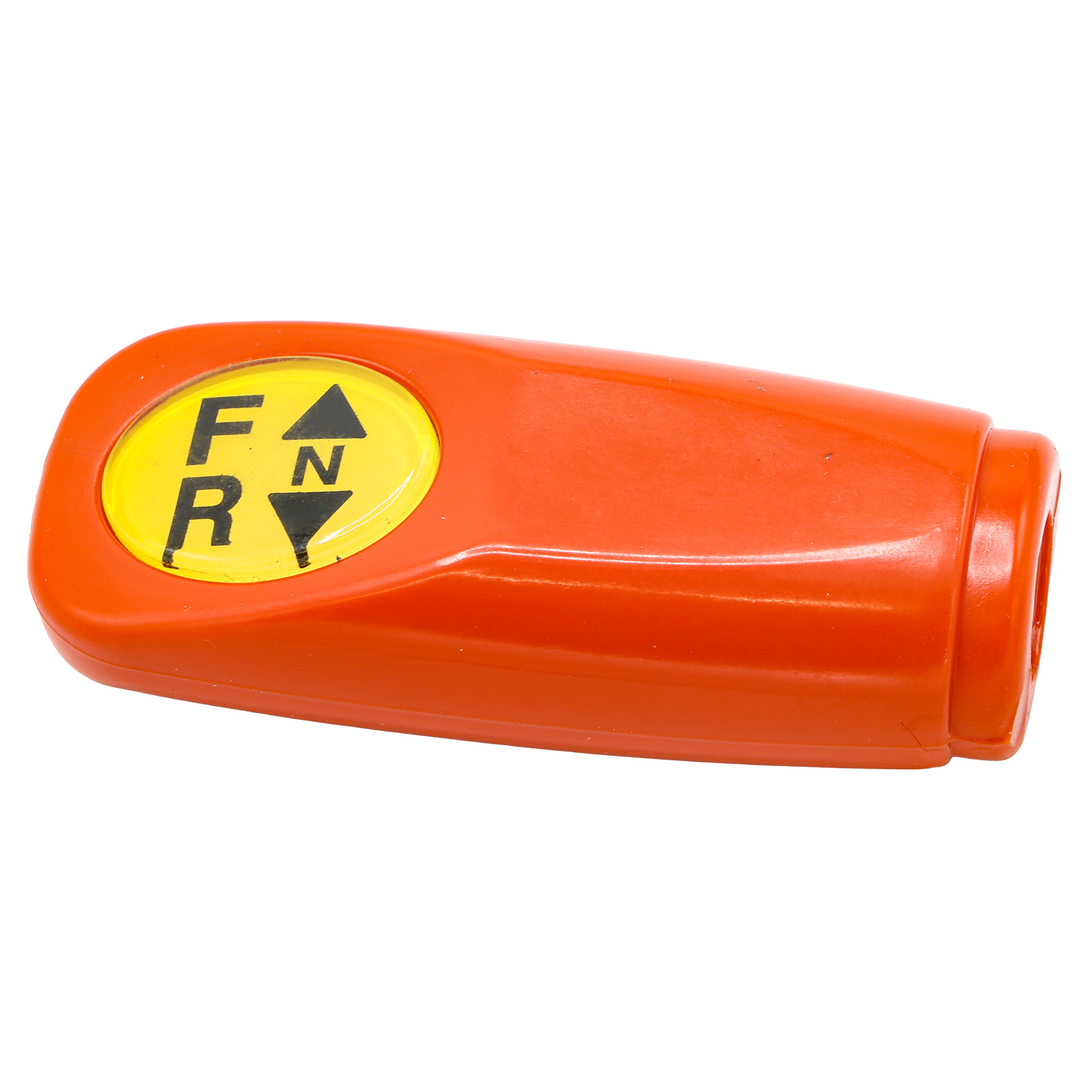

  • 2 GRIP

    GRIP

    • Part No. T4115-65711
    • Compatibility No interchange
    • Applied Dates 2007-05-02 to 2007-06-20
    • Serial No. G70100141 to G70100180
    • * multiple options for #2
    • 1 shown on diagram
    $27.99
  • 3

    SHAFT 1 (SHUTTEL)

    • Part No. T2185-65613
    • Applied Dates 2004-02-26 and up
    • DIA16
    • 1 shown on diagram
    $194.99

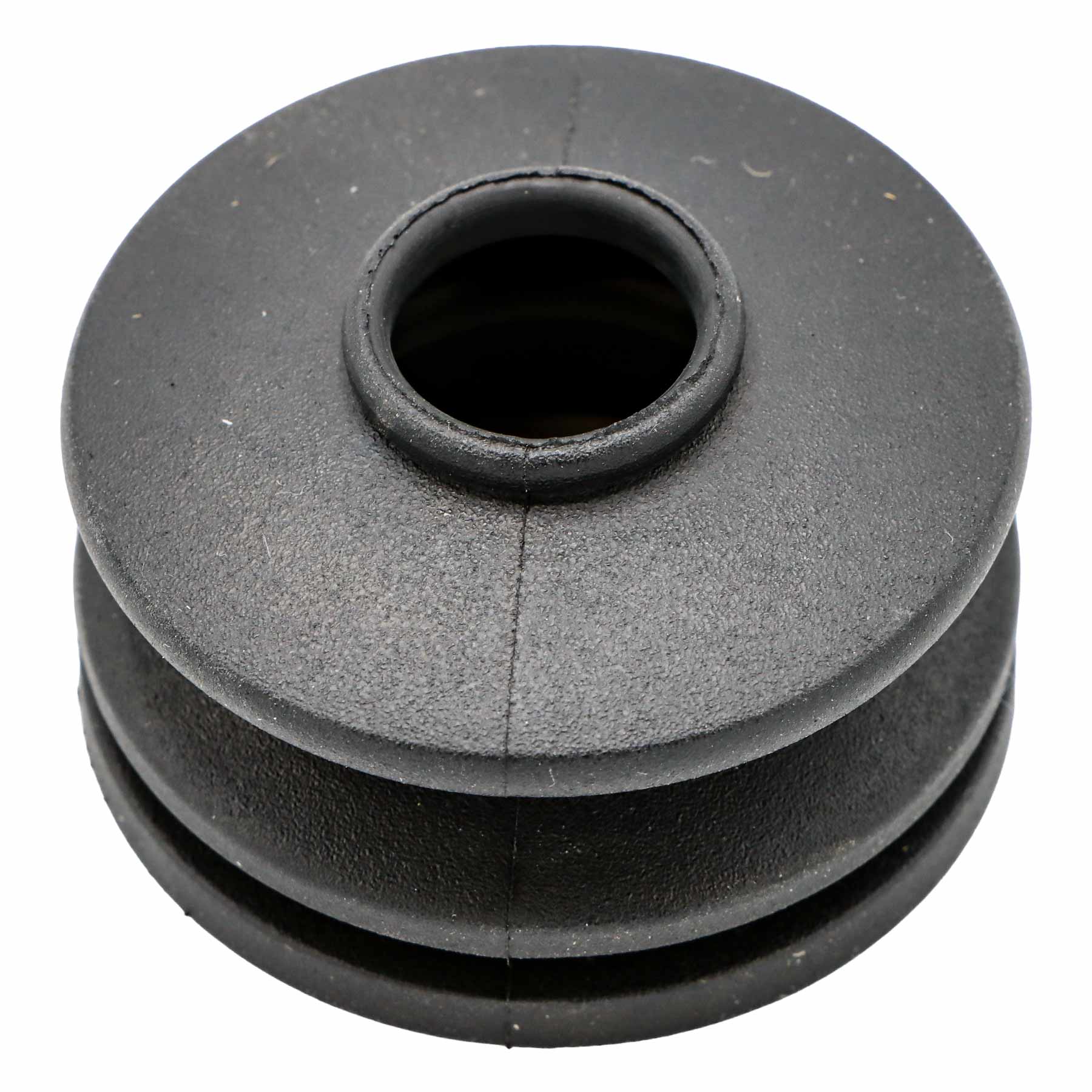

  • 4 BOOT

    BOOT

    • Part No. T4625-65571
    • 1 shown on diagram
    $8.99
  • 5

    BARCKET, SHUTTLE LEVER SWITCH obs

    • Part No. T4680-65721
    • T1.6
    • 1 shown on diagram
    $3.49
  • 6

    BOLT, WASHER v

    • Part No. 01023-50612
    • M6XP1.0
    • 1 shown on diagram
    $1.09
  • 7

    SHAFT 2(SHUTTEL)

    • Part No. T2185-65623
    • Applied Dates 2004-02-26 to 2007-02-04
    • Serial No. D70100001 to G70100100
    • * multiple options for #7
    • 1 shown on diagram
    $36.99
  • 7

    Shuttle Shaft 2, replaced by T2185-65624OE

    • Part No. T2185-65624
    • Compatibility No interchange
    • Applied Dates 2007-02-05 and up
    • Serial No. G70100101 and up
    • * multiple options for #7
    • 1 shown on diagram
    $36.99
  • 8

    UNIVERSAL JOINTS v

    • Part No. P4510-41312
    • Applied Dates 2004-09-01 to 2004-08-22
    • * multiple options for #8
    • 1 shown on diagram
    $139.99
  • 8

    ASSY JOINT,UNIVERSAL v

    • Part No. P4510-41301
    • Compatibility New repl old
    • Applied Dates 2004-08-23 to 2007-06-20
    • Serial No. D70100155 to G70100180
    • * multiple options for #8
    • 1 shown on diagram
    $134.99
  • 9 PIN, STRAIGHT

    PIN, STRAIGHT

    • Part No. 66116-4135-3
    • 2 shown on diagram
    $9.99
  • 10 SNAP RING

    SNAP RING

    • Part No. 04612-00280
    • DIA28
    • 2 shown on diagram
    $1.19
  • 11

    SUPPORT (SHUTTLE)

    • Part No. T2185-65633
    • Applied Dates 2004-02-20 to 2007-02-04
    • Serial No. D70100001 to G70100100
    • * multiple options for #11
    • 1 shown on diagram
    $46.99
  • 11

    BRACKET, FIXING-SHUTTLE dnr v

    • Part No. T2185-65634
    • Compatibility No interchange
    • Applied Dates 2007-02-05 and up
    • Serial No. G70100101 and up
    • * multiple options for #11
    • 1 shown on diagram
    $46.99
  • 12

    Bolt With Washer, M10 P1.50 x 20mm

    • Part No. 01123-51020
    • M10*P1.5
    • 2 shown on diagram
    $2.99
  • 13

    Bearing Flange

    • Part No. T2185-65641
    • Applied Dates 2004-02-26 and up
    • 1 shown on diagram
    $53.99
  • 14 Bolt With Washer, M8 P1.25 x 20mm

    Bolt With Washer, M8 P1.25 x 20mm

    • Part No. 01123-50820
    • M8XP1.25
    • 4 shown on diagram
    $2.49
  • 15

    ROD SHUTTLE

    • Part No. T2185-65651
    • Applied Dates 2004-04-02 to 2007-02-04
    • Serial No. D70100001 to G70100100
    • * multiple options for #15
    • 1 shown on diagram
    $93.99
  • 15

    ROD v

    • Part No. T2185-65581
    • Compatibility No interchange
    • Applied Dates 2007-02-05 and up
    • Serial No. G70100101 and up
    • * multiple options for #15
    • 1 shown on diagram
    $53.99
  • 16

    Rod, Shuttle 04/05, Replaced by T2185-65651

    • Part No. T2185-65651001
    • Applied Dates Up to 2007-02-04
    • Serial No. Up to G70100100
    • DIA10
    • * multiple options for #16
    • 1 shown on diagram
    $0.00
  • 16

    PLATE 33

    • Part No. T2185-65581001
    • Compatibility No interchange
    • Applied Dates 2007-02-05 and up
    • Serial No. G70100101 and up
    • Ø8
    • * multiple options for #16
    • 1 shown on diagram
    $0.00
  • 17

    Joint Bolt ( K2400-22521) obs

    • Part No. K2400-22521
    • Applied Dates Up to 2007-02-04
    • Serial No. Up to G70100100
    • * multiple options for #17
    • 1 shown on diagram
    $51.99
  • 17

    Flat Washer M8, Replaced by 04013-50080

    • Part No. 04011-50080
    • Compatibility No interchange
    • Applied Dates 2007-02-05 and up
    • Serial No. G70100101 and up
    • * multiple options for #17
    • 1 shown on diagram
    $0.00
  • 18

    Boll Joint (RH) (K2400-22541)

    • Part No. K2400-22541
    • Applied Dates Up to 2007-02-04
    • Serial No. Up to G70100100
    • M8*P1.25
    • * multiple options for #18
    • 1 shown on diagram
    $46.99
  • 18 NUT

    NUT

    • Part No. 02056-50060
    • Compatibility No interchange
    • Applied Dates 2007-02-05 and up
    • Serial No. G70100101 to G70100040
    • M6XP1.0
    • * multiple options for #18
    • 1 shown on diagram
    $0.49
  • 19 NUT

    NUT

    • Part No. 02112-50080
    • Applied Dates 2009-03-26 to 2007-02-04
    • Serial No. Up to G70100100
    • M8*P1.25
    • * multiple options for #19
    • 1 shown on diagram
    $0.55
  • 19

    PLATE 1 obs v

    • Part No. T4125-33161002
    • Compatibility Call for compat
    • Applied Dates 2007-02-05 and up
    • Serial No. G70100101 and up
    • * multiple options for #19
    • 1 shown on diagram
    $0.00
  • 20 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • Applied Dates 2015-07-01 to 2007-02-04
    • Serial No. D70100105 to G70100100
    • M08
    • * multiple options for #20
    • 2 shown on diagram
    $0.61
  • 20 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • Compatibility No interchange
    • Applied Dates 2007-02-05 to 2004-04-28
    • Serial No. G70100101 to D70100194
    • * multiple options for #20
    • 2 shown on diagram
    $0.79
  • 21 NUT

    NUT

    • Part No. 02114-50080
    • Applied Dates 2004-04-02 to 2007-02-04
    • Serial No. D70100001 to G70100100
    • M8*P1.25
    • * multiple options for #21
    • 2 shown on diagram
    $0.67
  • 21 Hair Pin

    Hair Pin

    • Part No. 05525-50800
    • Compatibility No interchange
    • Applied Dates 2007-02-05 and up
    • Serial No. G70100101 and up
    • DIA8
    • * multiple options for #21
    • 2 shown on diagram
    $1.29
  • 22

    BRACKET 1 (SHUTTEL) v

    • Part No. T2185-65661
    • Applied Dates 2004-02-26 to 2004-10-31
    • Serial No. D70100001 to D70100194
    • * multiple options for #22
    • 1 shown on diagram
    $21.99
  • 22

    BRACKET 1 (SHUTTLE) dnr v

    • Part No. T2185-65662
    • Compatibility New repl old
    • Applied Dates 2004-11-01 to 2007-06-20
    • Serial No. D70100195 to G70100180
    • * multiple options for #22
    • 1 shown on diagram
    $52.99
  • 23

    BRACKET 2(SHUTTLE)

    • Part No. T4710-65141
    • Applied Dates 2004-02-26 and up
    • 1 shown on diagram
    $34.99
  • 24

    SPRING(SHUTTE)

    • Part No. T2185-65672
    • Applied Dates 2012-04-17 and up
    • 1 shown on diagram
    $3.99
  • 25 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00630
    • Applied Dates 2004-02-26 and up
    • DIA6.4XL30
    • 1 shown on diagram
    $0.90
  • 26 PIN, SPRING

    PIN, SPRING

    • Part No. 05411-00425
    • Applied Dates 2004-02-26 and up
    • 1 shown on diagram
    $0.68

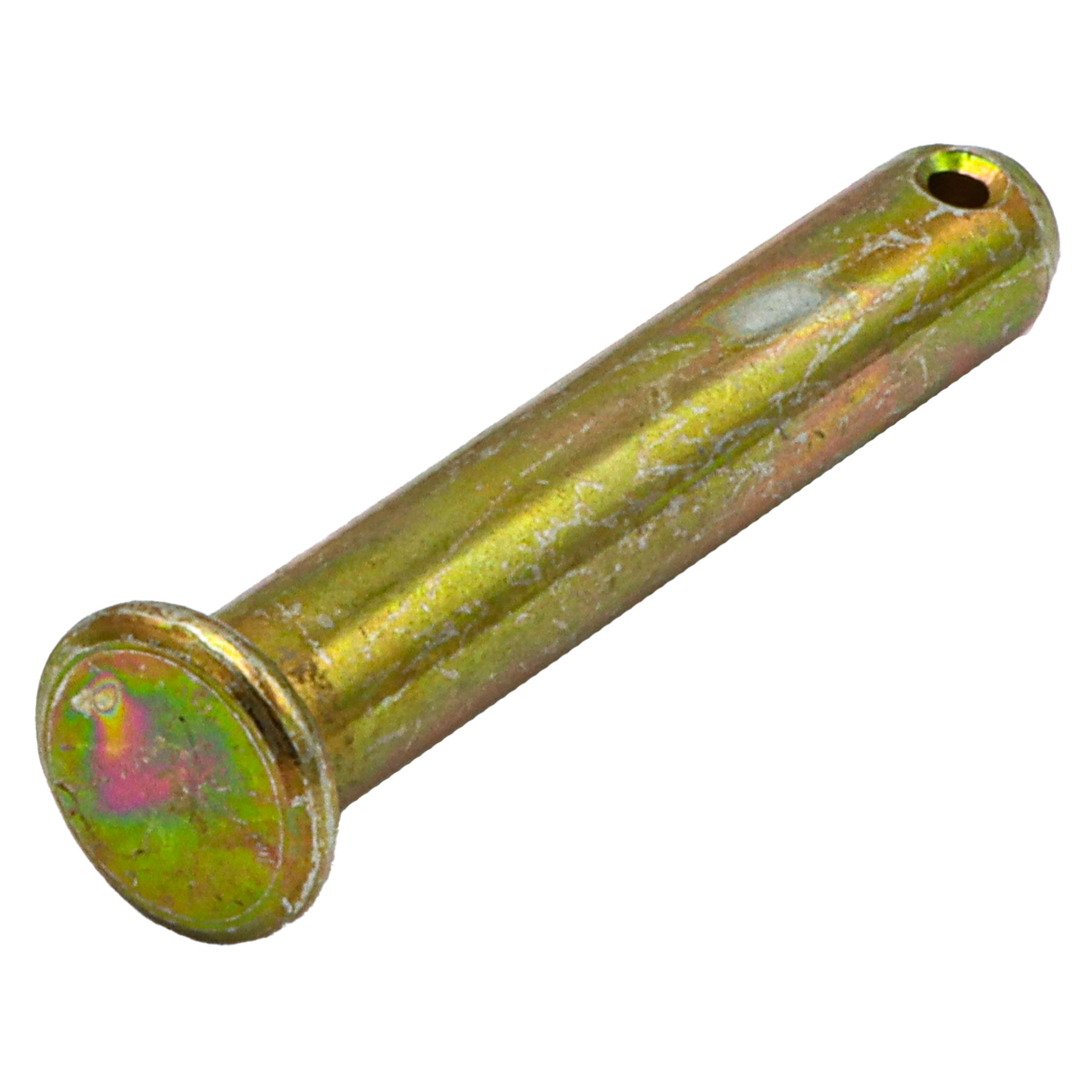

  • 27 PIN,HEAD

    PIN,HEAD

    • Part No. 05112-50845
    • Applied Dates 2004-02-26 and up
    • 1 shown on diagram
    $3.49
  • 28 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • Applied Dates 2004-02-26 and up
    • 1 shown on diagram
    $0.79
  • 29 PIN, SPLIT

    PIN, SPLIT

    • Part No. 05511-50218
    • Applied Dates 2004-02-26 and up
    • DIA1.8XL18
    • 1 shown on diagram
    $0.56
