BONNET 2 GROUP - CK30M-T820A

Kioti TRACTOR | CK Series | CK25

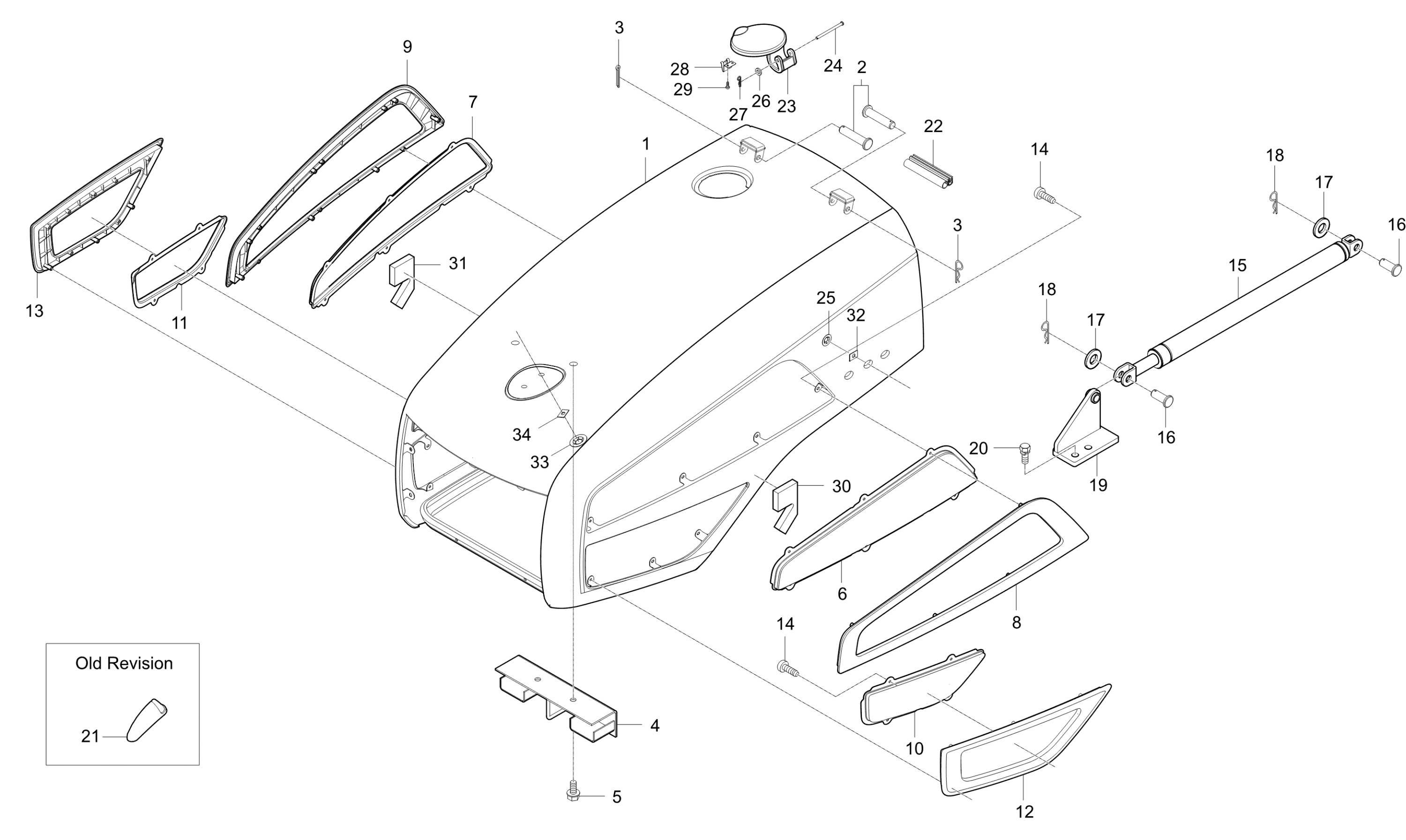

Diagram for BONNET 2 GROUP - CK30M-T820A
  • 1

    ASSY, BONNET v

    • Part No. T2185-50703
    • Applied Dates 2004-02-18 to 2004-06-23
    • Serial No. D70100001 to D70100154
    • * multiple options for #1
    • 1 shown on diagram
    $1,084.99
  • 1

    TRK, Bonnet

    • Part No. T2185-50704
    • Compatibility Interchngable
    • Applied Dates 2004-06-24 to 2004-09-01
    • Serial No. D70100155 to D70100194
    • * multiple options for #1
    • 1 shown on diagram
    $1,089.99
  • 1

    TRK, Bonnet

    • Part No. T2185-50705
    • Compatibility New repl old
    • Applied Dates 2004-09-02 to 2004-12-15
    • Serial No. D70100195 and up
    • * multiple options for #1
    • 1 shown on diagram
    $889.99
  • 1

    ASS’Y,BONNET v

    • Part No. T2185-50706
    • Compatibility Interchngable
    • Applied Dates 2004-12-16 and up
    • Serial No. E70100001 and up
    • * multiple options for #1
    • 1 shown on diagram
    $1,119.99
  • 2

    Pin, Joint M10x50mm, Replaced by 05122-51055

    • Part No. 05122-51050
    • Applied Dates 2004-01-15 and up
    • 2 shown on diagram
    $0.00
  • 3

    PIN, SNAP

    • Part No. 05515-51000
    • Applied Dates 2004-01-15 and up
    • DIA10
    • 2 shown on diagram
    $1.29
  • 4

    HOLDER,BONNET

    • Part No. T2185-50611
    • Applied Dates Up to 2005-09-13
    • * multiple options for #4
    • 1 shown on diagram
    $51.99
  • 4

    HOLDER,BONNET

    • Part No. T2185-50612
    • Compatibility New repl old
    • Applied Dates 2005-09-14 to 2007-02-10
    • Serial No. E70100251 to G70100040
    • * multiple options for #4
    • 1 shown on diagram
    $55.99
  • 5

    Bolt With Washer, M10 P1.50 x 20mm

    • Part No. 01123-51020
    • Applied Dates Up to 2004-03-24
    • M10*P1.5
    • * multiple options for #5
    • 2 shown on diagram
    $2.99
  • 5

    Bolt M10 P1.50x20mm

    • Part No. 01754-51020
    • Compatibility Interchngable
    • Applied Dates 2004-03-25 to 2004-08-31
    • Serial No. D70100001 to D70100154
    • * multiple options for #5
    • 2 shown on diagram
    $1.99
  • 5

    BOLT, FLANGE

    • Part No. 01774-51020
    • Compatibility New repl old
    • Applied Dates 2004-09-01 and up
    • Serial No. D70100155 and up
    • M10P1.25
    • * multiple options for #5
    • 2 shown on diagram
    $2.99
  • 6 MATAL1 LH

    MATAL1 LH

    • Part No. T2185-51111
    • 1 shown on diagram
    $119.99
  • 7

    MATAL1(RH) dnr v

    • Part No. T2185-51121
    • 1 shown on diagram
    $98.99
  • 8

    Grill1 (LH), Replaced by T2185-51132BB

    • Part No. T2185-51132
    • 1 shown on diagram
    $49.99
  • 9

    GRILL1 (RH) dnr v

    • Part No. T2185-51142
    • 1 shown on diagram
    $46.99
  • 10 METAL2 LH

    METAL2 LH

    • Part No. T2185-51151
    • T0.8
    • 1 shown on diagram
    $69.99
  • 11 MATAL2 RH

    MATAL2 RH

    • Part No. T2185-51161
    • T0.8
    • 1 shown on diagram
    $42.99
  • 12

    GRILL2 (LH)

    • Part No. T2185-51172
    • 1 shown on diagram
    $37.99
  • 13

    GRILL2 (RH)

    • Part No. T2185-51182
    • 1 shown on diagram
    $35.99
  • 14

    SCREW

    • Part No. 38430-1827-1
    • Applied Dates 2004-03-25 and up
    • 48 shown on diagram
    $0.46
  • 15

    ASS’Y, AIR CYLINDER

    • Part No. T2185-50911
    • 1 shown on diagram
    $94.99
  • 16

    Pin, Joint M10x25mm

    • Part No. 05122-51025
    • DIA10*25
    • 2 shown on diagram
    $2.99
  • 17 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 2 shown on diagram
    $0.73
  • 18

    PIN, SNAP

    • Part No. 05515-51000
    • Applied Dates 2004-01-30 and up
    • DIA10
    • 2 shown on diagram
    $1.29
  • 19

    Cylinder Support

    • Part No. T2185-50921
    • 1 shown on diagram
    $36.99
  • 20 Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    Bolt With Washer, M8 P1.25 x 16mm 01123-50816

    • Part No. 01123-50816
    • M8XP1.25
    • 2 shown on diagram
    $1.09
  • 21

    MASCOT v

    • Part No. T2330-50471
    • Applied Dates Up to 2004-09-01
    • 1 shown on diagram
    $15.99
  • 22

    Frame Rubber

    • Part No. T2185-52102
    • Applied Dates 2004-01-16 and up
    • 1 shown on diagram
    $29.99
  • 23 COVER,FUEL

    COVER,FUEL

    • Part No. T2185-50641
    • 1 shown on diagram
    $43.99
  • 24

    Pin, Joint M6x45mm

    • Part No. 05122-50645
    • 1 shown on diagram
    $2.99
  • 25 Plate, Fixed

    Plate, Fixed

    • Part No. T4620-50701
    • Applied Dates 2004-01-15 and up
    • 6 shown on diagram
    $1.39
  • 26 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 1 shown on diagram
    $0.73
  • 27

    SNAP PIN

    • Part No. 05525-50060
    • 1 shown on diagram
    $1.09
  • 28

    CLIP

    • Part No. T2185-50651
    • T0.5
    • 1 shown on diagram
    $5.99
  • 29

    SCREW

    • Part No. 38430-1827-1
    • 2 shown on diagram
    $0.46
  • 30

    Bonnet Sponge (LH), Replaced by T2185-50953

    • Part No. T2185-50951
    • Applied Dates 2004-02-20 to 2004-09-30
    • Serial No. D70100001 to D70100154
    • * multiple options for #30
    • 1 shown on diagram
    $9.99
  • 30

    BONNET SPONG LH

    • Part No. T2185-50952
    • Compatibility New repl old
    • Applied Dates 2004-10-01 to 2010-04-15
    • Serial No. D70100155 and up
    • * multiple options for #30
    • 1 shown on diagram
    $18.99
  • 31

    BONNET SPONGE(RH) v

    • Part No. T2185-50961
    • Applied Dates 2004-02-20 to 2004-09-30
    • Serial No. D70100001 to D70100154
    • * multiple options for #31
    • 1 shown on diagram
    $9.99
  • 31

    BONNET SPONG RH V

    • Part No. T2185-50962
    • Compatibility New repl old
    • Applied Dates 2004-10-01 to 2010-04-15
    • Serial No. D70100155 and up
    • * multiple options for #31
    • 1 shown on diagram
    $18.99
  • 32 Rubber Plate

    Rubber Plate

    • Part No. 82KC-0641
    • Applied Dates 2004-03-25 and up
    • 6 shown on diagram
    $1.19
  • 33 Plate, Fixed

    Plate, Fixed

    • Part No. T4620-50701
    • Applied Dates 2004-09-02 and up
    • 2 shown on diagram
    $1.39
  • 34 Rubber Plate

    Rubber Plate

    • Part No. 82KC-0641
    • Applied Dates 2004-10-13 and up
    • 2 shown on diagram
    $1.19
