ROPS GROUP - CK30M-T980A

Kioti TRACTOR | CK Series | CK25

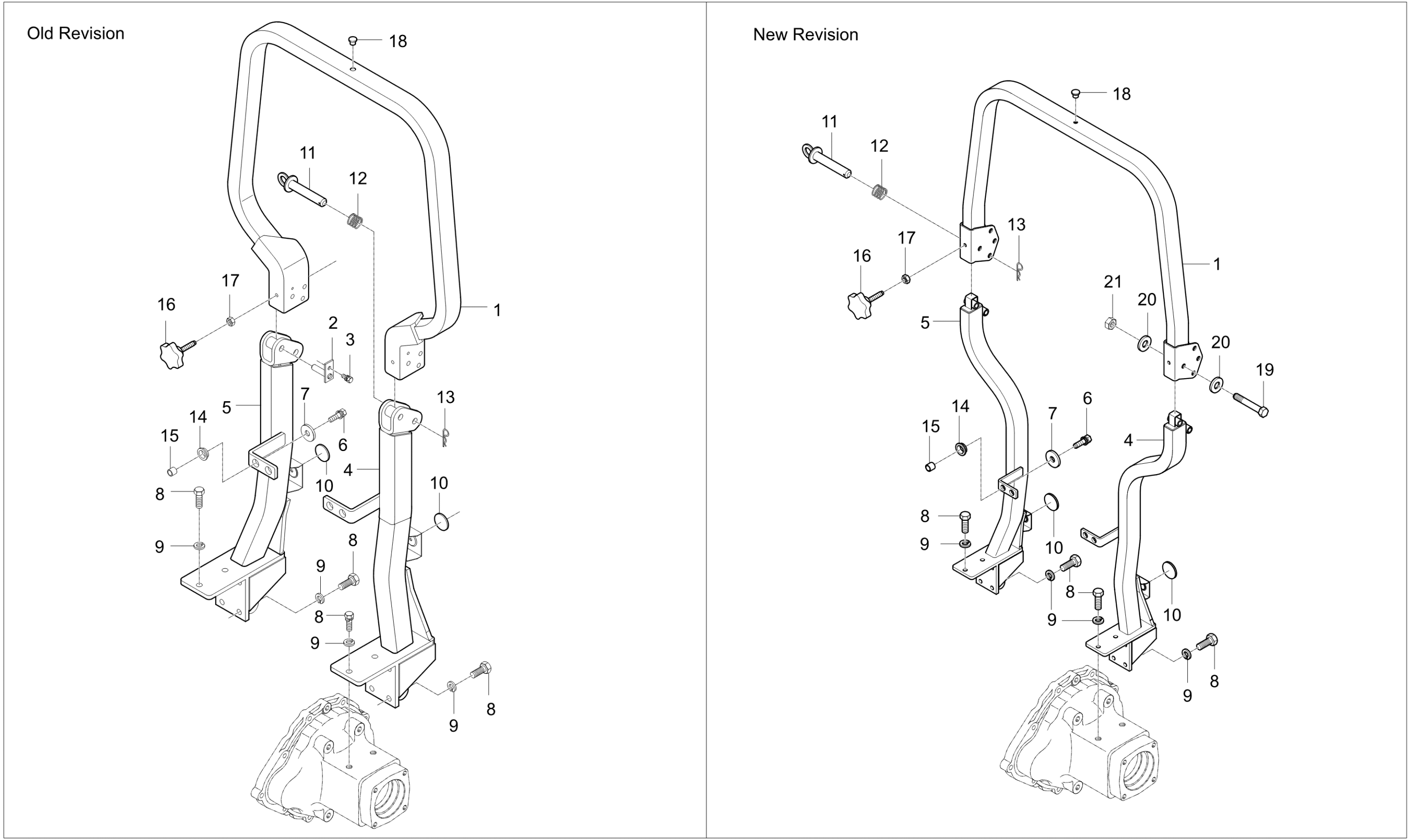

Diagram for ROPS GROUP - CK30M-T980A
  • 1

    ASS’Y, ROPS

    • Part No. T2185-97113
    • Applied Dates 2004-03-23 to 2004-08-15
    • Serial No. D70100001 to D70100154
    • * multiple options for #1
    • 1 shown on diagram
    $729.99
  • 1

    ASS’Y, ROPS obs v

    • Part No. T2181-97111
    • Compatibility No interchange
    • Applied Dates 2004-08-16 to 2006-11-01
    • Serial No. D70100155 to F70100620
    • * multiple options for #1
    • 1 shown on diagram
    $509.99
  • 1

    ASS’Y, ROPS dnr v

    • Part No. T2181-97112
    • Compatibility No interchange
    • Applied Dates 2006-11-02 to 2007-03-25
    • Serial No. F70100621 to G70100180
    • * multiple options for #1
    • 1 shown on diagram
    $424.99
  • 1

    ASS’Y, ROPS

    • Part No. T2181-97113
    • Compatibility Interchngable
    • Applied Dates 2007-03-26 to 2007-04-25
    • Serial No. G70100181 to G70100244
    • * multiple options for #1
    • 1 shown on diagram
    $424.99
  • 1

    ASS’Y, ROPS

    • Part No. T2181-97114
    • Compatibility Interchngable
    • Applied Dates 2007-04-26 to 2007-07-01
    • Serial No. G70100245 to G70100304
    • * multiple options for #1
    • 1 shown on diagram
    $424.99
  • 1

    ASS’Y, ROPS

    • Part No. T2181-97115
    • Compatibility New repl old
    • Applied Dates 2007-07-02 to 2008-10-22
    • Serial No. G70100305 and up
    • * multiple options for #1
    • 1 shown on diagram
    $539.99

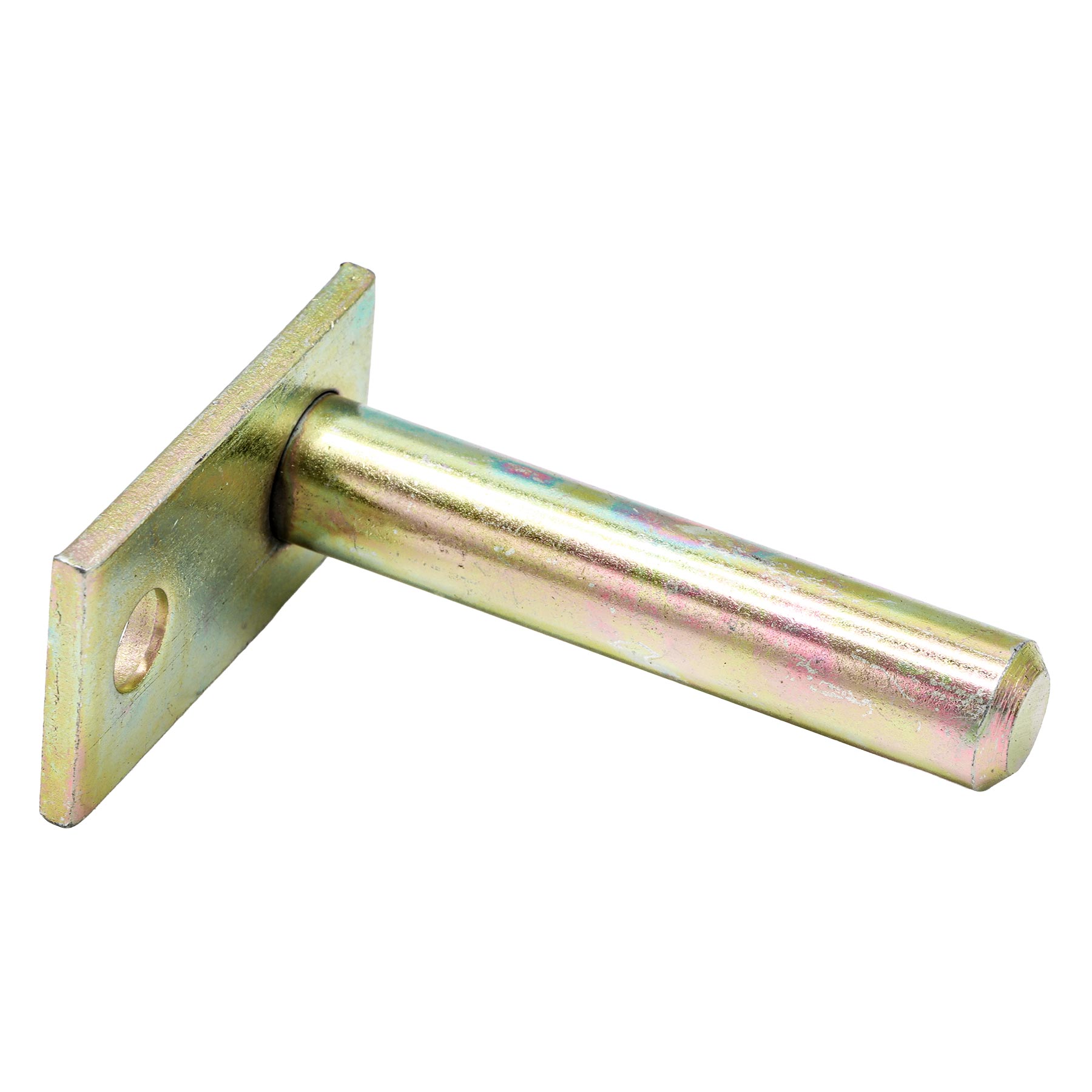

  • 2 PIN, SET ROPS

    PIN, SET ROPS

    • Part No. T2185-97141
    • Applied Dates 2004-02-19 to 2004-08-15
    • 2 shown on diagram
    $19.99
  • 3

    BOLT

    • Part No. 01135-51016
    • Applied Dates Up to 2004-08-15
    • 2 shown on diagram
    $0.00
  • 4

    SUPPORT, ROPS(LH)

    • Part No. T2185-97124
    • Applied Dates 2004-03-05 to 2004-08-15
    • Serial No. D70100001 to D70100154
    • * multiple options for #4
    • 1 shown on diagram
    $439.99
  • 4

    SUPPORT,ROPS(LH)

    • Part No. T2185-97125
    • Compatibility No interchange
    • Applied Dates 2004-08-16 to 2006-06-02
    • Serial No. D70100155 to F70100460
    • * multiple options for #4
    • 1 shown on diagram
    $479.99
  • 4

    SUPPORT,ROPS (LH) v

    • Part No. T2185-97126
    • Compatibility No interchange
    • Applied Dates 2006-06-03 to 2007-03-25
    • Serial No. F70100461 to G70100180
    • * multiple options for #4
    • 1 shown on diagram
    $479.99
  • 4

    SUPPORT-ROPS LH, Replaced by T2185-97127BB

    • Part No. T2185-97127
    • Compatibility Interchngable
    • Applied Dates 2007-03-26 to 2008-10-22
    • Serial No. G70100181 and up
    • * multiple options for #4
    • 1 shown on diagram
    $0.00
  • 5

    SUPPORT, ROPS(RH)

    • Part No. T2185-97134
    • Applied Dates 2004-03-05 to 2004-08-15
    • Serial No. D70100001 to D70100154
    • * multiple options for #5
    • 1 shown on diagram
    $439.99
  • 5

    TRK (RH) Rops Support

    • Part No. T2185-97135
    • Compatibility No interchange
    • Applied Dates 2004-08-16 to 2006-06-02
    • Serial No. D70100155 to F70100460
    • * multiple options for #5
    • 1 shown on diagram
    $594.99
  • 5

    SUPPORT,ROPS(RH)

    • Part No. T2185-97136
    • Compatibility No interchange
    • Applied Dates 2006-06-03 to 2007-03-25
    • Serial No. F70100461 to G70100180
    • * multiple options for #5
    • 1 shown on diagram
    $464.99
  • 5

    TRK Rops Support (RH), Replaced by T2185-97137BB

    • Part No. T2185-97137
    • Compatibility Interchngable
    • Applied Dates 2007-03-26 to 2008-10-22
    • Serial No. G70100181 and up
    • * multiple options for #5
    • 1 shown on diagram
    $0.00
  • 6

    WASHER BOLT v

    • Part No. 01133-51040
    • Applied Dates 2004-02-23 and up
    • M10XP1.25
    • 4 shown on diagram
    $3.49
  • 7

    Flat Washer M10

    • Part No. 04015-50100
    • Applied Dates 2004-02-23 and up
    • M10
    • 4 shown on diagram
    $1.09
  • 8

    BOLT

    • Part No. T2230-85242
    • M14*2.0*32
    • 12 shown on diagram
    $4.99
  • 9

    M14 Spring Lock Washer 04512-50140

    • Part No. 04512-50140
    • M14
    • 12 shown on diagram
    $0.90
  • 10

    PLATE

    • Part No. T2611-85721
    • Applied Dates Up to 2006-06-07
    • 2 shown on diagram
    $36.99
  • 11

    PIN, SET B ROPS V

    • Part No. T2185-97151
    • Applied Dates 2004-02-20 to 2004-08-15
    • Serial No. D70100001 to D70100154
    • * multiple options for #11
    • 2 shown on diagram
    $15.99
  • 11

    PIN , SET B ROPS 16×77 usable

    • Part No. T2185-97152
    • Compatibility No interchange
    • Applied Dates 2004-08-16 to 2009-02-11
    • Serial No. D70100155 and up
    • * multiple options for #11
    • 2 shown on diagram
    $23.99
  • 11 PIN, SET B ROPS 16×67 usable, Replaced by TC26-1717BTP

    PIN, SET B ROPS 16×67 usable, Replaced by TC26-1717BTP

    • Part No. T2185-97153
    • Compatibility Interchngable
    • Applied Dates 2009-02-12 and up
    • * multiple options for #11
    • 2 shown on diagram
    $23.99
  • 12

    Spring (T2185-97161)

    • Part No. T2185-97161
    • Applied Dates 2004-02-20 to 2007-03-29
    • 2 shown on diagram
    $5.99
  • 13 Hair Pin

    Hair Pin

    • Part No. 05515-51600
    • Applied Dates 2004-02-20 and up
    • DIA16
    • 2 shown on diagram
    $2.99
  • 14

    Grommet ( T4620-60151)

    • Part No. T4620-60151
    • Applied Dates 2004-02-23 and up
    • 4 shown on diagram
    $5.49
  • 15

    COLLAR

    • Part No. T2185-97171
    • Applied Dates 2004-02-23 and up
    • DIA14
    • 4 shown on diagram
    $7.99
  • 16 BOLT, GRIP V, Replaced by T2185-97182

    BOLT, GRIP V, Replaced by T2185-97182

    • Part No. T2185-97181
    • Applied Dates 2004-03-05 to 2006-05-30
    • Serial No. D70100001 to F70100660
    • * multiple options for #16
    • 2 shown on diagram
    $0.00

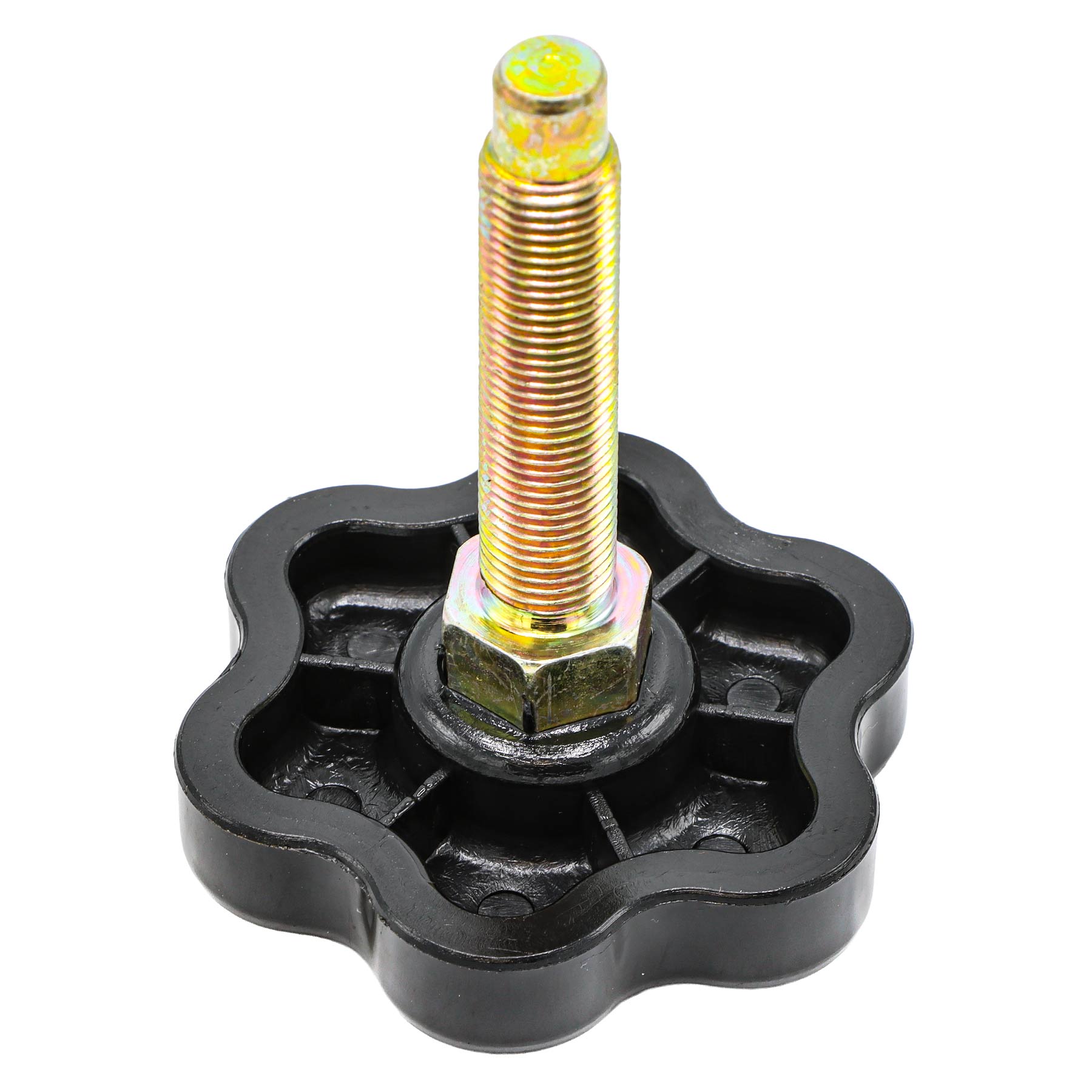

  • 16 BOLT V

    BOLT V

    • Part No. T2185-97182
    • Compatibility New repl old
    • Applied Dates 2006-05-31 and up
    • Serial No. F70100661 and up
    • * multiple options for #16
    • 2 shown on diagram
    $34.99

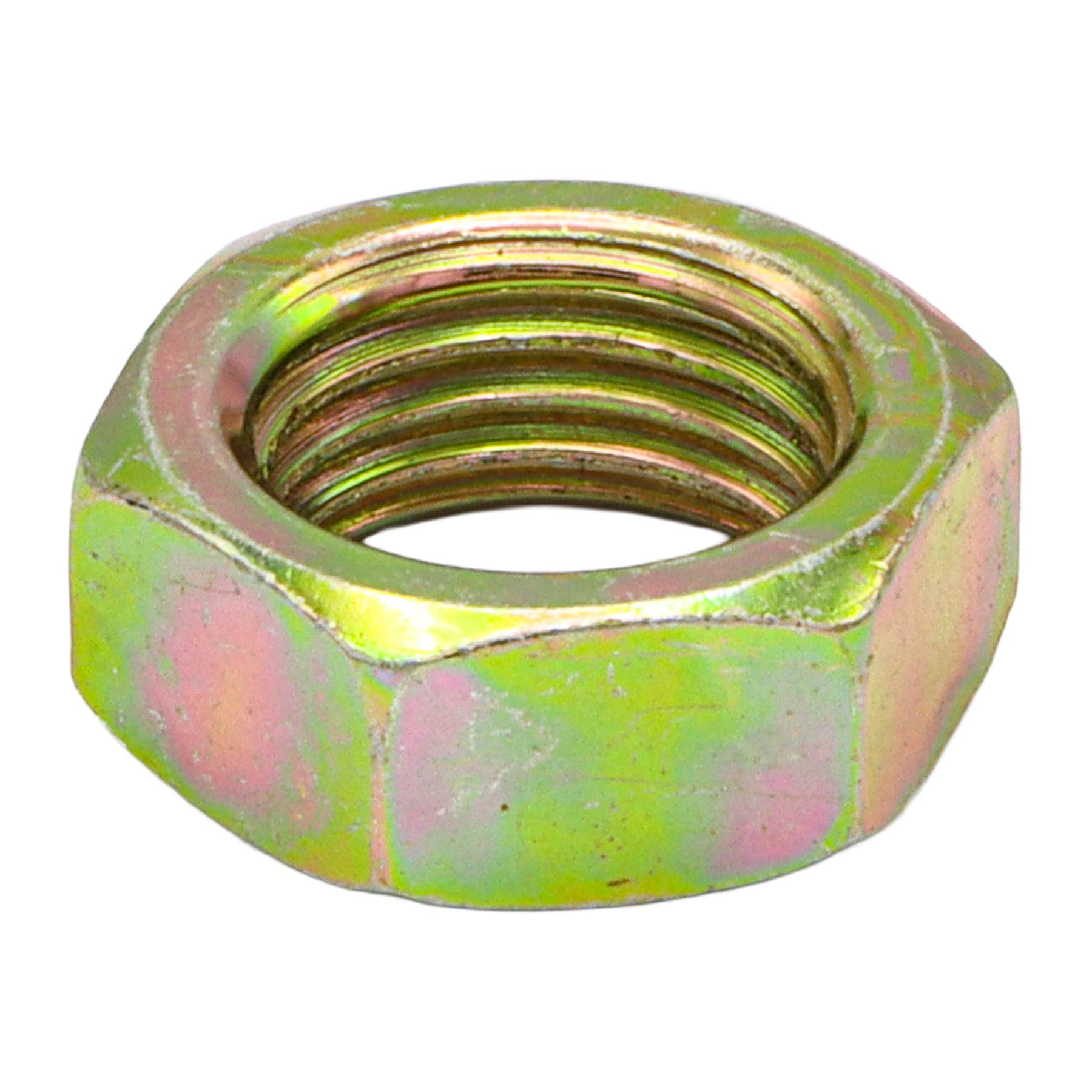

  • 17 NUT

    NUT

    • Part No. 02074-50120
    • Applied Dates 2004-03-05 to 2007-09-03
    • M12XP1.25
    • 2 shown on diagram
    $0.85

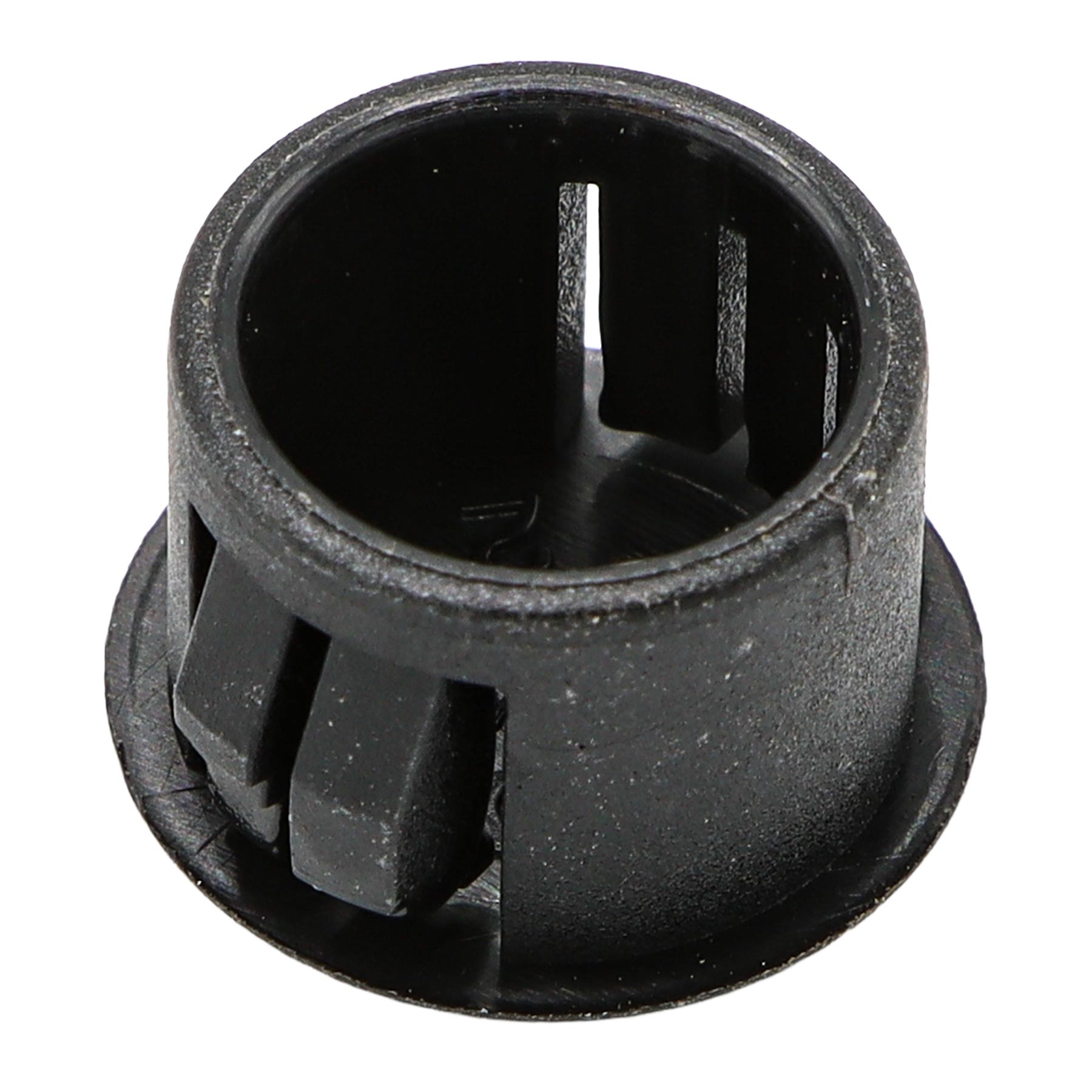

  • 18 PLUG

    PLUG

    • Part No. T4625-29291
    • Applied Dates 2004-03-23 to 2007-04-25
    • 1 shown on diagram
    $1.79

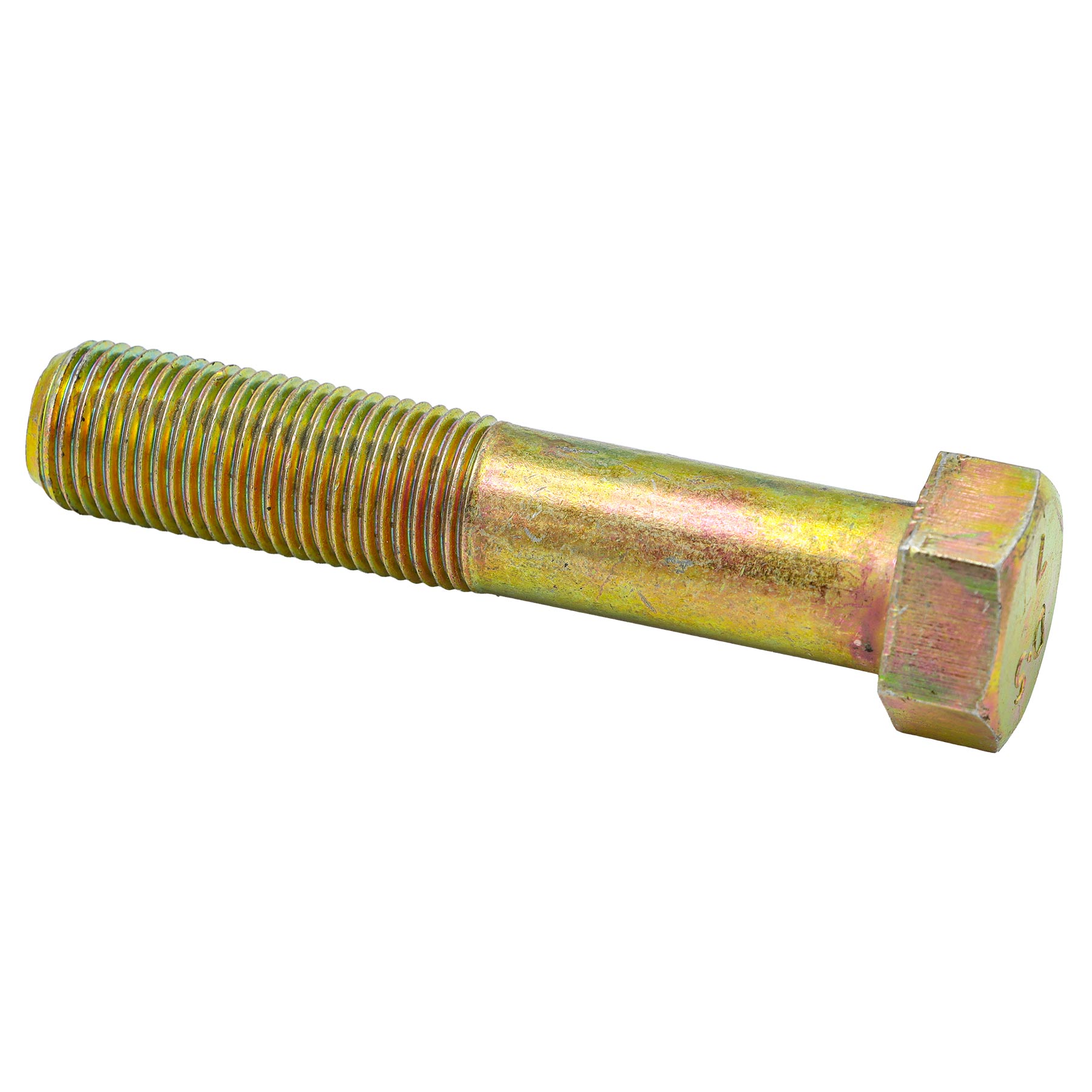

  • 19 BOLT

    BOLT

    • Part No. 01173-51680
    • Applied Dates 2004-08-16 to 2004-11-08
    • Serial No. D70100155 to D70100194
    • M16P1.5
    • * multiple options for #19
    • 2 shown on diagram
    $6.49
  • 19 BOLT

    BOLT

    • Part No. 01173-51690
    • Compatibility New repl old
    • Applied Dates 2004-11-09 to 2004-02-21
    • Serial No. D70100195 and up
    • * multiple options for #19
    • 2 shown on diagram
    $9.99
  • 20 Flat Washer M16

    Flat Washer M16

    • Part No. 04011-50160
    • Applied Dates 2004-08-16 and up
    • M16
    • 4 shown on diagram
    $1.19
  • 21 NUT

    NUT

    • Part No. T2181-97191
    • Applied Dates 2004-08-16 and up
    • 2 shown on diagram
    $7.49
