OIL INLET TUBE GROUP - CK30M-T730A

Kioti TRACTOR | CK Series | CK25

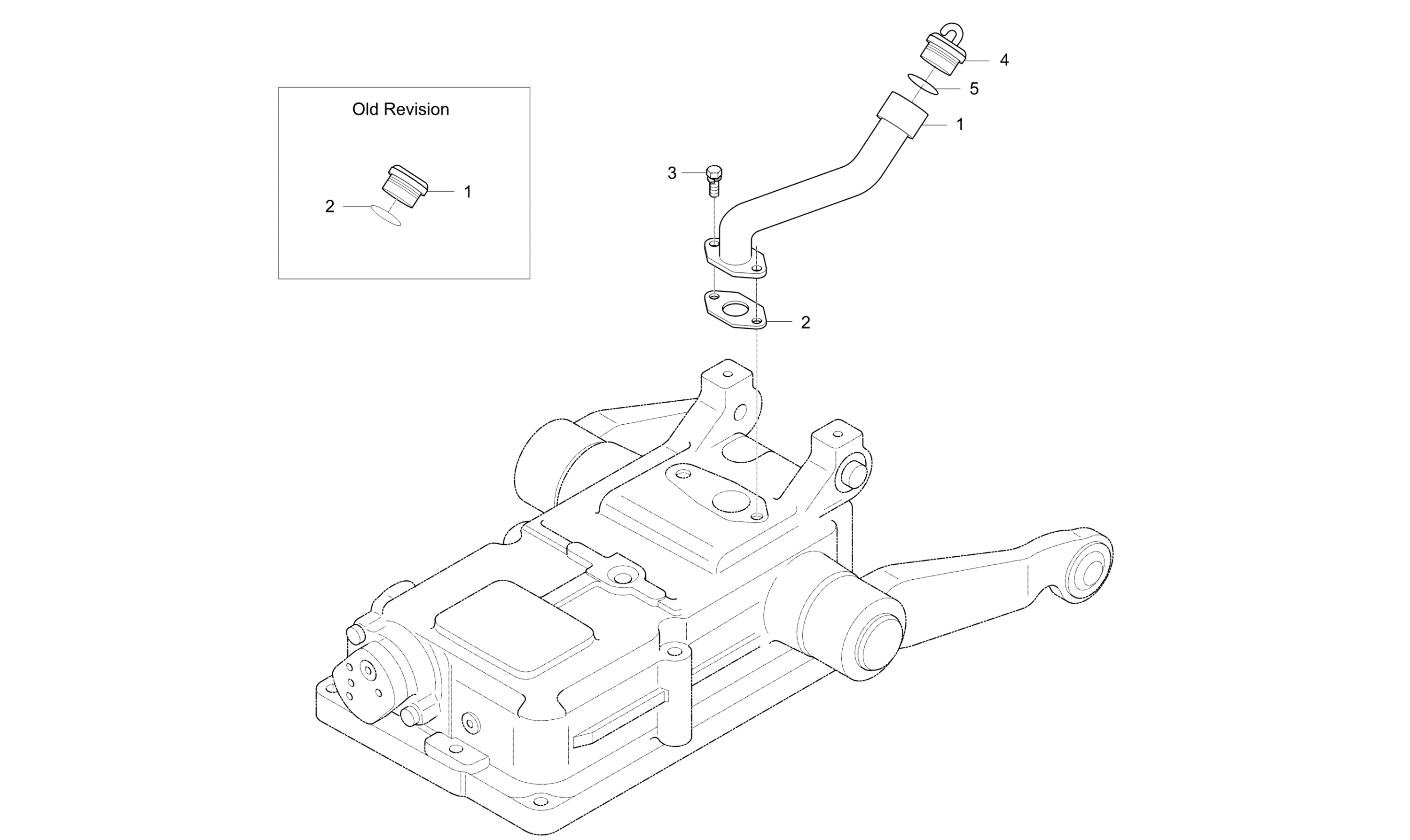

Diagram for OIL INLET TUBE GROUP - CK30M-T730A
  • 1

    Oil Inlet Tube Dnr

    • Part No. T2185-35004
    • 1 shown on diagram
    $87.99
  • 2

    PACKING dnr v

    • Part No. T4620-35011
    • T0.5
    • * multiple options for #2
    • 1 shown on diagram
    $3.49
  • 2

    PACKING

    • Part No. T4620-35012
    • Compatibility New repl old
    • Applied Dates 2013-09-01 to 2004-04-28
    • * multiple options for #2
    • 1 shown on diagram
    $3.99
  • 3 BOLT

    BOLT

    • Part No. 01133-51018
    • M10XP1.25
    • 2 shown on diagram
    $3.49
  • 4 PLUG, AIR BREATHER, Replaced by T4680-36002

    PLUG, AIR BREATHER, Replaced by T4680-36002

    • Part No. T4680-36001
    • * multiple options for #4
    • 1 shown on diagram
    $0.00
  • 4 AIR BREATHER v, Replaced by T4680-36002BK

    AIR BREATHER v, Replaced by T4680-36002BK

    • Part No. T4680-36002
    • Compatibility New repl old
    • Applied Dates 2004-03-31 and up
    • Serial No. D70100001 and up
    • * multiple options for #4
    • 1 shown on diagram
    $0.00
  • 5 O Ring 29.4mm (04811-50300)

    O Ring 29.4mm (04811-50300)

    • Part No. 04811-50300
    • Applied Dates Up to 2004-03-25
    • DIA29.4
    • 1 shown on diagram
    $1.29
