INSTRUMENT COVER GROUP - CK30M-T870A

Kioti TRACTOR | CK Series | CK25

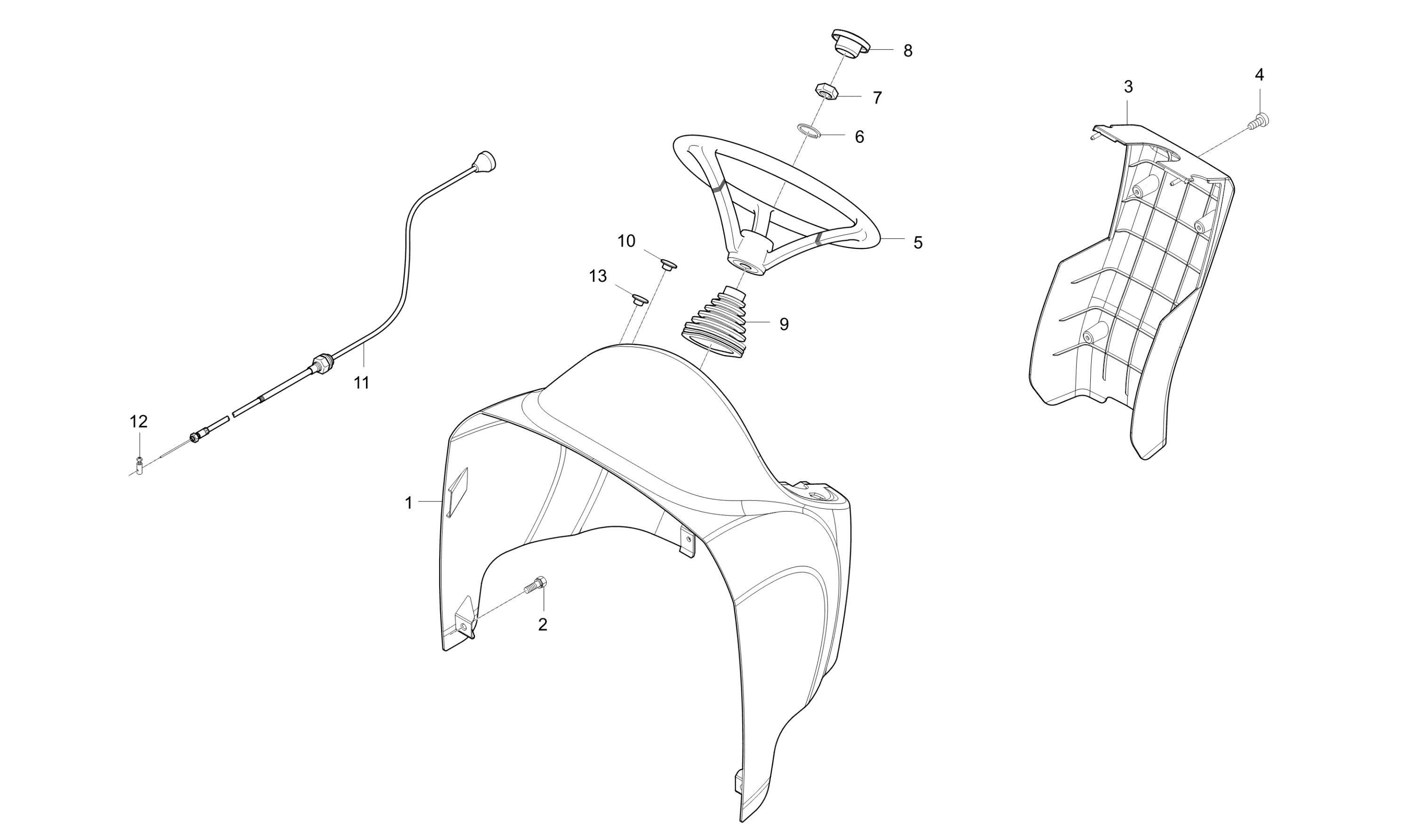

Diagram for INSTRUMENT COVER GROUP - CK30M-T870A
  • 1

    Instrument Cover Up, Replaced by T2185-55313

    • Part No. T2185-55312
    • Applied Dates 2004-01-08 to 2006-07-24
    • Serial No. D70100001 to F70100460
    • * multiple options for #1
    • 1 shown on diagram
    $129.99
  • 1

    COVER, INSTPN-UPR dnr v

    • Part No. T2185-55313
    • Compatibility No interchange
    • Applied Dates 2006-07-25 to 2007-06-20
    • Serial No. F70100461 to G70100180
    • * multiple options for #1
    • 1 shown on diagram
    $244.99
  • 1

    COVER INSTRUMENT UPPER V

    • Part No. T2185-55313BB
    • Compatibility No interchange
    • * multiple options for #1
    • 1 shown on diagram
    $244.99
  • 2

    BOLT obs v

    • Part No. 55571-2128-1
    • Applied Dates Up to 2004-02-12
    • M6*16
    • * multiple options for #2
    • 6 shown on diagram
    $1.99
  • 2

    Bolt/Washer (01025-50620)

    • Part No. 01025-50620
    • Compatibility New repl old
    • Applied Dates 2004-02-13 to 2007-10-31
    • M6XP1.0
    • * multiple options for #2
    • 6 shown on diagram
    $2.49
  • 3

    COVER INSTRUMENT LOWER v

    • Part No. T2185-55322
    • Applied Dates 2004-01-08 to 2008-04-16
    • Serial No. D70100001 and up
    • * multiple options for #3
    • 1 shown on diagram
    $88.99
  • 3

    Instrument Cover Lower

    • Part No. T2185-55323BB
    • Compatibility No interchange
    • Applied Dates 2008-05-31 to 2008-10-22
    • * multiple options for #3
    • 1 shown on diagram
    $109.99
  • 4

    Bolt/Washer (01025-50620)

    • Part No. 01025-50620
    • M6XP1.0
    • 4 shown on diagram
    $2.49
  • 5

    HANDLE, Replaced by T2350-55454

    • Part No. T2350-55452
    • Applied Dates Up to 2011-10-30
    • * multiple options for #5
    • 1 shown on diagram
    $0.00
  • 5

    HANDLE

    • Part No. T2350-55453
    • Compatibility Interchngable
    • Applied Dates 2011-10-31 to 2011-10-30
    • * multiple options for #5
    • 1 shown on diagram
    $0.00
  • 6 M12 Spring Washer (04512-50120)

    M12 Spring Washer (04512-50120)

    • Part No. 04512-50120
    • M12
    • 1 shown on diagram
    $0.95
  • 7 NUT M12 P1.25

    NUT M12 P1.25

    • Part No. 02176-50120
    • M12XP1.25
    • 1 shown on diagram
    $1.49

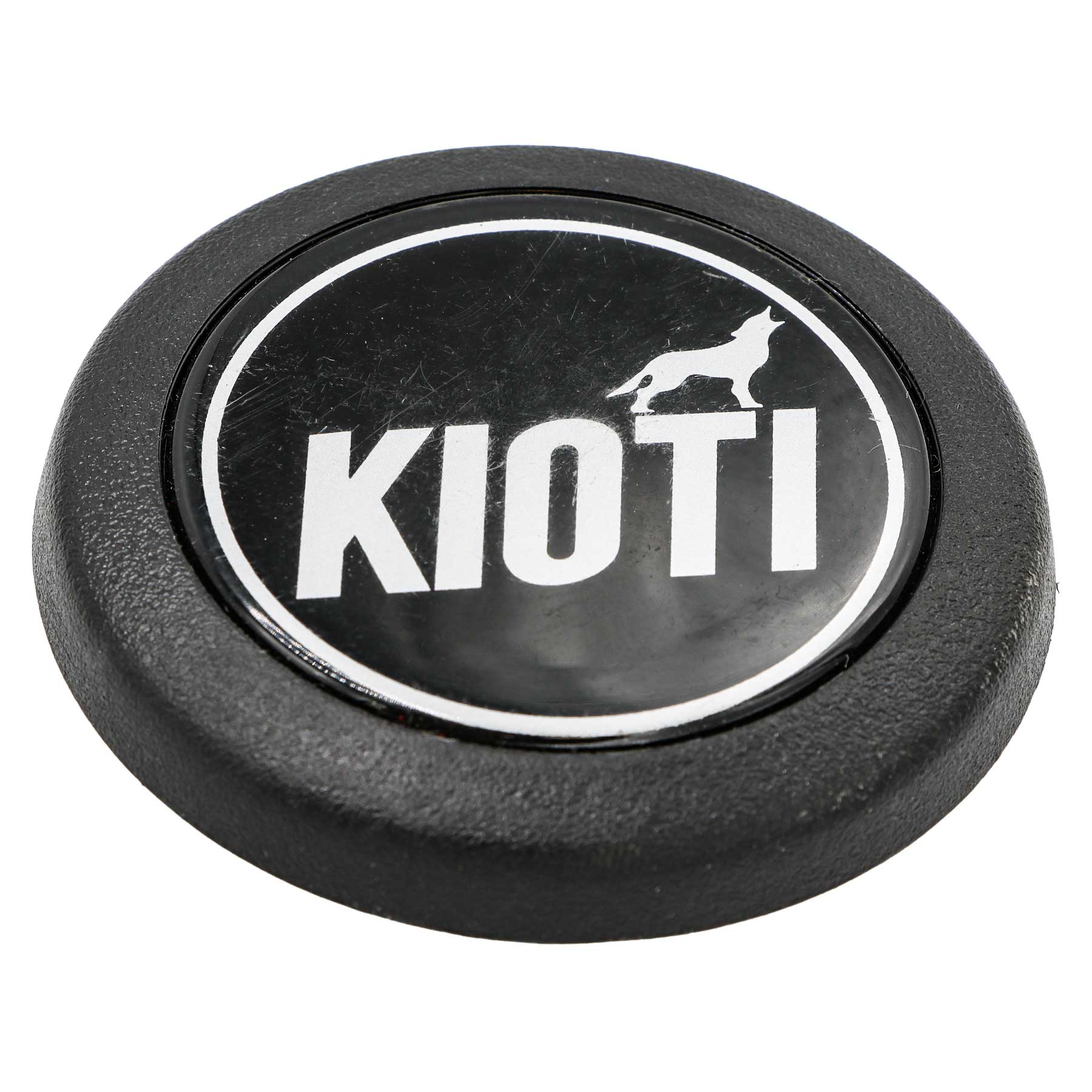

  • 8 CAP,HANDLE V

    CAP,HANDLE V

    • Part No. T2350-55461
    • Applied Dates Up to 2006-03-02
    • Serial No. Up to F70100280
    • * multiple options for #8
    • 1 shown on diagram
    $18.99
  • 8

    Steering Wheel Cap (T2350-55462 )

    • Part No. T2350-55462
    • Compatibility New repl old
    • Applied Dates 2006-03-03 and up
    • Serial No. F70100281 and up
    • * multiple options for #8
    • 1 shown on diagram
    $28.99
  • 9

    BOOT,STEERING WHEEL

    • Part No. T2185-55671
    • 1 shown on diagram
    $38.99
  • 10 PLUG

    PLUG

    • Part No. T4625-29291
    • 1 shown on diagram
    $1.79

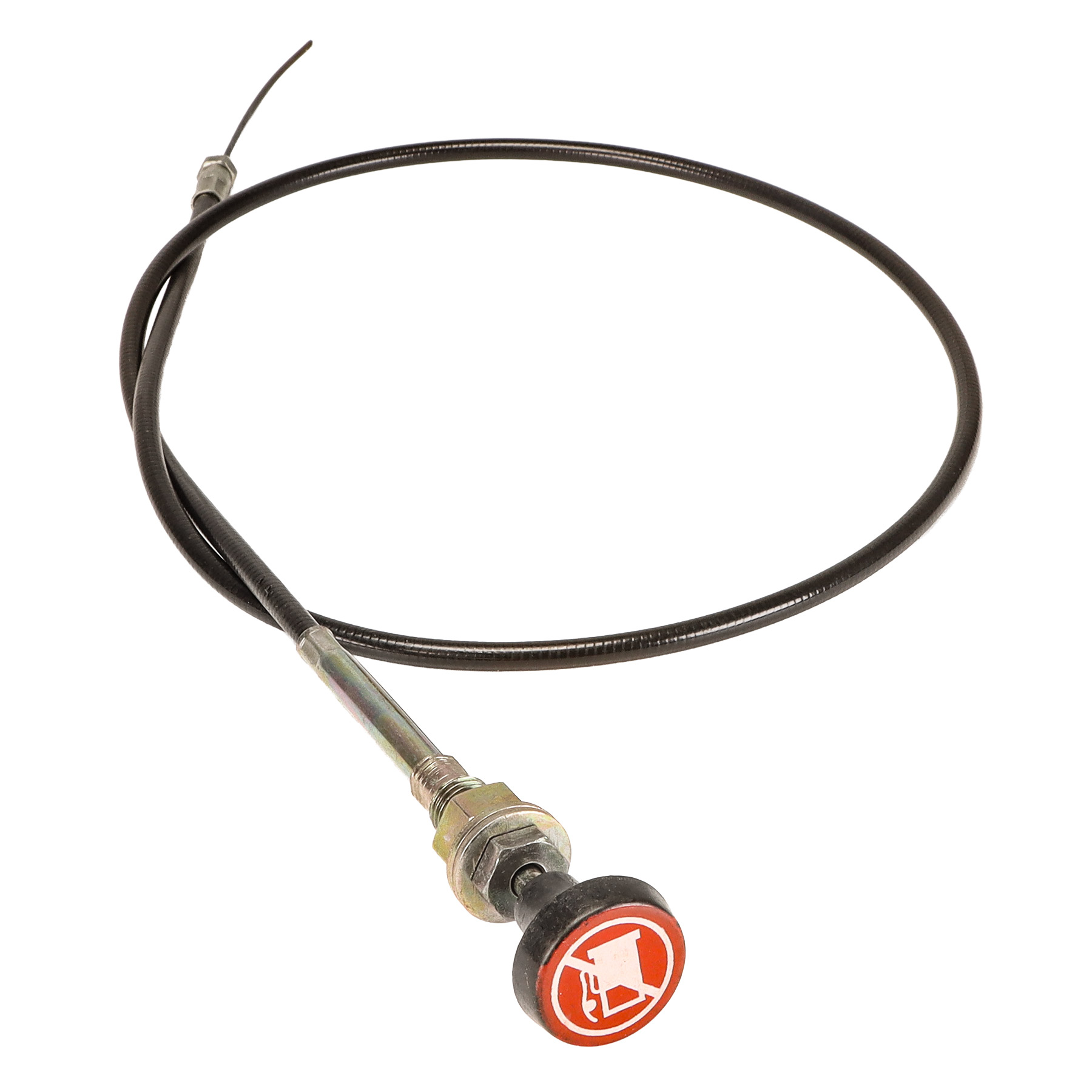

  • 11 WIRE, ENGINE STOP

    WIRE, ENGINE STOP

    • Part No. T2185-55682
    • Applied Dates 2004-01-07 to 2005-01-17
    • 1 shown on diagram
    $57.99
  • 12

    HOLDER WIRE,DECOMPRESS

    • Part No. 84612-3473-0
    • Applied Dates Up to 2005-01-17
    • 1 shown on diagram
    $0.00
  • 13

    PLUG

    • Part No. T4340-31141
    • Applied Dates 2005-01-18 and up
    • 1 shown on diagram
    $4.99
