ACCELERATOR GROUP - CK30M-T860A

Kioti TRACTOR | CK Series | CK25

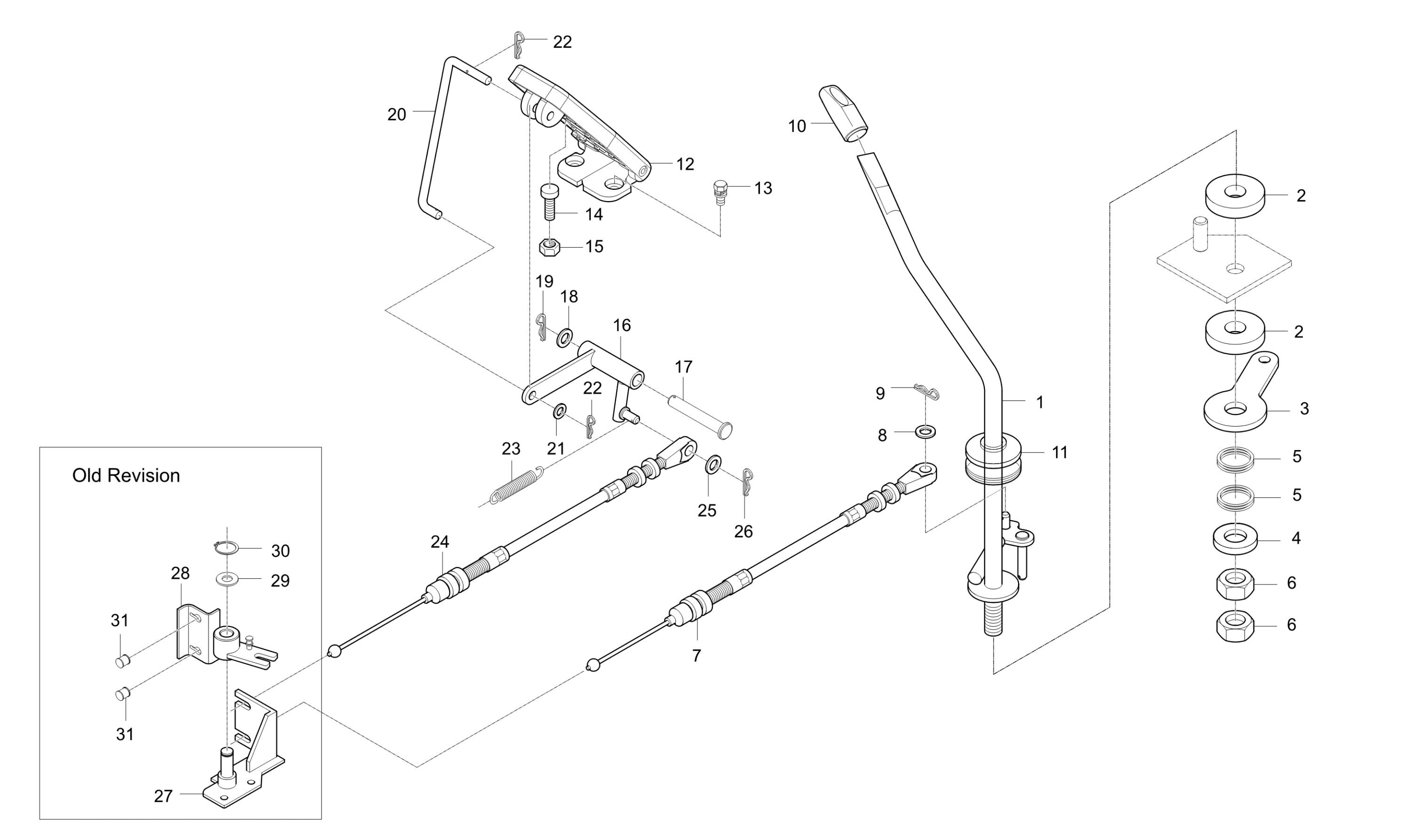

Diagram for ACCELERATOR GROUP - CK30M-T860A
  • 1

    ACCEL,LEVER

    • Part No. T2185-60083
    • Applied Dates 2004-02-26 to 2004-06-15
    • Serial No. D70100001 to D70100154
    • * multiple options for #1
    • 1 shown on diagram
    $29.99
  • 1

    ACCEL LEVER

    • Part No. T2185-60084
    • Compatibility Interchngable
    • Applied Dates 2004-06-16 to 2004-07-21
    • * multiple options for #1
    • 1 shown on diagram
    $24.99
  • 1

    ACCEL LEVER

    • Part No. T2185-60085
    • Compatibility Interchngable
    • Applied Dates 2004-07-22 to 2007-01-29
    • Serial No. D70100155 to F70100660
    • * multiple options for #1
    • 1 shown on diagram
    $29.99
  • 1

    LEVER, ACCEL. v

    • Part No. T2198-60081
    • Compatibility No interchange
    • Applied Dates 2007-01-30 to 2007-06-20
    • Serial No. G70100001 to G70100180
    • * multiple options for #1
    • 1 shown on diagram
    $32.99
  • 2

    Lining

    • Part No. T2185-60091
    • Applied Dates 2007-01-30 and up
    • 2 shown on diagram
    $19.99
  • 3

    FRICTION PLATE

    • Part No. T2198-60111
    • Applied Dates 2007-01-30 and up
    • T3.0
    • 1 shown on diagram
    $4.49
  • 4 Flat Washer M12

    Flat Washer M12

    • Part No. 04013-50120
    • M12
    • 1 shown on diagram
    $0.85
  • 5

    SPRING

    • Part No. T4835-17241
    • 2 shown on diagram
    $4.49
  • 6

    NUT

    • Part No. 02174-50120
    • Applied Dates 2004-02-26 and up
    • M12*P1.25
    • 2 shown on diagram
    $0.85
  • 7

    CABLE, HAND ACCEL dnr v

    • Part No. T2185-60021
    • Applied Dates Up to 2004-05-10
    • * multiple options for #7
    • 1 shown on diagram
    $27.99
  • 7 CABEL, HAND ACCEL V

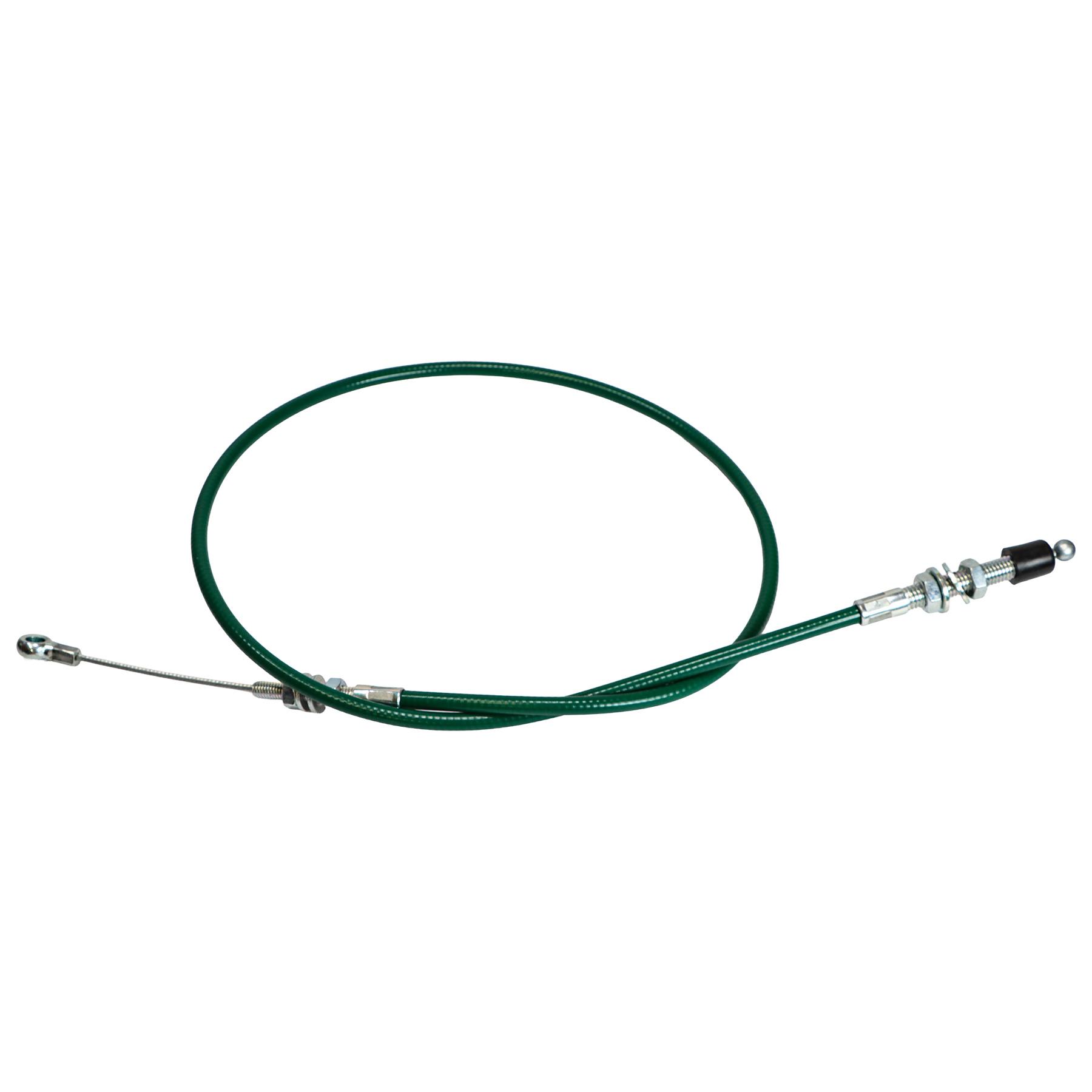

    CABEL, HAND ACCEL V

    • Part No. T2185-60022
    • Compatibility Interchngable
    • Applied Dates 2004-05-11 to 2005-01-17
    • Serial No. D70100105 to E70100080
    • * multiple options for #7
    • 1 shown on diagram
    $49.99
  • 7

    CABLE, HAND ACCEL v

    • Part No. T2185-60023
    • Compatibility No interchange
    • Applied Dates 2005-01-18 to 2007-01-29
    • Serial No. E70100081 to G70100140
    • * multiple options for #7
    • 1 shown on diagram
    $49.99
  • 7

    CABLE, HAND ACCEL

    • Part No. T2198-60021
    • Compatibility No interchange
    • Applied Dates 2007-01-30 and up
    • Serial No. G70100141 and up
    • * multiple options for #7
    • 1 shown on diagram
    $42.99
  • 8 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 1 shown on diagram
    $0.73
  • 9

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 1 shown on diagram
    $1.19
  • 10

    GRIP(HAND ACCEL) v

    • Part No. T2615-60142
    • Applied Dates Up to 2007-01-29
    • Serial No. Up to G70100140
    • * multiple options for #10
    • 1 shown on diagram
    $28.99
  • 10

    GRIP

    • Part No. T4125-60141
    • Compatibility No interchange
    • Applied Dates 2007-01-30 to 2007-06-20
    • Serial No. G70100141 to G70100180
    • * multiple options for #10
    • 1 shown on diagram
    $27.99
  • 11 BOOT

    BOOT

    • Part No. T4625-65571
    • Applied Dates 2004-01-08 and up
    • 1 shown on diagram
    $8.99
  • 12 PEDAL, ACCEL

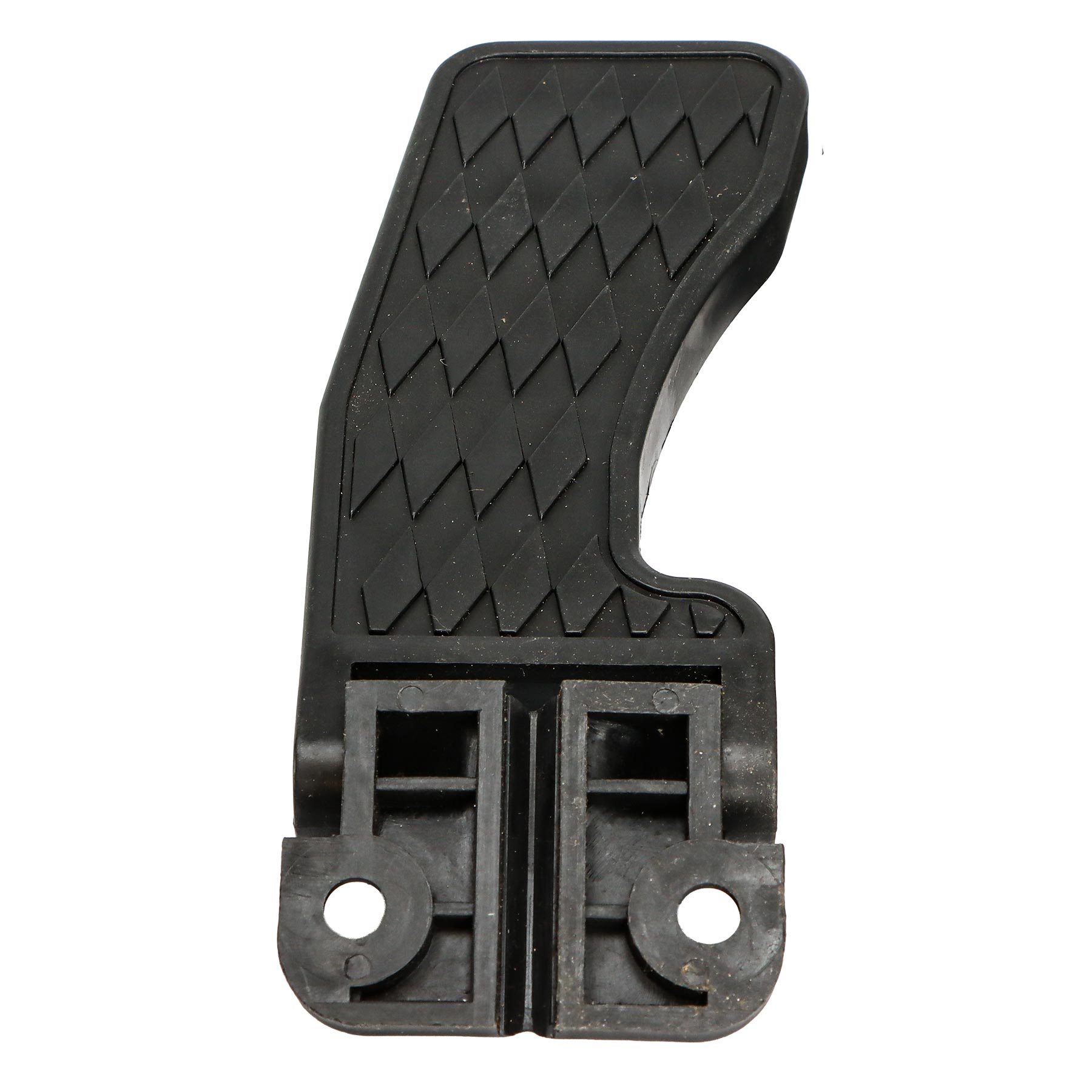

    PEDAL, ACCEL

    • Part No. T2185-60131
    • 1 shown on diagram
    $15.99
  • 13

    WASHER BOLT v

    • Part No. 01025-50616
    • M6*P1
    • 2 shown on diagram
    $2.49
  • 14

    BOLT, ADJUSTMENT

    • Part No. T2350-55881
    • 1 shown on diagram
    $8.49
  • 15 NUT

    NUT

    • Part No. 02114-50080
    • M8*P1.25
    • 1 shown on diagram
    $0.67
  • 16

    PULLER

    • Part No. T2185-60151
    • Applied Dates Up to 2007-01-29
    • Serial No. Up to G70100140
    • * multiple options for #16
    • 1 shown on diagram
    $14.99
  • 16

    Puller

    • Part No. T2185-60152
    • Compatibility No interchange
    • Applied Dates 2007-01-30 and up
    • Serial No. G70100141 and up
    • * multiple options for #16
    • 1 shown on diagram
    $16.99
  • 17

    Pin, Joint M8x65mm

    • Part No. 05122-50865
    • 1 shown on diagram
    $3.99
  • 18 Flat Washer M8

    Flat Washer M8

    • Part No. 04013-50080
    • 1 shown on diagram
    $0.79
  • 19

    PIN,SNAP

    • Part No. 05525-50080
    • 1 shown on diagram
    $1.19
  • 20 LOD ACCEL

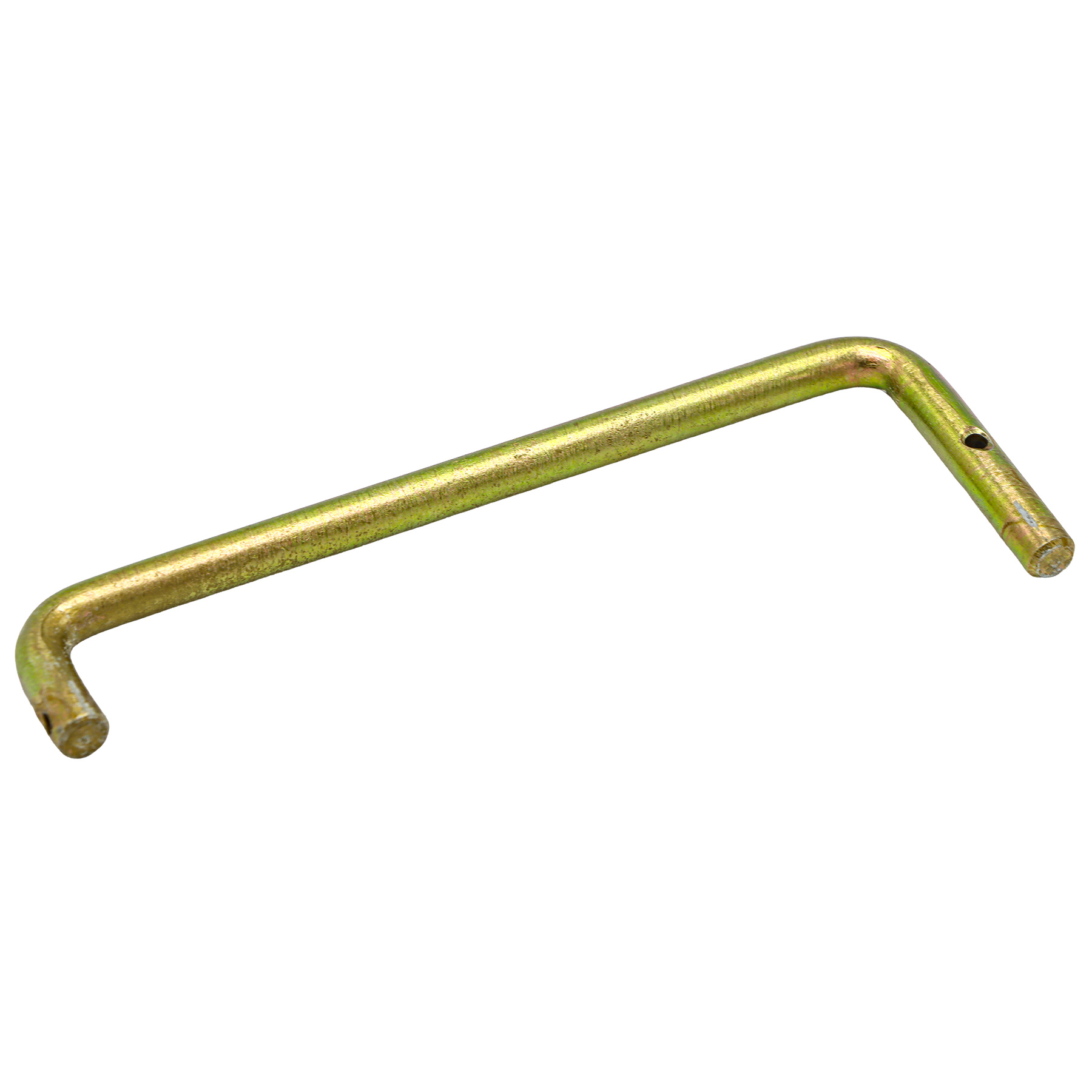

    LOD ACCEL

    • Part No. T2185-60161
    • DIA6
    • 1 shown on diagram
    $11.99
  • 21 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 1 shown on diagram
    $0.73
  • 22

    PIN, SNAP

    • Part No. 05525-50600
    • Applied Dates 2004-01-30 and up
    • DIA6
    • 2 shown on diagram
    $1.19
  • 23

    SPRING

    • Part No. T2350-60131
    • DIA1.0
    • 1 shown on diagram
    $4.99
  • 24

    CABLE, PEDAL ACCEL dnr v

    • Part No. T2185-60032
    • Applied Dates 2004-01-07 to 2004-05-10
    • Serial No. D70100001 to D70100104
    • * multiple options for #24
    • 1 shown on diagram
    $25.99
  • 24

    Pedal Accel Cabel

    • Part No. T2185-60033
    • Compatibility Interchngable
    • Applied Dates 2004-05-11 to 2005-01-17
    • Serial No. D70100105 to E70100080
    • * multiple options for #24
    • 1 shown on diagram
    $52.99
  • 24

    CABLE,PEDAL ACCEL v

    • Part No. T2185-60034
    • Compatibility No interchange
    • Applied Dates 2005-01-18 and up
    • Serial No. E70100081 and up
    • * multiple options for #24
    • 1 shown on diagram
    $51.99
  • 25 Flat Washer M6

    Flat Washer M6

    • Part No. 04013-50060
    • M6
    • 1 shown on diagram
    $0.73
  • 26

    PIN, SNAP

    • Part No. 05525-50600
    • DIA6
    • 1 shown on diagram
    $1.19
  • 27

    BRACKET

    • Part No. T4686-60082
    • Applied Dates Up to 2005-04-11
    • 1 shown on diagram
    $49.99
  • 28

    Accel Lever Obs V

    • Part No. T2185-60141
    • Applied Dates 2004-01-12 to 2005-04-11
    • 1 shown on diagram
    $65.99
  • 29

    Flat Washer M12

    • Part No. 04011-50120
    • Applied Dates Up to 2005-04-11
    • M12
    • 1 shown on diagram
    $0.73
  • 30

    RING,SNAP

    • Part No. 04612-00120
    • Applied Dates Up to 2005-04-11
    • #12
    • 1 shown on diagram
    $0.79
  • 31

    GROMMET

    • Part No. T4682-55801
    • Applied Dates Up to 2005-04-11
    • 2 shown on diagram
    $3.99
