PTO SHIFT LEVER GROUP - CK30M-T390A

Kioti TRACTOR | CK Series | CK25

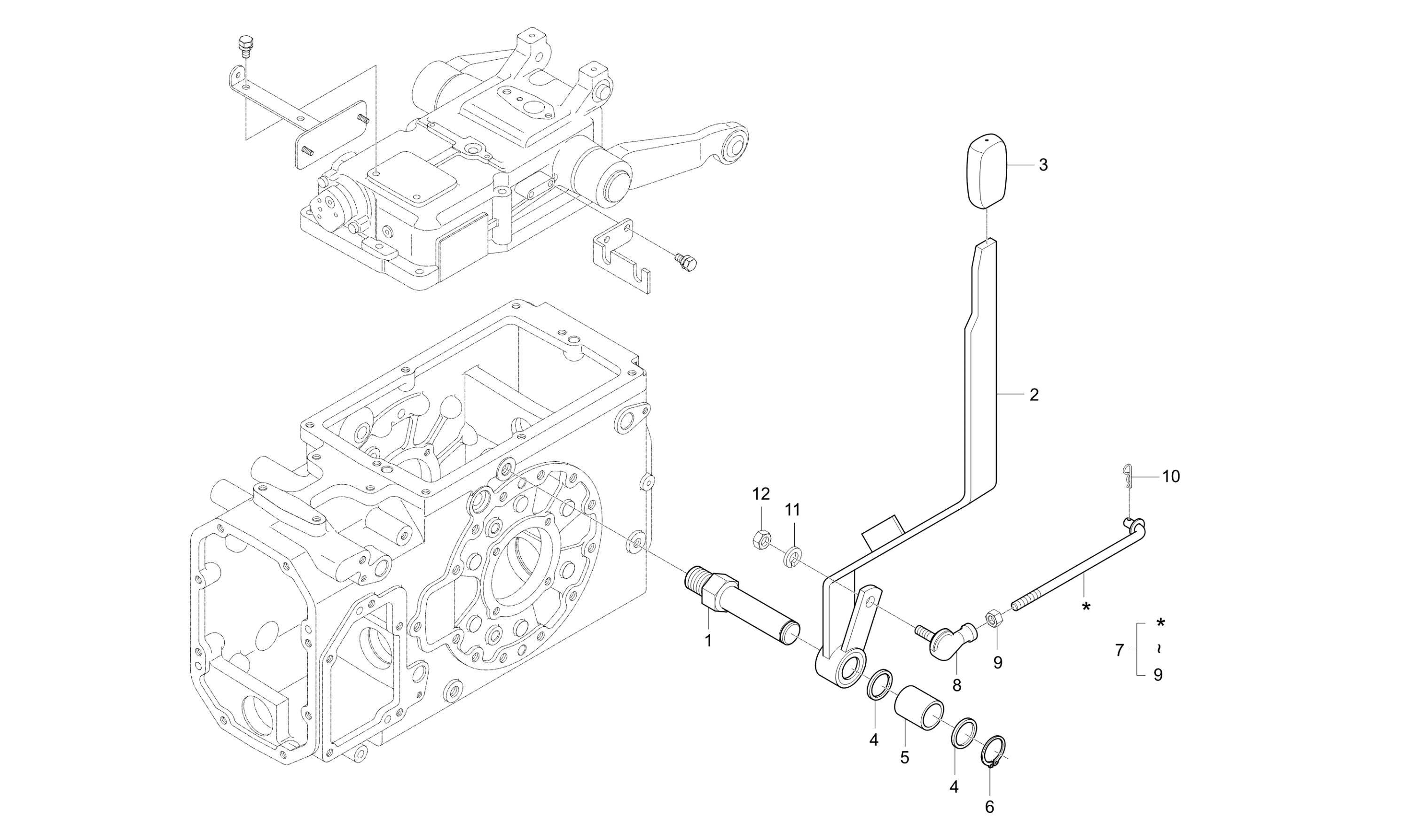

Diagram for PTO SHIFT LEVER GROUP - CK30M-T390A
  • 1

    PTO Shaft

    • Part No. T2185-24283
    • HEX27
    • 1 shown on diagram
    $29.99
  • 2

    PTO Lever obs

    • Part No. T2185-25863
    • Applied Dates 2004-01-13 to 2004-03-07
    • * multiple options for #2
    • 1 shown on diagram
    $0.00
  • 2

    PTO Lever, Replacedbt T21785-25864BB

    • Part No. T2185-25864
    • Compatibility Interchngable
    • Applied Dates 2004-03-08 to 2004-04-28
    • Serial No. D70100001 and up
    • * multiple options for #2
    • 1 shown on diagram
    $59.99
  • 3 GRIP A

    GRIP A

    • Part No. T2350-25871
    • 1 shown on diagram
    $9.49
  • 4 Flat Washer M18

    Flat Washer M18

    • Part No. 04011-50180
    • M18
    • 2 shown on diagram
    $1.59
  • 5

    SPACER(MID PTO)

    • Part No. T2185-24292
    • 1 shown on diagram
    $13.99
  • 6 Snap Ring

    Snap Ring

    • Part No. 04612-00180
    • DIA18
    • 1 shown on diagram
    $1.09
  • 7

    Shuttle Rod

    • Part No. T2195-65651
    • 1 shown on diagram
    $72.99
  • 8

    Boll Joint (RH) (K2400-22541)

    • Part No. K2400-22541
    • M8*P1.25
    • 1 shown on diagram
    $46.99
  • 9 NUT

    NUT

    • Part No. 02112-50080
    • M8*P1.25
    • 1 shown on diagram
    $0.55
  • 10 Spring Lock Washer M8

    Spring Lock Washer M8

    • Part No. 04512-50080
    • M08
    • 1 shown on diagram
    $0.61
  • 11 Nut M8 P1.25

    Nut M8 P1.25

    • Part No. 02156-50080
    • M8XP1.25
    • 1 shown on diagram
    $0.85
  • 12 Hair Pin

    Hair Pin

    • Part No. 05525-50800
    • DIA8
    • 1 shown on diagram
    $1.29
