FRONT DRIVE LEVER GROUP - CK30M-T430A

Kioti TRACTOR | CK Series | CK25

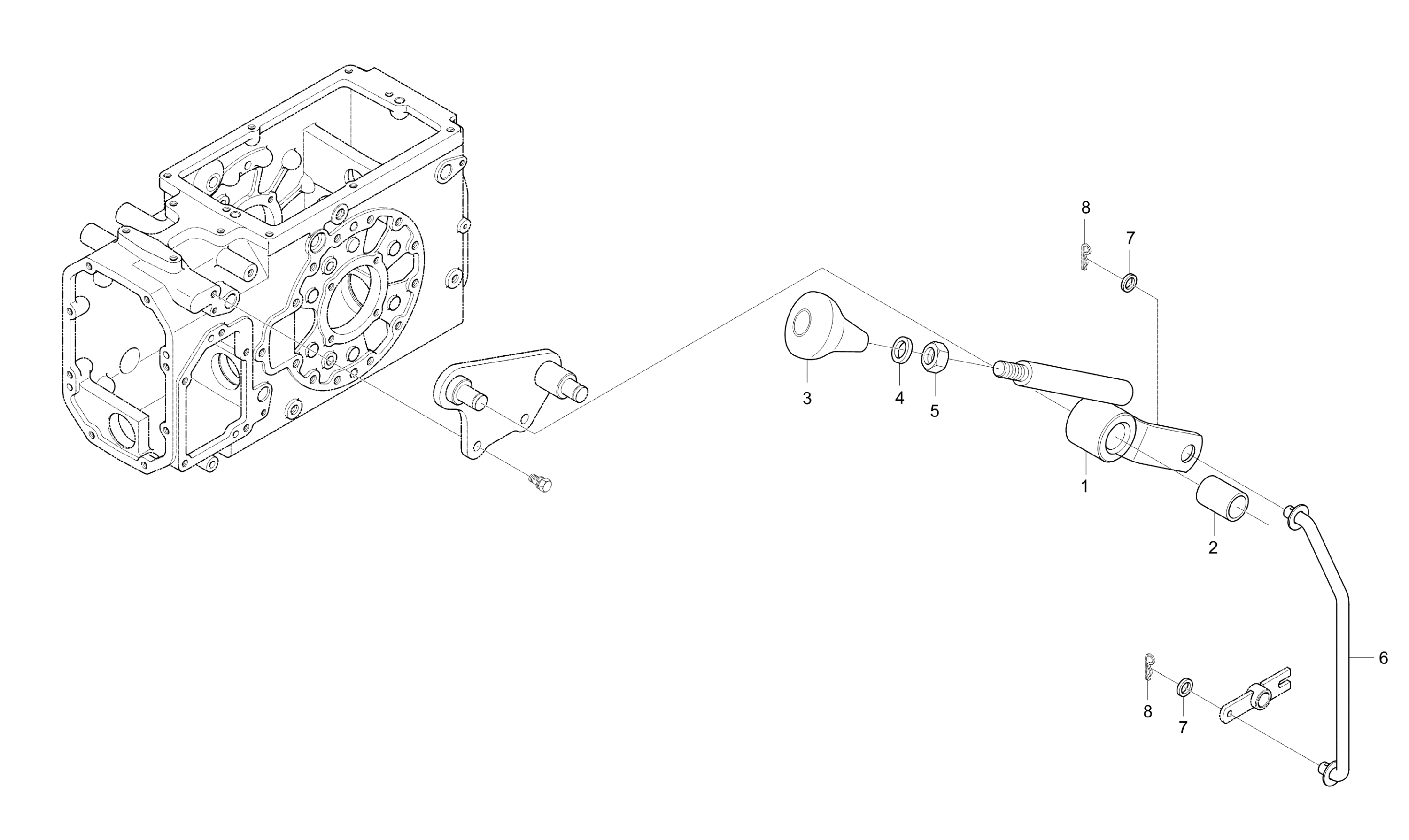

Diagram for FRONT DRIVE LEVER GROUP - CK30M-T430A
  • 1

    Front Wheel Lever, Replaced by T2185-44365BB

    • Part No. T2185-44364
    • Applied Dates 2004-01-16 to 2006-05-31
    • Serial No. D70100001 to F70100360
    • * multiple options for #1
    • 1 shown on diagram
    $42.99
  • 1

    LEVER,FRONT WHEEL

    • Part No. T2185-44365
    • Compatibility New repl old
    • Applied Dates 2006-06-01 and up
    • Serial No. F70100361 and up
    • * multiple options for #1
    • 1 shown on diagram
    $31.99
  • 2 BUSH, DU

    BUSH, DU

    • Part No. 08511-01825
    • 1 shown on diagram
    $9.99
  • 3

    GRIP(FRONT DRIVE) v

    • Part No. T2185-60932
    • Applied Dates 2004-11-16 to 2006-05-30
    • Serial No. D70100195 to F70100360
    • * multiple options for #3
    • 1 shown on diagram
    $27.99

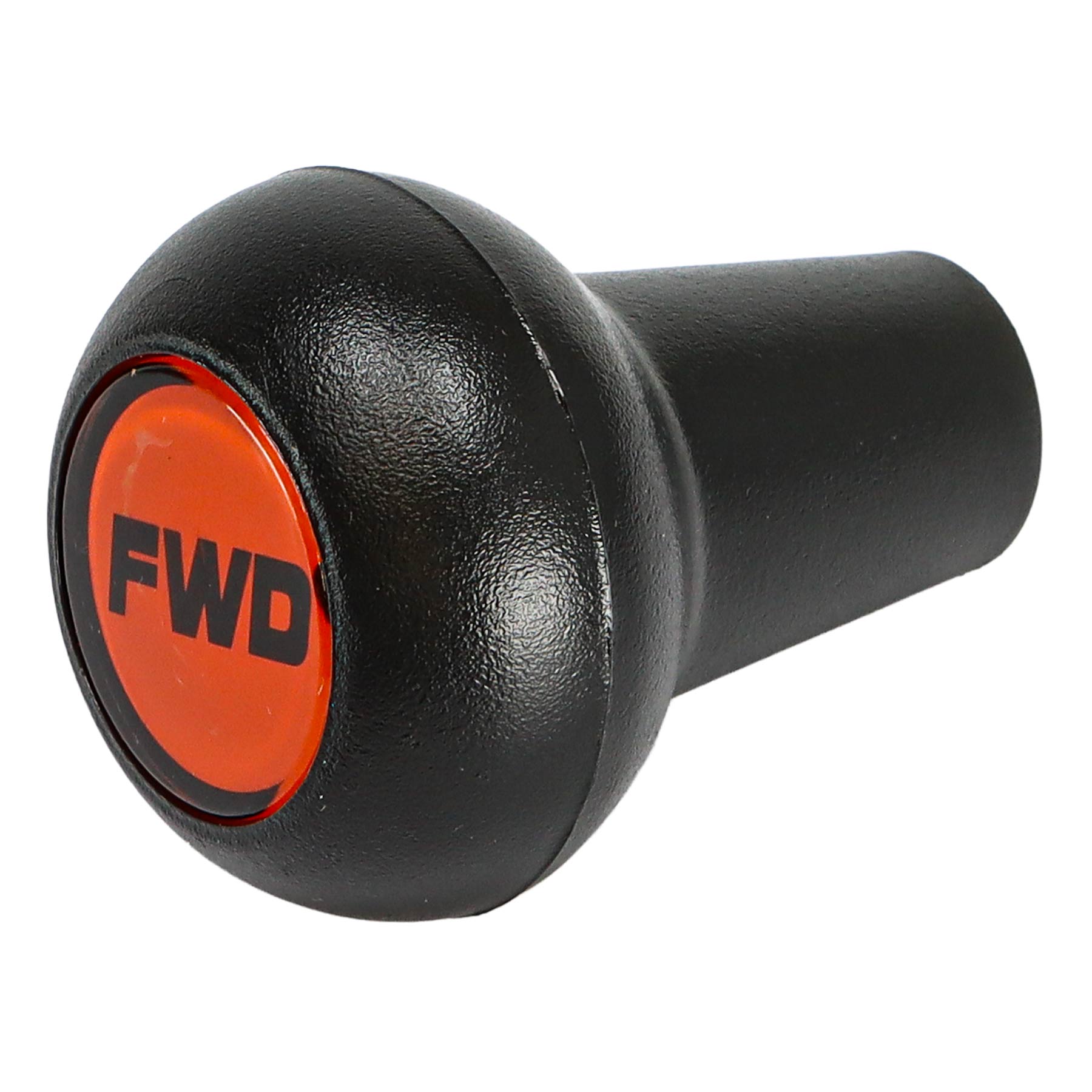

  • 3 GRIP FRONT DRIVE V

    GRIP FRONT DRIVE V

    • Part No. T2185-60933
    • Compatibility New repl old
    • Applied Dates 2006-05-31 and up
    • Serial No. F70100361 and up
    • * multiple options for #3
    • 1 shown on diagram
    $41.99
  • 4 Flat Washer M10

    Flat Washer M10

    • Part No. 04013-50100
    • M10
    • 1 shown on diagram
    $0.73
  • 5 Nut M10 P1.25

    Nut M10 P1.25

    • Part No. 02176-50100
    • M10XP1.25
    • 1 shown on diagram
    $0.98
  • 6

    Front Drive Rod

    • Part No. T2195-44341
    • 1 shown on diagram
    $14.99
  • 7

    Flat Washer M10

    • Part No. 04014-50100
    • M10
    • 2 shown on diagram
    $0.79
  • 8

    PIN, SNAP

    • Part No. 05525-51000
    • DIA10
    • 2 shown on diagram
    $1.29
